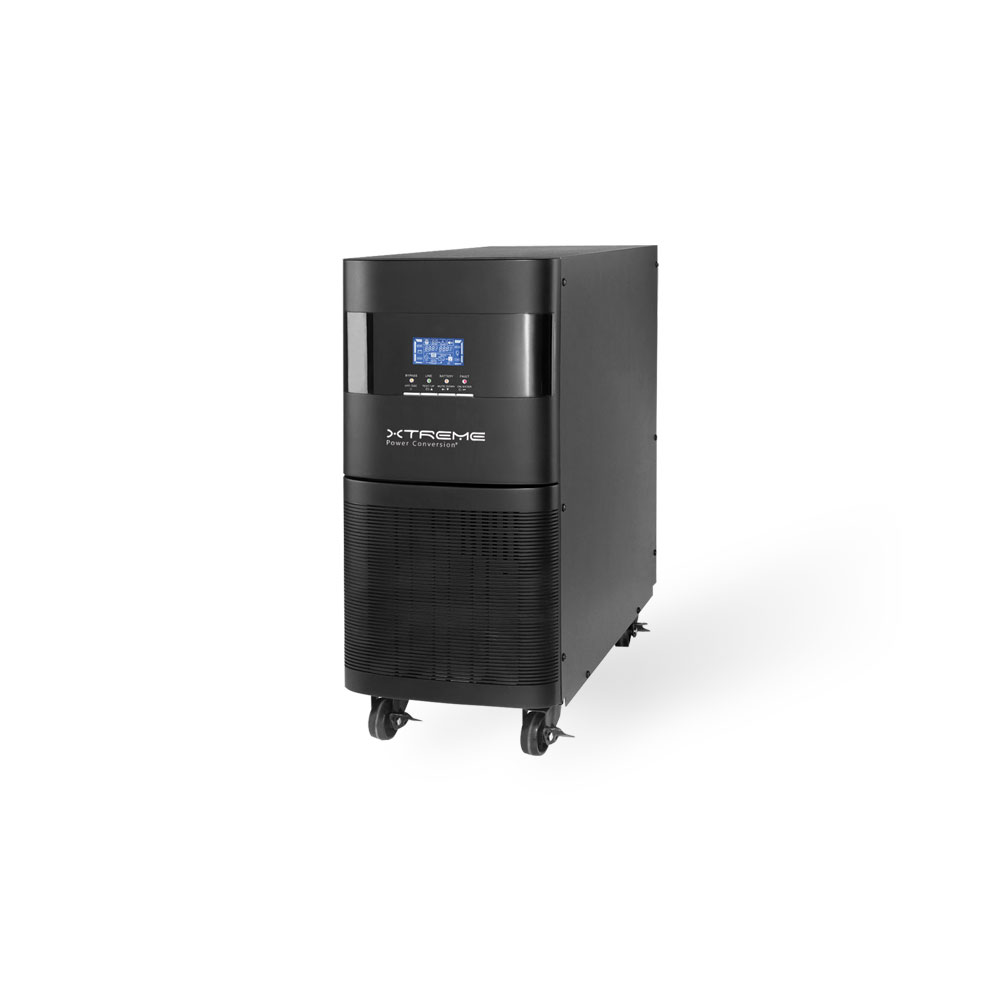

NXTi Online UPS
NXTi models are discontinued. Stock is available, but in limited quantities
6kVA & 10kVA
230VAC
An online, single-phase tower UPS for critical high power network applications.
The NXTi provides reliable power delivered via online double conversion technology. The NXTi is the perfect choice for critical business PCs, workstations, servers, IT equipment, communications systems or networking equipment.
Product Snapshot
- Available models: 6kVA, 10kVA
- Built-in maintenance bypass
- Internal or external battery models available
- 98% efficiency in ECO mode saves utility power
- Online double conversion operation or ECO mode
- Parallel up to 3 x 10kVA systems for capacity or N+1 redundancy
[table colalign=”left|left|center|center|center|center|center|center “]
,MODEL NUMBER,NXTi-6K 1-1,NXTi-6KL 1-1,NXTi-10K 1-1,NXTi-10KL 1-1,NXTi-10K 3-1,NXTi-10KL 3-1
INPUT,Capacity,6kVA (4.8kW)[attr colspan=”2″],10kVA (8kW)[attr colspan=”4″]
,Voltage,208/220/230/240VAC[attr colspan=”4″],400/415VAC[attr colspan=”2″]
,Frequency,50/60Hz ± 4Hz[attr colspan=”6″]
,Power factor,≥ 0.99[attr colspan=”6″]
,Harmonic distortion,≤ 5% THD non-linear load[attr colspan=”6″]
OUTPUT,Rated voltage,208/220/230/240VAC[attr colspan=”6″]
,Power factor,0.8[attr colspan=”6″]
,Frequency,50/60Hz ± 4Hz[attr colspan=”6″]
,Crest factor,3:1[attr colspan=”6″]
,Overload capacity,110% for 10 min; 130% for 1 min; > 130% for 1 sec[attr colspan=”6″]
,Efficiency,”98% ECO mode, 90% online mode”[attr colspan=”6″]
BATTERY,Battery type,(20) 12V 7AH,N/A,(20) 12V 9AH,N/A,(20) 12V 9AH,N/A
,Battery quantity and size,1A,4A,1A,4A,1A,4A
PHYSICAL,Input/output,Hardwire[attr colspan=”6″]
,UPS dimensions (W x D x H),250 x 592 x 576 mm (9.8 x 23.3 x 22.7 in) [attr colspan=”6″]
,UPS weight,81 kg (179 lbs),25 kg (55 lbs),83 kg (183 lbs),27 kg (60 lbs),83 kg (183 lbs),28 kg (60 lbs)
,EBP dimensions (W x D x H),250 x 592 x 576 mm (9.8 x 23.3 x 22.7 in) [attr colspan=”6″]
,EBP weight,125 kg (276 lbs) [attr colspan=”6″]
ENVIRONMENT,Temperature,0–40°C (32–104°F) [attr colspan=”6″]
,Humidity,0–95% non-condensing[attr colspan=”6″]
,Audible noise, < 55dBA[attr colspan=”2″],< 58dBA[attr colspan=”4″]
,Altitude,”3,500 m (11,500 ft) above sea level”[attr colspan=”6″]
APPROVALS,,”CE, EN/IEC 62040-2, EN/IEC 62040-1-1, RoHS compliant”[attr colspan=”6″]
COMMUNICATIONS INTERFACE,,”RS232, USB, intelligent slot for optional Web/SNMP, AS400/dry contact, and Modbus cards”[attr colspan=”6″]
INCLUDED IN BOX,,”User manual, monitoring software, CD, USB cable”[attr colspan=”6″]
AVAILABLE OPTIONS,,”Extended warranty, maintenance bypass, cord assemblies (6K)” [attr colspan=”6″]
[/table]
