Key specifications

Ten slots, 50 to 700 kW

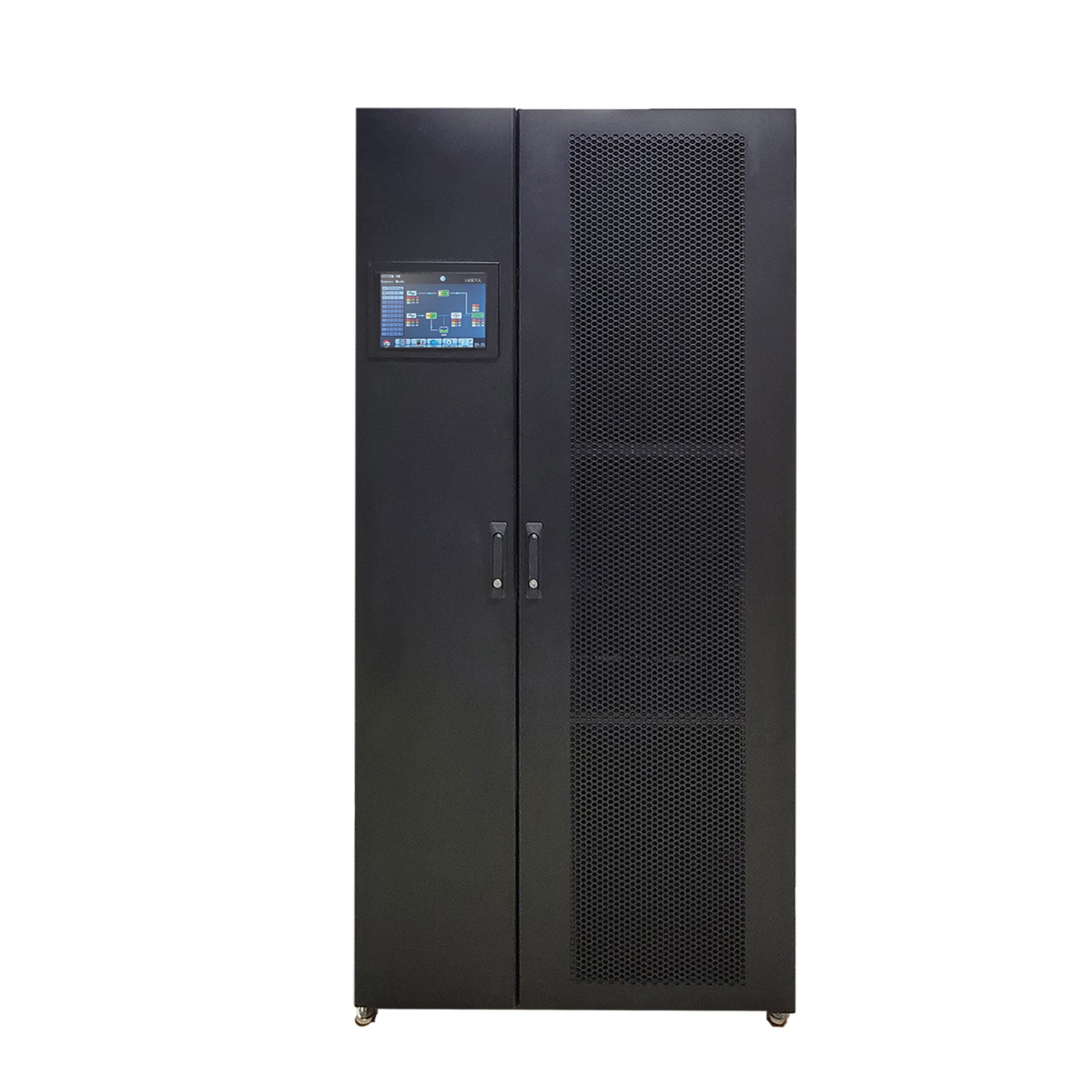

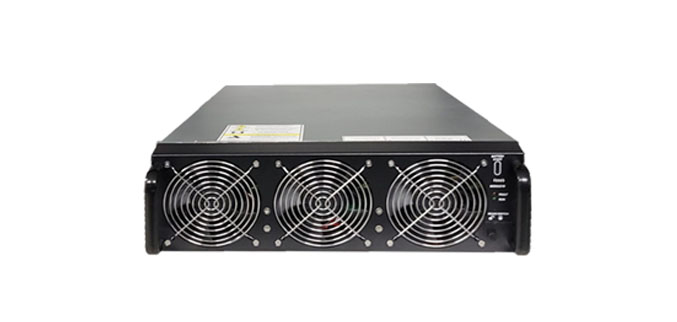

The X90-10S is built around hot-swappable power modules in a ten-slot frame, scaling from 50 kW up to 700 kW. With 70 kW power modules the ten slots span 70–700 kW; with 50 kW modules, 50–500 kW. Capacity grows by adding modules as load requirements change, with N+1 or 2N redundancy configured within installed slot capacity. Full front access means no rear clearance is required for installation or service, and runtime is provided by external X90-BC modular battery cabinets (or compatible third-party battery systems) for flexible, scalable runtime.

Battery options & the SMB-700 bypass

Runtime is external and modular. The X90-10S is compatible with X90-BC battery cabinets, the Vision REVO TP Series LFP battery, and properly configured third-party battery cabinets — all on the UPS split DC bus, ±240 VDC by default (±192 to ±240 VDC supported). Because the batteries are external, runtime, cycle life, footprint, and temperature range can be matched to the site rather than fixed by the UPS. An X90-BC cabinet holds up to 36 hot-swappable modules (72 with a second cabinet) and supports VRLA or lithium-ion chemistries.

The Vision REVO TP Series is a Lithium Iron Phosphate (LFP) battery purpose-built for X90 applications. Each cabinet supports up to 200 kW of UPS load and 51.2 kWh in a compact 23.6″-wide footprint with front access only — no rear clearance, and no separate AC supply for the controls. It is UL 1973 certified and UL 9540A tested with no thermal runaway or propagation, includes a global battery management system with automatic cell balancing, and carries a 5-year warranty. Models scale from TP80 to TP200 on the same split DC bus.

For service and repair without dropping the load, the X90-10S also pairs with the optional SMB-700 — a matching maintenance-bypass cabinet 17.7 inches wide. Rated to 65 kAIC, it provides a manual maintenance bypass (Q1 main, Q2 maintenance bypass, Q3 output) in a compact footprint, enabling safe full-system service with the load powered.

What defines the X90-10S

The X90 platform family

X90-10S is the modular, externally-batteried enterprise platform within the X90 family — used in data centers, industrial automation, medical imaging, and modular infrastructure that needs scalable capacity and redundancy beyond a single integrated cabinet. The family scales on a shared architecture:

See the full platform: X90 Modular UPS Series →

Scale capacity and runtime independently

Large-scale UPS protection has traditionally meant fixed-capacity systems sized for peak load on day one. The X90-10S scales on a modular frame — add power modules as load grows and external battery cabinets as runtime needs change — so capital is matched to actual capacity. Hot-swappable modules and the optional SMB-700 bypass keep the system serviceable without downtime.

Runtime depends on battery configuration, load, battery age, and site conditions. For specific runtime tables, extended-runtime configurations, or custom battery sizing, see the datasheet or contact sales. N+1 or 2N redundancy is configured within installed slot capacity and is not implied at a frame’s fully-populated maximum.

Model selection & technical summary

Shared specifications

The top of the X90 modular platform

Where the X90-10S is deployed

Deploying in a healthcare or imaging facility? See UPS for medical imaging — or, for MRI specifics, UPS for MRI systems.
