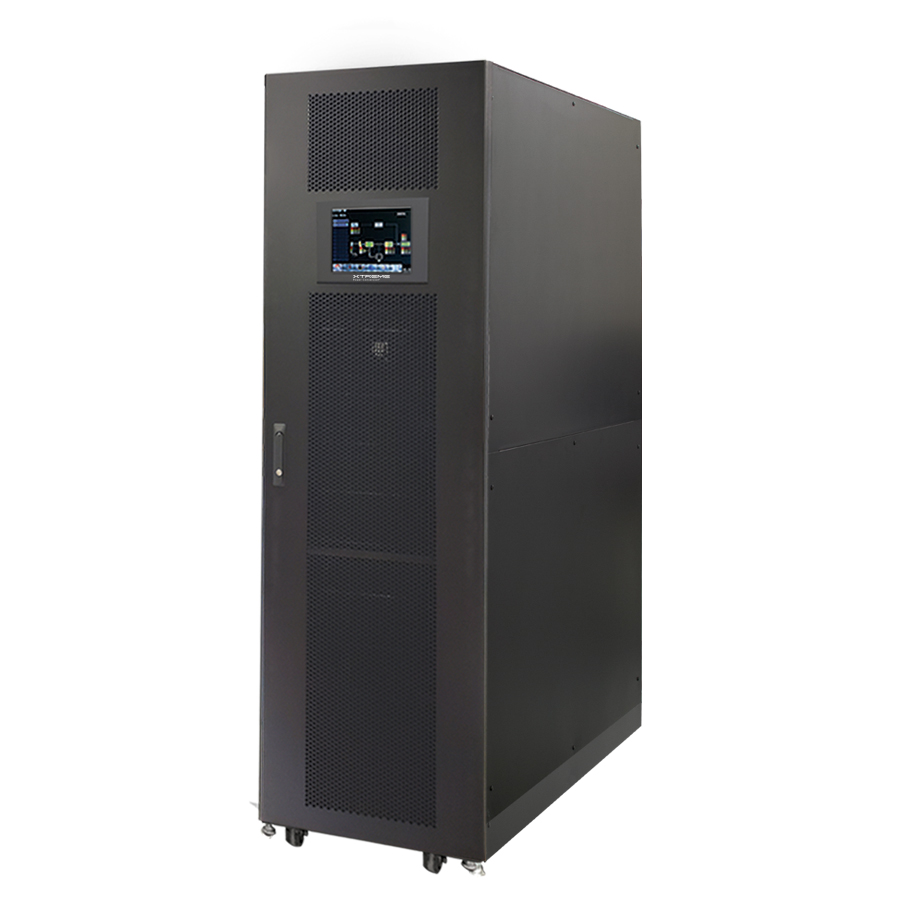

M90-80 Modular Online Three Phase UPS

15kVA-80kVA

208/120VAC Three Phase

Mission critical availability with scalable, modular, high density M90-80 for 15kVA to 80kVA applications

The M90-80 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90-80 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. Because the modules are independent, they can be hot swapped without risk to the critical load.

Product Snapshot

  • Capacities: 15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 45kVA/40.5kW, 60kVA/54kW, 80kVA/72kW
  • Modular for capacity or redundancy
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 94% online efficiency
  • UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
  • 2 year electronics, 2 year battery warranty (USA and Canada)
MODEL NUMBER M9080-20 M9080-40 M9080-60 M9080-80
INPUT Capacity 20kVA (18kW)   40kVA (36kW) 60kVA (54kW) 80kVA (72kW)
Nominal 208/120V 50/60Hz auto-sensing
Range 121–253VAC* (L-L), 40–70Hz
OUTPUT Voltage 208/120VAC
Frequency 50/60Hz ± 0.5Hz
THD (full load) < 2%
Efficiency 98% ECO mode, ≥ 94% online mode
Overload capacity 105%-110% for 60 min;110%-125% for 10min; 126%-150% for 1min; <150% for 200ms
BATTERY SYSTEM Nominal voltage ±120V
Charging current (programable) 8A 16A 24A 32A
PHYSICAL Enclosure 23.6"W x 43.3"D x 79.1"H / 657 lbs
Power module 19.5”W x 29.5”D x 5.5”H / 74 lbs
Battery module 4.3”W x 28.5”D x 6.5”H / 70 lbs
ENVIRONMENT Temperature 0–40°C (32–104°F)
Altitude 5,200 ft above sea level
Audible noise < 69dBA at 1m
APPROVALS UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
WARRANTY 2 years (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX User manual, RS-232 cable, unloading ramp, ViewPower Software
