Key specifications

Five slots, 50 to 350 kW

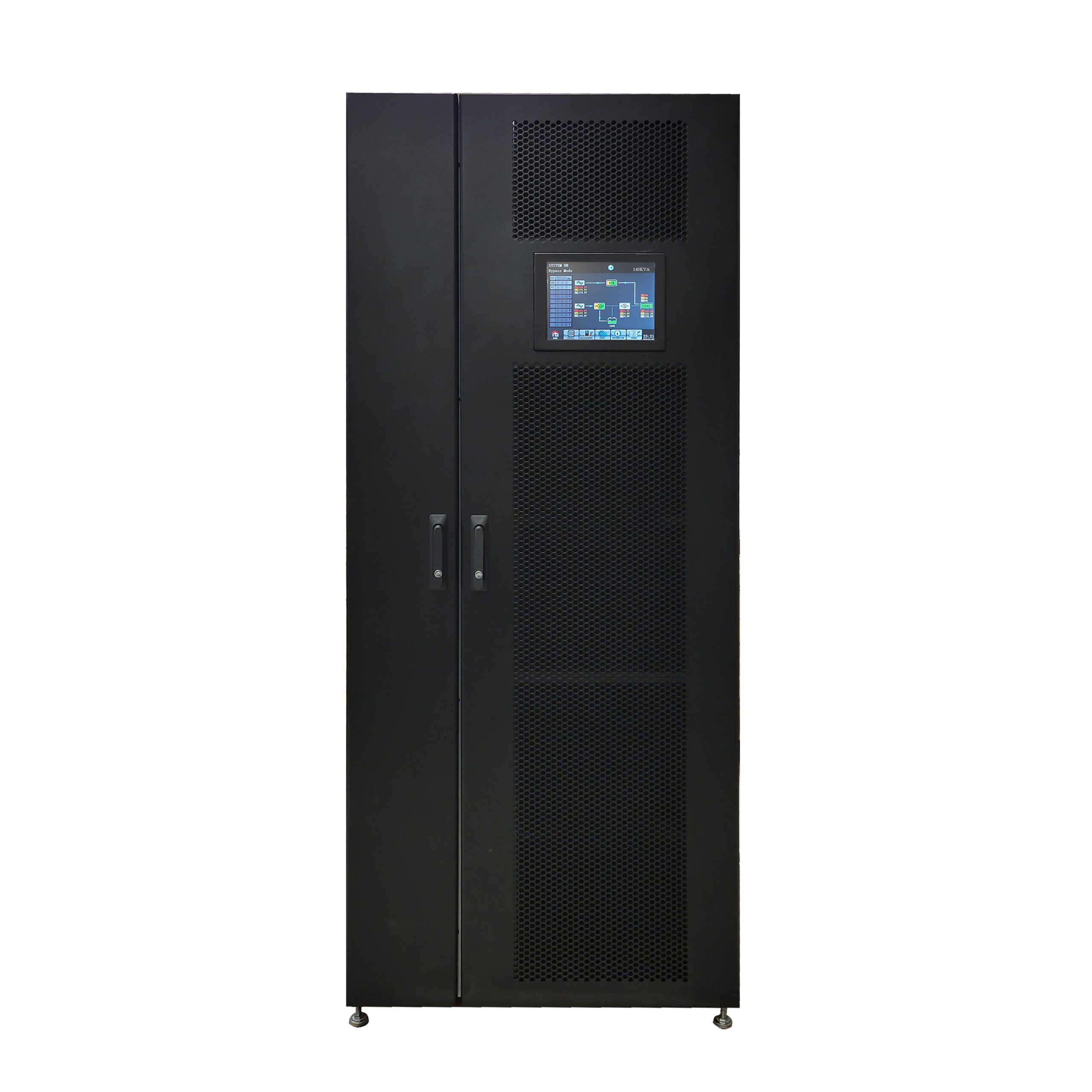

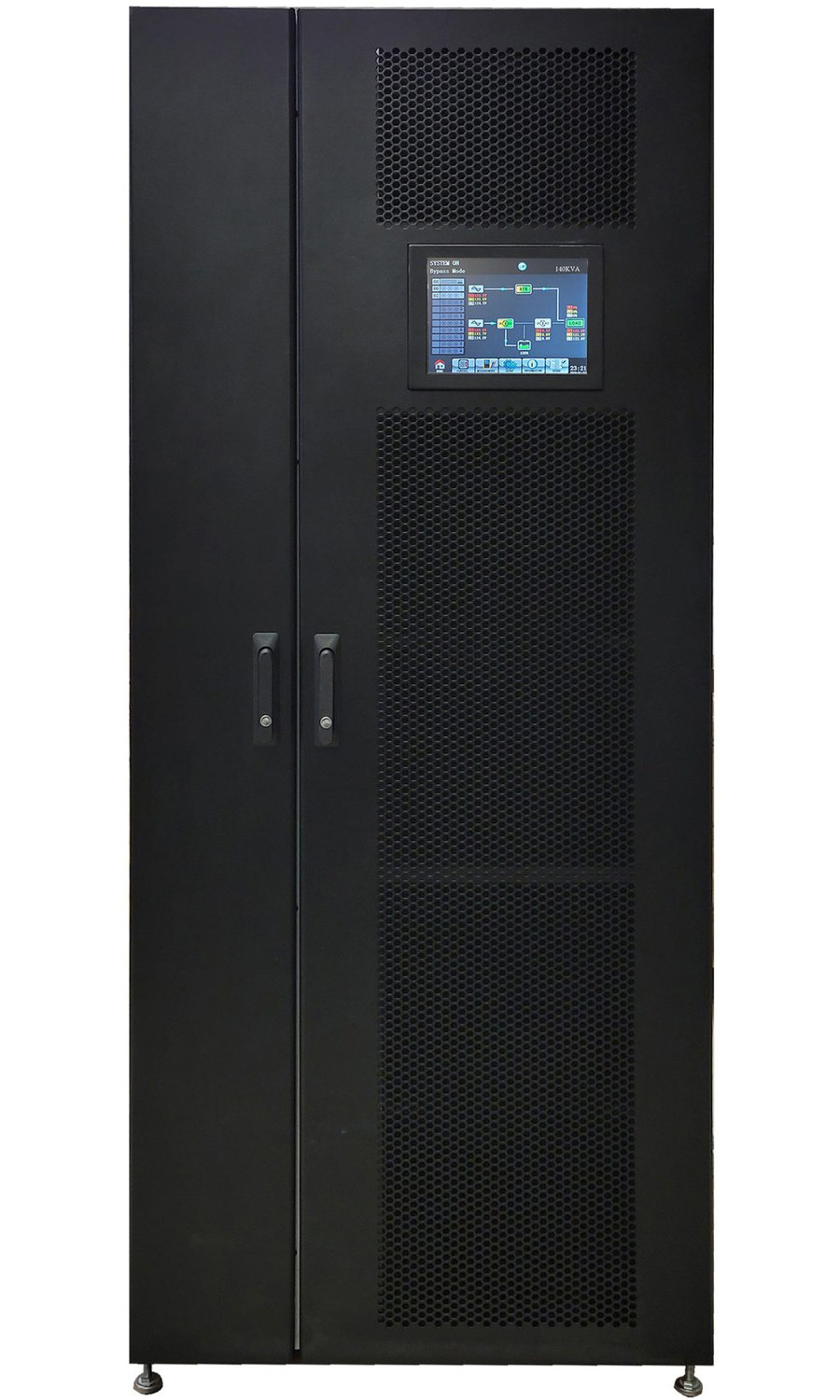

The X90-5S is built around hot-swappable power modules in a five-slot frame, scaling from 50 kW up to 350 kW (5 × 70 kW) — or up to 250 kW with 50 kW modules. Capacity grows by adding modules as load requirements change, with N+1 redundancy configured within installed slot capacity. Full front access means no rear clearance is required for installation or service, and runtime is provided by external X90-BC modular battery cabinets (or compatible third-party battery systems) for flexible, scalable runtime.

X90-BC batteries & the SMB-350 bypass

Runtime lives in the X90-BC — a matching external battery cabinet that holds up to 36 hot-swappable battery modules behind a front battery disconnect, with a second cabinet extending capacity to 72 modules. Because the batteries are external and modular, the X90-BC supports a range of chemistries — VRLA (lead-acid), lithium-ion, nickel-zinc, and sodium-ion — so runtime, cycle life, footprint, and temperature range can be matched to the site rather than fixed by the UPS.

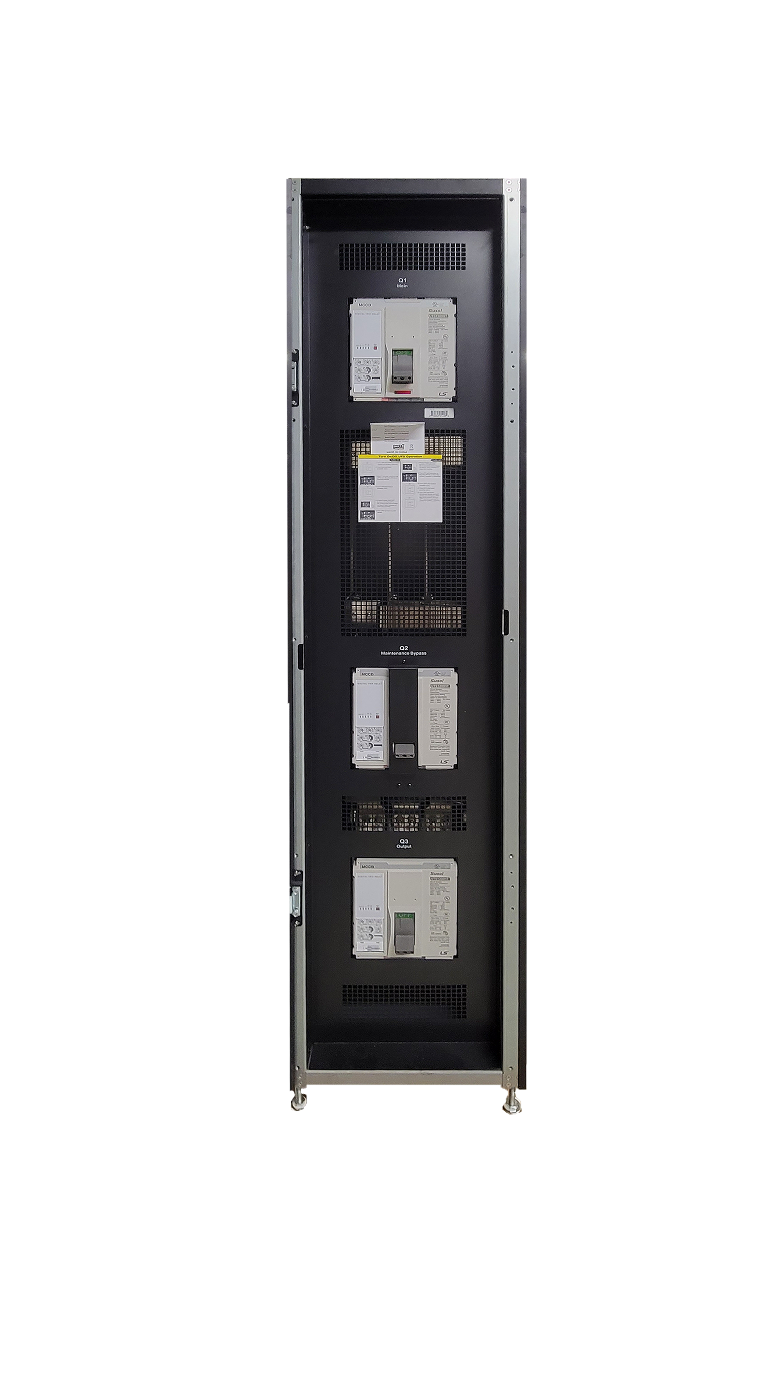

For service and repair without dropping the load, the X90-5S also pairs with the optional SMB-350 — a slim, matching maintenance-bypass cabinet just 11.8 inches wide. Rated to 65 kAIC, it provides a manual maintenance bypass (Q1 main, Q2 maintenance bypass, Q3 output) in the most compact footprint, enabling safe full-system service with the load powered.

What defines the X90-5S

The X90 platform family

X90-5S is the modular, externally-batteried enterprise platform within the X90 family — used in data centers, industrial automation, medical imaging, and modular infrastructure that needs scalable capacity and redundancy beyond a single integrated cabinet. The family scales on a shared architecture:

See the full platform: X90 Modular UPS Series →

Scale capacity and runtime independently

Large-scale UPS protection has traditionally meant fixed-capacity systems sized for peak load on day one. The X90-5S scales on a modular frame — add power modules as load grows and external X90-BC cabinets as runtime needs change — so capital is matched to actual capacity. Hot-swappable modules and the optional SMB-350 bypass keep the system serviceable without downtime.

Compare the X90-5S against platforms such as the Eaton 93PM: X90-5S UPS comparisons →

External X90-BC runtime, scaled in cabinets

The X90-5S uses external X90-BC modular battery cabinets for flexible, scalable runtime. One X90-BC supports up to 36 battery modules; a second X90-BC extends capacity to 72 modules. The modular architecture supports redundancy and serviceability through hot-swappable power and battery modules, allowing maintenance without system downtime.

Runtimes in minutes; vary with battery age and site conditions. Columns 16–36 use a single X90-BC cabinet; the shaded columns (40–72) require a second X90-BC. Load rows include 180 and 300 kW operating points that fall between catalog model ratings. For longer runtimes or custom battery configurations, contact sales. N+1 redundancy is configured within installed slot capacity and is not implied at a frame’s fully-populated maximum.

Model selection & technical summary

Shared specifications

Beyond 350 kW

Where the X90-5S is deployed

Deploying in a healthcare or imaging facility? See UPS for medical imaging — or, for MRI specifics, UPS for MRI systems.

X90 platforms & related guides
