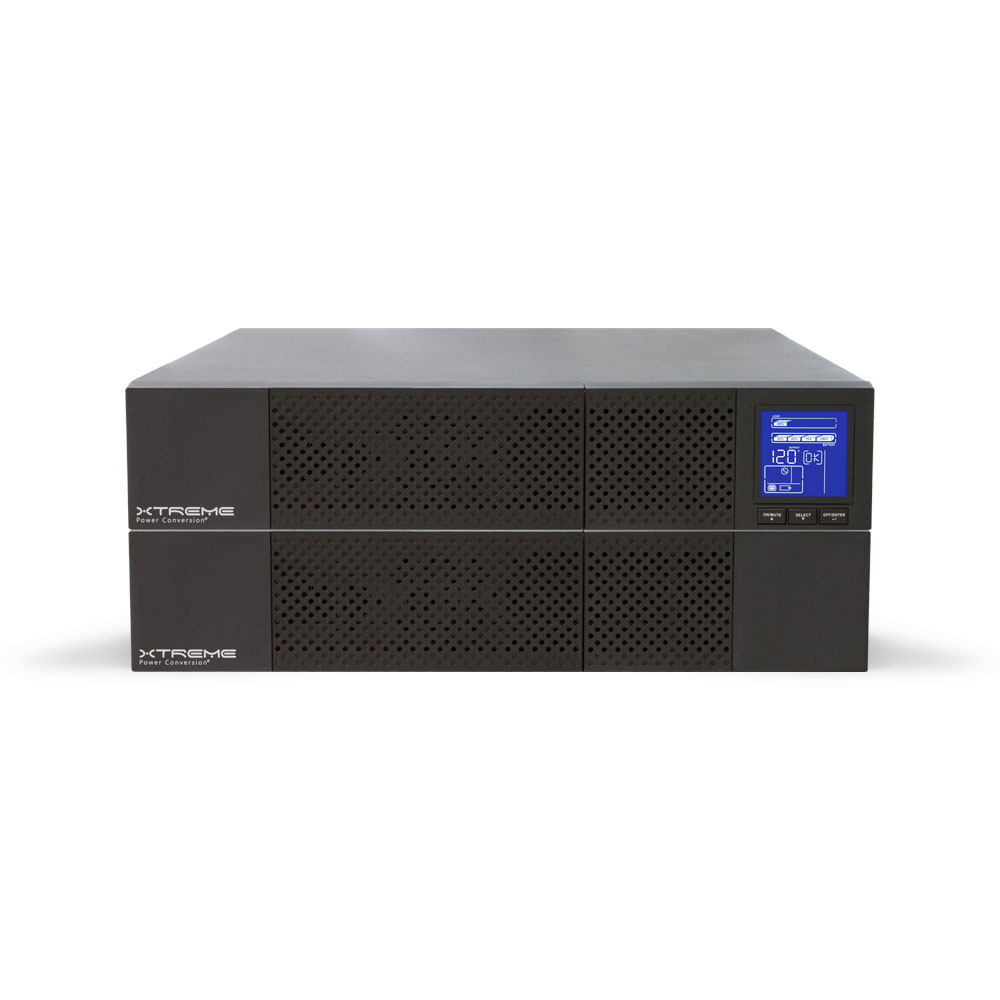

• P90L 1250VA-3000VA Online UPS

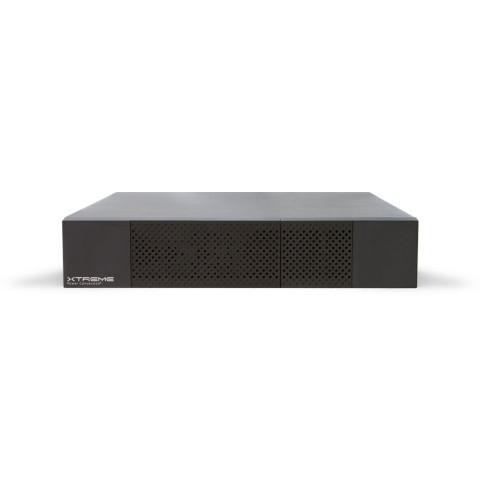

  • P90-BP36, P90-BP48, P90-BP72 Battery Pack front view

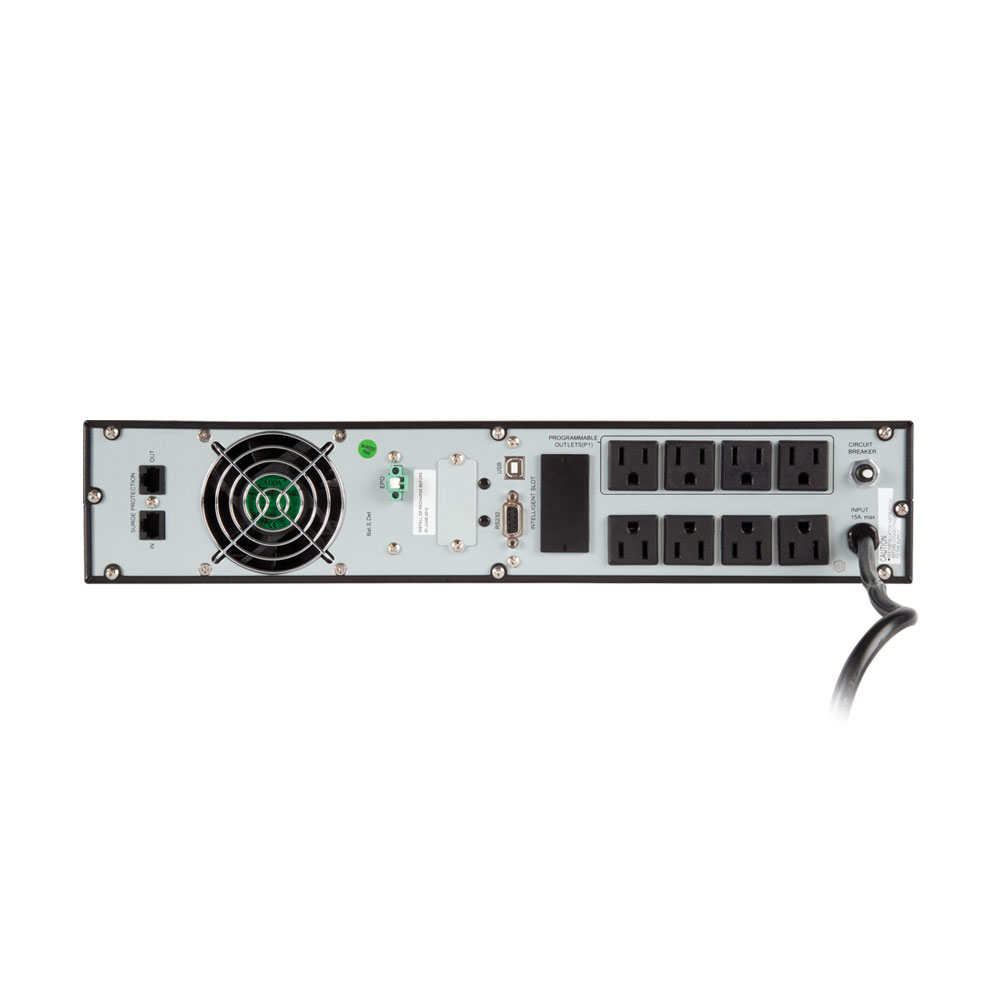

  • P90L-1500 rear view

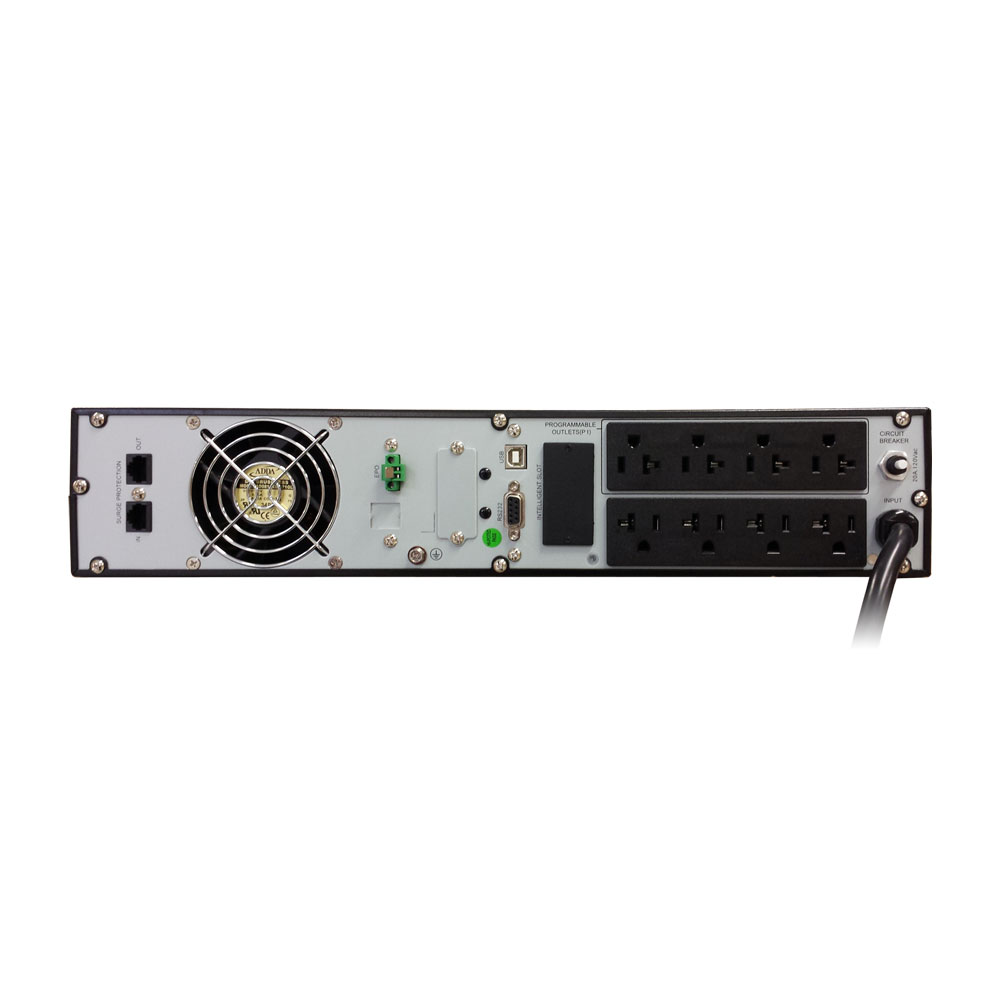

  • P90L-2000 rear view

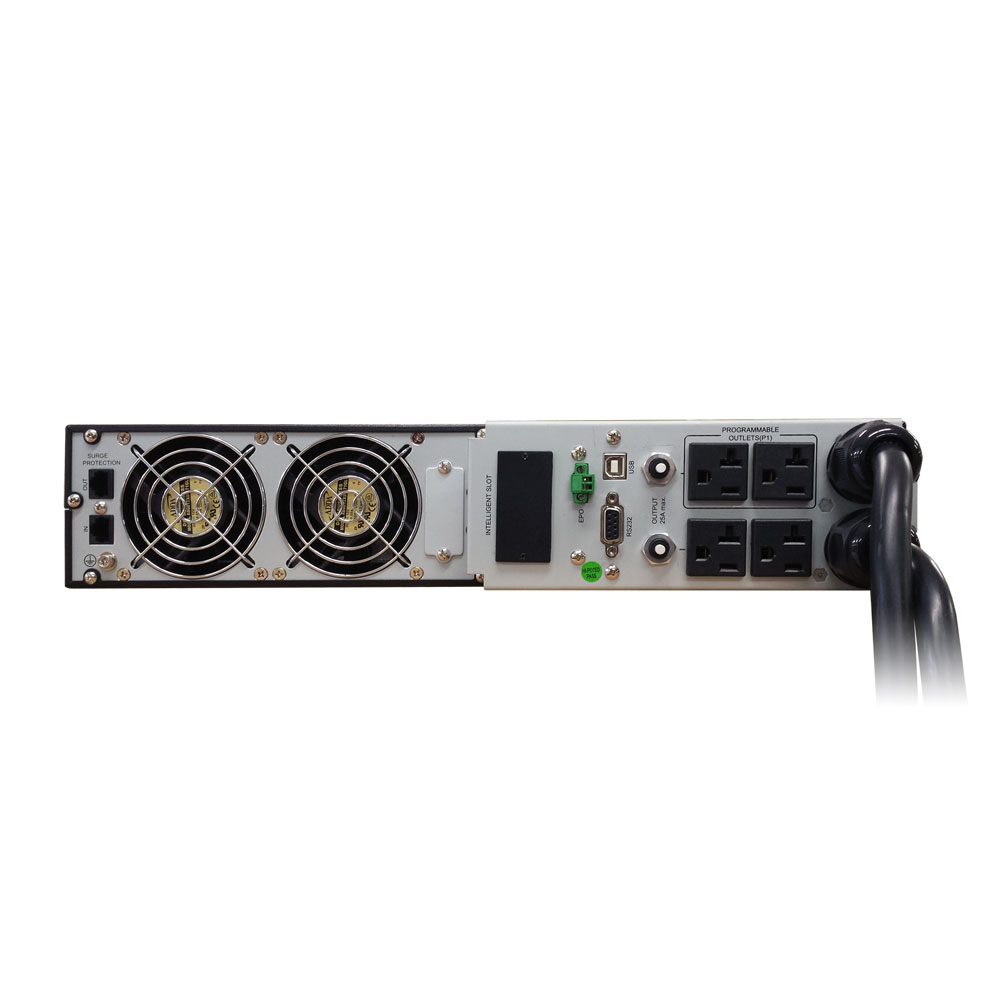

  • P90L-3000 rear view

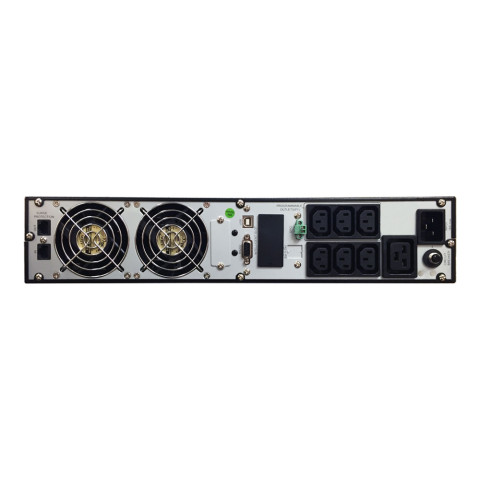

  • P90Lg-3000 rear view
  • P90-BP36, P90-BP48, P90-BP72 rear view
  • P90-RAIL Rail Kit
  • XPC-2POSTL Shelf Kit
  • SNMP-2PMINI Two Port SNMP Card
  • MODBUS-IN Modbus Card
  • RELAY-MINI Relay Card
  • XBDM-1015LV Bypass Distribution Module
  • XBDM-1020LV Bypass Distribution Module
  • XBDM-1030LV Bypass Distribution Module
  • XBDM-1020HV Bypass Distribution Module
  • XPD1415HV Power Distribution Unit
  • XPD1420HV Power Distribution Unit
  • XPDU-IEC Power Distribution Unit
  • XPD-AT15A 1500W Transformer Power Distribution Unit
  • XAT-400 Step Down Transformer

P90L Online UPS

1250VA-3000VA

120VAC or 208/230VAC

Online UPS with a powerful charger for extended battery runtimes.

The P90L is a true online UPS with an internal high capacity charger for connection to matching extended battery packs or large external systems.

The P90L provides tower, rack, and wall mount options. It protects your equipment from blackouts, brownouts, sags, and surges. The P90L offers the lowest total cost of ownership by cutting energy costs and lowering heat output.

Product Snapshot

  • Available models: P90L-1500, 2000, 3000
  • 98% efficiency in ECO mode
  • Tower, wall, 2-post and 4-post rack mounting configurations available
  • Extended battery runtimes with optional matching battery modules
  • UL, cUL, CE, RoHS
  • 3 years electronics, 3 years battery warranty (USA and Canada)
MODEL NUMBER P90L-1500 P90L-2000 P90L-3000 P90Lg-3000
CAPACITY AC output 1250VA (1125W) 1700VA (1530W) 2500VA (2250W) 3000VA (2400W)
DC charging 246W 328W 493W 656W
INPUT Voltage range 50–150VAC* 110–300VAC*
Frequency 50/60Hz auto-sensing
OUTPUT Voltage 120VAC nominal (100/110/115VAC selectable)** 208/220/230/240VAC***
Frequency 50/60Hz ± 0.5Hz
Overload capacity 125% 2 min; 150% 10 sec; > 150% 1 sec
THD (full load) < 2%
Crest factor 5:1
BATTERY CHARGER Charger amps 6A
Nominal/float voltage 36/41VDC 48/55VDC 72/82VDC
PHYSICAL UPS dimensions (W x D x H) 17.2 x 18.9 x 3.5 in 17.2 x 18.9 x 3.5 in 17.2 x 25.8 x 3.5 in
UPS weight 33 lbs 35 lbs 47 lbs
Input connection 6 ft, 5–15P 6 ft, 5–20P 6 ft, L5–30P 8 ft, C19 to L6-20P
Output connection (8) NEMA 5–15R (8) NEMA 5–15/20R (1) NEMA L5–30R + (4) NEMA 5–15/20R (1) IEC C19 + (6) IEC C13
ENVIRONMENT Efficiency Up to 98% ECO mode and 92% online mode (90% online mode for P90Lg-3000)
Operating temperature 32–104°F (0–40°C)
Audible noise < 50dBA
Altitude 11,500 ft above sea level
OPTIONAL BATTERY PACKS Model number P90-BP36 / 36E P90-BP48 P90-BP72
BP dimensions (W x D x H) 17.2 x 18.9 x 3.5 in /17.2 x 23.6 x 3.5 in (E) 17.2 x 18.9 x 3.5 in 17.2 x 23.6 x 3.5 in
BP weight 58.1 lbs / 104.4 lbs (E) 74.6 lbs 104.4 lbs
Battery quantity/type (6) 12V9AH/36V / (12) 12V9AH / 36V (E) (8) 12V9AH/48V (12) 12V9AH/72V
APPROVALS UL, cUL, RoHS CE, RoHS
WARRANTY 3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX Software CD, horizontal brackets, tower pedestals, 16 in battery cable kit
AVAILABLE OPTIONS 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit

*Depending on load level; **P90L capacity derates 20% at 100V output voltage; ***P90Lg-3000 capacity derates 20% at 208VAC output voltage

  1. UPS Battery Packs
    Model Description Unit Weight Unit Dimensions
    P90-BP36 36V Battery Pack for P90L-1500, 2U 58.1 lbs 17.2” x 19.9” x 3.5”
    P90-BP36E 36V 4 String Extended Battery Pack for P90L-1500, 2U 104.4 lbs 17.2” x 24.8” x 3.5”
    P90-BP48 48V Battery Pack for P90L-2000, 2U 74.6 lbs 17.2” x 19.9” x 3.5”
    P90-BP72 72V Battery Pack for P90L-3000, P90Lg-3000, 2U 104.4 lbs 17.2” x 24.6” x 3.5”
  2. Mounting Kits
    Model Description Unit Weight Unit Dimensions
    P90-RAIL 4-Post Rail Kit 5 lbs 3.8″ x 19.8″ x 2.8″
    XPC-2PRAIL 2-Post Rail Kit; Rated for 125 lbs 5 lbs 4.0” x 20.0” x 3.0”
    XPC-2POSTL 2-Post Shelf Kit; Rated for 150 lbs 9 lbs 21.5″ x 23.3″ x 3.5″
  3. Connectivity
    Model Description Unit Weight Unit Dimensions
    SNMP-2PMINI Two Port Internal SNMP Card 1 lb 7.25″ x 6″ x 2.5″
    SNMP-EMD Environmental Monitoring Device 1 lb 7.25″ x 6″ x 2.5″
    MODBUS-IN Modbus Card 1 lb 7.25″ x 6″ x 2.5″
    RELAY-MINI General Relay Contacts with DB9 & Terminal Block Adapter 1 lb 7.25″ x 6″ x 2.5″
  4. Bypass Distribution Modules
    Model Description Utility Input Output Connections UPS Connections Unit Weight Unit Dimensions
    XBDM-1015LV Bypass 15A/120VAC for use with P90L-1500 5–15P, 12ft (6) 5–15R front, (4) 5–15R back 5-15R 3.4 lbs 19” x 3.5” x 1.75”
    XBDM-1020LV Bypass 20A/120VAC for use with P90L-2000 5–20P, 12ft (6) 5–20R front, (4) 5–20R back 5-20R 3.4 lbs 19” x 3.5” x 1.75”
    XBDM-1030LV Bypass 30A/120VAC for use with P90L-3000, P90Lg-3000 L5–30P, 6ft (6) 5–20R front, (4) 5–20R back L5-30R 3.4 lbs 19” x 3.5” x 1.75”
    XBDM1020HV2 Bypass 16A Capacity for use with P90Lg-3000 (Includes (2) IEC C20 C19 Cord Kit) IEC C20 inlet (2) IEC C19 + (4) IEC C13 front, (4) IEC C13 back IEC C20 3.5 lbs 19.3″ x 3.5″ x 1.75″
  5. Power Distribution Units & Transformers
    Model Description Input Power Cord Outlets Unit Weight Unit Dimensions
    XPD-1415HV 120V Basic Power Distribution Unit 5–15P, 12ft (14) 5–15R 3.5 lbs 19.0″ x 3.5″ x 1.75″
    XPD-1420HV 120V Basic Power Distribution Unit L5–20P, 12ft or 5–20P with adapter (14) 5–25R 4.8 lbs 19.0″ x 3.5″ x 1.75″
    XPDU-IEC 230V Basic Power Distribution Unit for use with P90Lg-3000 IEC C20 inlet (10) IEC C13 + (2) IEC C19 2.6 lbs 19.0″ x 3.5″ x 1.75″
    XPD-AT15A 1500W Transformer PDU with Meter 208V to 120V for use with P90Lg-3000 Detachable IEC C14, 3ft (16) 5–15R 19.7 lbs 19.0” x 10.5” x 3.5”
    XAT-400 400VA Step Down Transformer 208V to 120V for use with P90Lg-3000 208V IEC C14, 2ft 120V 5–15R, 2ft 8.0 lbs 7.0” x 6.8” x 5.9”
