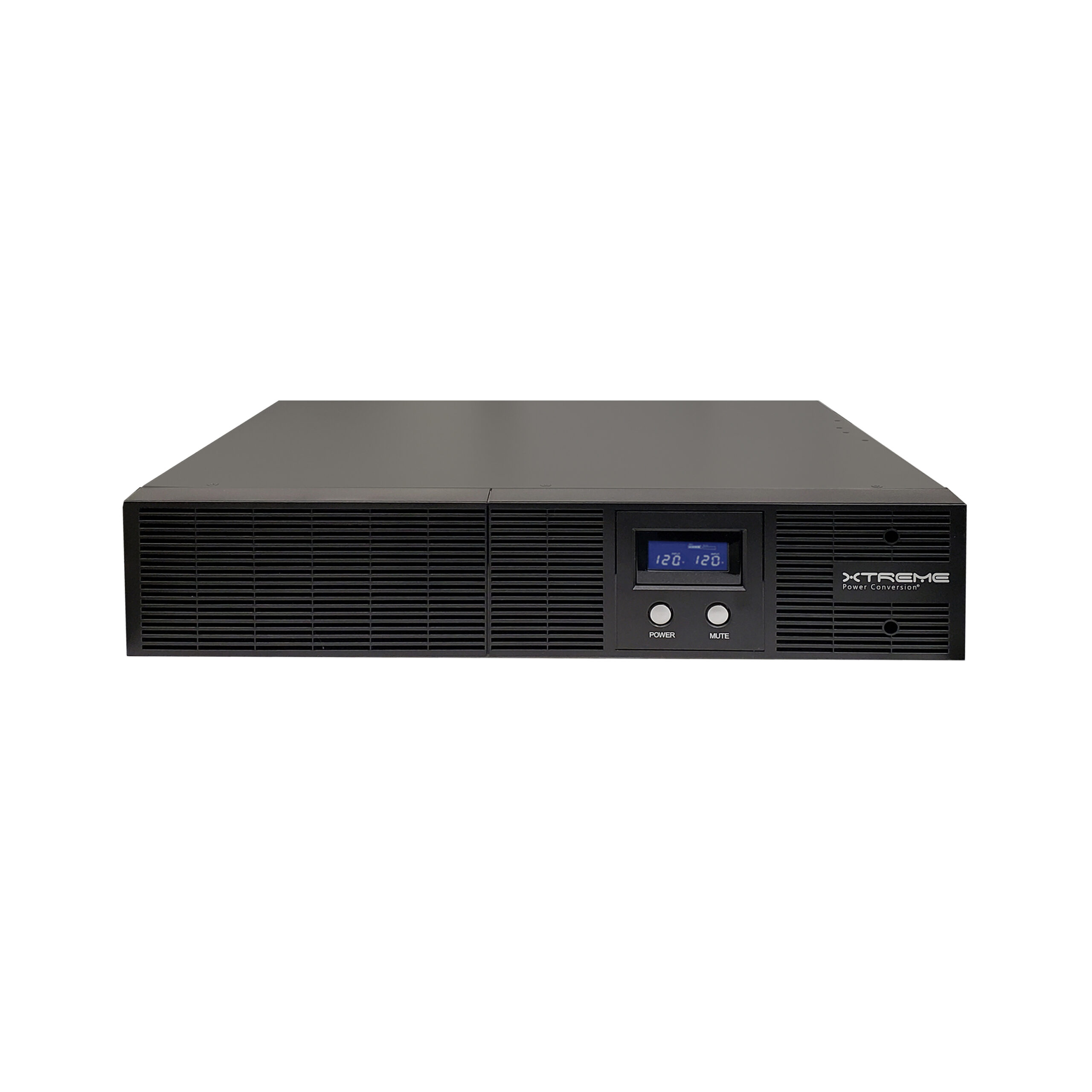

V80Li 0.7-1.5k



Lithium-ion batteries provide longest life and reduced cost of ownership

Lithium-ion batteries provide 2X the battery life, better performance at higher temperatures and lower total cost of ownership compared to typical UPS with lead-acid batteries. Longer battery life helps eliminate the cost of battery replacement, labor, shipping and recycling.

V80Li UPS includes redundant Battery Management Systems (BMS) insuring cell voltage balancing, current sharing and protection for over-charge and over-discharge.

V80Li UPS is ideal for point-of-sale, routers, switches, servers and network devices.

Product Snapshot

  • Available Models: 700VA, 1000VA, 1500VA
  • Pure sine wave output
  • Easy to replace battery design
  • Tower, rack and wall mounting available
  • UL and cUL listed, RoHS and TAA compliant
  • 5 years electronics, 5 years battery warranty (USA and Canada)
MODEL NUMBER V80-0.7kLi V80-1kLi V80-1.5kLi
INPUT Capacity 700VA (420W) 1000VA (600W) 1500VA (900W)
Voltage range 82–148VAC
Frequency 50/60Hz auto-sensing
OUTPUT Voltage 120VAC
Waveform Pure sine wave
Transfer time (typical) 2-6 ms
Efficiency Up to 96% ECO mode, 93% buck and boost mode
Harmonic distortion 2% @ 100% linear load; 5% @ 100% non-linear load
BATTERY Battery type Lithium Iron Phosphate (LiFePO4) 12.8V 6AH
Internal battery strings 21.2, 23.4, 25.6, 27.8 lbs 24.2 28.6 lbs" 26, 30.4 lbs
Charging current 1, 3 and 6A selectable (6A default)
Recharge time to 95% 1 hour per string
PHYSICAL Dimensions (W x D x H) 17.2 x 16.1 x 3.5
Weight 25.5 lbs 31.3 lbs 32.3 lbs lbs
Line cord (detachable) 5ft, 5-15P to C13
Receptacles (8) NEMA 5–15R
ENVIRONMENT Operating temperature 32-122°F (0-50°C)
Audible noise < 40dBA < 45dBA
Altitude 11,500 ft above sea level
APPROVALS UL, cUL, RoHS, TAA compliant
WARRANTY 5 years electronics, 5 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX Front mount rack brackets, line cord, tower pedestals, user manual, USB cable, Power Monitor software
AVAILABLE OPTIONS 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket
