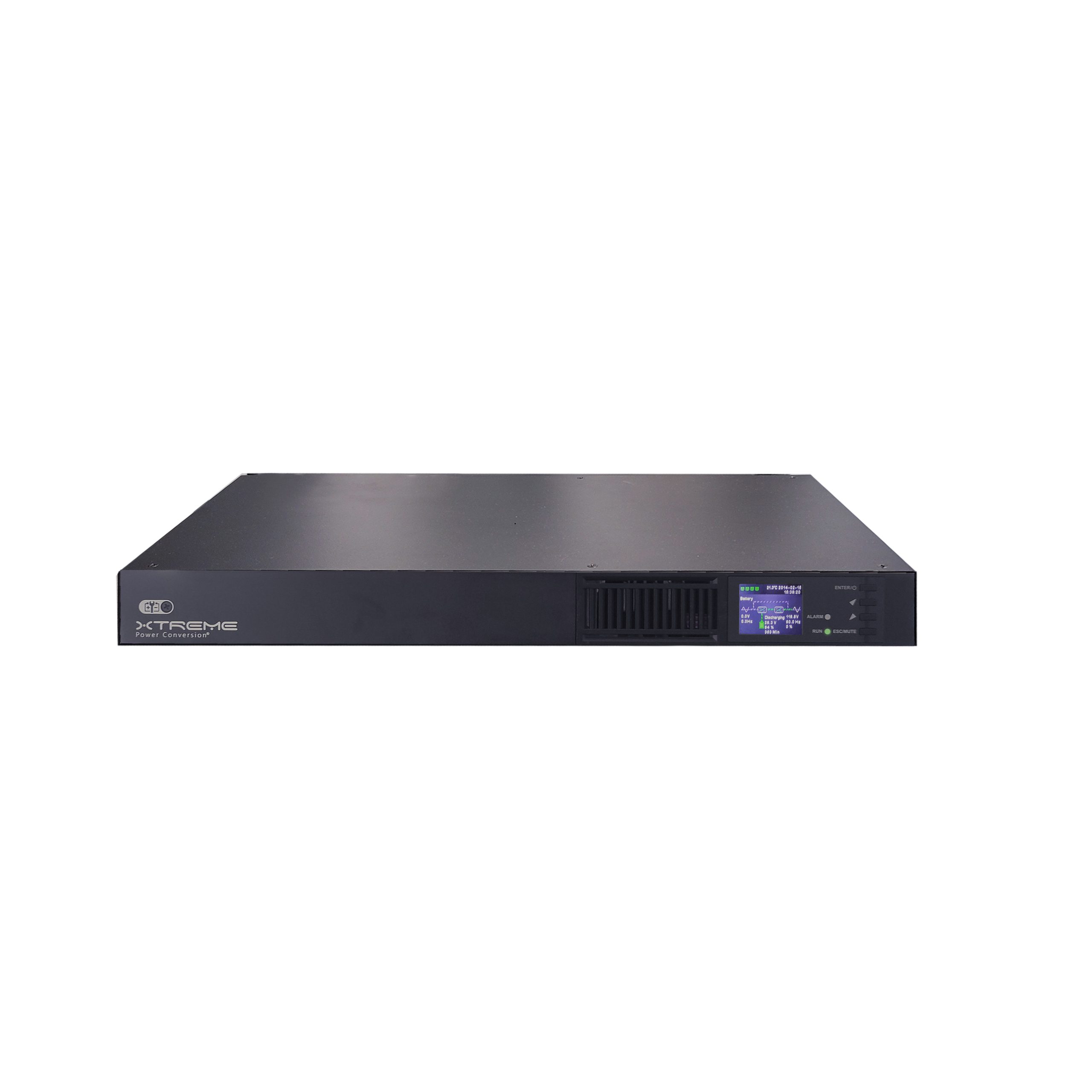

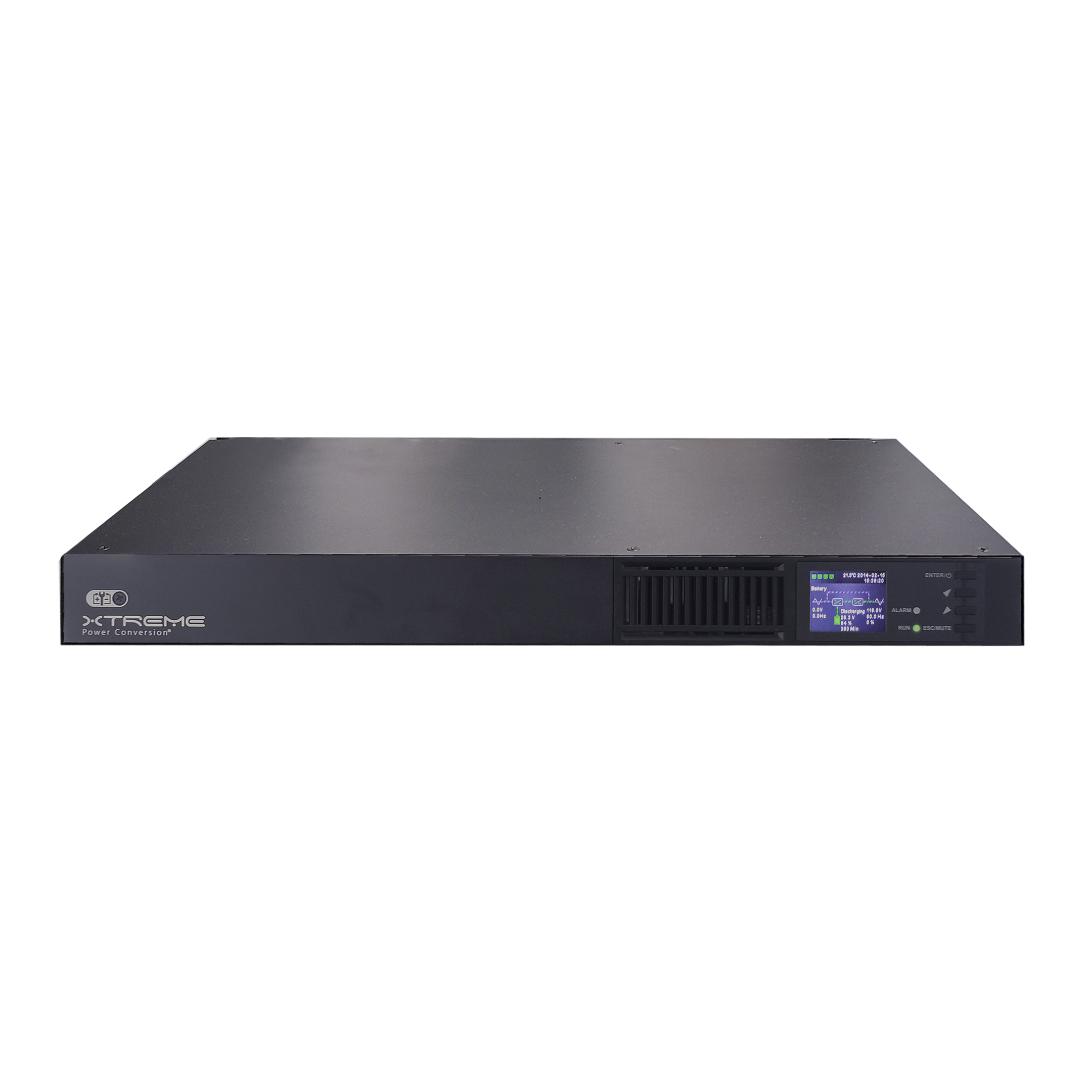

The J90 is a true online 1U UPS that delivers continuous, high quality AC power to servers and network equipment. Lithium-ion battery technology provides reduced cost of ownership. When compared to typical lead acid batteries, lithium-ion batteries provide several advantages: 2-3X the life, half the physical size, and double the runtime.
The J90’s switched receptacle feature allows the user to power up or power down individual UPS outlets from remote to power cycle unresponsive IT equipment.
Due to its small size, J90 easily supports small edge applications, retail, kiosks and ATMs. J90 also supports larger branch offices, financial institutions, retail, light manufacturing as well as healthcare installations such as hospitals, labs and remote clinics.
| MODEL NUMBER | J90-1000 | J90-1500 | J90-2000 | J90-3000 | ||
|---|---|---|---|---|---|---|
| CAPACITY | Power rating | 1000VA (800W) | 1500VA (1350W) | 2000VA (1800W) | 3000VA (3000W) | |
| INPUT | Voltage/Frequency | 120VAC +25/-33% / 50/60 Hz auto-sensing | ||||
| Power Factor | ≤0.99 @ Nominal voltage (full load) | |||||
| OUTPUT | Voltage | 110/120VAC | ||||
| Waveform | Pure sine wave: <=3% THD (linear load), <=5% THD (non-linear load) | |||||
| BATTERY | Battery type | Lithium-ion battery | ||||
| Battery quantity & size | (1) 25.6V /6Ah | (1) 36V/ 6Ah | (1) 48V/5AH | |||
| Typical recharge | 3.3 hours to 90% | |||||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 18.8 x 1.7 in | 17.2 x 20 x 1.7 in | 17.2 x 23 x 1.7 in | ||
| Weight | 18 lbs | 20 lbs | 22.5 lbs | |||
| Line cord | C14 inlet, 5ft 5-15P to C13 line cord | C20 inlet, 5ft 5-20P to C19 line cord | L5-30P 5ft line cord | |||

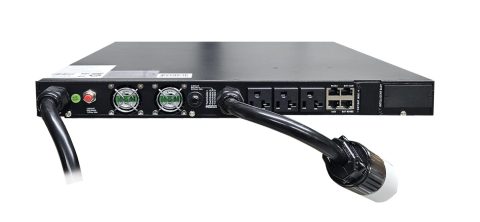

| Receptacles | (3) 5–15R, two are switchable | (4) 5–15R, all are switchable | (3) 5-20/15R, all are switchable | (2) 5-20/15R + L5-30R, all are switchable | ||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | ||||
| Altitude | 11,500 ft above sea level | |||||
| APPROVALS | UN38.3 , UL, cUL, RoHS, FCC A (pending) | |||||
| WARRANTY | 6 years electronics, 6 years battery warranty (USA and Canada) | |||||
| COMMUNICATIONS INTERFACE | EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | |||||
| INCLUDED IN BOX | ViewPower software, horizontal brackets, user manual | |||||
| AVAILABLE OPTIONS | Bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit | |||||
Rack depth is front bracket to unit panel. Add 1” for depth including front bezel.
