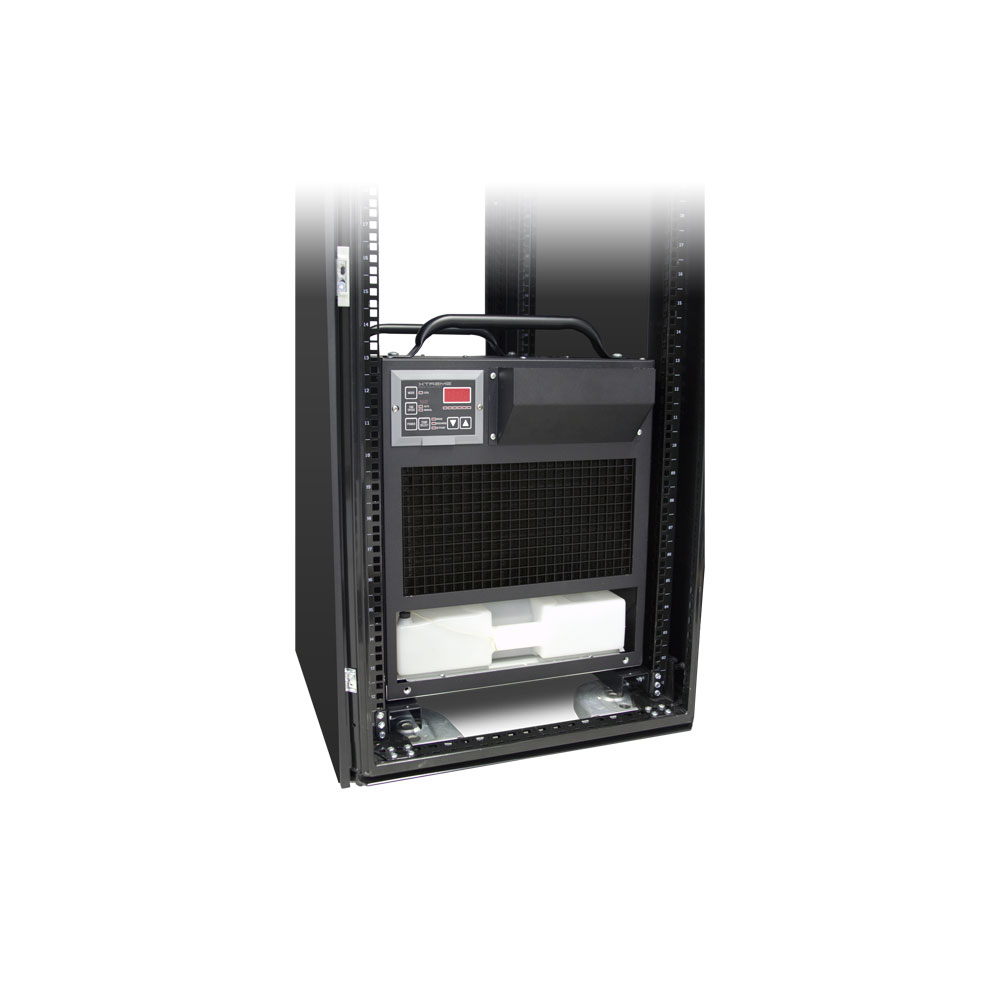

  • CoolCube 12 Rackmounted

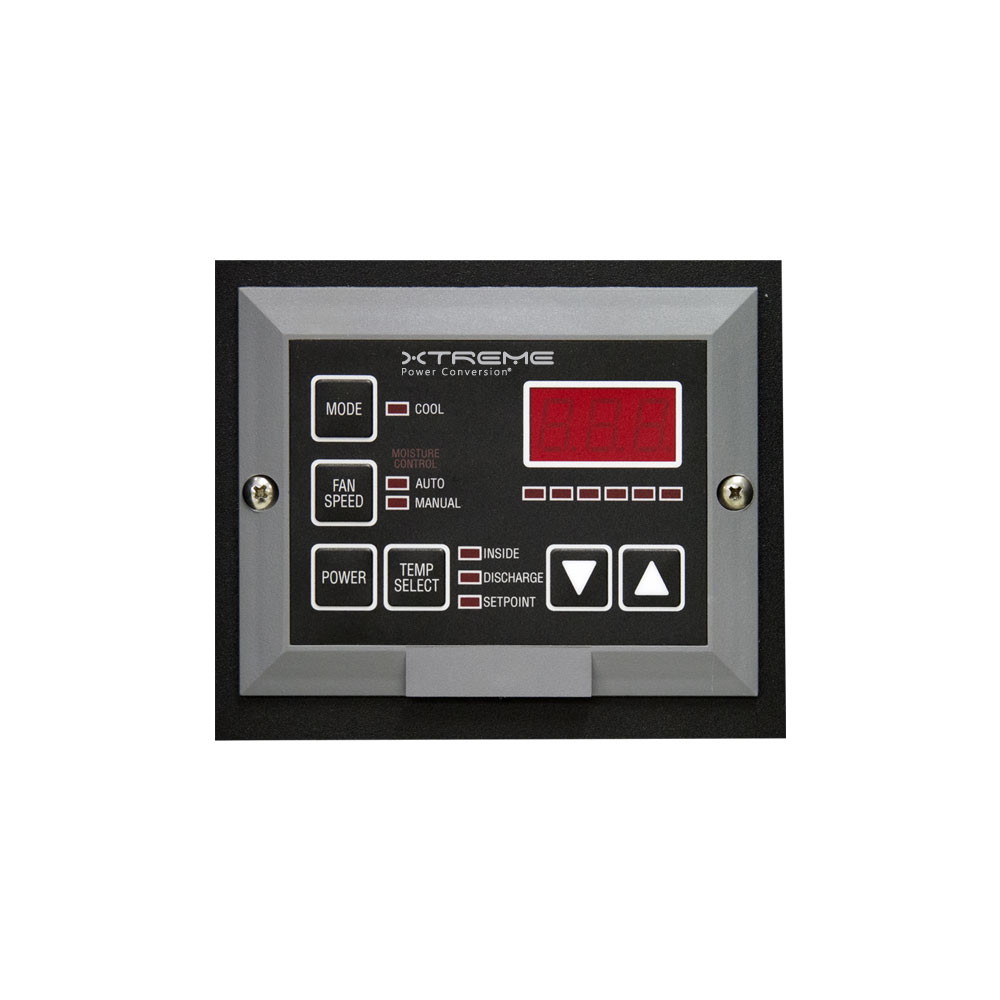

  • CoolCube 12 Diplay

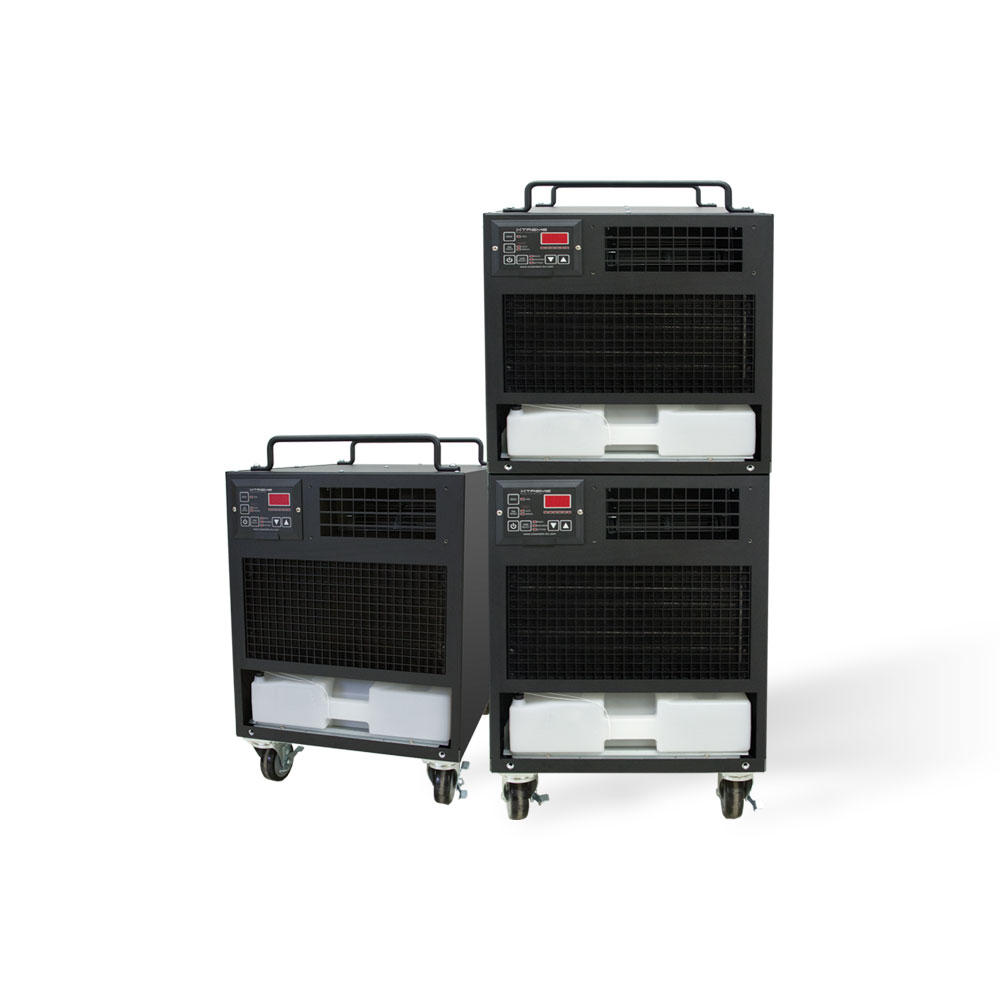

CoolCube 12 Portable Cooling

12,000 BTU/H

Modular air conditioning for critical electronics.

Category:

The CoolCube 12 is the only air conditioning solution in the industry that changes to fit your individual needs. With it’s revolutionary modular design the CoolCube 12 easily adapts to virtually any application. The CoolCube 12’s modularity gives it the ability to efficiently cool hot spots at their source making it the number one choice for IT environments.

Whether your telecommunications room is a converted coat closet or a mechanical room, the versatile CoolCube 12 is ideal for any location, easily fitting into the infrastructure of any building. The CoolCube 12 protects expensive IT investments from overheating. Studies have shown every 10°C rise in nominal temperatures results in a 50% reduction in the lifetime and long term reliability of IT hardware. The CoolCube 12 operates down to 65°F, creating the perfect environment for your IT equipment.

Product Snapshot

  • Available model: 12,000 BTU/H
  • 5 year compressor warranty
  • Draws less than 10 amps in most applications
  • Provide cost effective, efficient, and mobile cooling
  • Standard with handle kit and casters
  • UL, cUL listed
MODEL NUMBER CAC1211
COOLING Cooling capacity 12,000 BTU/H
Air flow (high/low) evaporator 400/320 CFM
Air flow condenser 490 CFM
Refrigerant R410A
ELECTRICAL Power supply voltage 115VAC
Power supply frequency 60Hz
Current consumption 12A
Circuit breaker size 15A
Power consumption 1180W
NEMA plug 5–15P
Power cord length 10 ft
Automatic restart Unit automatically restarts when power is reapplied after outage
PHYSICAL Dimensions (W x D x H) 17.3 x 24.0 x 20.0 in
Weight 133 lbs
Operating conditions 65–105°F
Hot air duct diameter 8 in
Condensate tank capacity 2 gal
APPROVALS UL, cUL
WARRANTY 1 year system (USA), 5 year compressor warranty
