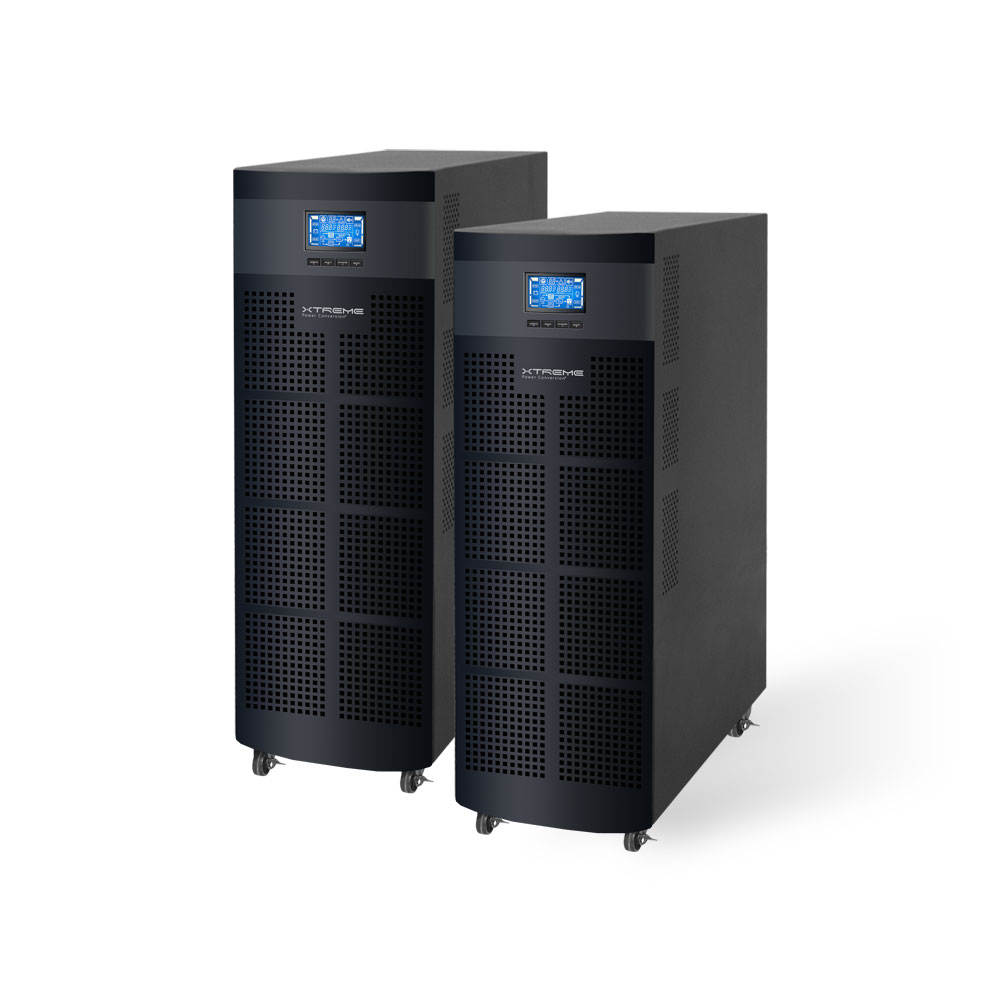

GT90 Three-Phase Online UPS
20kVA & 30kVA
400VAC
An energy efficient, compact three-phase UPS for small data center applications.
Xtreme Power GT90 UPS provides the ideal solution for the most demanding critical power requirements. Capacities of 10kVA, 20kVA, and 30kVA are available in single GT90 modules. Configurations up to 90kVA can be easily configured by paralleling up to three GT90 modules.
Product Snapshot
- Available models: 20kVA, 30kVA
- Parallel for redundancy or capacity up to 90kVA/81kW
- Built-in maintenance bypass
- Internal or external battery models available
- 98% efficiency in ECO mode saves utility power
[table colalign=”left|left|center|center|center|center “]
,MODEL NUMBER,GT90-20K,GT90-20KL,GT90-30K,GT90-30KL
INPUT,Capacity,20kVA (18kW) [attr colspan=”2″],30kVA (27kW) [attr colspan=”2″]
,Voltage,380/400/415VAC line to line (220/230/240VAC line to neutral) [attr colspan=”4″]
,Frequency,50/60Hz[attr colspan=”4″]
,Power factor,0.99[attr colspan=”4″]
,Harmonic distortion,≤ 5% THD non-linear load[attr colspan=”4″]
OUTPUT,Rated voltage,380/400/415VAC line to line (220/230/240VAC line to neutral) [attr colspan=”4″]
,Frequency,50/60Hz ± 4Hz[attr colspan=”4″]
,Crest factor,3:1[attr colspan=”4″]
,Overload capacity,110% for 10 min; 130% for 1 min; >130% for 1 sec[attr colspan=”4″]
,Efficiency,98% ECO mode (> 90% online mode) [attr colspan=”4″]
BATTERY,Battery type (UPS),(40) 12V 9AH,No internal batteries,(60) 12V 9AH,No internal batteries
,Charger amps,2A,4A[attr colspan=”3″]
,External battery pack (EBP),GT90-EBP60[attr colspan=”4″]
,Battery type (EBP),(60) 12V 9AH[attr colspan=”4″]
PHYSICAL,Input/output,Hardwired[attr colspan=”4″]
,UPS dimensions (W x D x H),250 x 815 x 826 mm (9.8 x 32.0 x 32.5 in), 250 x 592 x 826 mm (9.8 x 23.3 x 32.5 in),300 x 815 x 1000 mm (11.8 x 32.1 x 39.4 in), 250 x 815 x 826 mm (9.8 x 32.0 x 32.5 in)
,UPS weight,164 kg (362 lbs), 40 kg (88 lbs),234 kg (516 lbs),64 kg (141 lbs)
,EBP dimensions (W x D x H),250 x 592 x 826 mm (9.8 x 23.3 x 32.7 in) [attr colspan=”4″]
,EBP weight,197 kg (435 lbs) [attr colspan=”4″]
ENVIRONMENT,Temperature,0–40°C (32–104°F) [attr colspan=”4″]
,Humidity,0–95% non condensing[attr colspan=”4″]
,Audible noise,< 60dBA at 1 meter[attr colspan=”4″]
,Altitude,”3,500m (11,500ft) above sea level”[attr colspan=”4″]
APPROVALS,,”CE, EN/IEC 62040-2, EN/IEC 62040-1-1, RoHS compliant”[attr colspan=”4″]
WARRANTY,,”2 years electronics, 2 years battery”[attr colspan=”4″]
COMMUNICATIONS INTERFACE,,”RS232, USB, intelligent slot for optional Web/SNMP, Relay/dry contact, and Modbus cards”[attr colspan=”4″]
INCLUDED IN BOX,,”User manual, monitoring software, CD, USB cable”[attr colspan=”4″]
[/table]
