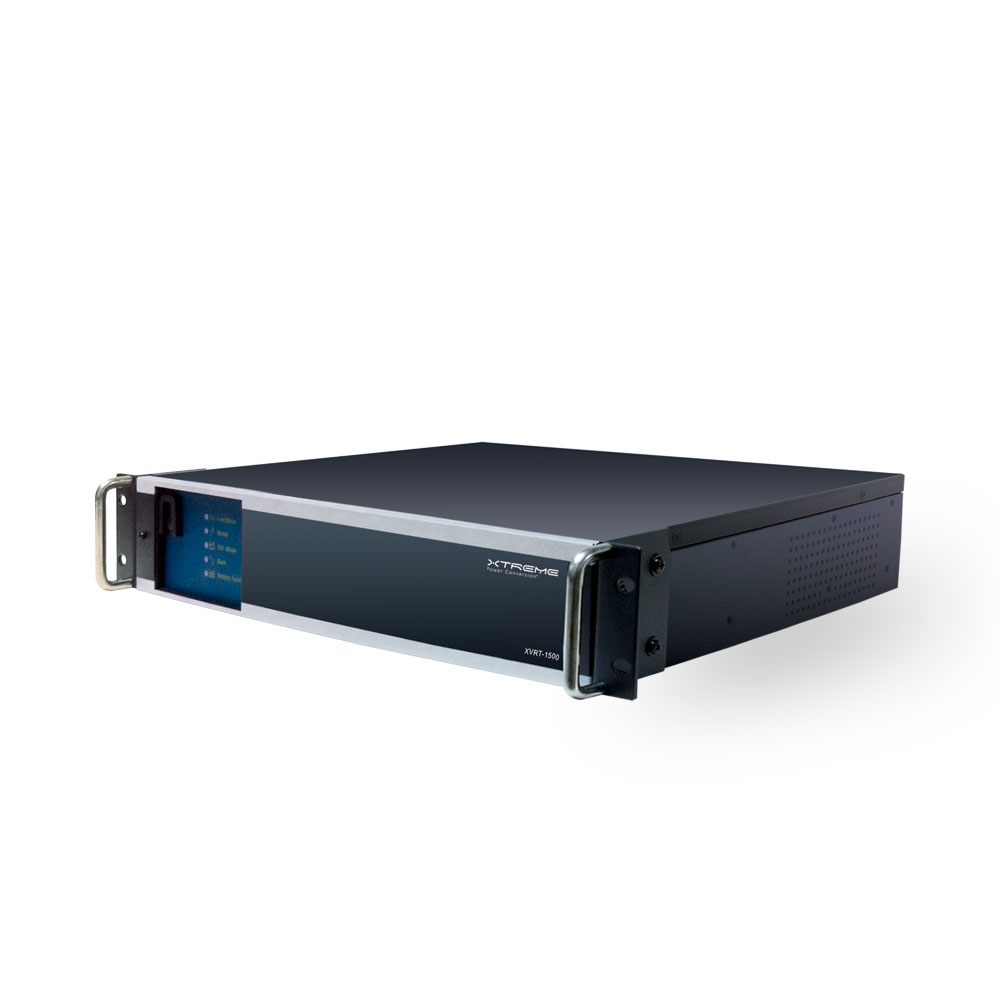

XVRT Line Interactive UPS
XVRT models are discontinued. Stock is available, but in limited quantities
1000VA-3000VA
120VAC
Reliable power protection for servers, VoIP equipment, and business telephone systems.
The XVRT is the ideal power protection solution for servers, VoIP equipment, business telephone systems, desktop computers, and other network grade equipment. The XVRT provides integral surge and lightning protection.
Product Snapshot
- Available models: 1000VA, 1500VA, 2200VA, 3000VA
- Rack, tower, or wall mount
- RoHS compliant on select models
- Automatic Voltage Regulation (AVR)
- UL, cUL, FCC
- 3 years electronics, 1 year battery warranty (USA and Canada)
[table colalign=”left|left|center|center|center |center”]
,MODEL NUMBER,XVRT-1000,XVRT-1500,XVRT-2200,XVRT-3000
INPUT,Capacity,1000VA (600W),1500VA (900W),2200VA (1320W),3000VA (1800W)
,Voltage,120VAC[attr colspan=”4″]
,Frequency,50/60Hz auto-sensing[attr colspan=”4″]
OUTPUT,Voltage,120VAC[attr colspan=”4″]
,Frequency,50/60Hz ± 0.5%[attr colspan=”4″]
,Transfer time,2–4 ms (typical) [attr colspan=”4″]
,Voltage regulation (AVR),AVR automatically increases output voltage 15% above input voltage if -9% to -25% of nominal; AVR decreases output voltage 13% below input voltage if +9% to +25% of nominal[attr colspan=”4″]
PROTECTION & FILTERING,Spike protection,320 joules[attr colspan=”4″]
,EMI/RFI filter,”10dBA at 0.15MHz, 50dBA at 30MHz”[attr colspan=”4″]
,Overload capacity,Shutdown if overload exceeds 110% of nominal at 60 sec and 130% at 3 sec[attr colspan=”4″]
,10base-T cable port,Network (UTP, RJ45) compatible jacks[attr colspan=”4″]
BATTERY,Battery type,Sealed, maintenance-free lead acid[attr colspan=”4″]
,Battery quantity and size,(3) 6V 8AH,(2) 12V 9AH,(4) 12V 9AH[attr colspan=”2″]
,Recharge,8 hours (to 90% of full capacity) [attr colspan=”4″]
,Protection,”Automatic self-test and discharge protection, replace battery indicator”[attr colspan=”4″]
,Backup time,3–180 min (depending on load) [attr colspan=”4″]
PHYSICAL,UPS dimensions (W x D x H),15.0 x 14.3 x 1.7 in,16.9 x 14.0 x 3.3 in,16.9 x 13.8 x 5.1 in,16.9 x 19.1 x 5.1 in
,Shipping dimensions,18.8 x 17.2 x 6.3 in,23.0 x 21.0 x 8.7 in,22.4 x 20.5 x 11.2 in,26.1 x 23.0 x 11.2 in
,UPS weight,25.3 lbs,35.9 lbs,62.6 lbs,71.9 lbs
,Shipping weight,28.6 lbs,42.5 lbs,68.5 lbs,79.4 lbs
,Line cord,”6 ft, NEMA 5–15P”[attr colspan=”3″], “6 ft, NEMA L5–30P”
,Receptacles,(4) NEMA 5–15R + (1) NEMEA 5–15R bypass,(6) NEMA 5–15R[attr colspan=”2″],(1) NEMA L5–15R + (4) NEMA 5–15R,
ENVIRONMENT,Operating temperature,32–104°F (0–40°C) [attr colspan=”4″]
,Audible noise,< 40dBA[attr colspan=”4″]
,Altitude,”11,500 ft above sea level”[attr colspan=”4″]
INDICATORS & ALARMS,Battery backup,Slow beeping sound[attr colspan=”4″]
,Battery low,Rapid beeping sound[attr colspan=”4″]
,Overload,Continuous beeping sounds[attr colspan=”4″]
APPROVALS,,”UL, cUL, FCC”[attr colspan=”4″]
WARRANTY,,”3 years electronics, 1 year battery (USA and Canada)” [attr colspan=”4″]
COMMUNICATIONS INTERFACE,,”RS-232 bidirectional port, RS-232 to USB cable to enable USB connection, SNMP connectivity via external SNMP card/device”[attr colspan=”4″]
INCLUDED IN BOX,,”6 ft USB-DB9 adaptor, 6ft DB9 cable, UPSMON, CD, phone cord, vertical brackets, set horizontal brackets, user manual”[attr colspan=”4″]
[/table]
-
Mounting Kits
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions

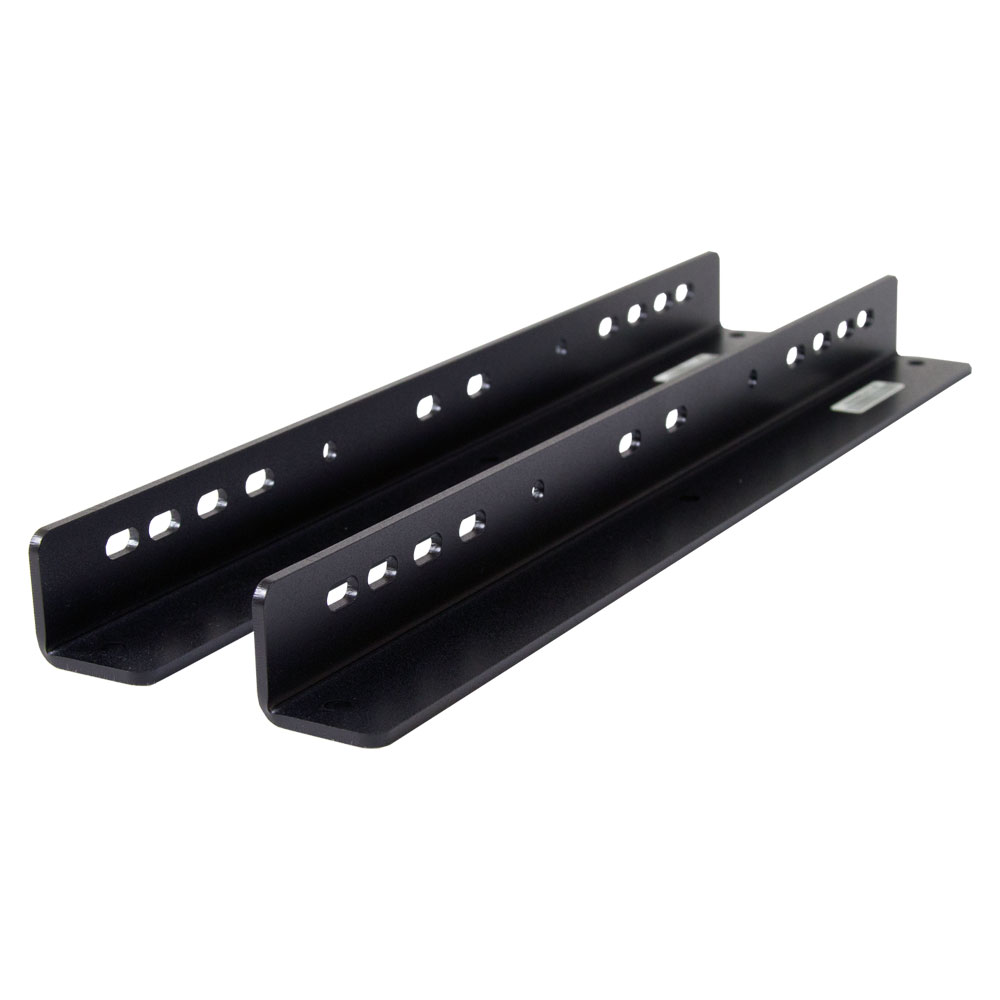

,XVRT-WMB1,Wall Mount Bracket,2 lbs,14.5″ x 2.0″ x 2.0″
,XPC-2POSTL,2-Post Shelf Kit; Rated for 150 lbs,9 lbs,21.5″ x 23.3″ x 3.5″

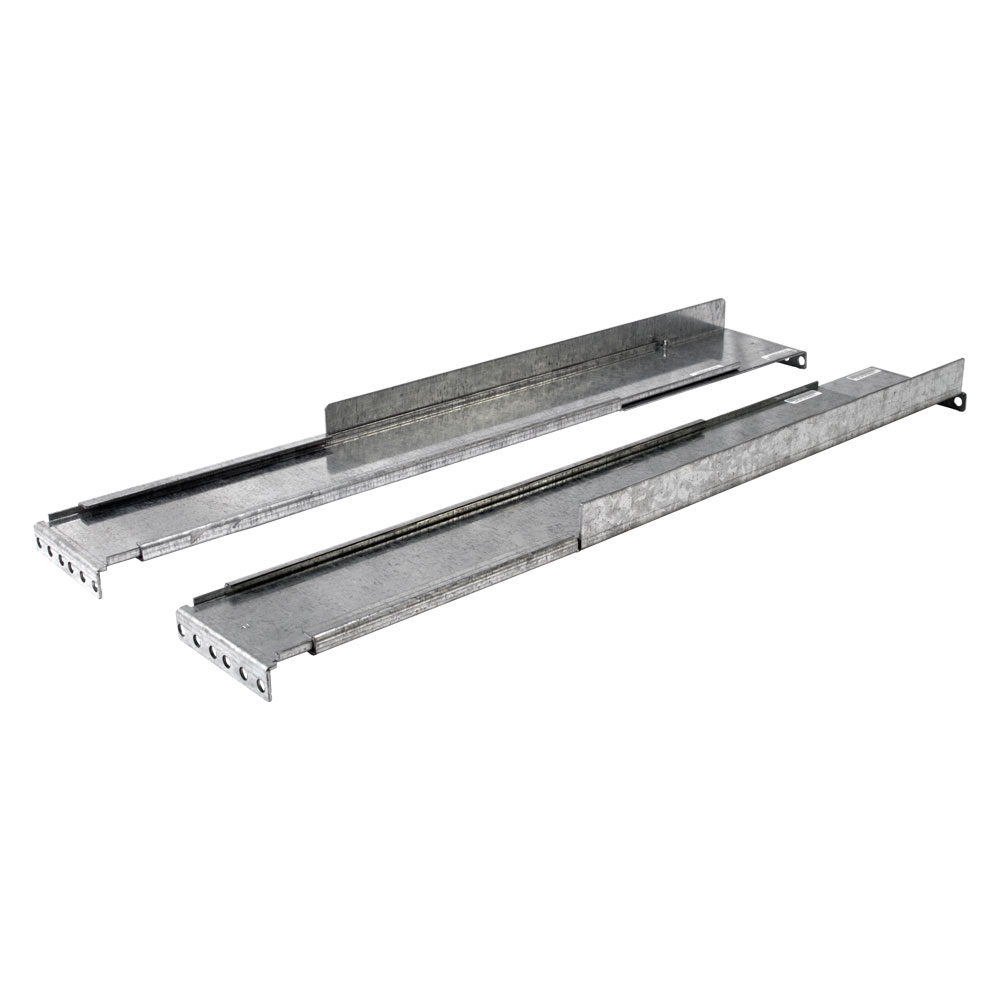

,XPRT-ARR2,Adjustable 4-Post Rail Kit,9 lbs,24.0″ x 4.0″ x 5.0″
[/table] -
Connectivity
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions

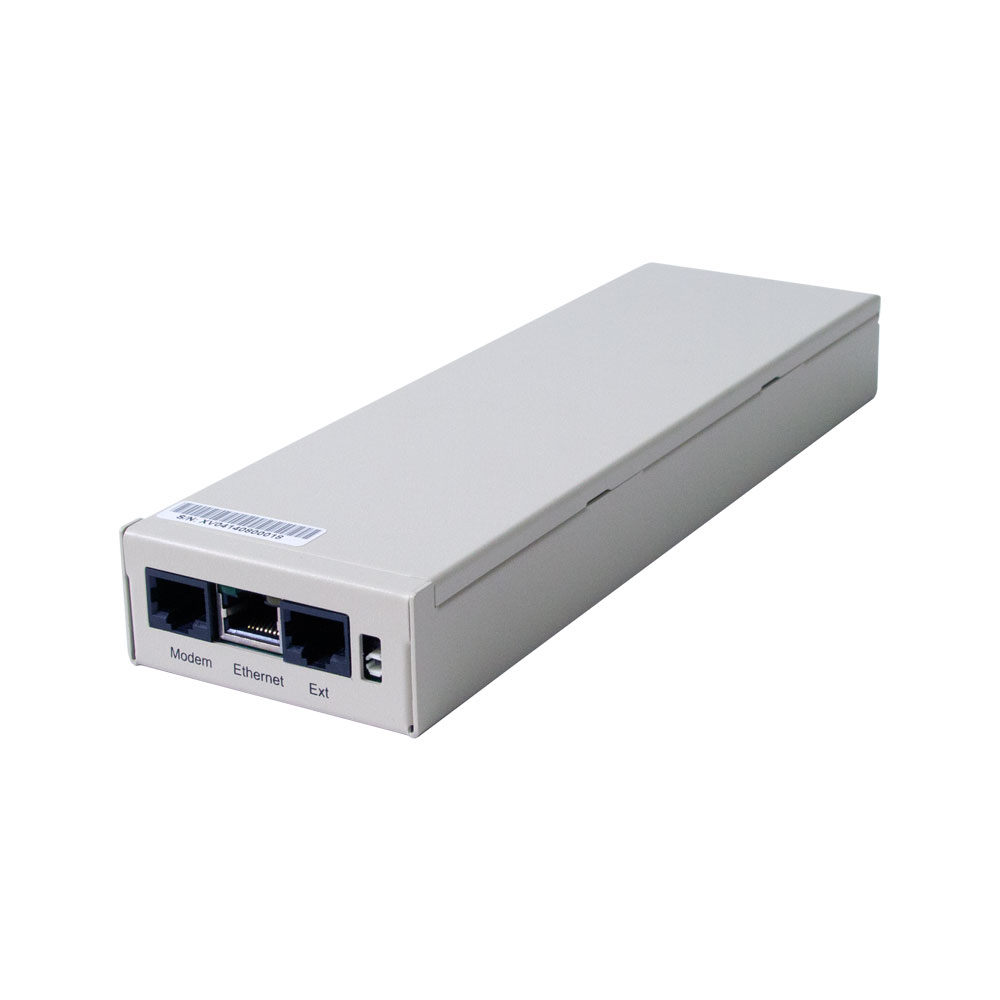

,XVRT-SNMP,External SNMP/Web Card,2 lbs,12.0” x 9.0” x 3.0”
[/table] -
Bypass Distribution Modules
[table colwidth=”75″]
,Model,Description,Utility Input, Output Connections, UPS Connections, Unit Weight, Unit Dimensions
,XBDM-1015LV,”Bypass 15A/120VAC for use with XVRT-1000, XVRT-1500″,”5–15P, 12ft”,”(6) 5–15R front, (4) 5–15R back”,5-15R,3.4 lbs,19” x 3.5” x 1.75”
,XBDM-1020LV,Bypass 20A/120VAC for use with XVRT-2200,”5–20P, 12ft”,”(6) 5–20R front, (4) 5–20R back”,5-20R,3.4 lbs,19” x 3.5” x 1.75”
,XBDM-1030LV,Bypass 30A/120VAC for use with XVRT-3000,”L5–30P, 6ft”,”(6) 5–20R front, (4) 5–20R back”,L5-30R,3.4 lbs,19” x 3.5” x 1.75”
[/table]
