XPRT 6kVA & 10kVA Online UPS
6kVA & 10kVA
208/120VAC
UPS power protection with dual voltage output for critical network electronics.

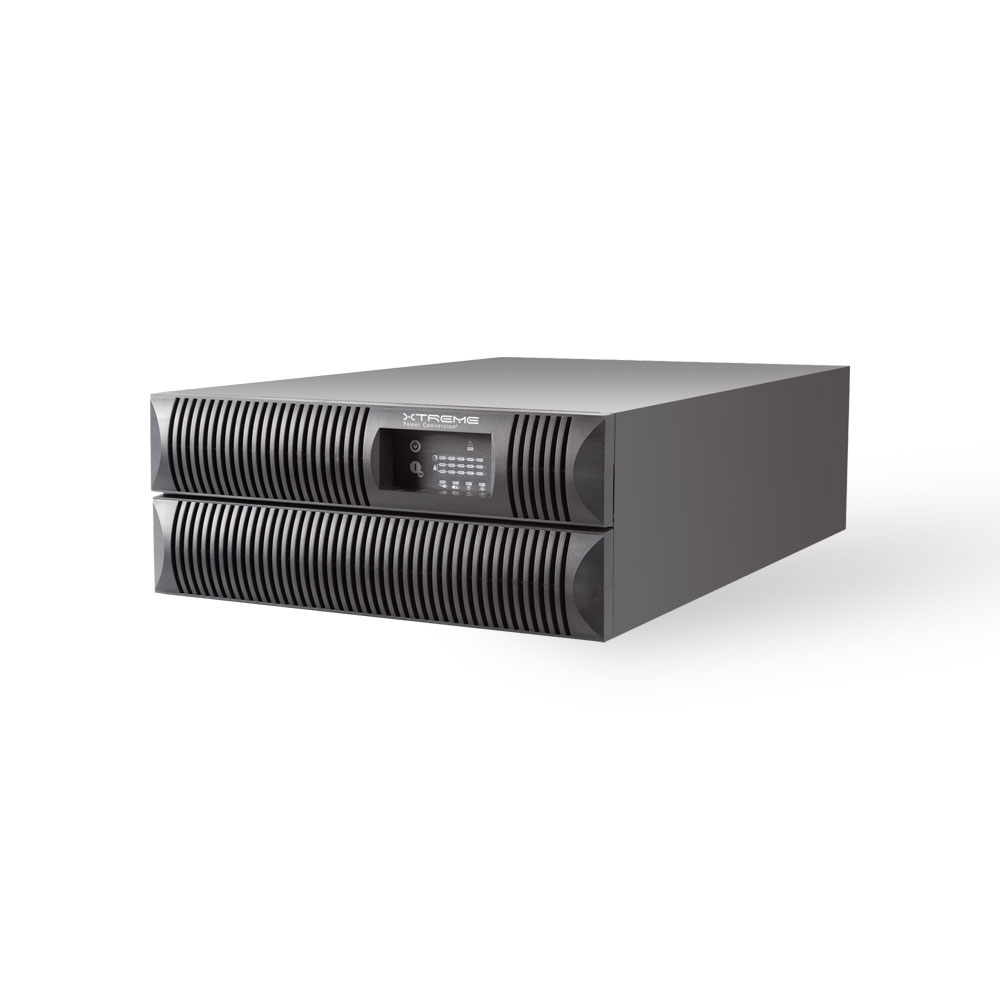

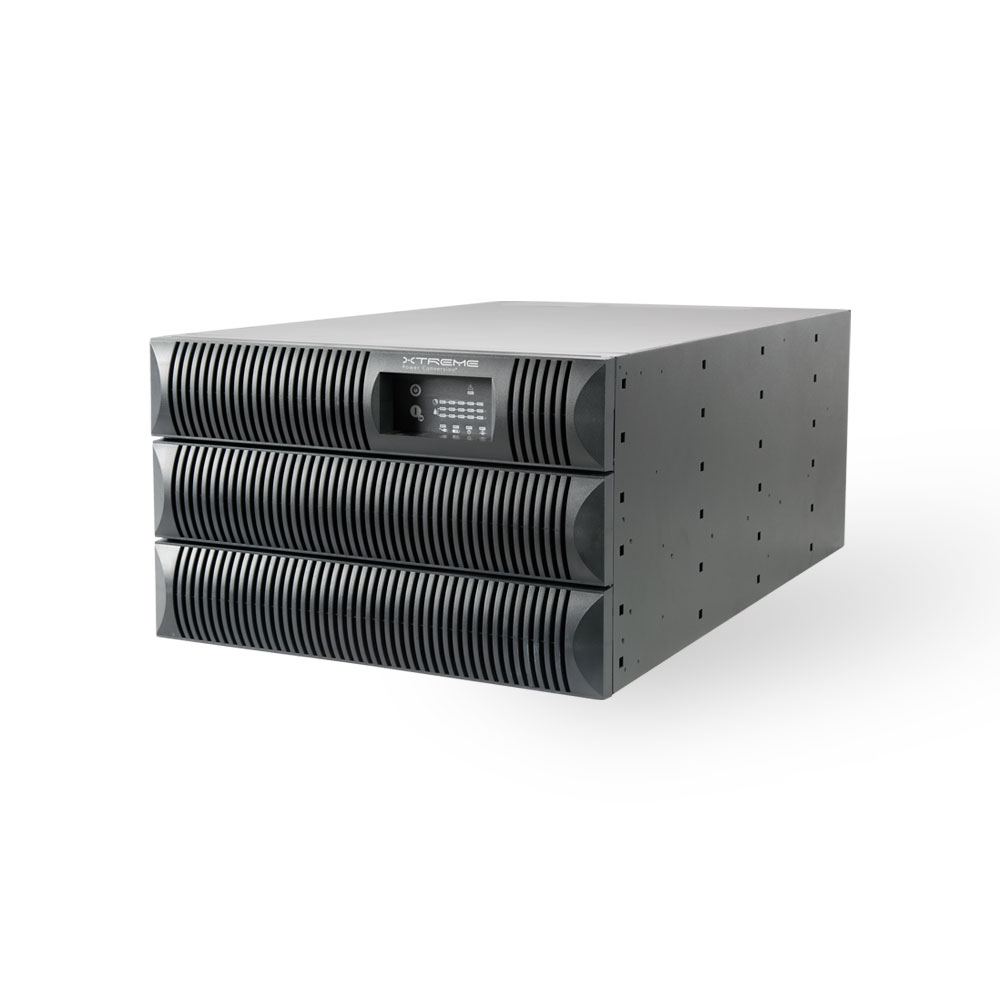

These true online, double conversion UPS systems provide more capacity in less space. The XPRT-6kVA (4U) and XPRT-10kVA (6U) models save space, weight, and power through a dual inverter design which provides selectable output voltages of 208/120V, 240/120V, 230/115V, or 200/100V without the need for transformers.

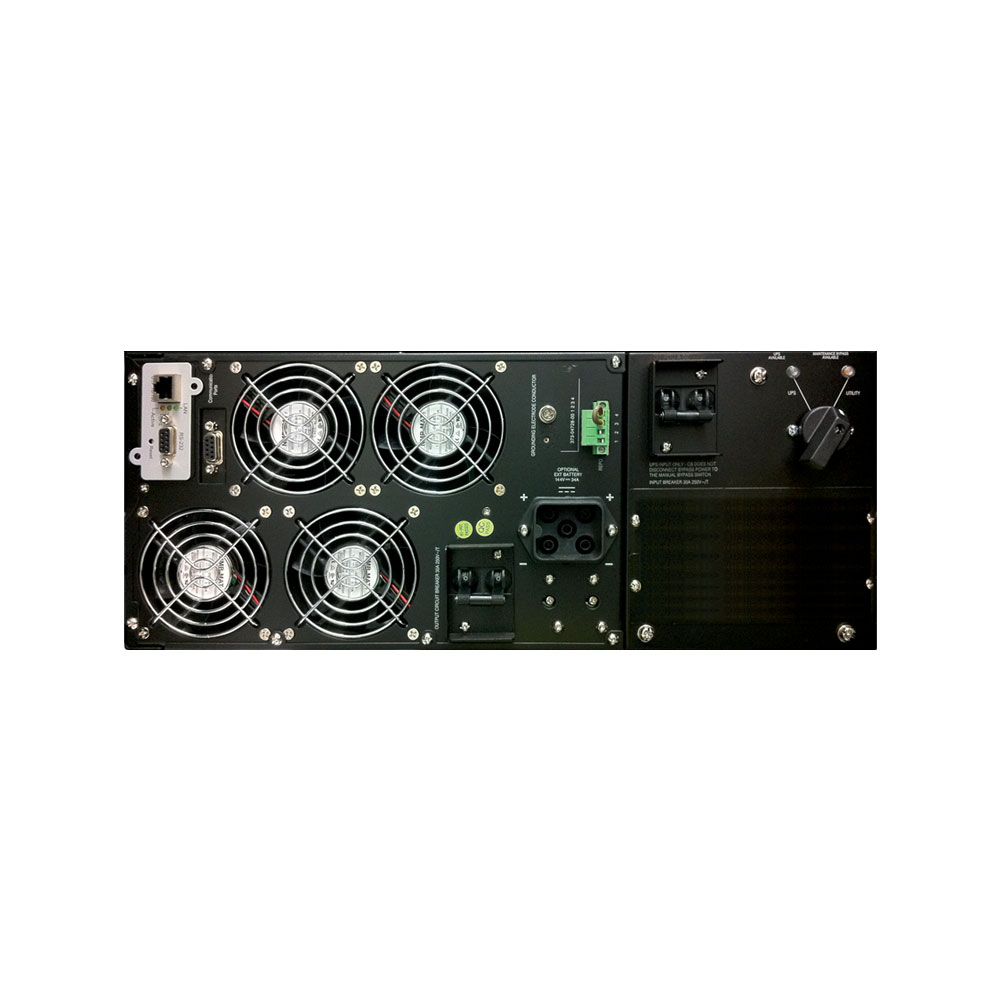

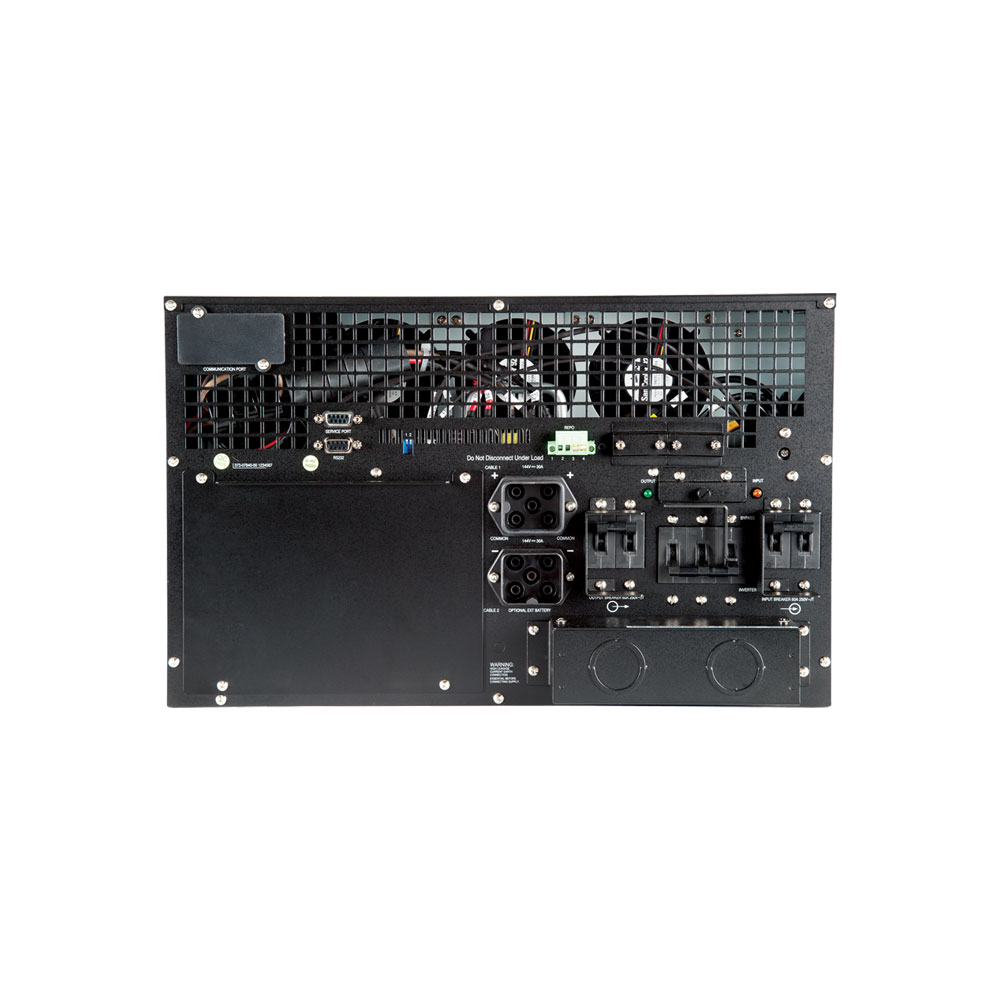

The XPRT-10kVA features hardwired input and output terminals and an optional output receptacle module. It includes one internal power module and two internal battery modules. The chassis contains a bypass switch which allows all modules to be removed without powering down the connected load.
Product Snapshot
- Available models: 6kVA, 10kVA
- Integrated wrap around maintenance bypass
- Input voltage auto sensing
- Hardwired or cord configurations
- N+1 parallel redundant capable
- Tower or rack mount
- UL, cUL, FCC
- 3 years electronics, 3 years battery warranty (USA and Canada)
[table colalign=”left|left|center|center”]
,MODEL NUMBER,XPRT-6KVA,XPRT-10kVA
INPUT,Capacity,6kVA (4.2kW),10kVA (8kW)
,Voltage,”100/(173-200), 110/(190-220), 115/(198-230), 120/(208-240), 127/(220)VAC*”[attr colspan=”2″]
,Frequency,40–70Hz[attr colspan=”2″]
,Power factor,> 0.97[attr colspan=”2″]
,Input connection,10 ft cord with L14–30P plug or hardwire,Hardwire
OUTPUT,Voltage,”208/120VAC, 240/120VAC auto-sensing; 230/115VAC, 200/100VAC selectable”[attr colspan=”2″]
,Frequency,50/60Hz auto-sensing ± 5% or frequency converter[attr colspan=”2″]
,Output connections,Integrated bypass/PDU with hardwired or receptacle options[attr colspan=”2″]
,Harmonic distortion,<3% with linear load; < 5% with non-linear load[attr colspan=”2″] ,Waveform,”Sine wave, zero transfer time”[attr colspan=”2″] ,Efficiency,> 92%[attr colspan=”2″]
,Auto restart/start on battery,Yes[attr colspan=”2″]
,Overload capacity,110% for 300 sec; 130% for 30 sec; 200% for 5 sec[attr colspan=”2″]
,Crest factor,3:1 at full load[attr colspan=”2″]
BATTERY,Battery quantity and size,(12) 9AH/144VDC,(24) 9AH/288VDC
,Recharge time,< 3 hours to 90%[attr colspan=”2″]
PHYSICAL,UPS dimensions (W x D x H),16.9 x 22.5 x 6.9 in (4U),16.9 x 26.0 x 10.6 in (6U)
,UPS weight,162 lbs,309 lbs
,BP dimensions (W x D x H),16.9 x 22.5 x 3.5 in (2U),16.9 x 26.0 x 6.8 in
,BP weight,95 lbs,200 lbs
ENVIRONMENT,Temperature,32–104°F (0–40°C) [attr colspan=”2″]
,Audible noise,< 55dBA[attr colspan=”2″]
,Altitude,”11,500 ft above sea level”[attr colspan=”2″]
APPROVALS,,”UL, cUL, FCC”[attr colspan=”2″]
WARRANTY,,”3 years electronics, 3 years battery warranty (USA and Canada)”[attr colspan=”2″]
COMMUNICATIONS INTERFACE,,”RS-232 and EBP (SNMP optional)”[attr colspan=”2″]
AVAILABLE OPTIONS,,”PDUs, parallel tie/bypass panel options available”[attr colspan=”2″]
[/table]
Capacity derates in certain configurations. See user manual for more details; *Depending on load level
-
UPS Battery Packs
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions

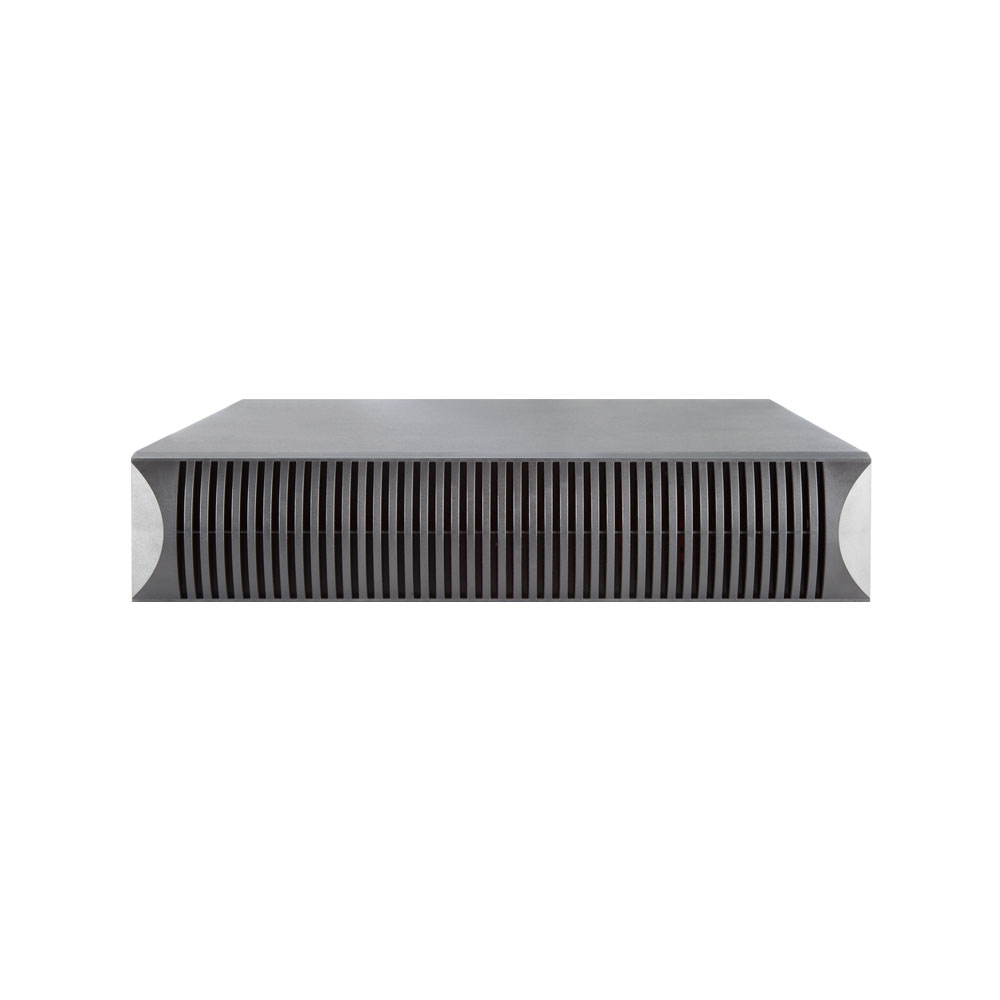

,XPRT-BP4,”Extended Battery Pack for 6kVA UPS, 2U”,95 lbs,16.9″ x 22.5″ x 3.5″

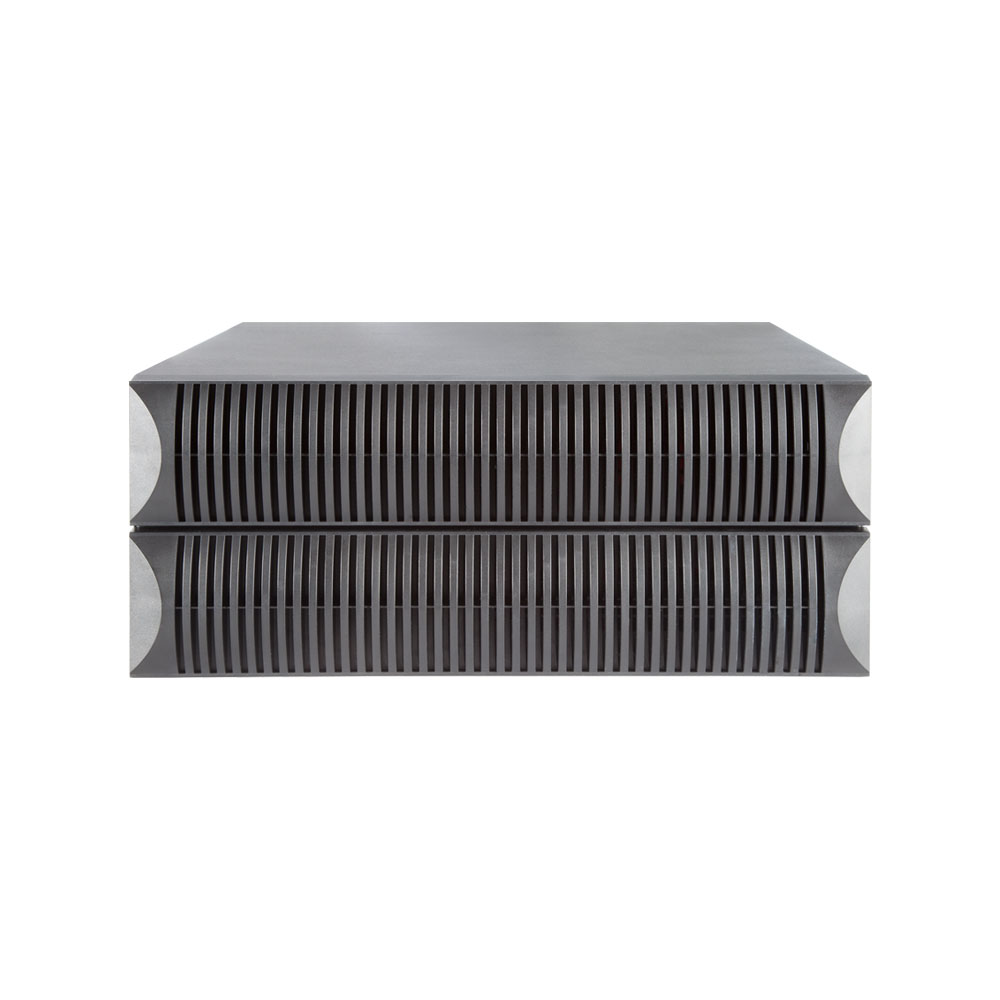

,XPRT-BP5,”Extended Battery Pack for 10kVA UPS, 4U”,200 lbs,16.9″ x 26.0″ x 6.8″
[/table] -
Mounting Kits
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions
,XPC-2POST,Heavy Duty 2-Post Rack Mount Shelf Kit; Rated for 300 lbs,14 lbs,19.0″ x 29.0″ x 5.2″

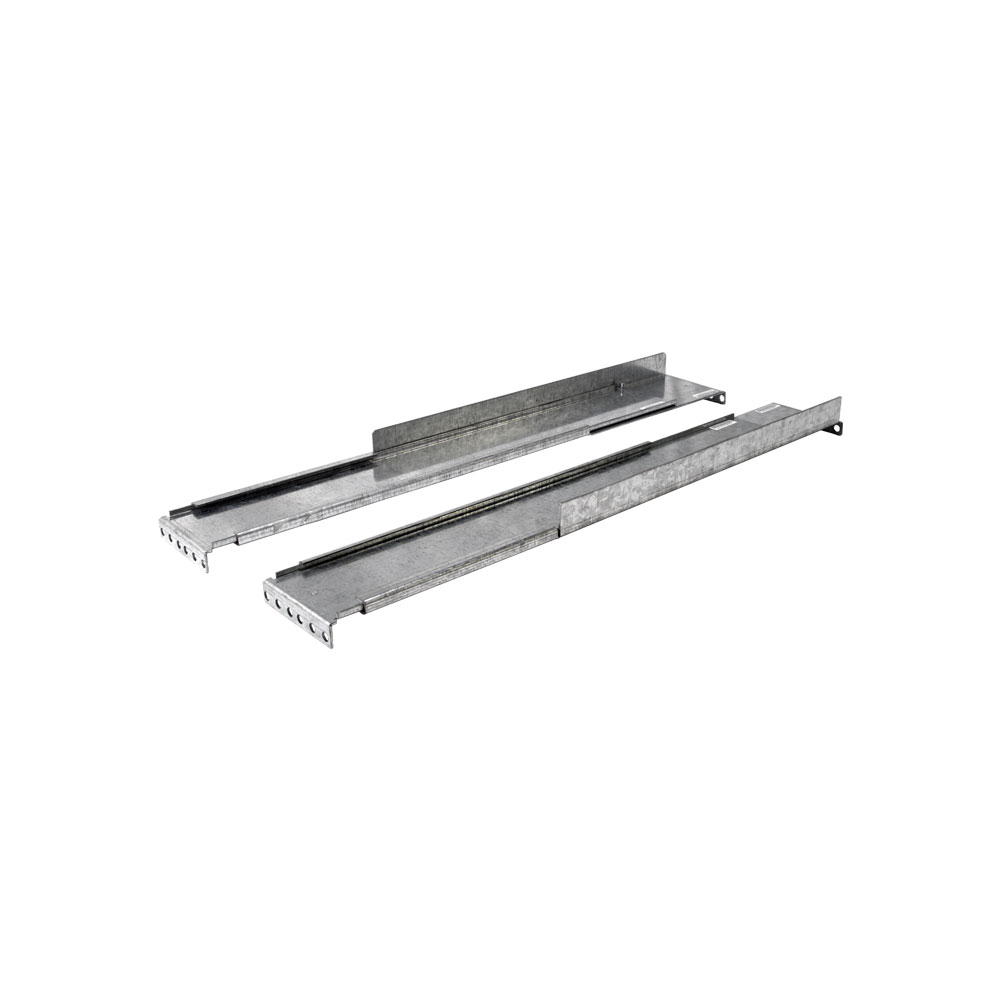

,XPRT-RR2,4-Post Rail Kit,9 lbs,20.0″ x 4.0″ x 3.0″
[/table] -
Connectivity
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions

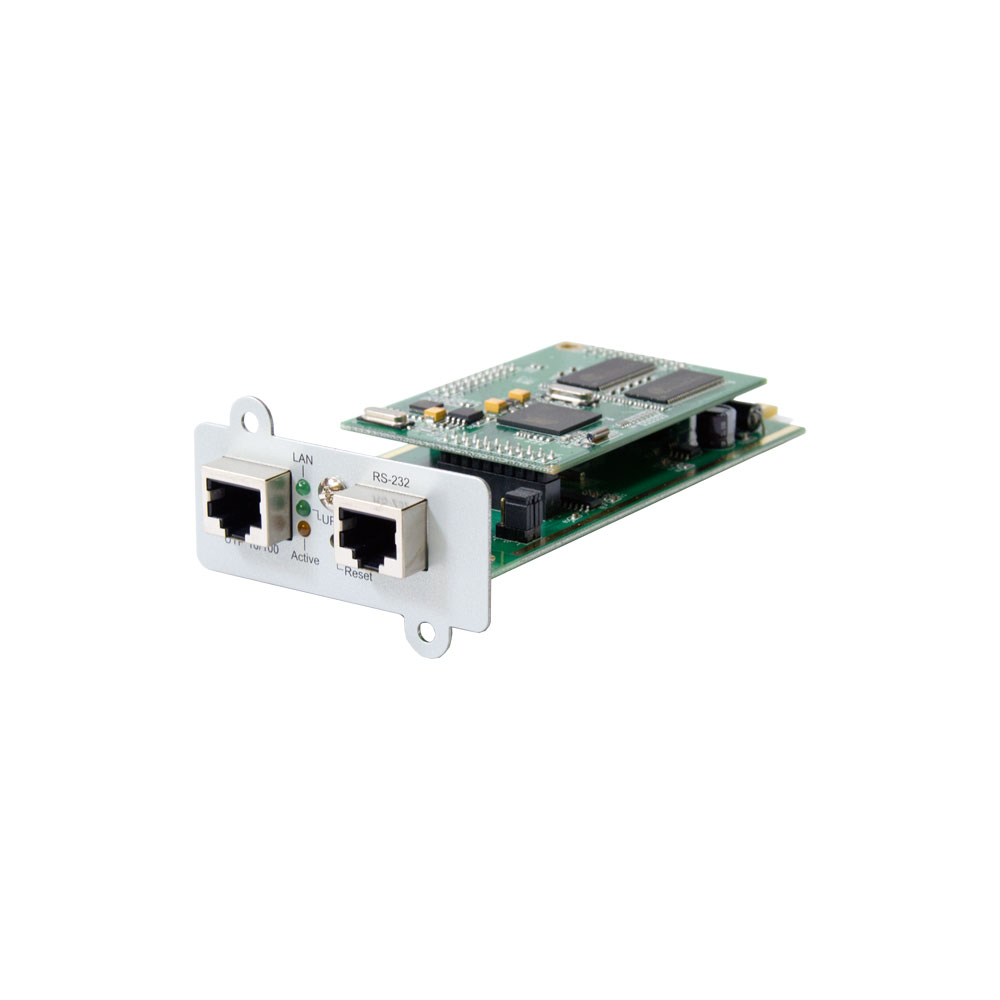

,XPRT-SNMP2,Internal Web/SNMP Card,2 lbs,8.0″ x 6.0″ x 3.0″
[/table] -
Power Distribution Units
[table colwidth=”75″]
,Model,Description,Outlets, Unit Weight, Unit Dimensions

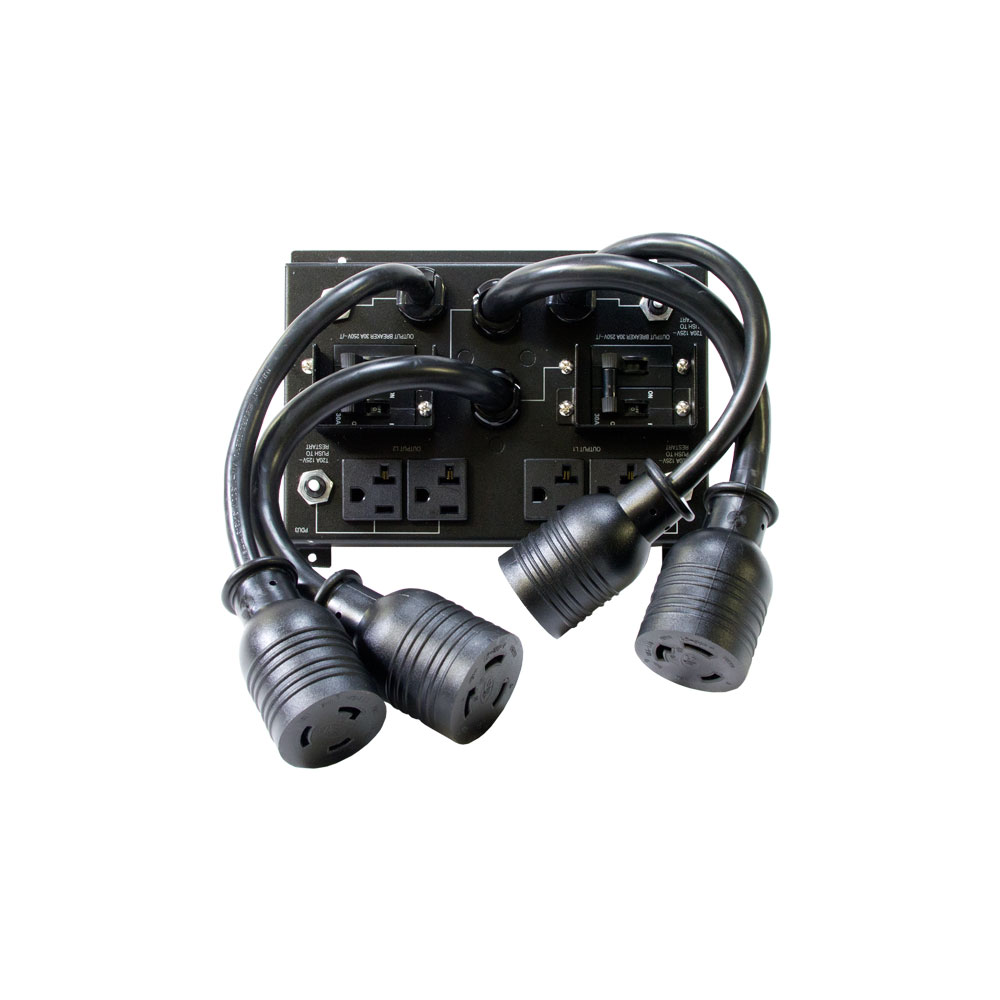

,XPRT-PDU3,Receptacle Output PDU for 10kVA UPS,(4) 5–20R + (2) L5–20R + (2) L6–30R,5.5 lbs,8.9″ x 10.4″ x 7.9″

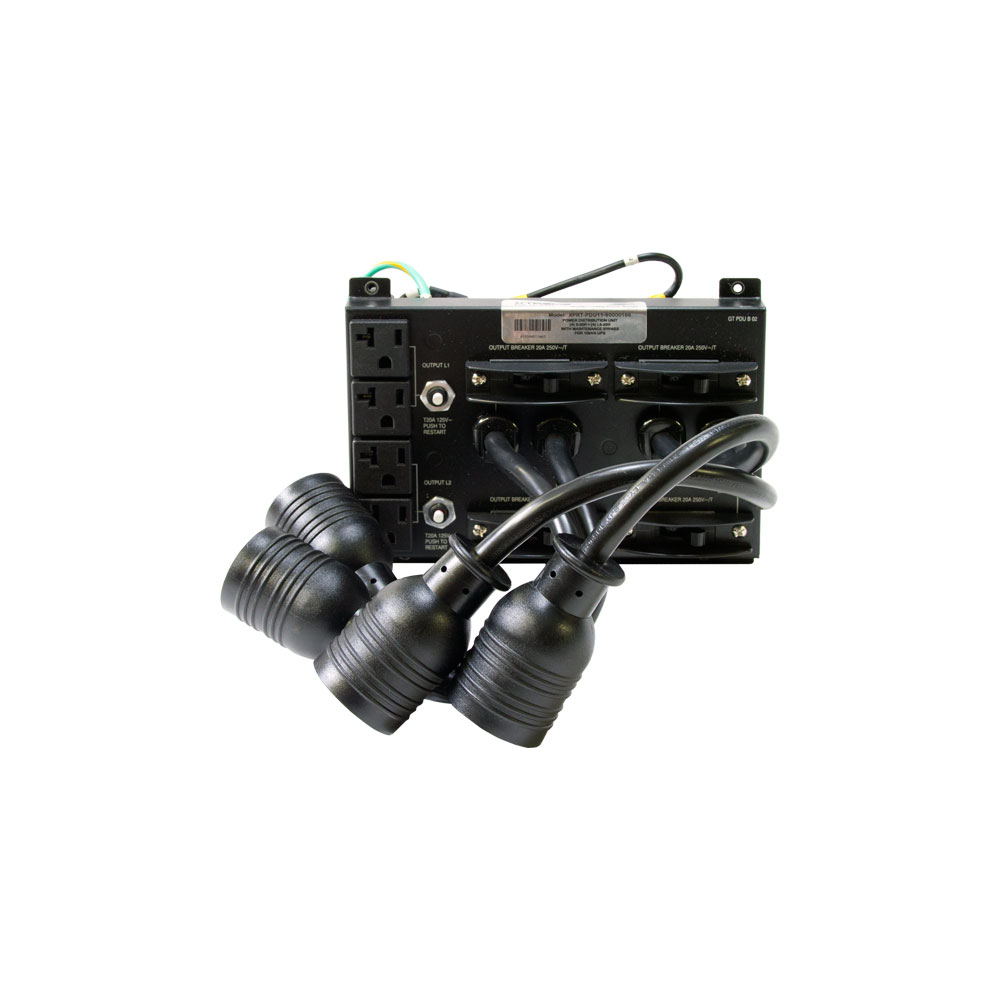

,XPRT-PDU11,Receptacle Output PDU for 10kVA UPS,(4) 5–20R + (4) L6–20R,5.5 lbs,8.9″ x 10.4″ x 7.9″

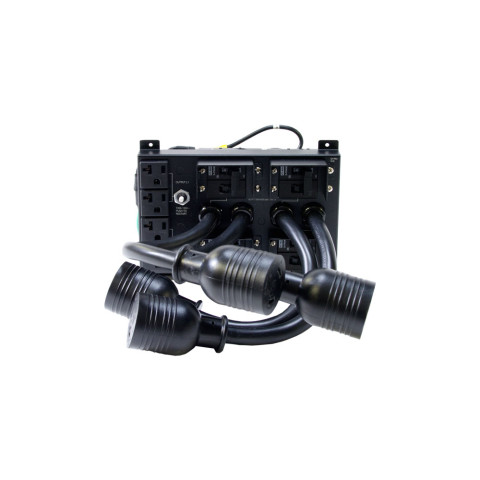

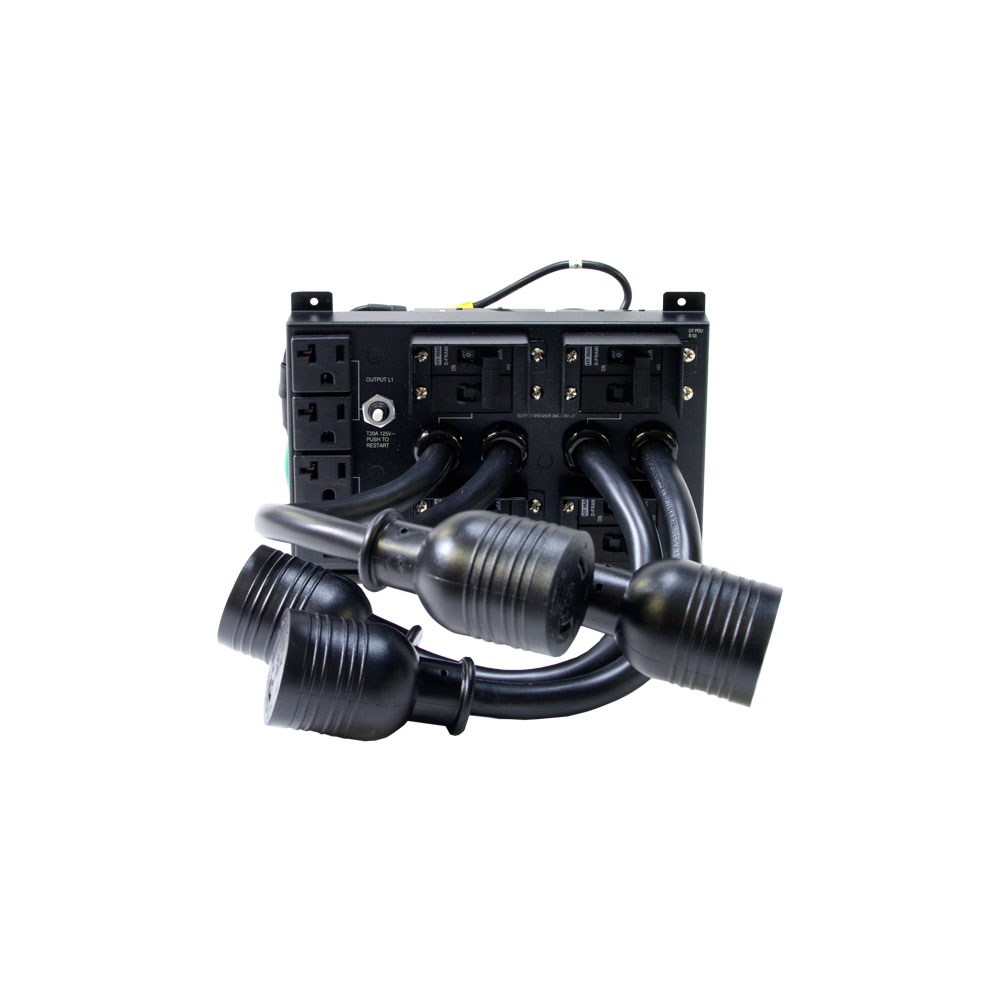

,XPRT-PDU12,Receptacle Output PDU for 10kVA UPS,(4) 5–20R + (4) L6–30R,5.5 lbs,8.9″ x 10.4″ x 7.9″

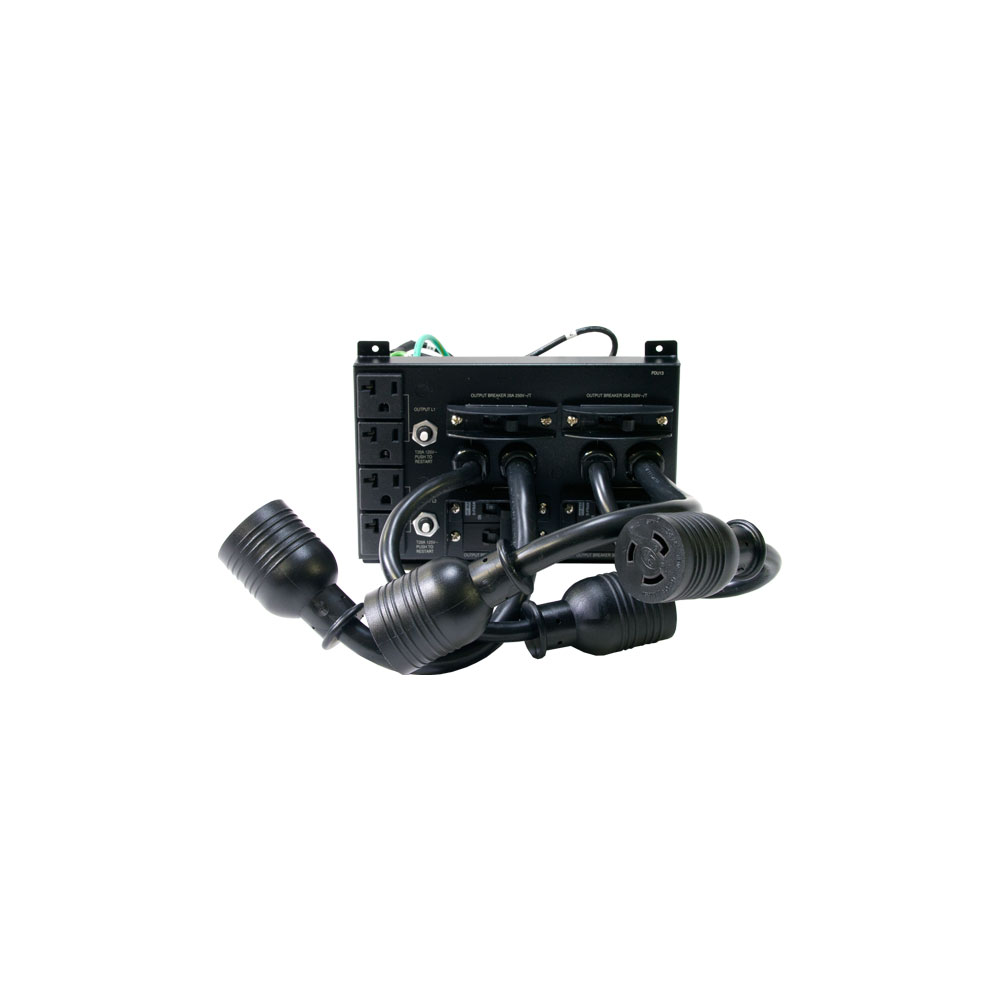

,XPRT-PDU13,Receptacle Output PDU for 10kVA UPS,(4) 5–20R + (2) L6–20R + (2) L6–30R,5.5 lbs,8.9″ x 10.4″ x 7.9″

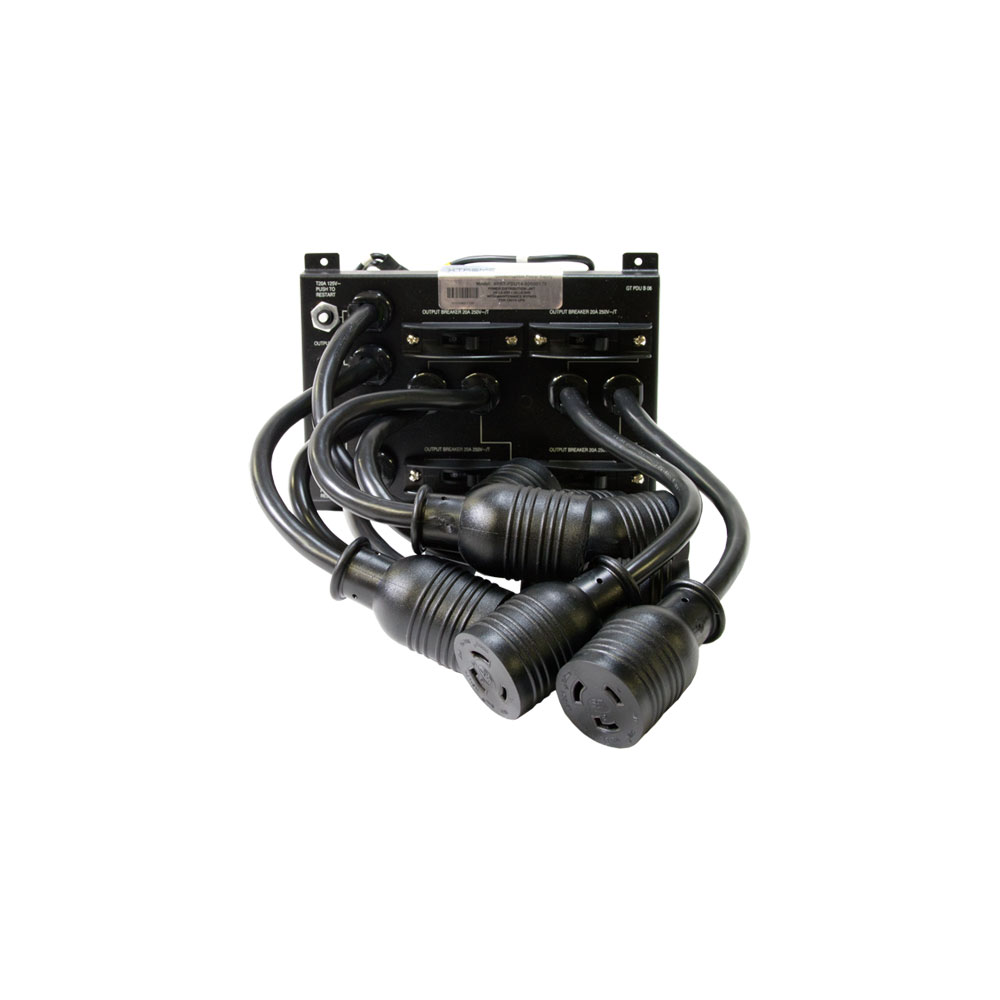

,XPRT-PDU14,Receptacle Output PDU for 10kVA UPS,(4) L5–20R + (4) L6–20R,5.5 lbs,8.9″ x 10.4″ x 7.9″
[/table]
