V80XR is a pure sine wave line interactive UPS for applications requiring extended runtimes and the fastest battery recharge. Up to four internal battery strings provide up to 2 hours of runtime at partial load.
V80XR units have the highest efficiency ratings available, providing utility cost savings at all load levels. V80XR design provides flexible mounting including tower, wall and rack. V80XR models combine high performance with value pricing.
Product Snapshot
- Available Models: 700VA, 1000VA, 1500VA, 2000VA
- Pure sine wave output
- Easy to replace battery design
- Tower, rack and wall mounting available
- UL, cUL, RoHS, TAA Compliant
- 3 years electronics, 3 years battery warranty (USA and Canada)
[table colalign=”left|left|center|center |center|center “]
,MODEL NUMBER,V80-700XR,V80-1000XR,V80-1500XR, V80-2000XR
INPUT,Capacity,700VA (420W),1000VA (600W),1500VA (900W),2000VA (1200W)
,Voltage range,82–148VAC [attr colspan=”4″]
,Frequency,50/60Hz auto-sensing[attr colspan=”4″]
OUTPUT,Voltage,120VAC[attr colspan=”4″]
,Waveform,”Pure sine wave” [attr colspan=”4″]
,Transfer time (typical),2-6 ms[attr colspan=”4″]
,Efficiency,”Up to 96% ECO mode, 93% buck and boost mode”[attr colspan=”4″]
,Harmonic distortion, 2% @ 100% linear load; 5% @ 100% non-linear load [attr colspan=”4″]
BATTERY,Battery type, “Sealed, maintenance-free lead acid” [attr colspan=”4″]
,Internal battery strings, “XR1, XR2, XR3, XR4″ [attr colspan=”1″],”XR1, XR2″ [attr colspan=”3”]
,Charge current, “1, 3 and 6A selectable (6A default)” [attr colspan=”4″]
,Recharge,Typically < 4 hours to 90% capacity [attr colspan=”4″]
PHYSICAL,Dimensions (W x D x H),”17.2 x 16.1 x 3.5″ [attr colspan=”4″]
,Weight,25.5 lbs,31.3 lbs,32.3 lbs,34.3 lbs
,Line cord,”8 ft, C13 to 5–15P” [attr colspan=”3″], “8ft, 5-20P to C19″[attr colspan=”1″]

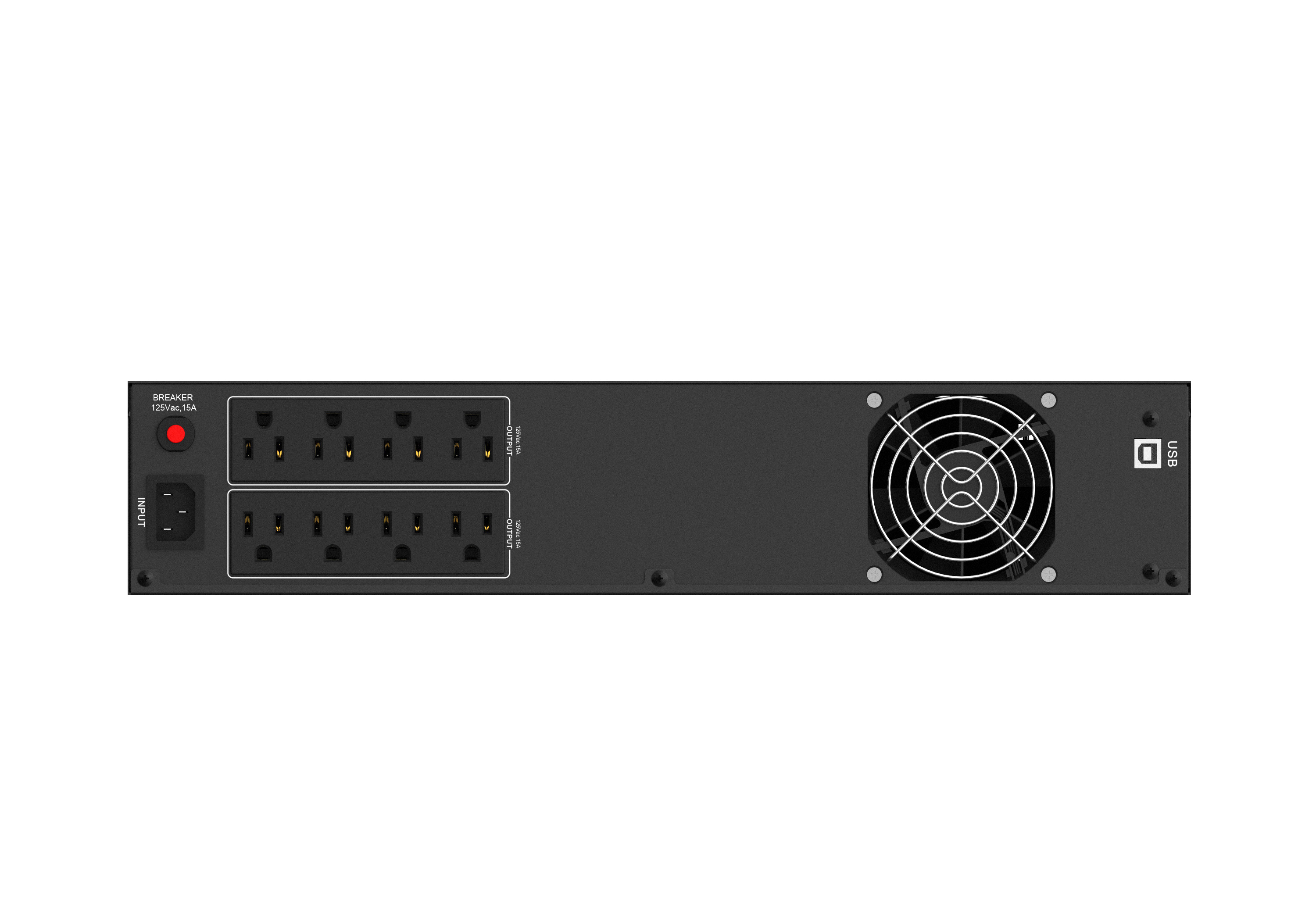

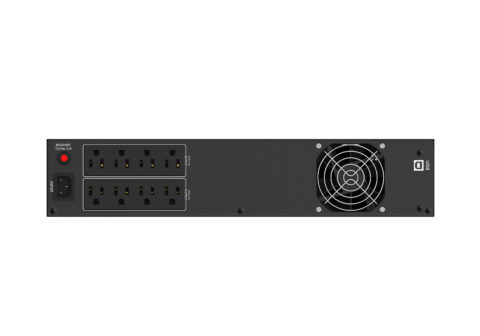

,Receptacles,(8) NEMA 5–15R [attr colspan=”4”]
ENVIRONMENT,Operating temperature, 32-122°F (0-50°C) [attr colspan=”4″]
,Audible noise,< 40dBA [attr colspan=”2″] , < 45dBA [attr colspan=”2″]
,Altitude,”11,500 ft above sea level”[attr colspan=”4″]
APPROVALS,,”UL, cUL, RoHS, TAA compliant”[attr colspan=”4″]
WARRANTY,,”3 years electronics, 3 years battery warranty (USA and Canada)”[attr colspan=”4″]
COMMUNICATIONS INTERFACE,,”USB”[attr colspan=”4″]
INCLUDED IN BOX,,”5-15P line cord, tower pedestals, user manual, USB cable, Xtreme Power Monitor software”[attr colspan=”4″]
AVAILABLE OPTIONS,,”5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket”[attr colspan=”4″]
[/table]
-
Mounting Kits
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions
,XPC-2PRAIL,2-Post Rail Kit; Rated for 125 lbs,5 lbs,4.0” x 20.0” x 3.0”
,XPC-2POSTL,2-Post Shelf Kit; Rated for 150 lbs,9 lbs,21.5″ x 23.3″ x 3.5″[/table]
