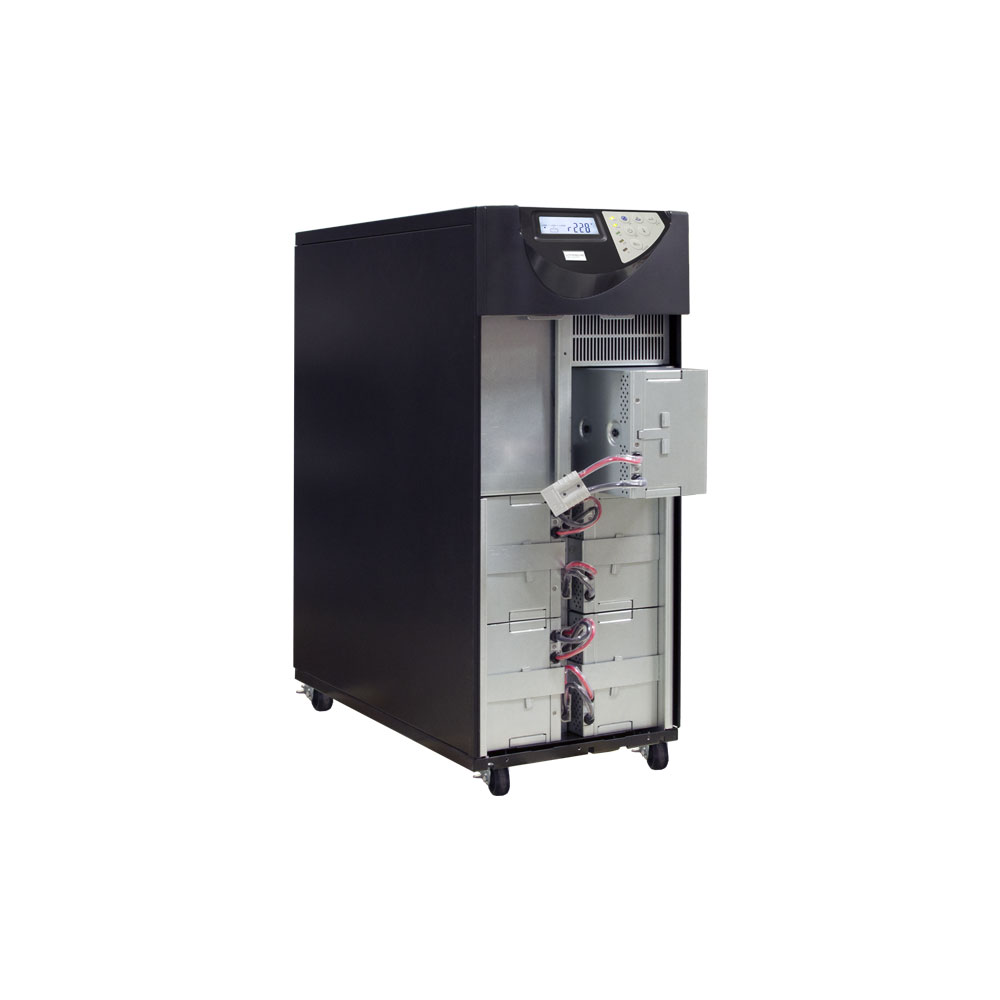

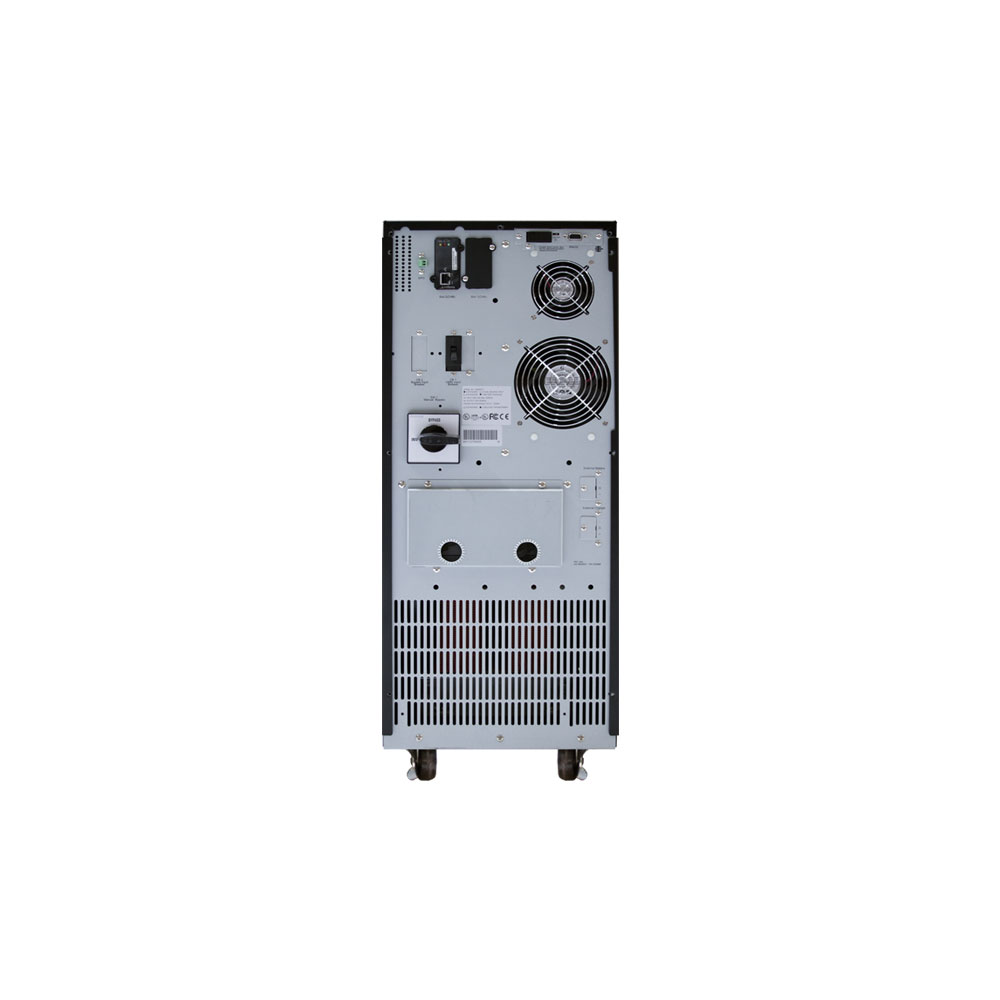

T90 6kVA & 10kVA Online UPS
6kVA & 10kVA
208/230VAC
Increase efficiency and reduce power consumption with this powerful online single-phase UPS.
Designed for high density critical loads, the Xtreme Power T90 delivers industry leading efficiency and scalability. T90 can be configured for online or ECO mode operation for efficiency of up to 97%. Output voltage and frequency are programmable to meet a wide range of USA and international requirements.
Product Snapshot
- Available models: 6kVA/5.4kW, 10kVA/9kW
- Optional battery runtimes up to 8 hours
- Up to four T90 units can be paralleled for additional capacity or redundant operation
- Optional external battery cabinets and chargers can be added for extended runtime applications
- UL1778, cUL, CE, FCC Class A, RoHS
- 3 years electronics, 3 years battery warranty (USA and Canada)
[table colalign=”left|left|center|center”]
,MODEL NUMBER,T90-6K,T90-10K
INPUT,Capacity,6kVA (5.4kW),10kVA (9kW)
,Voltage range,160–280VAC* [attr colspan=”2″]
,Frequency,45–65Hz auto-sensing [attr colspan=”2″]
,Power factor,Up to 0.99 at linear load [attr colspan=”2″]
,Harmonic distortion,< 3% at linear load [attr colspan=”2″]
OUTPUT,Rated voltage,208VAC nominal (200/220/230/240VAC selectable) [attr colspan=”2″]
,Crest factor,3:1[attr colspan=”2″]
,Overload capacity,”105%–150% for 160 sec, 2 cycles before switching bypass”[attr colspan=”2″]
,Efficiency,”97% ECO mode, 91% online mode”[attr colspan=”2″]
BATTERY,Battery type,”Sealed, maintenance-free lead acid”[attr colspan=”2″]
,Battery quantity and size,(20) 12V 7AH,(20) 12V 9AH
PHYSICAL,Input/output,Terminal blocks or optional PDU[attr colspan=”2″]
,Dimensions (W x D x H),11.4 x 25.4 x 29.5 in[attr colspan=”2″]
,Weight,190 lbs,223 lbs
OPTIONAL BATTERY PACKS,Battery quantity and size,EBP920–(20) 12V 9AH; EBP940–(40) 12V 9AH; EBP960–(60) 12V 9AH[attr colspan=”2″]
,Dimensions (W x D x H),11.4 x 25.4 x 29.5 in[attr colspan=”2″]
,Weight,EBP920–254 lbs; EBP940–364 lbs; EBP960–474 lbs[attr colspan=”2″]

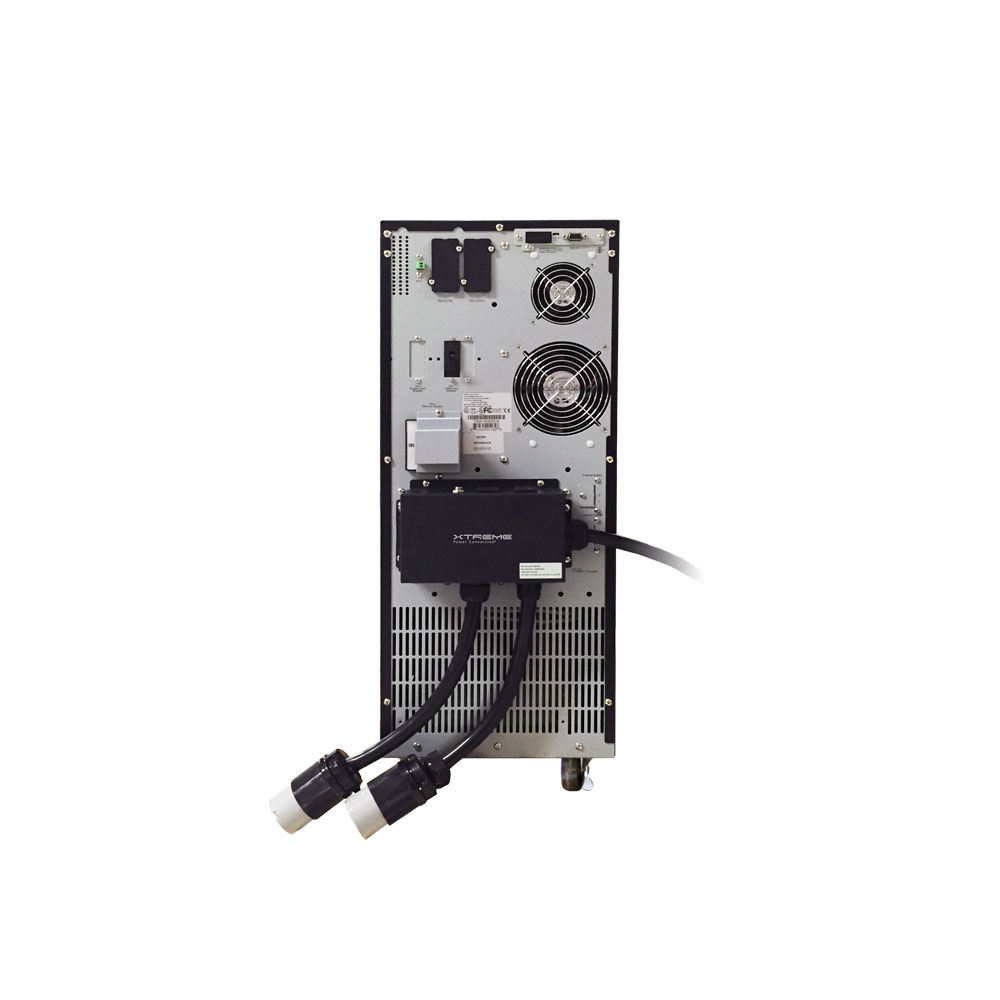

OPTIONAL PDU,Input connection,”6 ft, L6–30P”,Terminal blocks
,Receptacle options,”L6–30R, L6–20R, L6–15R, 6–15/20R, C19″[attr colspan=”2″]
ENVIRONMENT,Temperature,32–104°F (0–40°C) [attr colspan=”2″]
,Humidity,0–95% non-condensing[attr colspan=”2″]
,Audible noise,< 50dBA [attr colspan=”2″]
,Altitude,”11,500 ft above sea level” [attr colspan=”2″]
APPROVALS,,”UL1778, cUL, CE, FCC Class A, RoHS”[attr colspan=”2″]
WARRANTY,,”3 years electronics, 3 years battery warranty (USA and Canada)” [attr colspan=”2″]
COMMUNICATIONS INTERFACE,,”RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact)” [attr colspan=”2″]
INCLUDED IN BOX,,”User manual, RS-232 communication cable, shutdown software”[attr colspan=”2″]
AVAILABLE OPTIONS,,”Output PDU, external battery charger, parallel tie/bypass, input L6–30P cord (for 6kVA only)” [attr colspan=”2″]
[/table]
*Depending on load level
-
UPS Battery and Charger Options
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions

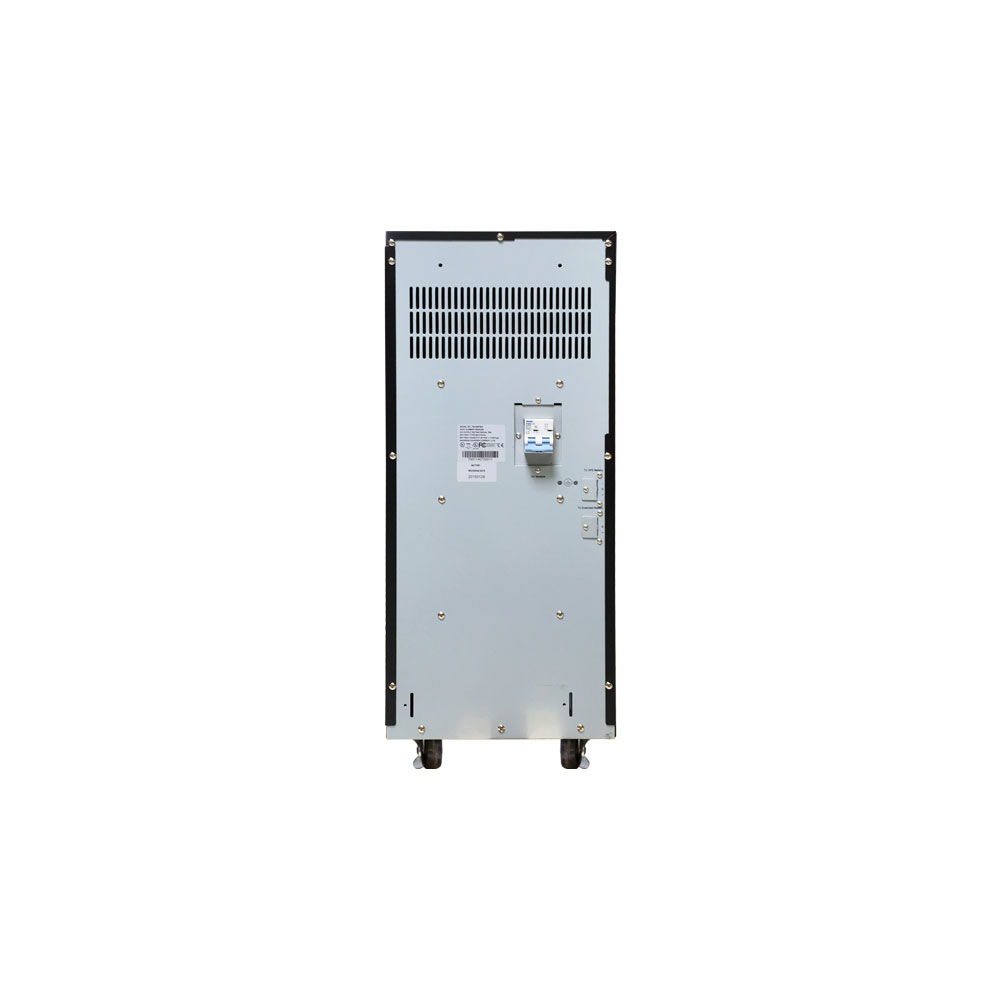

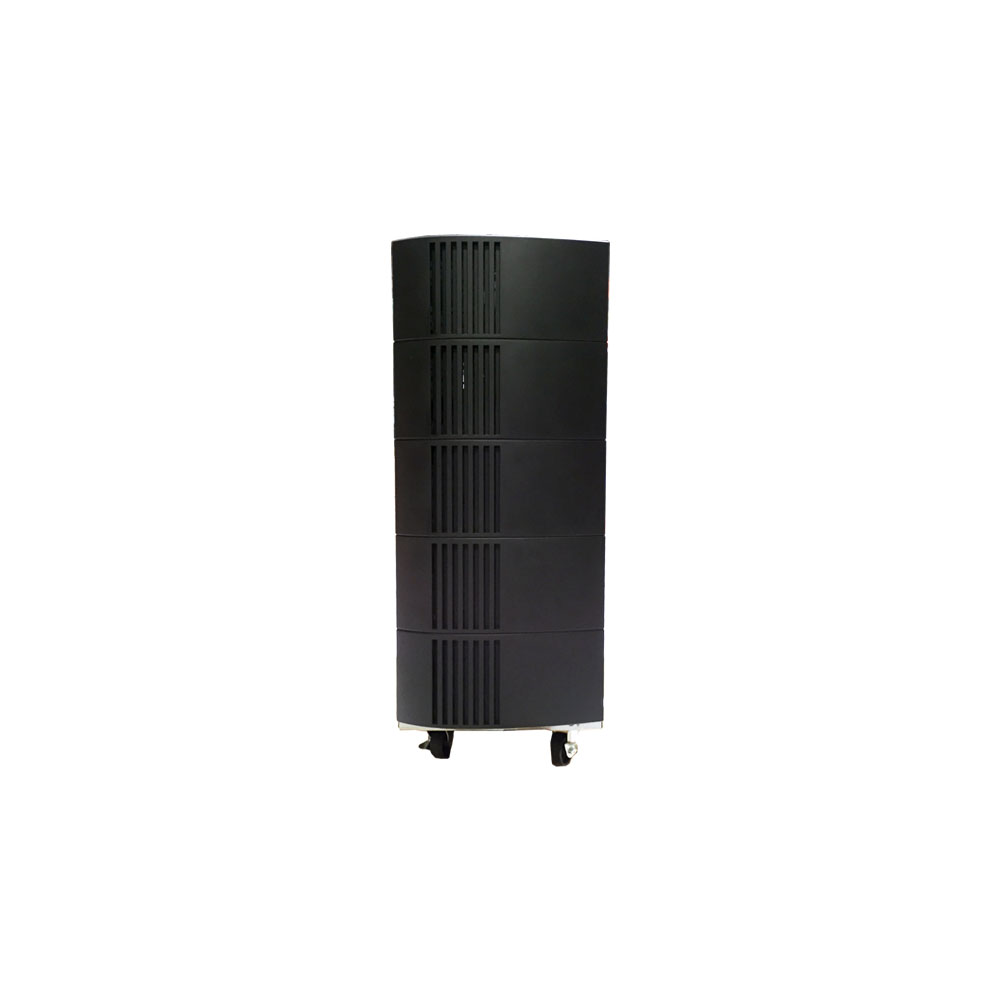

,T90-EBP920,”Extended Battery Pack for T90-6K, T90-10K with (20) 12V 9AH Batteries”,205 lbs,11.4″ x 25.4″ x 29.5″
,T90-EBP940,”Extended Battery Pack for T90-6K, T90-10K with (40) 12V 9AH Batteries”,324 lbs,11.4″ x 25.4″ x 29.5″
,T90-EBP960,”Extended Battery Pack for T90-6K, T90-10K with (60) 12V 9AH Batteries”,446 lbs,11.4″ x 25.4″ x 29.5″

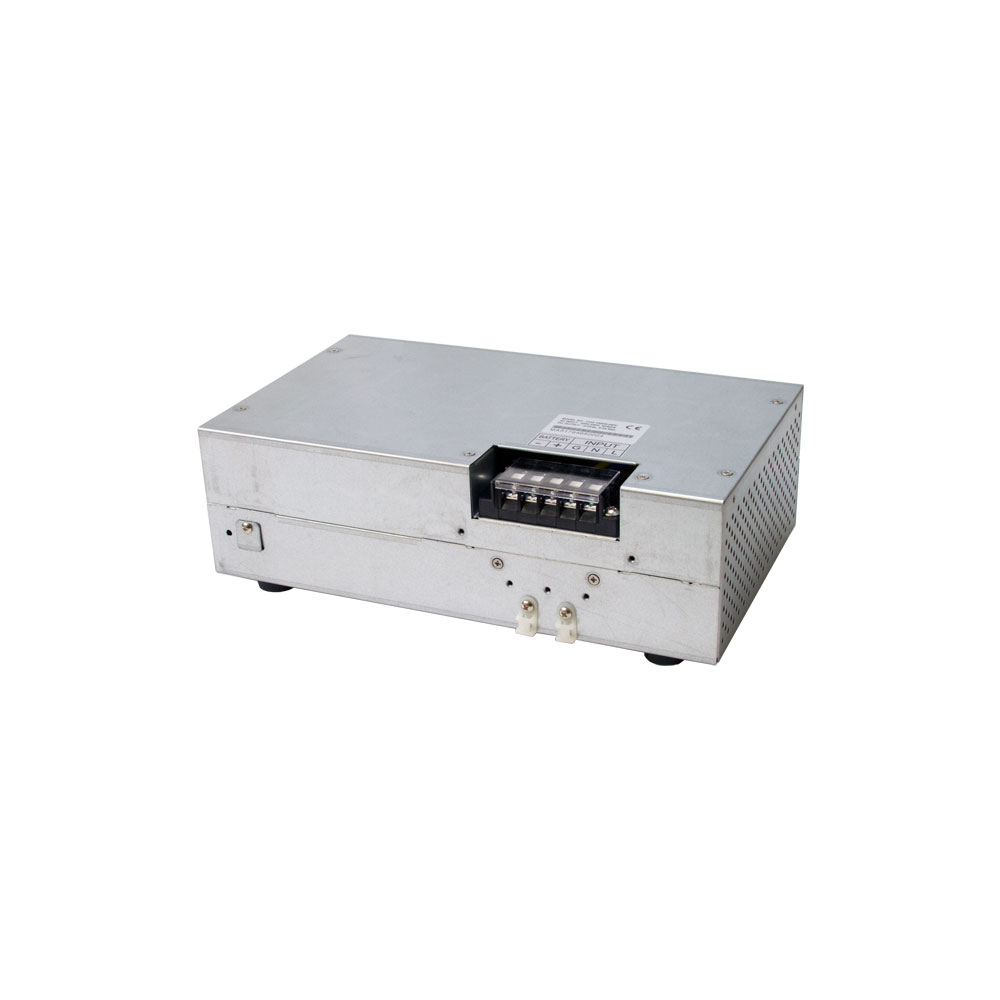

,T90-240CHG,”1000W Charger for use with T90-6K, T90-10K”,7 lbs,6.6″ x 11.1″ x 3.4″
[/table] -
Connectivity
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions
,SNMP-1PIN,Internal Web/SNMP Card,1 lb,7.25″ x 6″ x 2.5″

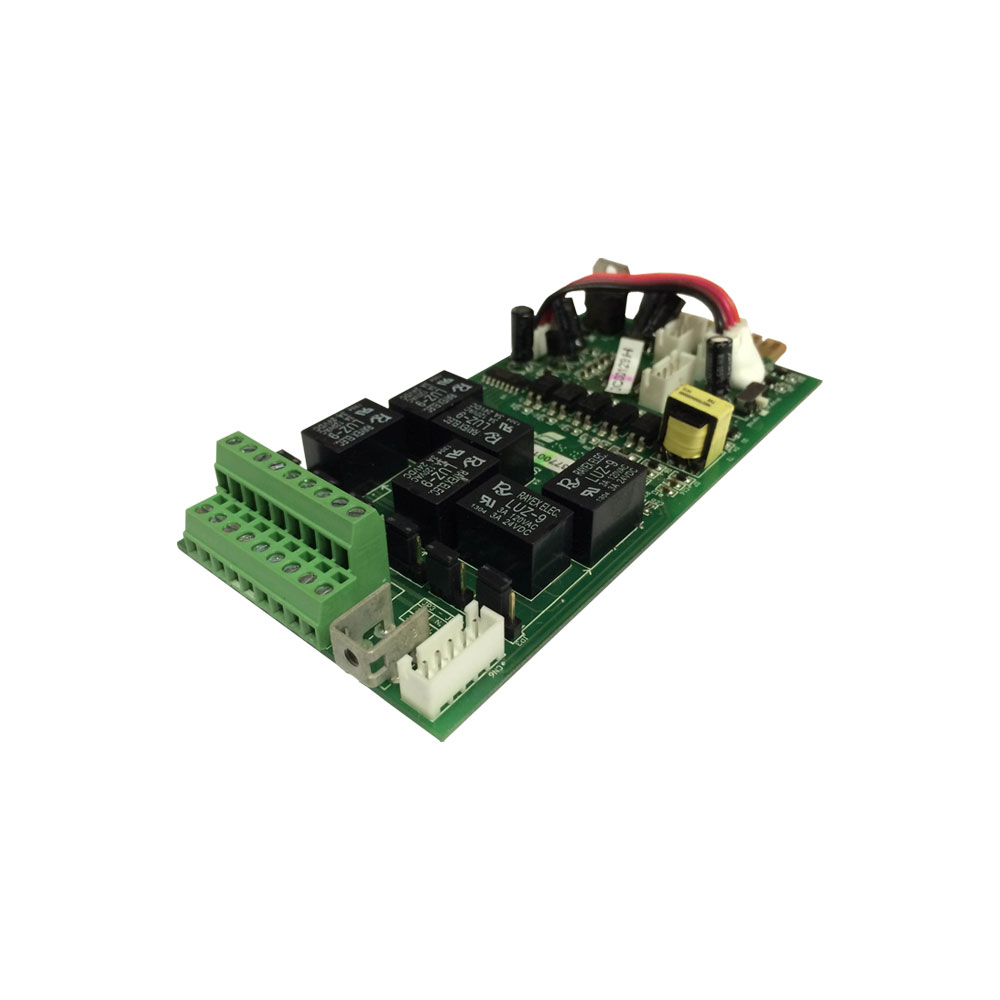

,TX90-RELAY,Relay Dry Contact Interface Card,1 lb,7.25″ x 6″ x 2.5″
[/table] -
Power Distribution Units
[table colwidth=”75″]
,Model,Description,Input Power Cord, Outlets, Unit Weight, Unit Dimensions
,XPD31,30A 240V 2U 19” Basic Power Distribution Unit,”L6–30P, 6ft”,(2) L6–30R + (2) L6–20R + (4) 6–15/20R,9.0 lbs,19.0” x 4.7” x 3.5”
,XPD32,30A 240V 2U 19” Basic Power Distribution Unit,”L6–30P, 6ft”,(2) L6–30R + (4) L6–20R,7.5 lbs,19.0” x 2.4” x 3.5”
,XPD33,30A 240V 2U 19” Basic Power Distribution Unit,”L6–30P, 6ft”,(4) IEC C19 + (8) IEC C13,6.0 lbs,19.0” x 2.4” x 3.5”
[/table]
