S70i Line Interactive UPS
1000VA, 1500VA
230VAC
Equip your office with reliable battery backup and protection from power outages.
Power quality disturbances including voltage fluctuations, over voltage, under voltage, and voltage blackouts occur unexpectedly. In the event of any of these common power problems, the S70i UPS activates to protect all connected critical loads—ranging from your computer to your business telephone system.
The S70i streamlines installation to just a few simple steps, allowing backup power protection right out of the box. The smart LCD screen offers real-time monitoring of UPS parameters while shutdown and monitoring software enables UPS and remote device control over your network.
Product Snapshot
- Available models: 1000VA, 1500VA

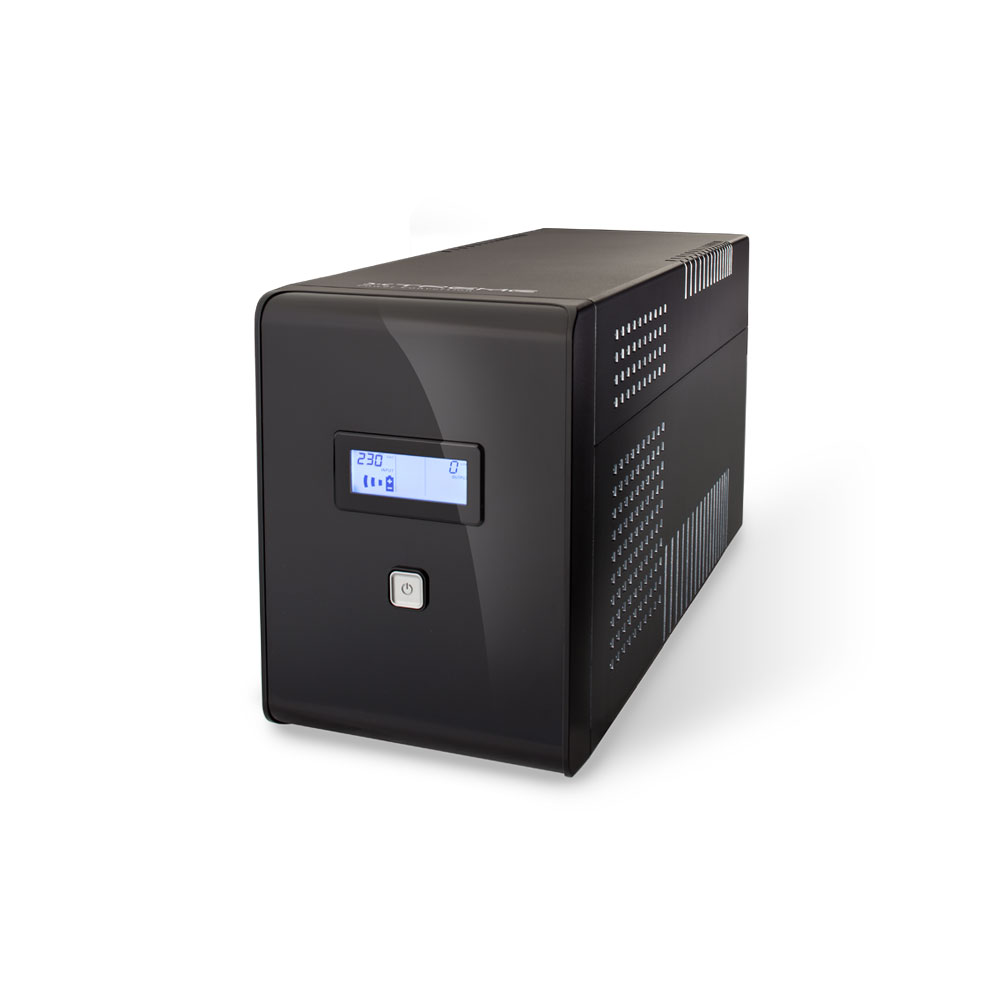

- Smart LCD display
- Automatic voltage regulation (AVR)
- CE listed, RoHS compliant
- Primary applications: home or small office, desktop computers, routers, and switches
- 2 years electronics, 2 years battery warranty
[table colalign=”left|left|center|center”]
,MODEL NUMBER,S70i-1000,S70i-1500
INPUT,Capacity,1000VA (600W),1500VA (900W)
,Voltage,220/230/240VAC[attr colspan=”2″]
,Frequency,50/60Hz[attr colspan=”2″]
OUTPUT,Voltage,230VAC[attr colspan=”2″]
,Waveform,”Sine wave (normal), simulated sine wave (battery mode)”[attr colspan=”2″]
,Frequency,50/60Hz auto sensing[attr colspan=”2″]
,Transfer time,4ms (typical) [attr colspan=”2″]
BATTERY,Battery type,”Sealed, maintenance-free lead acid”[attr colspan=”2″]
,Battery quantity and size,(2) 12V 7AH,(2) 12V 9AH
,Recharge,4–6 hours to 90% capacity[attr colspan=”2″]
,Runtime at 50% load,Up to 10 min[attr colspan=”2″]
PHYSICAL,UPS dimensions (W x D x H),5.7 x 13.8 x 6.3 in,5.7 x 15.6 x 8.1 in
,Shipping dimensions,7.5 x 17.4 x 10 in,9.1 x 19.3 x 11.3 in
,UPS weight,17.6 lbs,24.5 lbs
,Shipping weight,19.4 lbs,27.1 lbs
,Line cord,”6ft, IEC C13 to Schuko”[attr colspan=”2″]

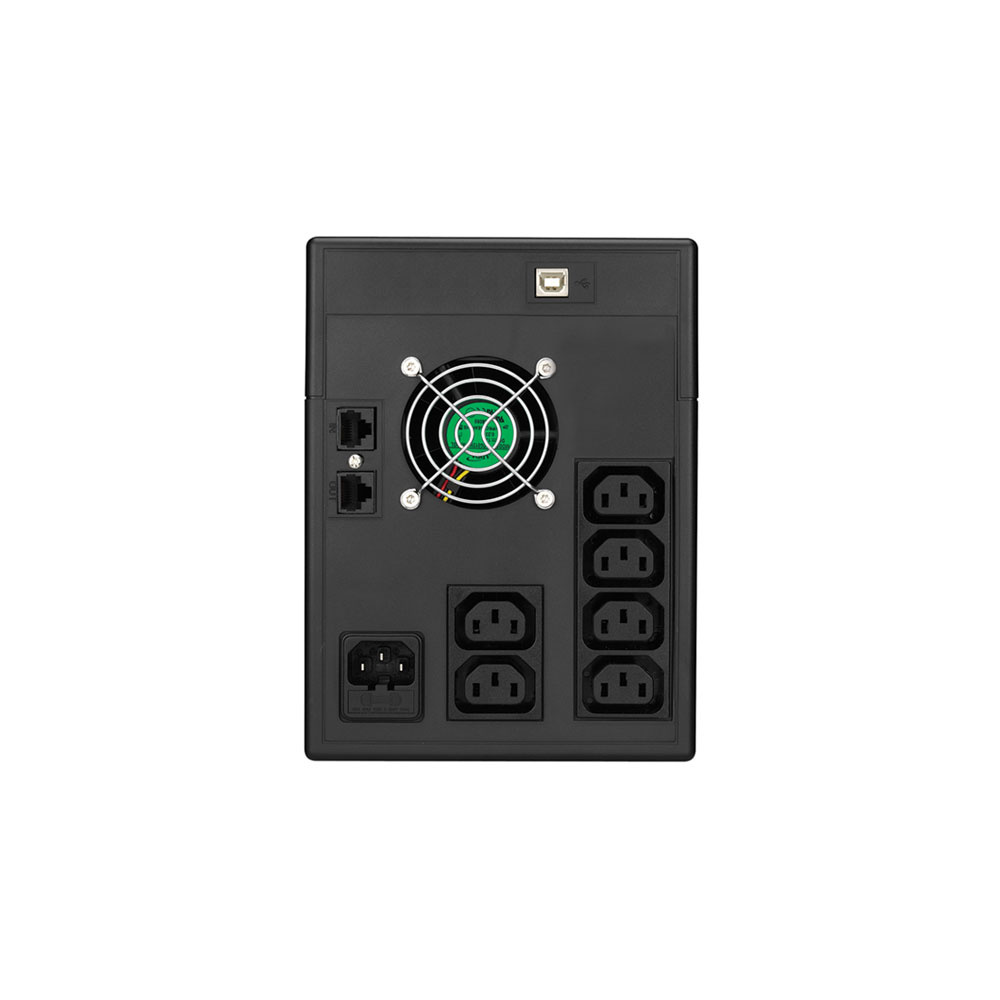

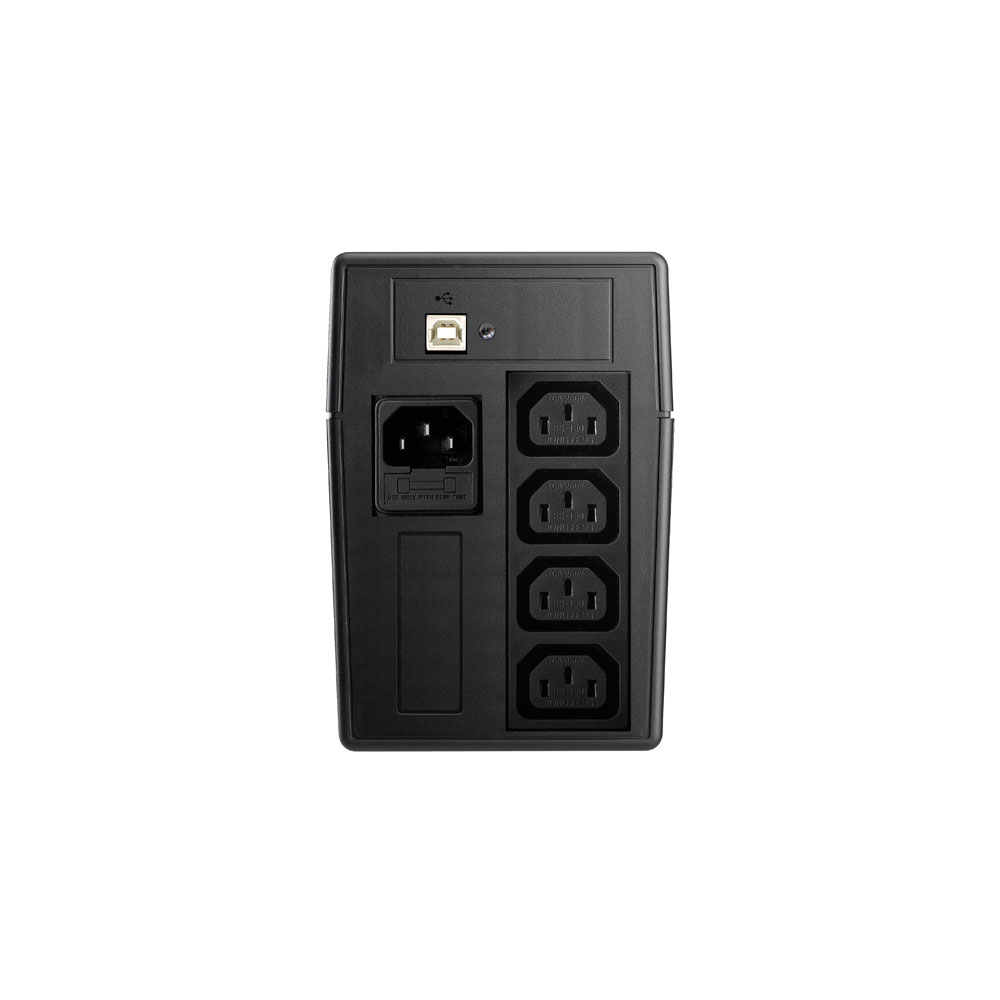

,Receptacles,(4) IEC C13,(6) IEC C13
,Cooling,Convection cooled,Fan cooled
ENVIRONMENT,Operating temperature,32–104°F (0–40°C) [attr colspan=”2″]
,Humidity,0–90%[attr colspan=”2″]
,Altitude,”11,500 ft above sea level”[attr colspan=”2″]
INDICATORS & ALARMS,LCD display,”AC mode, battery mode, load/battery level, input/output voltage, overload fault, low battery”[attr colspan=”2″]
,Data line protection,RJ45[attr colspan=”2″]
APPROVALS,,”CE, RoHS”[attr colspan=”2″]
WARRANTY,,”2 years electronics, 2 years battery warranty”[attr colspan=”2″]
COMMUNICATIONS INTERFACE,,USB[attr colspan=”2″]
INCLUDED IN BOX,,”Shutdown and monitoring software, USB cable, user manual, detachable line cord”[attr colspan=”2″]
[/table]
