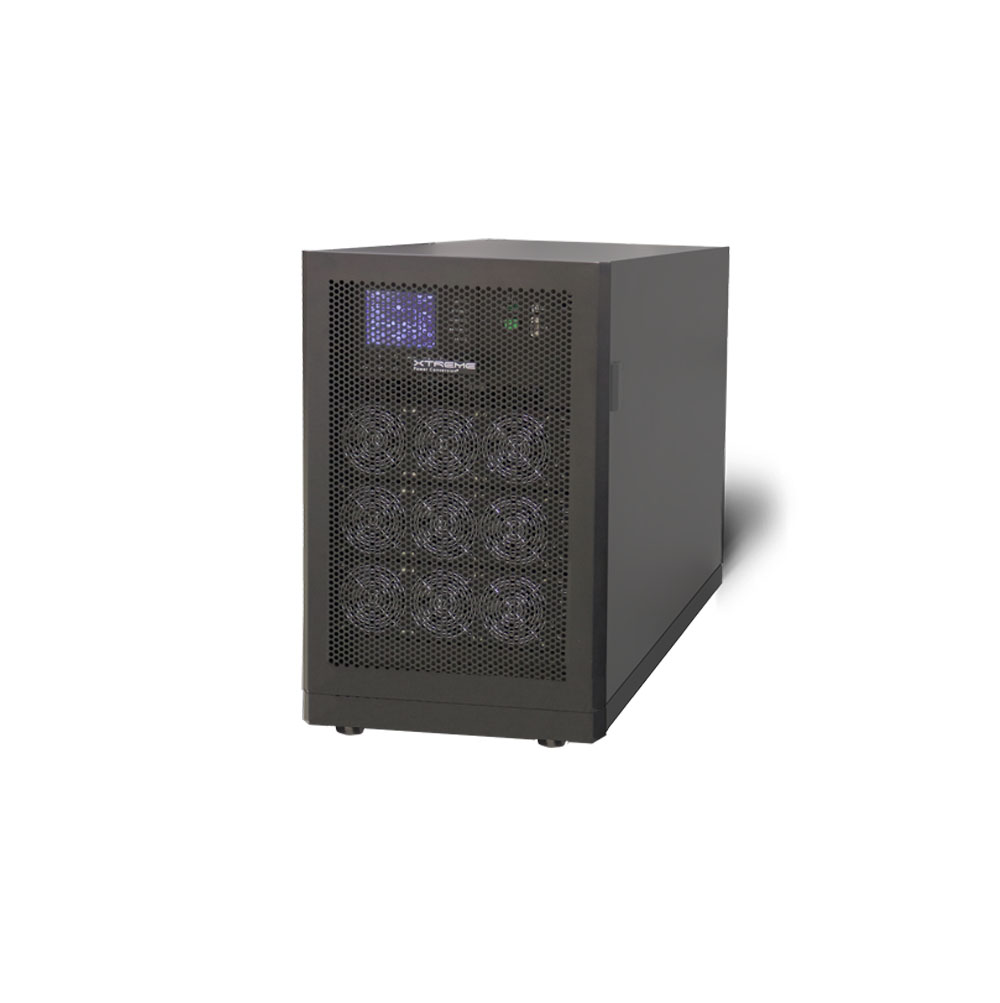

M90LU Unity PF Modular Online Three Phase UPS

15kVA-60kVA

208/120VAC Three-Phase

Mission Critical Availability while reducing costs with Scalable, Modular M90L for 15kVA, 20kVA, 30kVA, 40kVA, 45kVA, 60kVA applications.

Category:

The M90LU is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90LU can be configured with a fully redundant power module and long runtime external batteries. Should one module fail, the remaining modules smoothly take over the load. Because the power modules are independent, they can be hot swapped without risk to the critical load.
As power requirements change, M90LU modularity makes it easy to add modules and increase capacity.

Product Snapshot

  • Six capacities: 15kVA/15kW, 20kVA/20kW, 30kVA/30kW, 40kVA/40kW, 45kVA/45kW, 60kVA/60kW
  • Unity output power factor
  • Hot swappable power modules
  • Up to 98% ECO mode or 94% online efficiency
  • Remote control and monitoring options
  • 2 year electronics, 2 year battery warranty (USA and Canada)

Six advantages of modular uninterruptible power supply (UPS) over conventional UPS systems

[table colalign=”left|left|center|center|center|center|center|center”]

,MODEL NUMBER,M90LU-15, M90LU-20, M90LU-30, M90LU-40, M90LU-45, M90LU-60

INPUT,Capacity,15kVA (15kW), 20kVA (20kW), 30kVA (30kW), 40kVA (40kW), 45kVA (45kW), 60kVA (60kW)

,Nominal,208/120V 50/60Hz auto sensing[attr colspan=”6″]

,Range,121-253VAC*(L-L) 40-70Hz[attr colspan=”6″]

OUTPUT,Voltage,208/120VAC[attr colspan=”6″]

,Frequency,50/60 ± 0.05Hz [attr colspan=”6″]

,THD (full load),0.9[attr colspan=”6″]

,Voltage regulation,<2%[attr colspan=”6″]

,Efficiency,”98% ECO mode, ≥ 94% online mode”[attr colspan=”6″]

,Overload capacity,105%-110% for 60 min;110%-125% for 10min; 126%-150% for 1min; <150% for 200ms [attr colspan=”6″]

PHYSICAL,Enclosure,20.3″W x 39.4″D x 30″H / 227 lbs [attr colspan=”6″]

,Power module,19.0”W x 28.0”D x 5.1”H / 74 lbs  [attr colspan=”6″]

ENVIRONMENT,Temperature,0–40°C (32–104°F) [attr colspan=”6″]

,Altitude,”5,200 ft above sea level”[attr colspan=”6″]

,Audible noise, < 65dBA at 1m [attr colspan=”6″]

APPROVALS,,”UL-1778 (TUV), cUL, FCC A, RoHS”[attr colspan=”6″]

WARRANTY,,”2 years (USA and Canada)”[attr colspan=”6″]

COMMUNICATIONS INTERFACE,,”RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)” [attr colspan=”6″]

INCLUDED IN BOX,,”User Manual, RS-232 cable, Ramp for unloading UPS enclosure”[attr colspan=”6″]

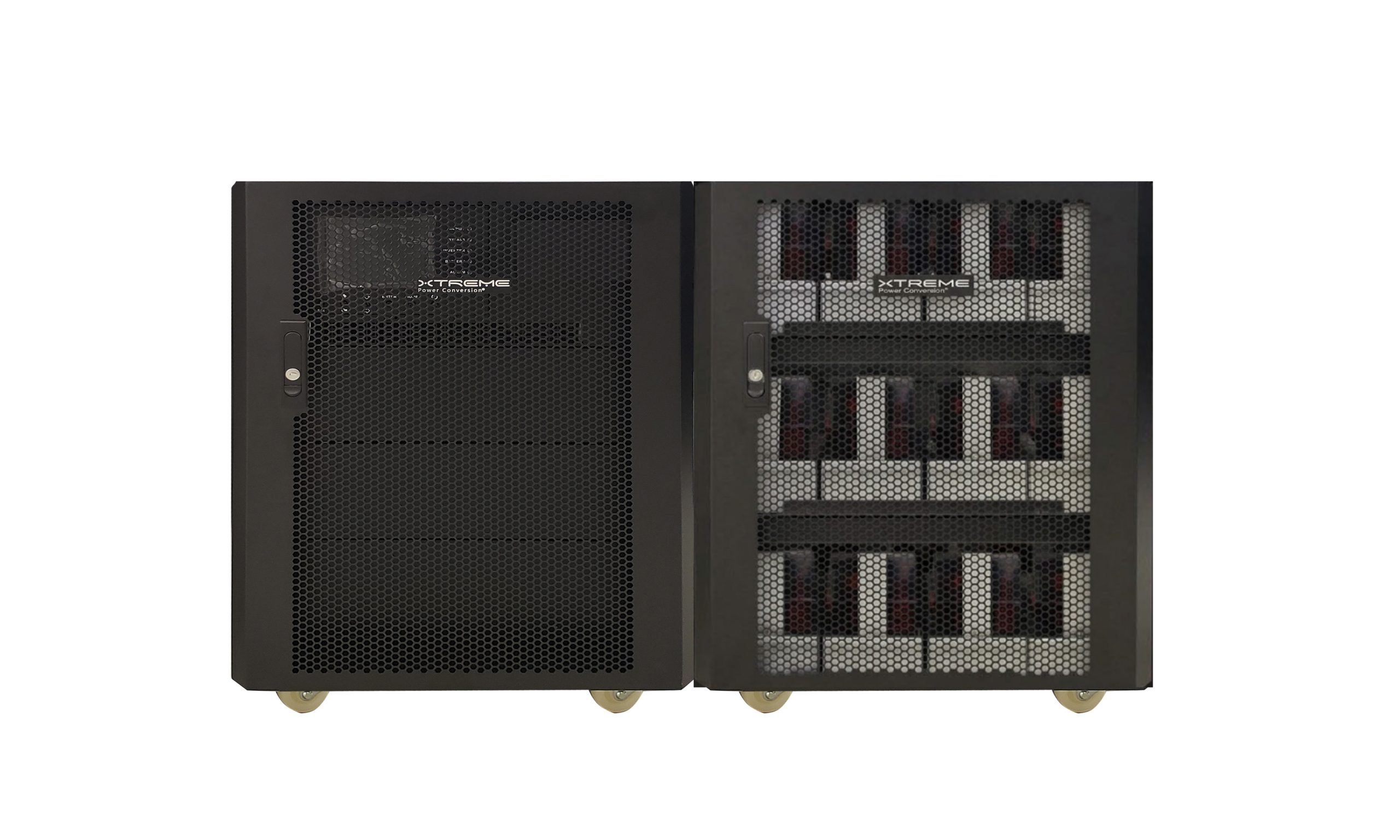

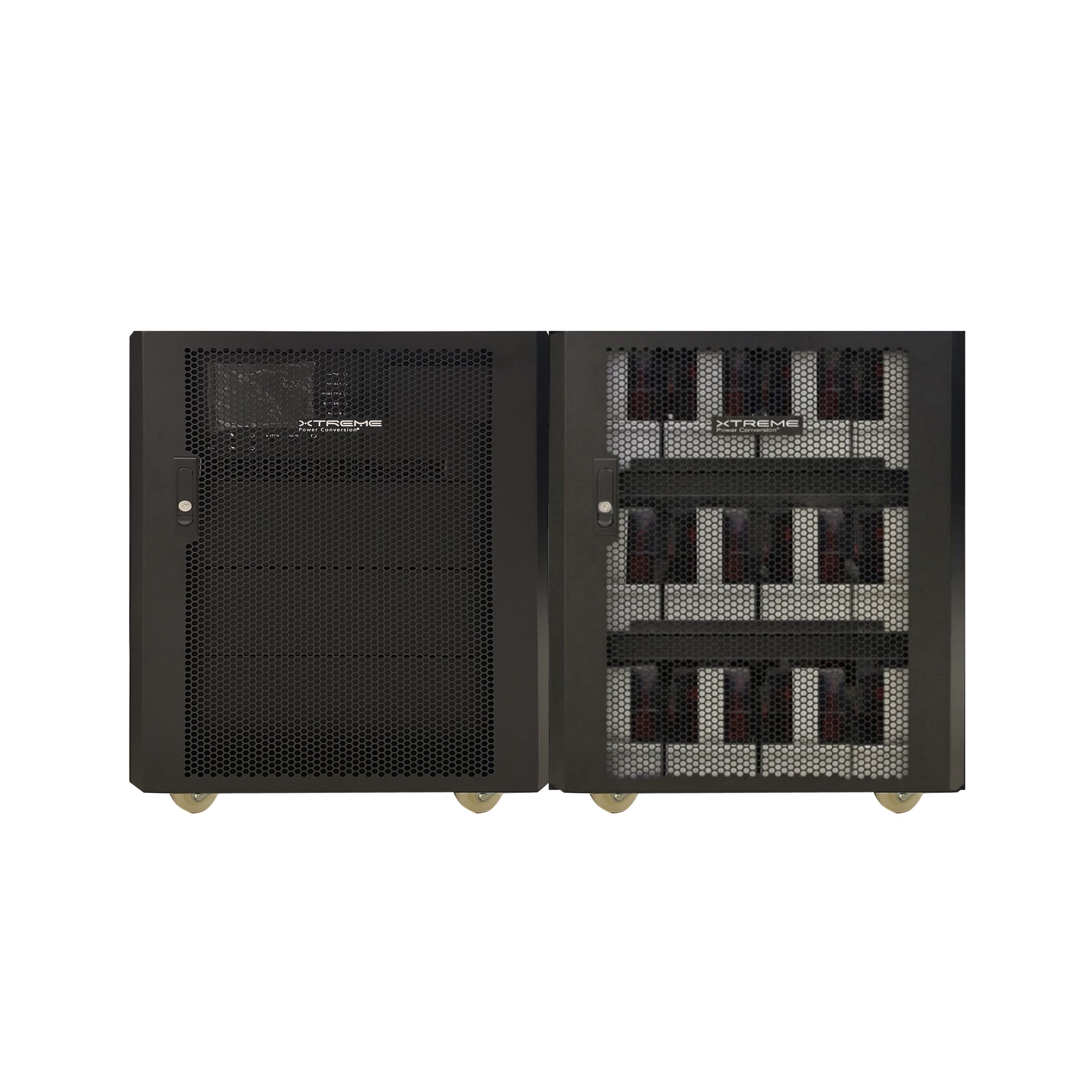

AVAILABLE OPTIONS,,”External maintenance bypass, 480V input transformer, output distribution, external battery pack battery, battery temperature sensor”[attr colspan=”6″]

[/table]
