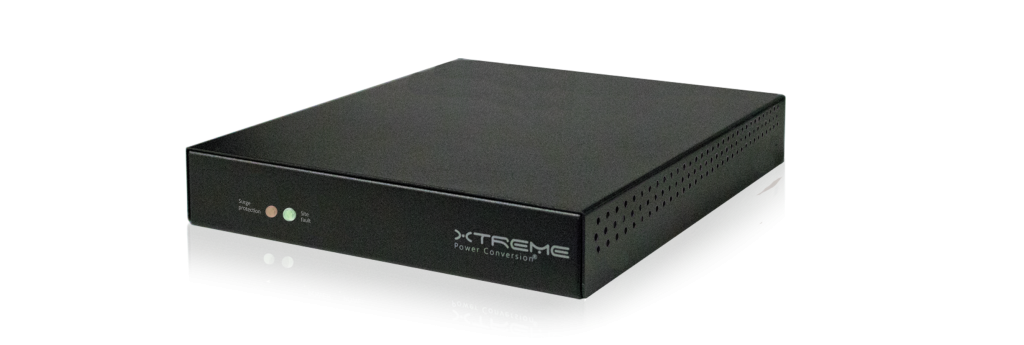

JX Series Isolation Transformer
Clean, Isolated Power in an Ultra-Slim Design
The Xtreme Power JX Series delivers 200 VA of isolated, noise-free power in a profile just 1.25″ high. Designed for POS systems, kiosks, AV racks, and embedded electronics, the JX Series protects sensitive devices from surges, ground loops, and electrical noise—keeping your systems running reliably in the most compact spaces.
Why Use an Isolation Transformer?
Not all power is created equal. Sensitive electronics often suffer from:
- Electrical noise and interference that cause data errors and video/audio distortion
- Ground loops that trigger resets or system crashes
- Power surges and spikes that damage equipment
The JX Series Isolation Transformer solves these problems by delivering clean, stable, isolated power in a compact form factor.
Key Features
- Toroid Isolation Technology – eliminates hum, EMI, and ground loop issues
- Ultra-Slim 1.25″ Profile – fits in AV racks, under counters, and embedded enclosures
- Flexible Mounting – install on walls, under counters, or with optional DIN-rail kit
- Surge & Noise Protection – filters both common- and normal-mode interference
- LED Status Indicators – green for live power, red for wiring fault detection
- 5-Year Warranty – long-term reliability backed by Xtreme Power
Ideal Applications
The JX Series is trusted across industries to protect sensitive, space-constrained electronics:

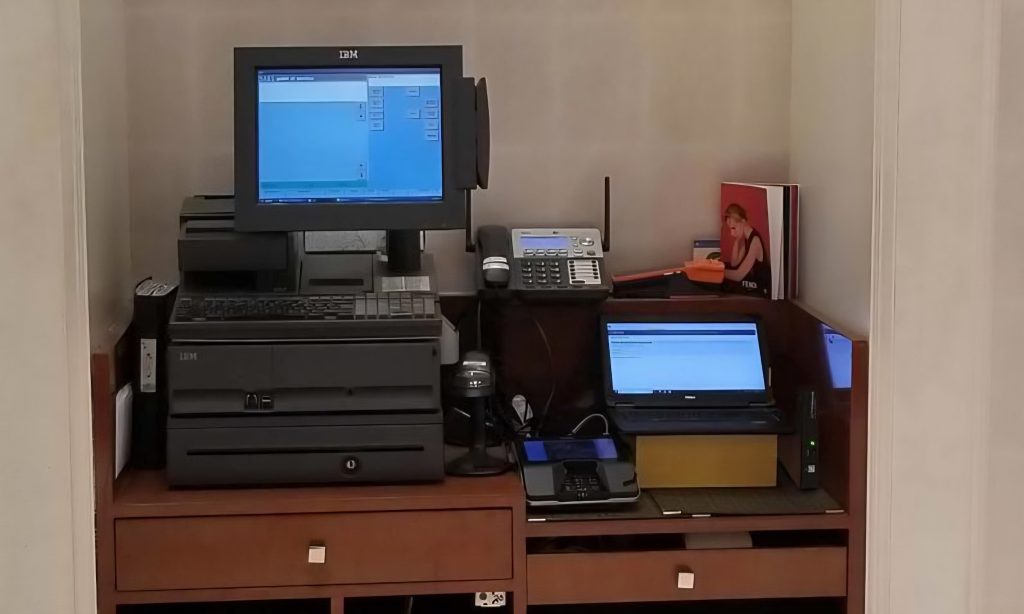

- Retail POS & Kiosks – maintain reliable transaction processing
- Security Panels & Access Control – prevent downtime in surveillance and entry systems
- AV Systems & Media Players – ensure clean video and audio output
- Embedded Electronics & Instrumentation – protect critical data and sensors
How the JX Series Compares
| Feature | JX Series (200 VA) | PowerVar ABC150-11 (150VA) |
| Transformer Type | Toroidal isolation | E-I type transformer |
| Capacity | 200 VA | 150 VA |
| Profile / Height | 1.25″ ultra-slim | 3.61″ tall (bulkier) |
| Mounting Options | Wall / under-counter / DIN-rail | Tabletop or enclosure mount |
| Warranty | 5 years | 5 years |
Specifications
- Capacity: 200 VA / 200 W
- Dimensions: 6.9″ × 8.5″ × 1.25″
- Weight: 6.6 lbs
- Mounting: Wall, under-counter, or optional DIN-rail
- Protection: Surge suppression, normal- and common-mode noise filtering
- Indicators: Green LED (power on), Red LED (wiring fault)
- Certifications: UL 60950-1, RoHS compliant
- Warranty: 5 years (North America)
Frequently Asked Questions
Q: What makes the JX Series different from a power strip or surge suppressor?
A: Unlike basic surge strips, the JX Series includes a toroidal isolation transformer that eliminates noise and ground loops, delivering truly clean power.
Q: Where can the JX be mounted?
A: Its slim profile allows for wall mounting, under-counter installations, or DIN-rail mounting (with optional kit).
Q: What systems benefit most from isolation power?
A: Kiosks, POS, AV systems, and embedded electronics—any environment where sensitive electronics need reliable protection in tight spaces.
Protect Your Systems with Clean Power
Ensure reliability and performance in every installation with the JX Series Isolation Transformer.
