Mission-Critical Online Power Protection with Easy-to-Swap Modules
Reliable, Scalable, and Efficient Backup Power
The Xtreme Power M90C-2S delivers high-performance, high-efficiency uninterruptible power for today’s mission-critical environments. With a unity power factor (kVA = kW), you achieve full capacity usage without the need to oversize your system.

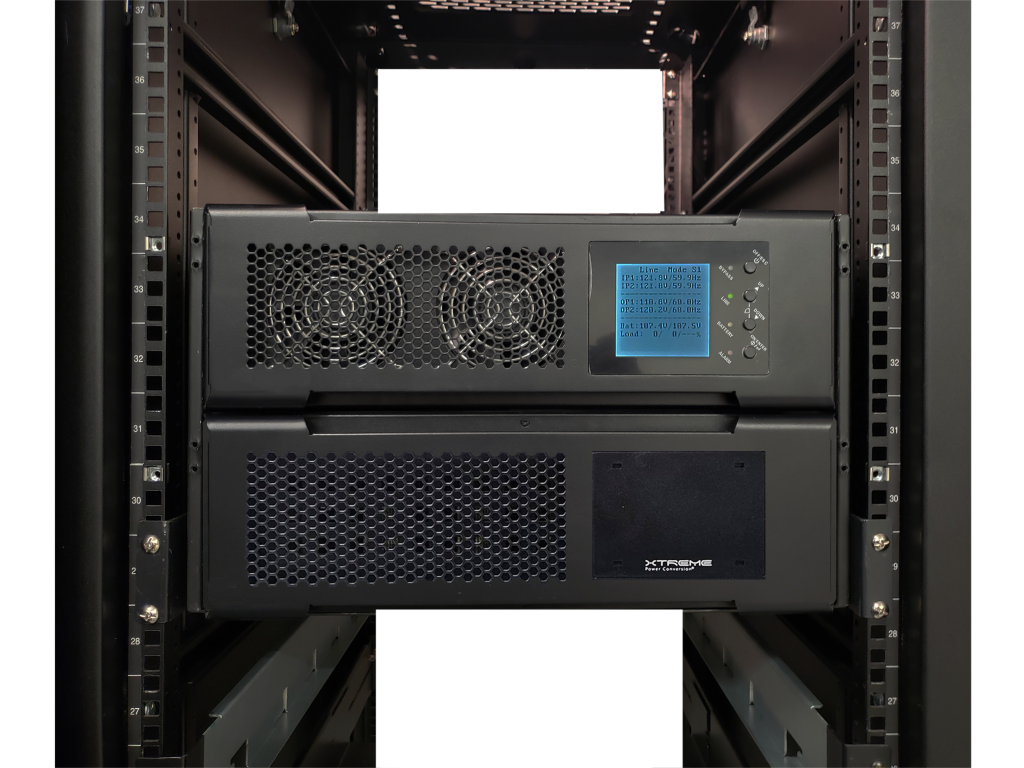

5kW 3-Phase Modular 6U Rackmount UPS with Maintenance Bypass
- Three-Phase Input and Output: Ensures balanced power distribution for critical applications.
- Unity Power Factor (kVA = kW): Maximize usable power without waste.
- Integrated Maintenance Bypass Switch: Ensures continuous power during service
- Modular Design: Easy-to-swap power and battery modules enable fast maintenance
- High Efficiency: Achieves up to 98% efficiency in ECO mode and 93% in online mode, lowering total cost of ownership through reduced energy consumption
- Advanced Connectivity: Supports Web/SNMP, Modbus, and relay cards for seamless integration into your monitoring systems.
- Certifications: UL 1778, cUL, FCC Class A, RoHS, and TAA compliant, ensuring adherence to stringent safety and trade standards
5kW 3-Phase UPS with Hardwire or L21-20P Line Cord
- Model: M90C-2S5K (208/120V), 5kVA / 5kW
- Integrated Maintenance Bypass Switch: Enables seamless power continuity during servicing.
- L21-20P Input Line Cord & L21-20R Output Receptacle (Optional): Simplifies connectivity in three-phase environments
Ideal Applications

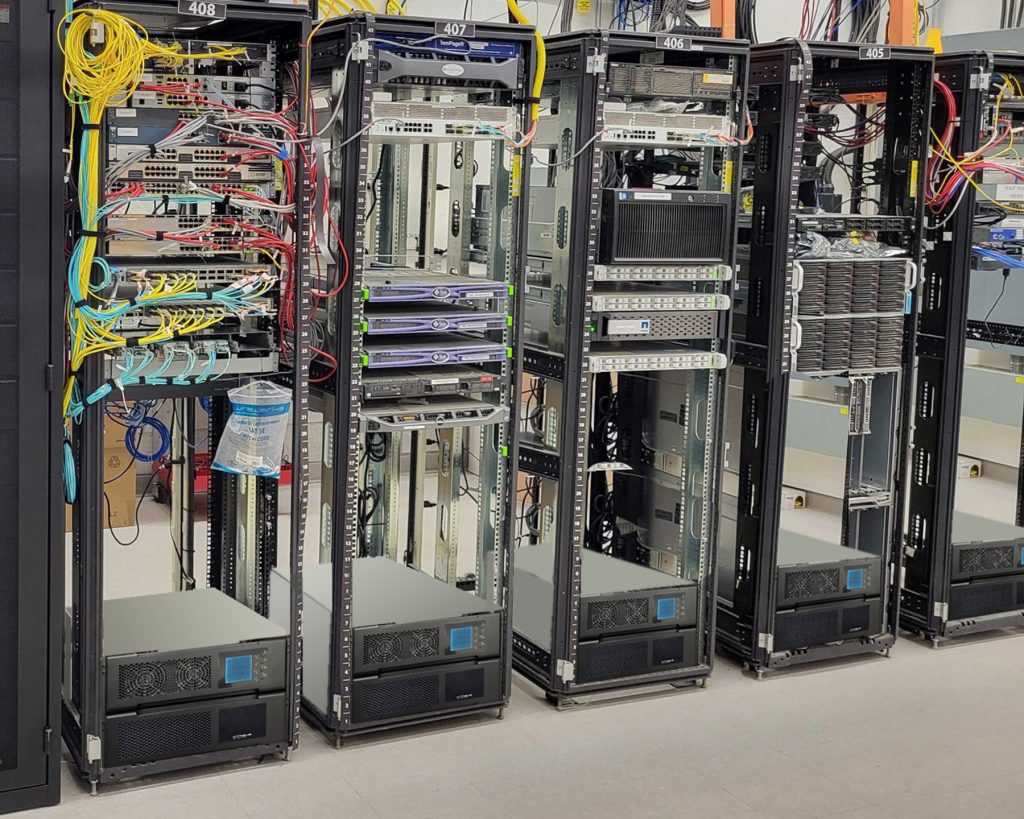

- Data Centers & Colocation: Scalable, redundant power protection.
- Enterprise IT & Server Rooms: Modular design minimizes downtime during upgrades or maintenance.
- Edge & Micro Data Centers: Compact footprint with high power density.
- Telecom & Broadcast: Protect uptime and maintain uninterrupted signal transmission.
- Eaton BladeUPS Replacement: A future-ready upgrade for discontinued models like ZC0517700100000 and ZC0517700110000.
Why Choose the M90C-2S 5kVA?
- Integrated Maintenance Bypass Switch: Ensures continuous power during service.
- Higher Power Density: Full-capacity unity power factor maximizes usable power.
- Lower Installation Costs: Features like the integrated bypass, L21-20P line cord, and L21-20R output receptacle reduce the need for additional components.
- Comprehensive Warranty: Standard 2-year depot warranty for electronics and batteries, providing peace of mind.
- Advanced Connectivity: Supports Web/SNMP, Modbus, and relay cards for seamless integration into your monitoring systems.
Specifications at a Glance
| Specification | M90C-2S5K |
| Capacity | 5kVA/5kW |
| Input Voltage/Frequency | 120/208V, 50/60Hz auto-sensing (3PH+N+G) |
| Output Voltage/Frequency | 120/208V, 50/60Hz ± 0.1Hz (3PH+N) |
| Efficiency | Up to 98% ECO mode; 93% online mode |
| THD (Full Load) | ≤2% (Linear load); ≤3% (Non-linear load) |
| Overload Capacity | 100%–110% for 30 min; 110%–130% for 5 min; 130%–150% for 10 s; >150% for 200 ms |
| Battery Nominal Voltage | +/-96Vdc |
| Max Charging Current | Adjustable up to 4A |
| Enclosure Dimensions (W x D x H) | 17.3” x 31.5” x 10.5” (6U) |
| Enclosure Weight | 34 lbs |
| Power Module Dimensions (W x D x H) | 16.3” x 24” x 5.2” |
| Power Module Weight | 38 lbs |
| Battery Module Dimensions (W x D x H) | 16.3” x 24” x 5.2” |
| Battery Module Weight | 107 lbs |
| Operating Temperature | 0–40°C (32–104°F) |
| Altitude | Up to 5,200 ft above sea level |
| Audible Noise | <58dBA at 1m |
