Scalable Power from 50 kVA to 140 kVA

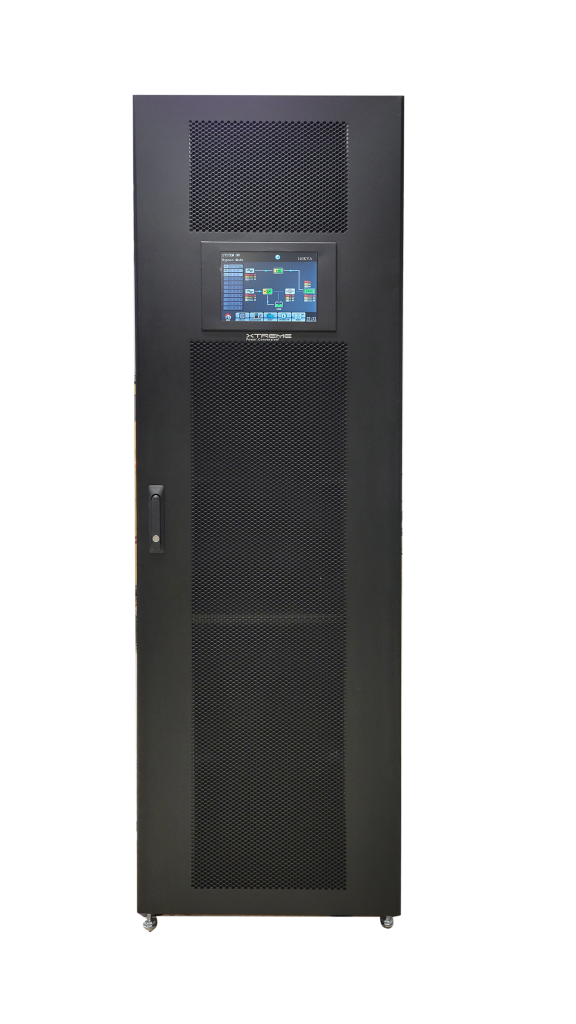

The Xtreme Power X90-2S is a fully modular, hot-swappable, and TAA-compliant 480V UPS system designed for high-performance environments including data centers, industrial automation, medical imaging, and modular IT deployments. Offering scalable power from 50kW to 140kW, the X90-2S delivers clean, efficient power with the smallest footprint in its class—just 23.6 inches wide, including internal batteries and integrated maintenance bypass.
Key Features of the X90-2S UPS
- TAA Compliant – Meets U.S. Trade Agreements Act requirements for federal, military, and institutional use.
- Compact All-in-One Footprint – Industry’s most space-efficient 480V modular UPS at just 23.6″ wide.
- Modular & Scalable Architecture – Expand from 50kW to 140kW with hot-swappable 50kW or 70kW modules.
- High Efficiency – Up to 96.5% in online double-conversion mode, 99% in ECO mode for reduced energy costs.
- Integrated Maintenance Bypass – Built-in bypass ensures uptime during service without external switchgear.

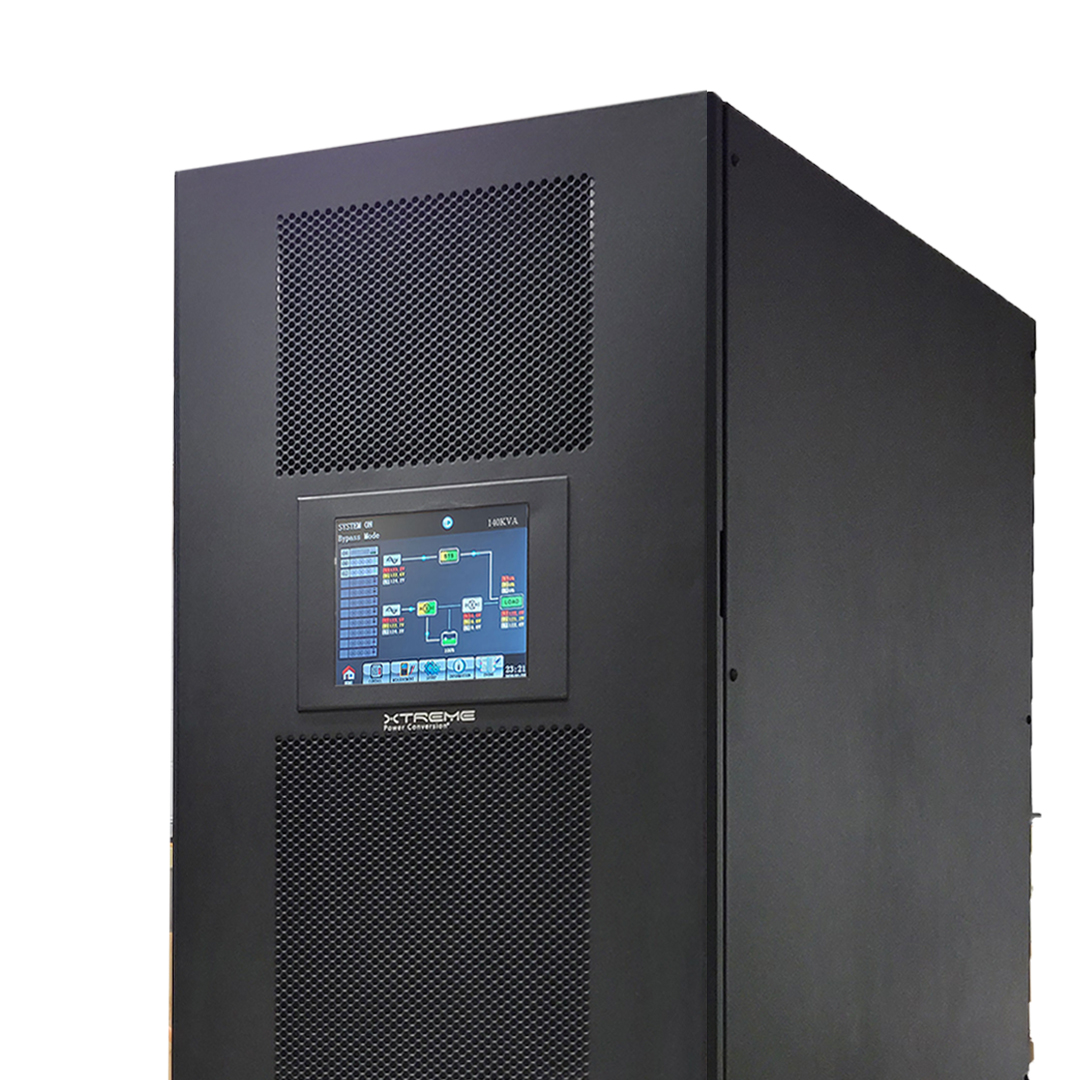

- 10” Color Touchscreen – Simplifies control with real-time monitoring, diagnostics, and alerts.
- Top Cable Entry Standard – Optimized for modular deployments and containerized data centers.
- Front-Access Service – All installation and maintenance performed from the front—no rear clearance needed.
- Hot-Swappable Power & Battery Modules – Enables N+1 redundancy and zero-downtime maintenance.
- Advanced Communication Options – SNMP/Web, Modbus, relay, and RS-232 for seamless BMS/EMS integration.
Why Choose the X90-2S Modular UPS?
- Compact All-in-One Cabinet (23.6″ wide) – UPS, batteries, and maintenance bypass in a single enclosure
- Hot-Swappable Modules – Add power or replace components without downtime
- High Efficiency – Up to 96.5% online, 99% ECO mode for reduced operating costs
- 10″ Color Touchscreen – Intuitive system monitoring and control
- Front Access Service & Top Cable Entry – Simplifies installation and ongoing maintenance
- Advanced Communications – SNMP/Web, Modbus, RS-232, relay contacts supported
- TAA-Compliant – Approved for government, defense, and institutional deployments
All-In-One Design: Space-Saving Power in a 23.6″ Frame
Unlike bulky competitors, the X90-2S packs UPS electronics, batteries, and breakers into one slim chassis, ideal for edge deployments, containerized IT, and high-density environments.
Runtime Options
With 20 internal battery modules:
- 50kW Load ≈ 15 minutes
- 70kW Load ≈ 10 minutes
- 100kW Load ≈ 6 minutes
Need more? Add external X90-BC battery cabinets with up to 36 modules each.
Technical Specifications
Feature | Specification |
Capacity | 50 kW – 140 kW (modular, hot-swappable) |
Input/Output | 480 VAC, 3-wire + ground, 50/60 Hz auto-sensing |
Efficiency | 96.5% (online double conversion), 99% (ECO) |
Certifications | UL 1778, FCC Class A, RoHS, TAA |
Warranty | 2-year factory warranty (North America) |
Operating Range | 0–40 °C, <69 dBA @ 1m, ≤ 5,200 ft altitude |
Serviceability | Front-only access, top cable entry standard |
Monitoring | 10″ color touchscreen, SNMP/Web, Modbus |
Included & Optional Accessories
Included:
- UPS cabinet, power modules, internal batteries
- Integrated maintenance bypass
- Touchscreen display
- RS-232 cable & monitoring software
- Ramp for delivery ease
Optional:
- Bottom cable entry sidecar (+6″)
- SNMP/Web card, Modbus, dry contact relay card
- External battery cabinets & temp sensor
Ideal Applications
- Data Centers & Server Rooms
- Modular & Prefabricated IT Deployments
- Industrial Automation & Robotics
- Medical Imaging (MRI, CT, etc.)
- Financial Trading & Media Production
- Government, Defense, & Military Facilities (TAA-compliant)
Compare the X90-2S vs. Leading Competitors
See how the X90-2S stacks up against top UPS models on the market:
- X90-2S vs. Eaton 93PM
- X90-2S vs. Vertiv EXM
- X90-2S vs. APC Galaxy VS
- X90-2S vs. Vertiv APM2 (30–120kW, 480V)
Key Differentiators: Runtime, capacity, smallest footprint, integrated design, total cost of ownership.
