M90U modular UPS platform
The Xtreme Power M90U platform is a modular three-phase UPS architecture engineered for scalable facility power infrastructure — enabling phased capacity expansion, N+1 redundancy, and centralized deployment across edge, commercial, and enterprise environments. Four systems span 15 to 140 kW with internal or external battery strategies, supporting high-availability IT infrastructure where modular UPS systems keep critical loads online.
One modular architecture, 15 to 140 kW
Every M90U platform is built from the same online double-conversion core and hot-swappable power and battery modules. Capacity scales by adding modules rather than replacing systems, with modular N+1 redundancy configured within installed capacity.

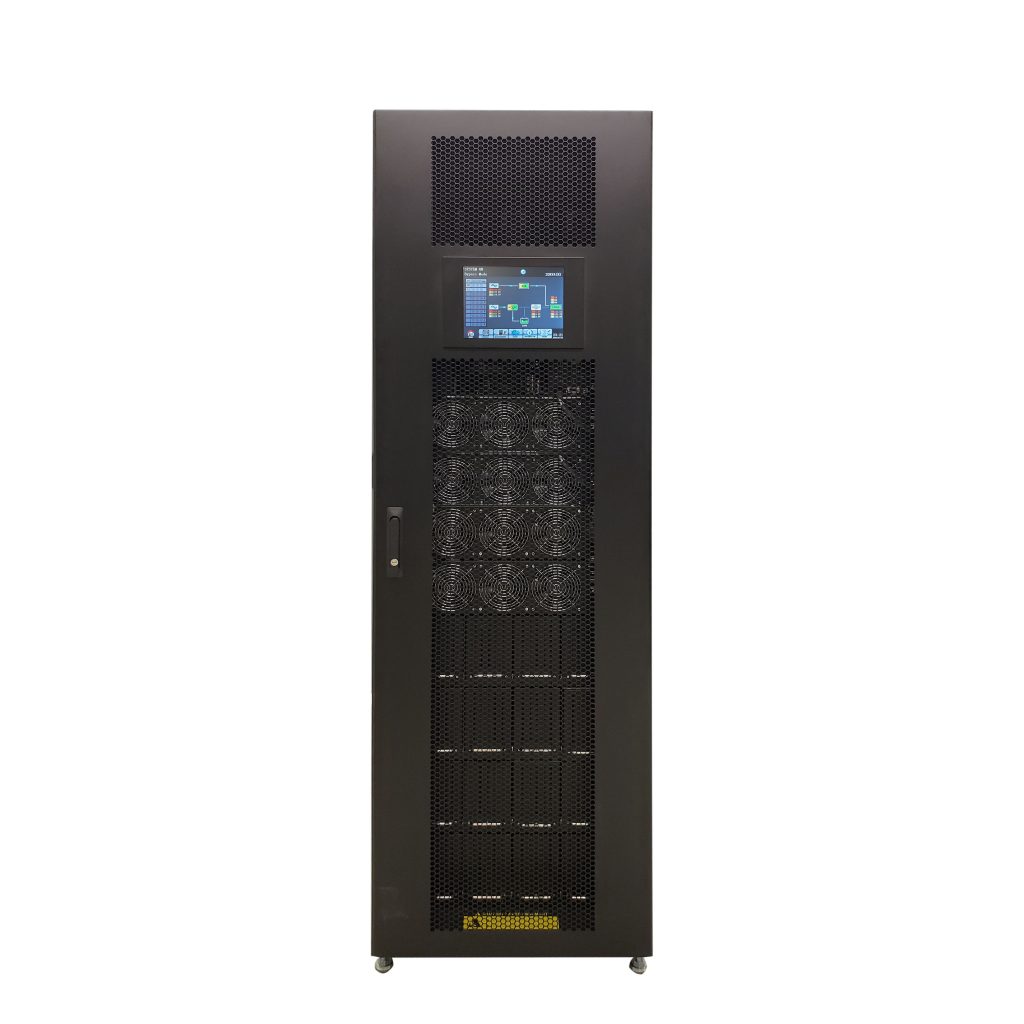

Pictured is the M90U-80 — the high-density member of the family, delivering up to 80 kW of protected 208/120V three-phase load from a single integrated cabinet, front-serviceable with a color touch display for local monitoring.

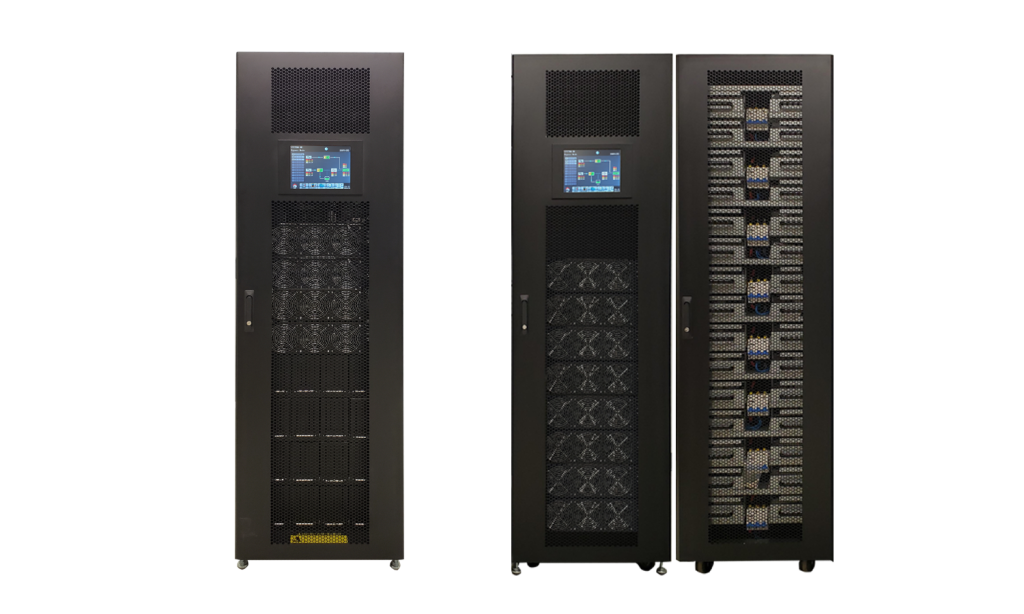

From the foundational M90U to the enterprise M90U-140, the family spans 15 to 140 kW — so a facility can standardize on one platform and one service model as its load grows.
Specifications by tier
Every M90U platform shares the same online double-conversion core, 208/120V three-phase power, and hot-swappable modular design. The tiers differ in capacity, battery architecture, and role:
| Specification | M90U | M90LU | M90U-80 ★ | M90U-140 |
|---|---|---|---|---|
| Capacity range | 15–60 kW | 15–60 kW | 15–80 kW | 15–140 kW |
| Battery architecture | Internal VRLA | External batteries | Internal VRLA | External modular (M90-BC) |
| Redundancy | Modular N+1 | Modular N+1 | Modular N+1 | Modular N+1 |
| Voltage | 208/120V 3-phase | 208/120V 3-phase | 208/120V 3-phase | 208/120V 3-phase |
| Form factor | Floor-standing | Floor-standing | Floor-standing | Floor-standing |
| Primary strength | Entry modular platform | Extended runtime | High density | High capacity |
| Best use case | Standard facility UPS | Long-duration backup | Space-constrained deployments | Large facility / enterprise |
M90U-80 is the most widely deployed system in the range. Modular N+1 redundancy is configured within installed capacity and is not implied at a frame’s fully-populated maximum.
Shared across every M90U platform
| Topology | Online double-conversion |
|---|---|
| Input / output | 208/120V three-phase (3PH + N + G) |
| Redundancy | Modular N+1, configured within installed capacity |
| Power modules | Hot-swappable; capacity scales by adding modules, not systems |
| Maintenance bypass | Integrated maintenance bypass |
| Local monitoring | LCD / color touch display with system metering |
How to narrow the choice
The tier table shows what each platform is; this is how to work from a deployment back to the right one. Five factors usually settle it:
| Decision factor | How it guides the choice |
|---|---|
| Capacity, with headroom | Size for present load plus expected growth. M90U and M90LU cover 15–60 kW, M90U-80 extends to 80 kW, and M90U-140 reaches 140 kW. |
| Runtime strategy | Standard runtime points to the internal-battery M90U or M90U-80; longer backup points to the M90LU (external batteries) or the M90U-140 with its external modular M90-BC enclosure. |
| Electrical-room footprint | Where floor space is the binding constraint at a given capacity, the high-density M90U-80 fits the most power in the smallest room; larger rooms carrying enterprise load favor the M90U-140. |
| Redundancy approach | Every platform supports modular N+1. Size the frame so the redundant module lands within installed capacity rather than at the frame’s fully-populated maximum. |
| Growth horizon | If load will climb well past today’s, start on a frame whose ceiling leaves room to add modules — scaling in place instead of replacing the system later. |
Modular UPS architecture for modern infrastructure
Traditional centralized UPS systems are built around fixed capacity and static growth. Modern environments need continuity architectures that scale with changing load demands. The M90U platform bridges rack-level UPS systems and large-scale facility power infrastructure, enabling:
The modular facility UPS layer
The M90U platform operates as the modular facility UPS layer within a complete power architecture — deployed when infrastructure transitions from distributed UPS systems to centralized facility-level protection:
| Layer | Xtreme Power systems |
|---|---|
| Rack-level & distributed UPS | J60 / P91 / J90 |
| Modular facility UPS — this platform | M90U platform |
| Integrated lithium centralized UPS | Li90 |
| Large-scale enterprise UPS | X90 |
For the integrated lithium centralized option, see the Li90.
Modular vs lithium infrastructure
Infrastructure planners frequently evaluate modular VRLA-based UPS architecture alongside lithium-integrated platforms. Modular UPS (the M90U platform) is typically selected when:
Lithium platforms such as the Li90 are typically selected when:
Learn more: lithium UPS vs lead-acid UPS.
Runtime architecture across the platform
Runtime requirements vary across environments and are aligned with UPS architecture. The M90U platform supports both internal and external battery strategies:
| Strategy | Platforms | Typical use |
|---|---|---|
| Internal battery | M90U, M90U-80 | Standard runtime in a single cabinet |
| External battery | M90LU, M90U-140 | Extended runtime (M90LU) and enterprise capacity with the M90-BC (M90U-140) |
Extended-runtime deployments typically include generator coordination, telecom-grade resilience planning, and controlled-shutdown strategies for critical infrastructure.
A scalable pathway across facility and enterprise

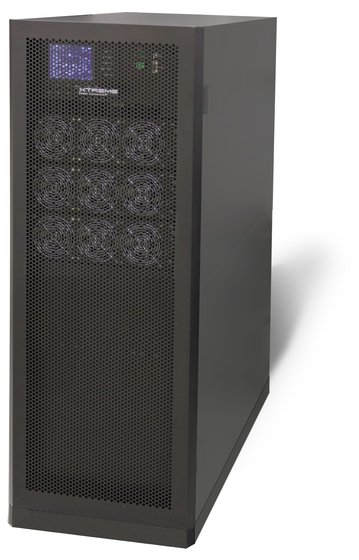

15–60 kW — the foundational modular platform with internal VRLA batteries and standard runtime.
View M90U →
15–60 kW — external-battery architecture for long-duration backup applications.
View M90LU →

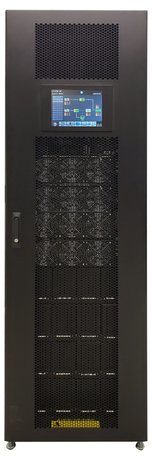

15–80 kW — high-density scaling, up to 80 kW within a single integrated cabinet.
View M90U-80 →

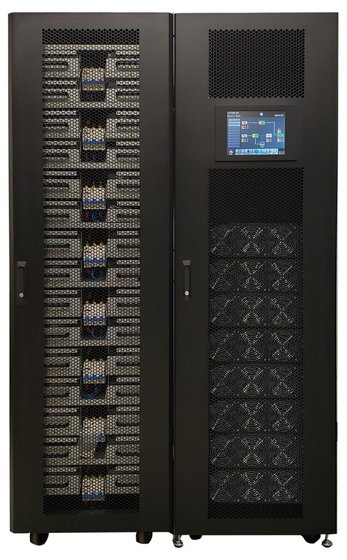

15–140 kW — enterprise capacity with N+1 to 140 kW and the external M90-BC battery enclosure.
View M90U-140 →Replace legacy centralized UPS
Organizations commonly deploy the M90U platform to replace legacy centralized UPS systems, modernizing without large-frame replacement cycles while improving scalability and serviceability:
Where the M90U platform is deployed
M90U modular UPS systems are deployed across environments requiring centralized, scalable power protection — data centers, edge computing environments, healthcare infrastructure, telecommunications networks, and industrial systems.
Detailed competitive comparisons
Infrastructure planners compare modular UPS systems on scalability, redundancy flexibility, footprint efficiency, and lifecycle cost. Explore detailed comparisons by platform:
Plan modular infrastructure with confidence
Designing a modular UPS deployment means aligning capacity planning, runtime strategy, redundancy objectives, and infrastructure growth. Xtreme Power supports facility engineers, consultants, and infrastructure planners across data center, healthcare, industrial, and large commercial environments — use the sizing tool to size capacity and runtime, or the configurator to build a system.
