UPS systems for network infrastructure are designed to maintain continuous operation of switches, routers, firewalls, and communication systems during power disturbances. These systems are deployed across distributed environments including IDF closets, edge networks, and remote installations where uptime is critical.
Network infrastructure is typically deployed across distributed environments such as IDF closets, wall-mounted cabinets, and edge installations. These deployments require compact, efficient, and thermally resilient UPS systems that can operate reliably in space-constrained and non-conditioned environments.

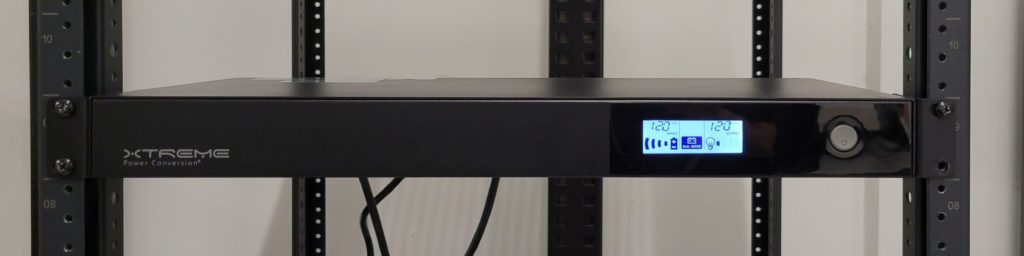

Rackmount UPS protecting enterprise network switches and routers
Typical Network Equipment Protected
- PoE network switches
- routers and edge gateways
- firewalls and security appliances
- wireless access points
- VoIP communication systems
- small network servers and edge compute devices
Common Deployment Scenarios
- IDF and MDF network closets
- branch office network environments
- retail and distributed edge locations
- telecom and remote connectivity installations
- wall-mounted network cabinets and shallow racks
Network Infrastructure Power Considerations
Network environments combine switching, routing, security, and communication systems that must operate continuously. UPS systems must provide stable output voltage, fast response to load changes, and reliable runtime to support generator transfer or controlled shutdown across distributed infrastructure.
Why UPS is Critical in Network Infrastructure
Network infrastructure represents a critical dependency layer across modern operations. Even brief power interruptions can result in:
- Loss of connectivity across users and systems
- Disruption of cloud and SaaS applications
- VoIP and communication outages
- Security system downtime
- Data loss or configuration instability
Because network infrastructure is distributed across multiple locations, UPS systems must deliver consistent performance with minimal maintenance requirements.
UPS installed in enterprise IDF network closet protecting switches and routers
Typical Network Infrastructure Applications
Network infrastructure includes multiple equipment types, each with specific power protection requirements.
Network Switches and Routers
Switches and routers form the backbone of enterprise connectivity. A power interruption can immediately disrupt communications and disconnect users from applications.
Key UPS requirements:
- Reliable power protection for core network equipment
- Rackmount compatibility for IT environments
- Runtime to support generator startup or controlled shutdown
- Remote monitoring capability for distributed infrastructure
UPS system supporting wireless access points and network infrastructure
Wireless Access Points
Wireless infrastructure provides essential connectivity across offices, campuses, and public environments.
Key UPS requirements:
- Compact UPS systems for smaller loads
- Efficient operation in distributed installations
- Runtime to maintain wireless availability
- Remote monitoring capability
Firewalls and Security Appliances
Security systems must remain continuously operational to maintain network protection and policy enforcement.
Key UPS requirements:
- Stable, clean power
- High reliability
- Rackmount deployment compatibility
- Monitoring and alert capability
VoIP Communication Systems
VoIP systems depend on continuous network operation to maintain communication across organizations.
Key UPS requirements:
- Runtime to maintain voice communications
- Support for switches and servers
- Compact or rackmount deployment options
- Reliable monitoring capability
UPS system supporting telecom cabinet and remote network infrastructure
Remote and Edge Network Infrastructure
Remote network systems such as telecom cabinets and satellite connectivity platforms require continuous power to maintain service availability.
Key UPS requirements:
- Compact UPS platforms
- Reliable runtime for connectivity
- Operation in remote or non-conditioned environments
Deployment Environments
Network infrastructure UPS systems are commonly deployed in:
- IDF and MDF closets
- Wall-mounted network cabinets
- Shallow-depth racks
- Branch and retail edge locations
- Telecom and remote enclosures
These environments often require:
- Compact or short-depth UPS systems
- Operation at elevated temperatures
- Limited service access
- Reliable long-life battery systems
Common Deployment Scenarios
- IDF and MDF network closets
- branch and retail network environments
- edge computing nodes
- telecom and remote connectivity systems
Key Engineering Considerations
When selecting a UPS for network infrastructure, key factors include:
- Form factor and depth compatibility for shallow racks and cabinets
- Battery technology, with lithium systems reducing maintenance cycles
- Runtime requirements based on outage duration or generator transfer
- Operating temperature capability in non-conditioned environments
- Mounting flexibility including rack, wall, or embedded configurations
- Network monitoring and management via SNMP or web interfaces
Recommended UPS Solutions for Network Infrastructure

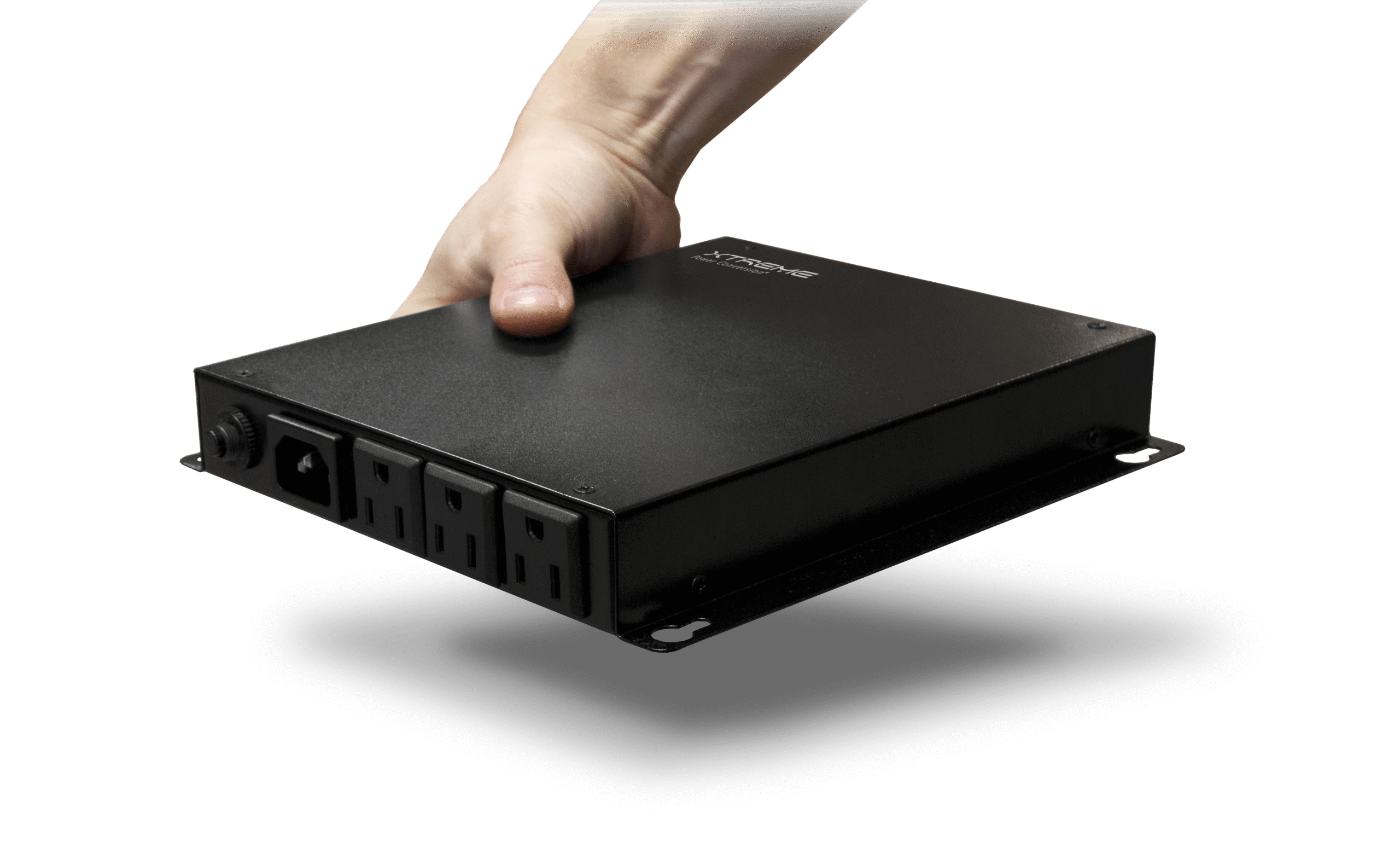

J60 Series Lithium UPS
1U lithium UPS platform for higher-capacity network racks requiring compact footprint and advanced control capability.https://xpcc.com/products/j60/
J60C Series Short-Depth 1U UPS
Short-depth rackmount lithium UPS engineered for shallow racks and wall-mounted cabinets commonly found in IDF and edge network environments.
https://xpcc.com/products/j60c-1u/

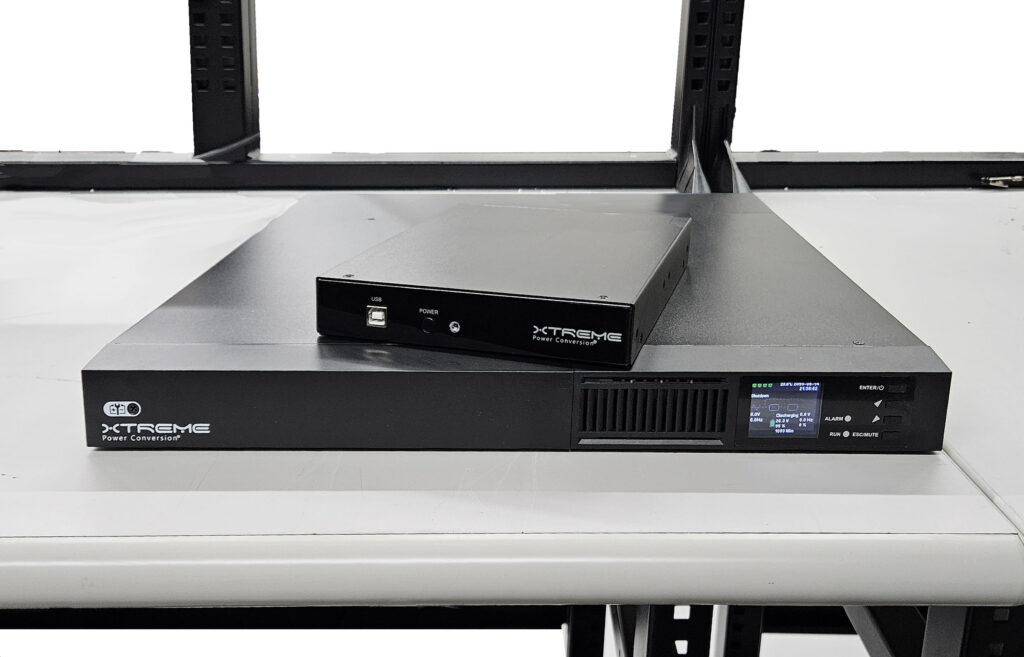

J90 Series Lithium UPS
1U lithium UPS platform providing higher capacity and advanced control features for network infrastructure and distributed IT environments.
https://xpcc.com/products/j90/
P91 Li Series UPS
Rack/tower lithium UPS platform supporting larger network loads requiring additional capacity and flexibility.
https://xpcc.com/products/p91li-1-3kva/
Choosing the Right UPS for Network Infrastructure
- Use J60 for embedded systems and compact network nodes
- Use J60C for shallow rack or cabinet-based deployments
- Use J90 for higher capacity network racks requiring advanced control
- Use P91 Li for larger distributed infrastructure or multi-device loads
Common UPS Configurations for Network Deployments
| Deployment Type | Typical UPS |
| Small network node | J60 |
| Wall-mounted cabinet | J60C |
| IDF closet rack | J60C or J90 |
| Network rack infrastructure | J90 |
| Larger distributed network systems | P91 Li |
Selection and Design Resources
UPS Sizing Tool
https://xpcc.com/ups-sizing-tool/
UPS Systems by Application
https://xpcc.com/ups-by-application/
UPS for IDF / MDF Closets
https://xpcc.com/ups-for-idf-mdf-closets/
Related Applications
UPS for Retail and Edge Applications
https://xpcc.com/ups-for-retail-edge-applications/
Lithium UPS Advantages in Network Infrastructure
Lithium UPS systems are increasingly deployed in network environments due to:
- Extended service life reducing battery replacements
- Improved performance at elevated temperatures
- Compact footprint for space-constrained installations
- Predictable lifecycle for distributed infrastructure
Learn more:
https://xpcc.com/lithium-ups-guide/
https://xpcc.com/lithium-ups-vs-lead-acid-ups/
Plan With Confidence
Xtreme Power Conversion supports UPS sizing, runtime planning, and infrastructure specification for network environments.
