XPDU Rack Power Distribution Units – 120V & 208/230V High-Density Rack PDU
120V / 208–230V | Rack-Mounted Power Distribution Units
Reliable rack-level power distribution designed for data centers, network closets, and high-density IT environments requiring flexible deployment and broad UPS compatibility.
15A to 50A · 120V / 208-230V / 240-120V · Basic Rack Power Distribution
XPDU basic rack power distribution units
The XPDU family delivers dependable rack-level power distribution for data centers, server rooms, network closets, and distributed IT – up to 24 output receptacles in a compact form factor, compatible with any manufacturer's UPS. Available in horizontal (1U / 2U) and vertical (0U) configurations across 120V, 208/230V, and 240/120V at 15A through 50A, with NEMA, IEC, and hardwired input options and UL1077-listed branch circuit protection.
Flexible rack power distribution
XPDU expands rack-level power distribution without requiring changes to upstream infrastructure. Its plug-and-power deployment model and broad input compatibility allow rapid installation across new and existing environments while supporting consistent distribution across multiple racks. Units deploy downstream of a UPS or connect directly to facility power, and work with any manufacturer's UPS – simplifying standardization in mixed-vendor environments and reducing the complexity typically associated with rack power expansion.
What the XPDU delivers
Add up to 24 outputs per unit to power high-density equipment racks and wiring closets from a single distribution point.
Compatible with any manufacturer's UPS or facility power source, simplifying integration in mixed-vendor environments.
Deploy as a 1U / 2U horizontal unit or as a 0U vertical PDU that reserves traditional rack space for IT equipment.
Multiple input configurations – NEMA plugs, IEC C20 inlet, and hardwired input pigtail on basic 50A models.
UL1077-listed output circuit breakers provide safe branch circuit protection for connected equipment.
120V (15A, 20A) plus 208/230V and 240/120V (30A, 50A) models span North American and international architectures.
Basic PDU – 15A & 20A models
Compact 1U horizontal units with corded NEMA or IEC C20 inputs for 120V and 208/230V racks.
| Model | Input (cord / connection) | Output receptacles | Voltage | Amps | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|---|---|

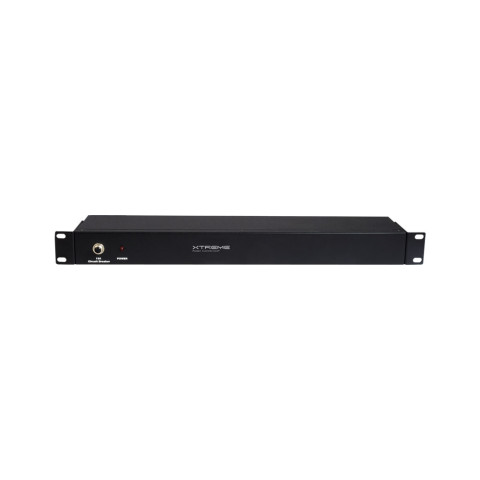

| XPD815HV | 12 ft, 5-15P | (8) 5-15R | 120V | 15A | 17 × 3.75 × 1.7 in (1U) | 2.6 lb |
| XPD1415HV | 12 ft, 5-15P | (14) 5-15R | 120V | 15A | 17 × 3.75 × 1.7 in (1U) | 3.5 lb |
| XPD1420HV | 12 ft, L5-20P | (14) 5-15/20R | 120V | 20A | 17 × 3.75 × 1.7 in (1U) | 4.8 lb |
| XPDU-IEC | IEC C20 inlet | (2) IEC C19 + (10) IEC C13 | 208/230V | 15/20A | 17 × 3.75 × 1.7 in (1U) | 4.4 lb |
Basic PDU – 30A & 50A models
Higher-current 2U horizontal and 0U vertical units with twist-lock or hardwired inputs and mixed L6 / L5 / IEC / 5-20R output configurations.
| Model | Input (cord / connection) | Output receptacles | Voltage | Amps | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|---|---|

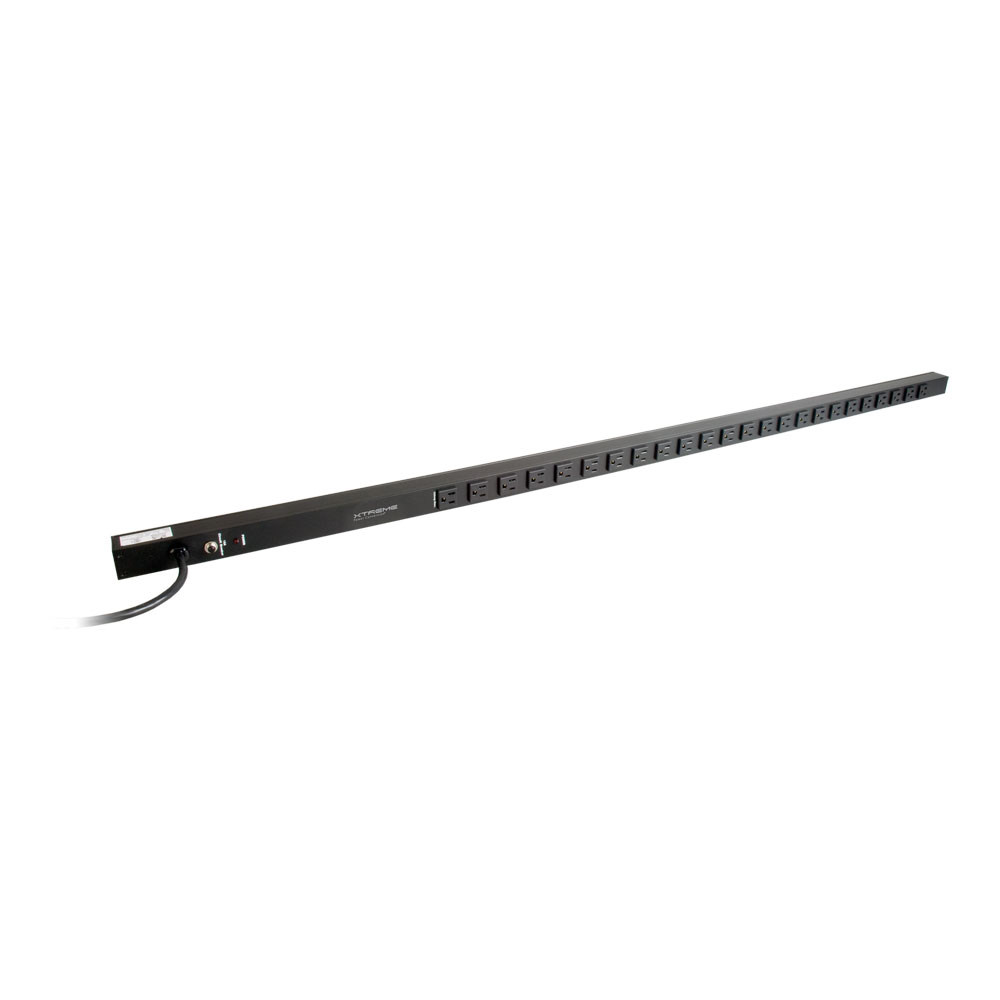

| XPD24C13V | 6 ft, L6-30P | (24) IEC C13 | 208/230V | 30A | 66.0 × 1.8 × 1.8 in (0U vertical) | 12.0 lb |
| XPD31 | 6 ft, L6-30P | (2) L6-30R + (2) L6-20R + (4) 6-15/20R | 208/230V | 30A | 19.0 × 4.7 × 3.5 in (2U) | 9.0 lb |
| XPD32 | 6 ft, L6-30P | (2) L6-30R + (4) L6-20R | 208/230V | 30A | 19.0 × 2.4 × 3.5 in (2U) | 7.5 lb |
| XPD33 | 6 ft, L6-30P | (4) IEC C19 + (8) IEC C14 | 208/230V | 30A | 19.0 × 2.4 × 3.5 in (2U) | 6.0 lb |
| XPD34 | 6 ft, L14-30P | (2) L6-30R + (4) L6-20R + (12) 5-20R | 240/120V | 30A | 19.0 × 4.7 × 3.5 in (2U) | 9.5 lb |
| XPD38 | 6 ft, L14-30P | (4) L5-30R + (4) L5-20R | 120V | 30A | 19.0 × 4.7 × 3.5 in (2U) | 9.5 lb |
| XPD35 | 3 ft, hardwired pigtail | (2) L6-30R + (4) L6-20R | 208/230V | 50A | 19.0 × 2.4 × 3.5 in (2U) | 7.0 lb |
| XPD36 | 3 ft, hardwired pigtail | (4) IEC C19 + (8) IEC C14 | 208/230V | 50A | 19.0 × 2.4 × 3.5 in (2U) | 6.8 lb |
| XPD37 | 3 ft, hardwired pigtail | (2) L6-30R + (4) L6-20R + (12) 5-20R | 240/120V | 50A | 19.0 × 4.7 × 3.5 in (2U) | 10.0 lb |
| XPD39 | 3 ft, hardwired pigtail | (4) L5-30R + (4) L5-20R | 120V | 50A | 19.0 × 4.7 × 3.5 in (2U) | 10.0 lb |
Specifications from the XPDU datasheet (XPDU.01U, Rev 11/25/25). 50A models ship with a hardwired input pigtail. The XPDU-IEC (IEC C20 inlet, dual 15A + 20A breakers) is also detailed in the legacy XPDU-IEC datasheet and is tested to IEC 60950-1.
Inputs, outputs, and mounting
XPDU supports a broad range of input and output configurations so a single platform can standardize distribution across varied rack and voltage requirements.
Where the XPDU fits
XPDU serves as the foundational rack-level distribution layer within IT and facility power architectures. It is commonly deployed in data centers, network closets, and distributed infrastructure where reliable, scalable distribution is required without introducing additional system complexity. Within the Xtreme Power ecosystem, XPDU provides standard distribution, while outlet-level switching, metering, and remote monitoring are handled by the intelligent SPDU platform.
Where the XPDU is deployed
Consistent rack-level distribution across centralized and distributed data center environments.
Reliable power delivery to multiple units of connected equipment from a single PDU.
Compact 1U and 0U distribution for switching, routing, and structured cabling gear.
Standardized, plug-and-power distribution for remote and unmanned edge sites.
Repeatable rack power across multi-site retail and commercial deployments.
Branch-protected distribution for federal, education, and healthcare environments.
XPDU specifications
| Specification | Detail |
|---|---|
| Type | Basic (passive) rack power distribution unit |
| Voltage models | 120V (15A, 20A); 208/230V and 240/120V (30A, 50A) |
| Amperage | 15A, 20A, 30A, 50A |
| Output capacity | Up to 24 receptacles per unit |
| Output types | NEMA 5-15R / 5-20R / L5-30R / L6-20R / L6-30R; IEC C13 / C14 / C19 |
| Input connection | NEMA 5-15P / L5-20P / L6-30P / L14-30P; IEC C20 inlet; hardwired pigtail (50A) |
| Branch circuit protection | UL1077-listed output circuit breaker (IEC-listed breaker on XPDU-IEC) |
| Mounting | Horizontal (1U / 2U) or vertical (0U rack space) |
| UPS compatibility | Compatible with any manufacturer's UPS or facility power source |
| Agency (XPDU-IEC) | Tested to IEC standard 60950-1 |
| Warranty | 3 years, full (USA & Canada) |
XPDU is a basic distribution platform without outlet-level monitoring or switching; see the SPDU for switched and metered-by-outlet capability. Configuration, dimensions, and weight vary by model – see the model selection guide above.
Documents and related products
Plan with confidence
Xtreme Power Conversion supports engineers, consultants, and IT teams with rack power distribution design, UPS integration, and infrastructure standardization across data center, edge, retail, and regulated environments.
| MODEL NUMBER | Input Power Connection | Outlets | Voltage | Amperage | Dimensions (W x D x H) | Weight |
| Basic PDU – 15A & 20A models | ||||||
| XPD815HV | 12 ft, 5–15P | (8) 5–15R | 120V | 15A | 17 x 3.75 x 1.7 in (1U) | 2.6 lbs |
| XPD1415HV | 12 ft, 5–15P | (14) 5–15R | 120V | 15A | 17 x 3.75 x 1.7 in (1U) | 3.5 lbs |
| XPD1420HV | 12 ft, L5-20P* | (14) 5-15/20R | 120V | 20A | 17 x 3.75 x 1.7 in (1U) | 4.8 lbs |
| XPDU-IEC | IEC C20 inlet | (2) IEC C19 + (10) IEC C13 | 208/230V | 15/20A | 17 x 3.75 x 1.7 in (1U) | 4.4 lbs |
| Basic PDU – 30A & 50A models | ||||||
| XPD24C13V | 6 ft, L6–30P | (24) C13 | 208/230V | 30A | 66.0 x 1.8 x 1.8 in | |
| (vertical) | 12.0 lbs | |||||
| XPD31 | 6 ft, L6–30P | (2) L6–30R + (2) L6–20R + (4) 6–15/20R | 208/230V | 30A | 19.0 x 4.7 x 3.5 in (2U) | 9.0 lbs |
| XPD32 | 6 ft, L6–30P | (2) L6–30R + (4) L6–20R | 208/230V | 30A | 19.0 x 2.4 x 3.5 in (2U) | 7.5 lbs |
| XPD33 | 6 ft, L6–30P | (4) IEC C19 + (8) IEC C14 | 208/230V | 30A | 19.0 x 2.4 x 3.5 in (2U) | 6.0 lbs |
| XPD34 | 6 ft, L14–30P | (2) L6–30R + (4) L6–20R + (12) 5–20R | 240/120V | 30A | 19.0 x 4.7 x 3.5 in (2U) | 9.5 lbs |
| XPD35 | 3ft, Hardwired pigtail | (2) L6–30R + (4) L6–20R | 208/230V | 50A | 19.0 x 2.4 x 3.5 in (2U) | 7.0 lbs |
| XPD36 | 3ft, Hardwired pigtail | (4) IEC C19 + (8) IEC C14 | 208/230V | 50A | 19.0 x 2.4 x 3.5 in (2U) | 6.8 lbs |
| XPD37 | 3ft, Hardwired pigtail | (2) L6–30R + (4) L6–20R + (12) 5–20R | 240/120V | 50A | 19.0 x 4.7 x 3.5 in (2U) | 10.0 lbs |
| XPD38 | 6ft, L14-30P | (4) L5–30R + (4) L5–20R | 120V | 30A | 19.0 x 4.7 x 3.5 in (2U) | 9.5 lbs |
| XPD39 | 3ft, Hardwired pigtail | (4) L5–30R + (4) L5–20R | 120V | 50A | 19.0 x 4.7 x 3.5 in (2U) | 10.0 lbs |
