XBDM Bypass Distribution Module
15A, 20A, 30A
Repair or replace your UPS without power interruption by manually transferring critical loads from UPS power to utility power using the XBDM.

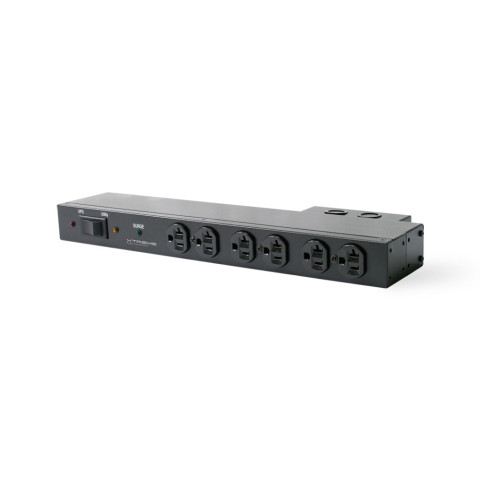

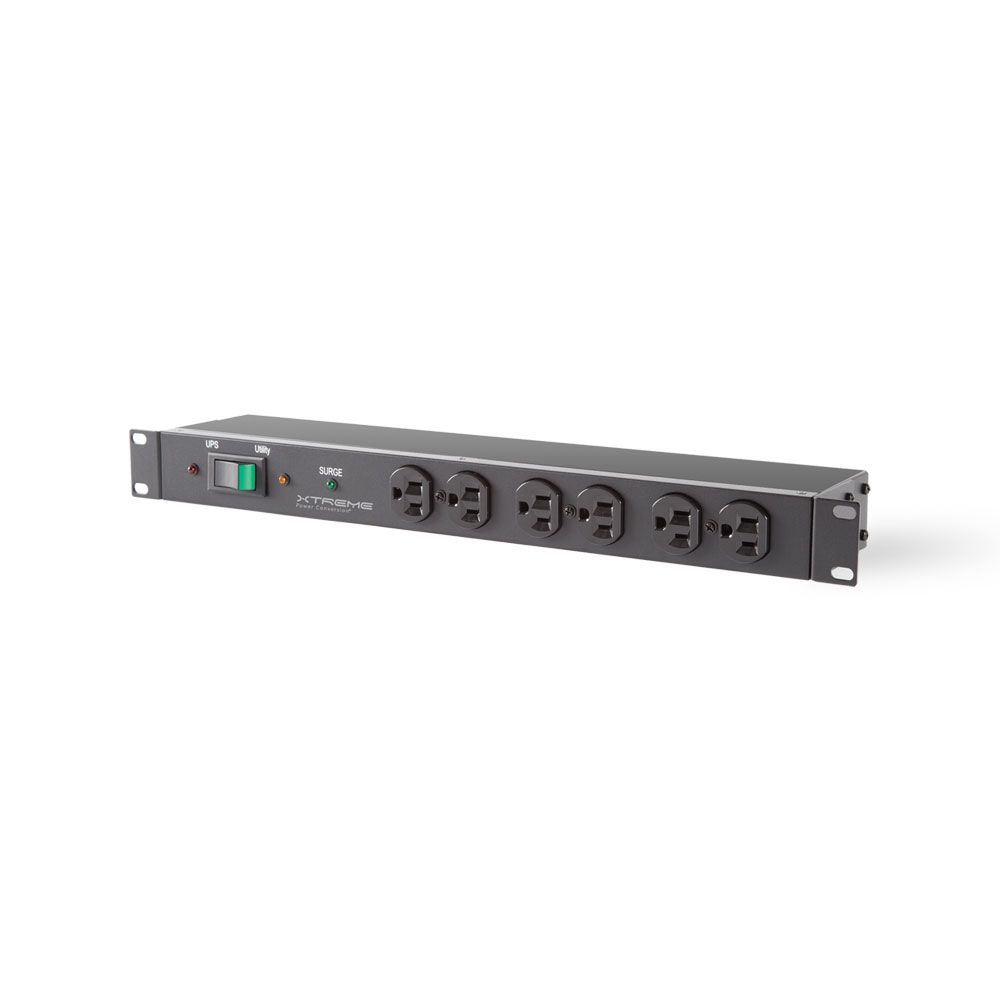

XBDM Bypass Distribution Module
Repair or replace your UPS without power interruption. The Xtreme Power XBDM manually transfers critical loads from UPS power to utility power, enabling UPS service or replacement without downtime — then transfers back to protected power just as easily.
Continuous uptime while your UPS is serviced
The XBDM is a maintenance bypass module that lets you manually transfer critical loads from UPS power to utility power using a bypass switch, enabling UPS repair or replacement without power interruption to the load. Transferring back to protected UPS power is just as easy — simply return the bypass switch to the UPS position.
Available in 120V models — 15A, 20A, and 30A — plus a 208/230V 20A model, the XBDM combines bypass functionality with power distribution in a single enclosure, adding up to ten output receptacles. Loads stay surge protected even when the UPS is in bypass mode, and the UPS electronics are protected during normal operation.
Built for hot-swappable UPS maintenance
Transfer loads from UPS to utility power for uninterrupted operation while the UPS is serviced.
Manual bypass switch provides seamless transfer within 4–8 ms.
Adds up to 10 output receptacles, combining bypass and distribution in one enclosure.
Connected equipment stays protected in both UPS and bypass modes.
Both UPS and utility power connect to the XBDM using the supplied cords.
LED indicators confirm availability of UPS and utility sources before transfer.
Supports horizontal 1U rack or vertical rack installation.
Enables hot-swappable UPS maintenance without disrupting power to loads.
Two modes of operation
A simple front-panel switch moves each load group between two power paths — bypass straight to utility power, or full protection through the UPS.
1) Utility mode
Utility power bypasses the UPS system and is supplied to the load directly.
2) UPS mode
Power is routed through the UPS system to the connected load.
Match the XBDM to your UPS
For use with up to 1500 VA, 120V UPS.
For 2000 VA, 120V UPS.
For 3000 VA, 120V UPS.
For 208/230V installations, up to 3000 VA, 208/230V UPS.
Model selection guide
| Model number | XBDM-1015LV | XBDM-1020LV | XBDM-1030LV | XBDM-1020HV |
|---|---|---|---|---|
| Voltage / current | 120 VAC / 15 A | 120 VAC / 20 A | 120 VAC / 30 A | 208/230 VAC / 20 A |
| Utility input | 12 ft, 5–15P | 12 ft, 5–20P | 6 ft, L5–30P | IEC C20 |
| AC frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Maximum output | 12 A | 16 A | 24 A | 16 A |
| Front output | (6) 5–15R | (6) 5–20R | (5) 5–20R | (2) C19 + (4) C13 |
| Rear output | (4) 5–15R | (4) 5–20R | (5) 5–20R | (4) C13 |
| Rear UPS input | (1) 5–15R | (1) 5–20R | (1) L5–30R | (1) C19 |
| Transfer switch | (1) 15 A | (1) 20 A | (2) 20 A | (1) 20 A |
| Cord to UPS output | 3 ft, 5–15P | 3 ft, 5–20P | 3 ft, L5–30P | IEC C20 |
| Energy dissipation | 114 J | 114 J | 114 J | 220 J |
Where the XBDM fits
Ideal for IT, AV, and industrial environments that require continuous uptime through UPS maintenance and replacement.
Maintain power to switches, servers, and storage while the UPS is serviced.
Pair with lithium backup for compact network or AV deployments (not for switched-outlet models).
An ideal companion for lithium UPS models with extended battery life.
Maintain uninterrupted power for broadcast, media control, and video-wall systems.
Service or replace UPS units without halting production lines.

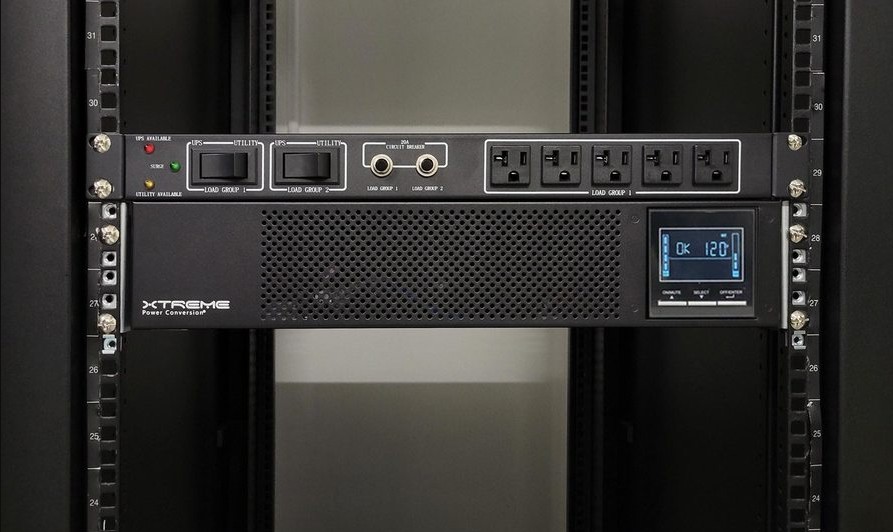

Service or replace the UPS without dropping the load by transferring to utility power with the bypass switch.
Datasheets & technical references
Detailed specifications, performance data, and installation guidance for the XBDM.
UPS platforms paired with the XBDM
Keep critical loads running during UPS service
The XBDM ensures uninterrupted power to your critical loads while your UPS is serviced or replaced — ideal for IT, AV, and industrial applications.
| MODEL NUMBER | XBDM-1015LV | XBDM-1020LV | XBDM-1030LV | XBDM-1020HV | |
| POWER RATING | Voltage/current | 120VAC/15A | 120VAC/20A | 120VAC/30A | 230VAC/20A |
| INPUT | Utility input | 12 ft, 5–15P | 12 ft, 5–20P | 6 ft, L5–30P | IEC C20 |
| AC frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | |
| OUTPUT | Maximum output | 12A | 16A | 24A | 16A |
| RECEPTACLES | Front output | (6) 5–15R | (6) 5–20R | (5) 5–20R | (2) C19 + (4) C13* |
| Rear output | (4) 5–15R | (4) 5–20R | (5) 5–20R | (4) C13 | |
| Rear UPS input | (1) 5–15R | (1) 5–20R | (1) L5–30R | (1) C19 | |
| TRANSFER SWITCH | Quantity and capacity | (1) 15A | (1) 20A | (2) 20A | (1) 20A |
| UPS OUTPUT | Cord to UPS output | 3 ft, 5–15P | 3 ft, 5–20P | 3 ft, L5–30P | IEC C20 |
| AC SURGE | Max spike current | 6500A | 6500A | 6500A | 6500A |
| Energy dissipation | 114J | 114J | 114J | 220J | |
| Max clamping voltage | 330VAC | 330VAC | 330VAC | 330VAC | |
| INDICATORS | UPS available | Red LED | |||
| Utility available | Orange LED | ||||
| Surge protection | Green LED | ||||
| PHYSICAL | Dimensions (W x D x H) | 17 x 3.5 x 1.75 in (1U) | |||
| Weight | 3.5 lbs | ||||
| INCLUDED IN BOX | 19″ rack mounting hardware, user manual, power cords (120VAC models) | ||||
