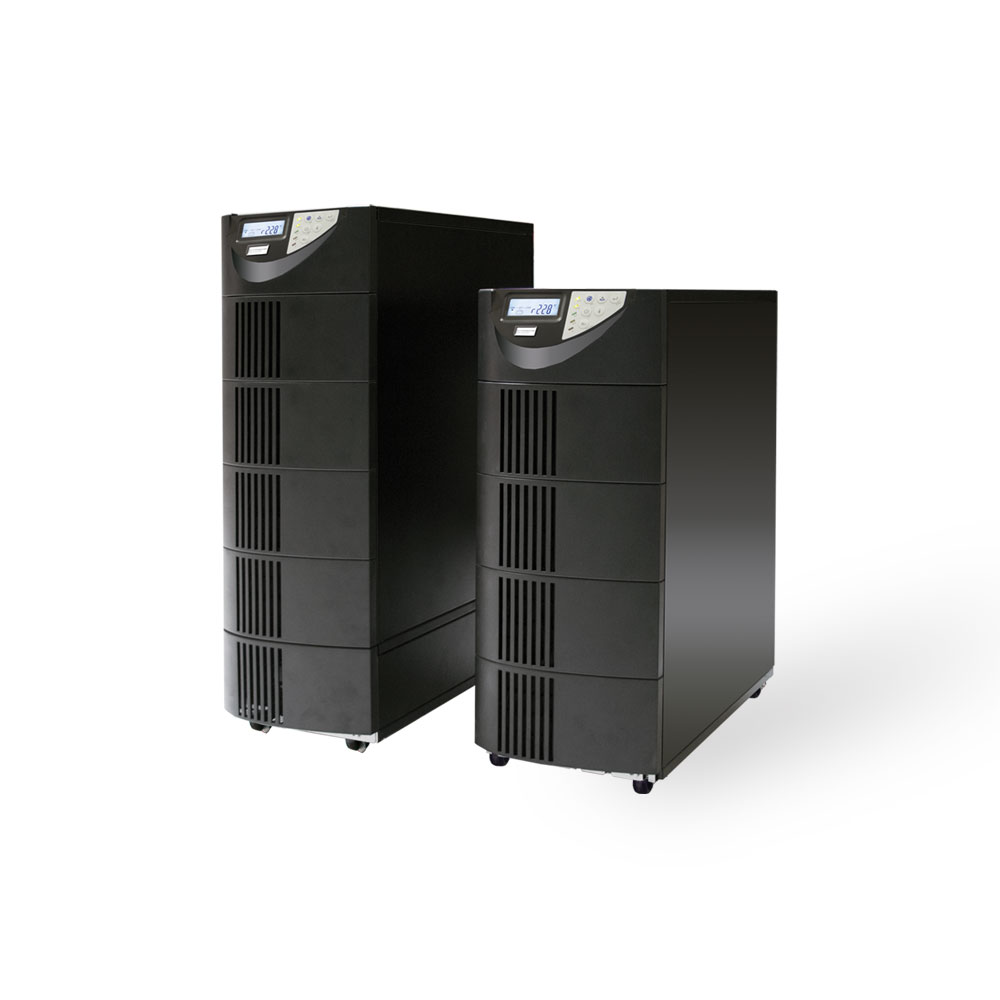

• TX90 6kVA & 10kVA Online UPS

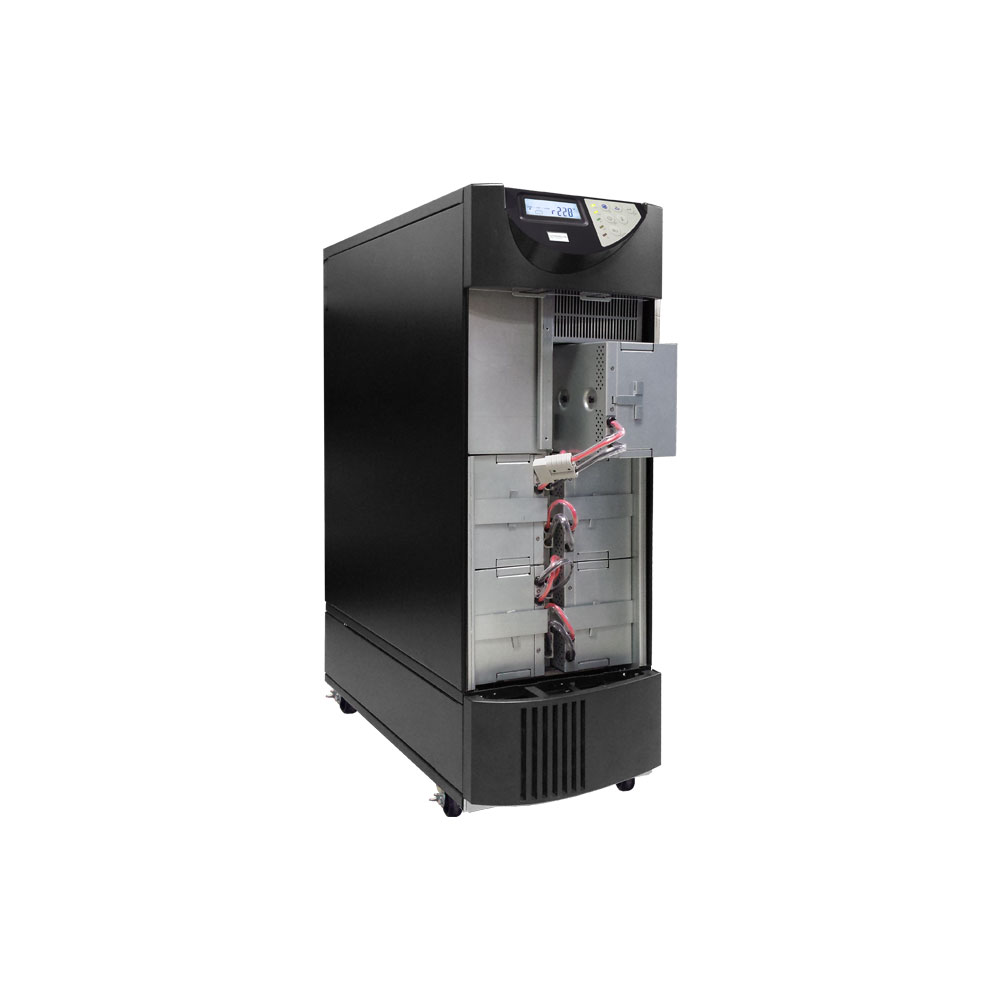

  • TX90-10K Hot Swappable Batteries

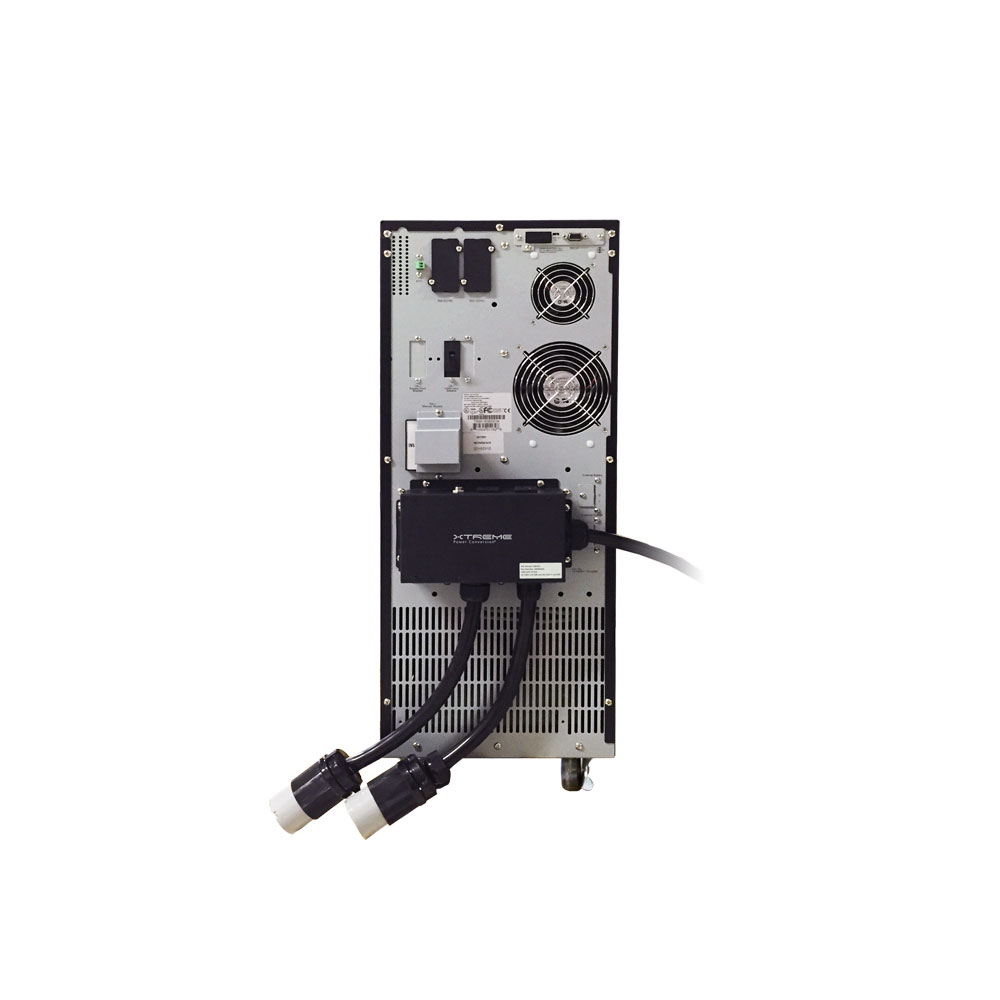

  • TX90-6K with Integral PDU
  • T90-EBP920, T90-EBP940, T90-EBP960 front view

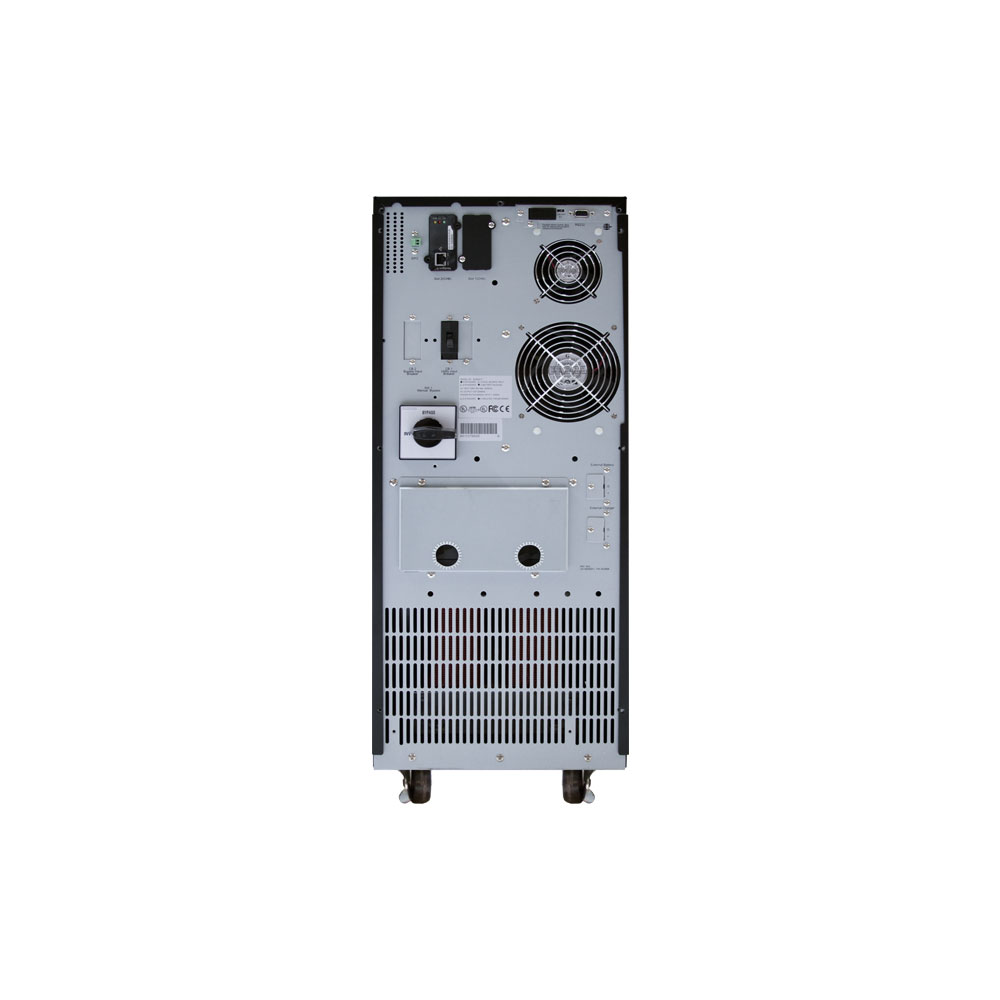

  • TX90-6K rear view

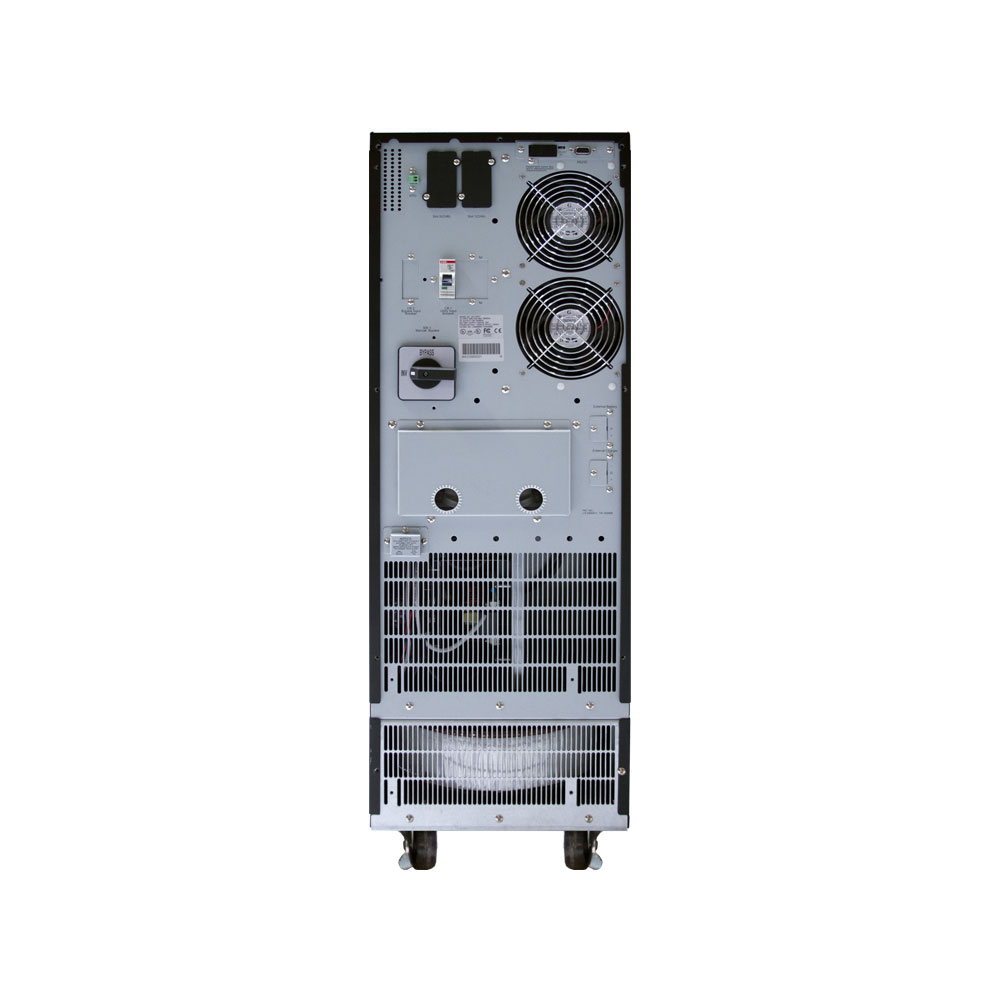

  • TX90-10K rear view
  • T90-EBP920, T90-EBP940, T90-EBP960 rear view
  • T90-240CHG 1000W Charger
  • SNMP-1PIN Internal SNMP Card
  • TX90-RELAY Relay Dry Contact Interface Card
  • XPD31 Power Distribution Unit
  • XPD35 Power Distribution Unit
  • XPD33 Power Distribution Unit
  • XPD34 Power Distribution Unit

TX90 6kVA & 10kVA Isolated Online UPS

6kVA & 10kVA

240/120VAC

Isolated online UPS provides protection from all 10 common power problems.

Isolated online UPS provides the cleanest power in the most demanding conditions. The TX90 galvanic isolation transformer prevents common mode noise which is left exposed by typical transformerless online designs. Isolated online applications include retail, industrial environments, laboratories, and any installation with grounding or noise issues. TX90 provides dual output voltages and programmable output frequency to meet a wide range of requirements.

Product Snapshot

  • Available models: 6kVA/5.4kW, 10kVA/9kW
  • Optional battery runtimes up to 8 hours
  • Up to four TX90 units can be paralleled for additional capacity or redundant operation
  • Optional 580W internal batteries (XR models) and external battery cabinets and chargers can be added for extended runtime applications
  • UL1778, cUL, FCC Class A, RoHS
  • 3 years electronics, 3 years battery warranty (USA and Canada)

[table colalign=”left|left|center|center”]

,MODEL NUMBER,TX90-6K,TX90-10K

INPUT,Capacity,6kVA (5.4kW),10kVA (9kW)

,Voltage (nominal),”208VAC (200VAC, 220VAC, 230VAC, 240VAC optional)”[attr colspan=”2″]

,Frequency,45–65Hz auto-sensing [attr colspan=”2″]

,Power factor,Up to 0.99 at linear load [attr colspan=”2″]

,Harmonic distortion,< 3% at linear load [attr colspan=”2″]

OUTPUT,Voltage,”240/120VAC or 208/120VAC* standard (other optional voltages available)” [attr colspan=”2″]

,Crest factor,3:1 [attr colspan=”2″]

,Overload capacity,”105%–150% for 160 sec, 2 cycles before switching bypass”[attr colspan=”2″]

,Efficiency,”97% ECO mode, 91% online mode”[attr colspan=”2″]

BATTERY,Battery type,”Sealed, maintenance-free lead acid”[attr colspan=”2″]

,Battery (standard models),(20) 12V 7AH,(20) 12V 9AH

,Battery (XR models),(20) 12V 580W,(20) 12V 580W

PHYSICAL,Input/output,Terminal blocks or optional PDU[attr colspan=”2″]

,Dimensions (W x D x H),11.4 x 25.4 x 29.5 in,11.4 x 25.4 x 34.7 in

,Weight,265 lbs,340 lbs

OPTIONAL BATTERY PACKS,Battery quantity and size,EBP920–(20) 12V 9AH; EBP940–(40) 12V 9AH; EBP960–(60) 12V 9AH[attr colspan=”2″]

,Dimensions (W x D x H),11.4 x 25.4 x 29.5 in [attr colspan=”2″]

,Weight,EBP920–254 lbs; EBP940–364 lbs; EBP960–474 lbs [attr colspan=”2″]

OPTIONAL PDU,Input connection,”6 ft, L6–30P”,Terminal blocks

,120V Receptacle options,”5–15/20R, L5–15R, L5–20R, L5–30R, L14–30R, C19″[attr colspan=”2″]

,240V Receptacle options,”L6–30R, L6–20R, L6–15R, 6–15/20R, L14–30R, C19″[attr colspan=”2″]

ENVIRONMENT,Temperature,32–104°F (0–40°C) [attr colspan=”2″]

,Humidity,0–95% non-condensing [attr colspan=”2″]

,Audible noise,< 50dBA [attr colspan=”2″]

,Altitude,”11,500 ft above sea level” [attr colspan=”2″]

APPROVALS,,”UL1778, cUL, FCC Class A, RoHS”[attr colspan=”2″]

WARRANTY,,”3 years electronics, 3 years battery warranty (USA and Canada)” [attr colspan=”2″]

COMMUNICATIONS INTERFACE,,”RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact)”[attr colspan=”2″]

INCLUDED IN BOX,,”User manual, RS-232 communication cable, shutdown software”[attr colspan=”2″]

AVAILABLE OPTIONS,,”Output PDU, external battery charger, parallel tie/bypass, input L6–30P cord (for 6kVA only)”[attr colspan=”2″]

[/table]

*208/120VAC output consists of one leg of 120V and one leg of 88V.

  1. UPS Battery and Charger Options

    [table colwidth=”75″]
    ,Model,Description,Unit Weight, Unit Dimensions
    ,T90-EBP920,”Extended Battery Pack for TX90-6K, TX90-10K with (20) 12V 9AH Batteries”,205 lbs,11.4″ x 25.4″ x 29.5″
    ,T90-EBP940,”Extended Battery Pack for TX90-6K, TX90-10K with (40) 12V 9AH Batteries”,324 lbs,11.4″ x 25.4″ x 29.5″
    ,T90-EBP960,”Extended Battery Pack for TX90-6K, TX90-10K with (60) 12V 9AH Batteries”,446 lbs,11.4″ x 25.4″ x 29.5″
    ,T90-240CHG,”1000W Charger for use with T90-6K, T90-10K”,7 lbs,6.6″ x 11.1″ x 3.4″
    [/table]

  2. Connectivity

    [table colwidth=”75″]
    ,Model,Description,Unit Weight, Unit Dimensions
    ,SNMP-1PIN,Internal Web/SNMP Card,1 lb,7.25″ x 6″ x 2.5″
    ,TX90-RELAY,Relay Dry Contact Interface Card,1 lb,7.25″ x 6″ x 2.5″
    [/table]

  3. Power Distribution Units

    [table colwidth=”75″]
    ,Model,Description,Input Power Cord, Outlets, Unit Weight, Unit Dimensions
    ,XPD31,30A 240V 2U 19” Basic Power Distribution Unit,”L6–30P, 6ft”,(2) L6–30R + (2) L6–20R + (4) 6–15/20R,9.0 lbs,19.0” x 4.7” x 3.5”
    ,XPD32,30A 240V 2U 19” Basic Power Distribution Unit,”L6–30P, 6ft”,(2) L6–30R + (4) L6–20R,7.5 lbs,19.0” x 2.4” x 3.5”
    ,XPD33,30A 240V 2U 19” Basic Power Distribution Unit,”L6–30P, 6ft”,(4) IEC C19 + (8) IEC C13,6.0 lbs,19.0” x 2.4” x 3.5”
    ,XPD34,30A 240/120V 2U 19” Basic Rack PDU,”L14–30P, 6ft”,(2) L6–30R + (4) L6–20R + (12) 5–20R,9.5 lbs,19.0” x 4.7” x 3.5”
    [/table]
