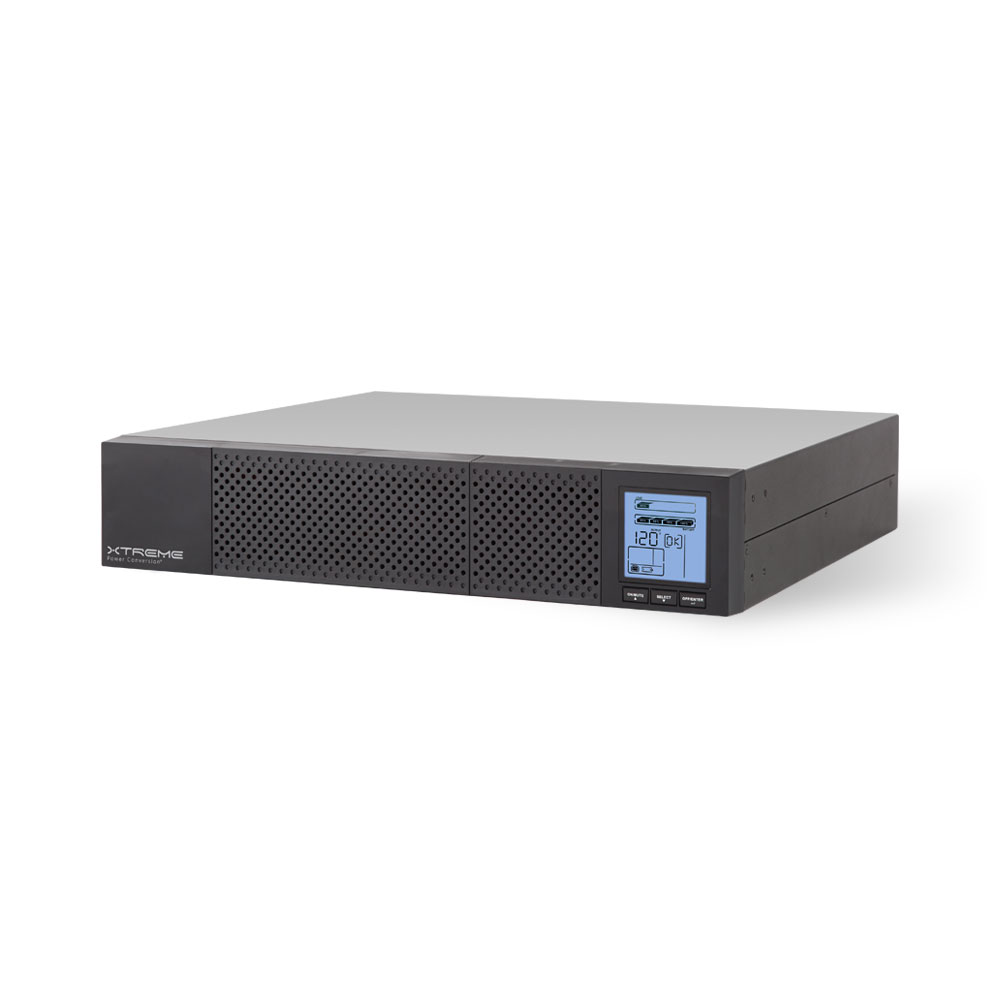

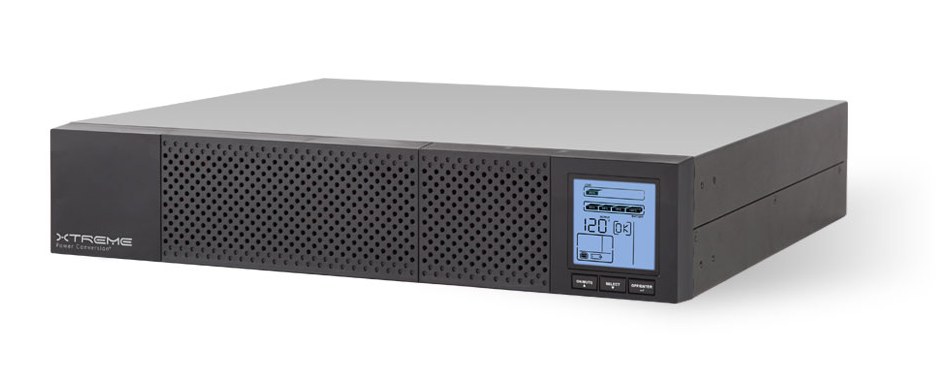

P80 Pure Sine Wave Line Interactive UPS
800VA-3000VA
120VAC
Advanced line interactive power protection for servers and network equipment.
The P80 is a pure sine wave line interactive UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.
P80 units are the highest efficiency available, providing utility cost savings at all load levels. P80 design provides flexible mounting including tower, rack, or optional wall mounting.
P80 unity and 0.90 Power Factor models provide more power for high density loads.
Product Snapshot
- Available models: P80-800, 1100, 1500, 2000, 2200, 3000(V2)
- Pure sine wave output
- Tower, wall, 2-post and 4-post rack mounting configurations available

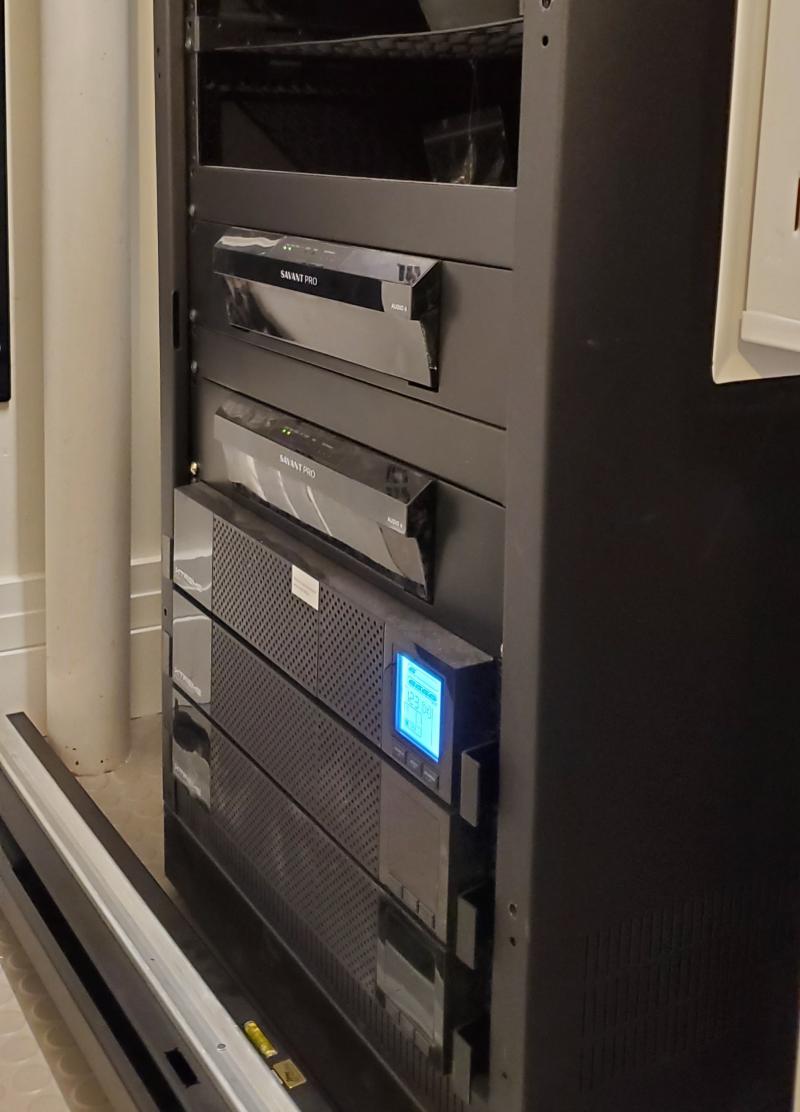

- Extended battery runtimes with optional matching battery modules
- UL, cUL, RoHS
- 3 years electronics, 3 years battery warranty (USA and Canada)
[table colalign=”left|left|center|center|center|center|center|center|”]
,MODEL NUMBER,P80-800,P80-1100,P80-1500,P80-2000,P80-2200,P80-3000(V2)
CAPACITY,Power rating,800VA (720W),1100VA (990W),1500VA (1350W),2000VA (1800W),2200VA (2000W),3000VA (2700W)
INPUT,Voltage nominal,120VAC[attr colspan=”6″]
,Voltage range,-32% to +27% without use of battery [attr colspan=”6″]
,Frequency,50/60Hz auto-sensing [attr colspan=”6″]
OUTPUT,Voltage,120VAC nominal (110/115/127 selectable) [attr colspan=”6″]
,Waveform,Pure sine wave [attr colspan=”6″]
,Transfer time (typical),2–6ms [attr colspan=”6″]
,Efficiency,”Up to 99% ECO mode, 95% buck and boost mode” [attr colspan=”6″]
,Harmonic distortion,2% @ 100% linear load; 5% @ 100% non-linear load [attr colspan=”6″]
BATTERY,Battery type,”Sealed, maintenance-free lead acid” [attr colspan=”6″]
,Battery quantity and size,(2) 12V 7AH,(2) 12V 9AH,(4) 12V 7AH,(4) 12V 9AH, (6) 12V 7AH,(6) 12V 9AH
,Charging current,1.5A max [attr colspan=”6″]
,Typical recharge,4 hours to 90% [attr colspan=”6″]
PHYSICAL,Dimensions (W x D x H),17.2 x 15.1 x 3.5 in[attr colspan=”2″],17.2 x 18.9 x 3.5 in [attr colspan=”2″],17.2 x 23.6 x 3.5 in[attr colspan=”2″]
,Weight,29.3 lbs,30.5 lbs,44.7 lbs, 47.4 lbs, 61.7 lbs,67.1 lbs
,Line cord,”6 ft, 5–15P”,”6 ft, 5–15P”,”6 ft, 5–15P”,”6 ft, 5–20P”, “6 ft, 5–20P”,”6 ft, L5–30P ”

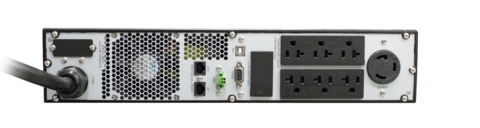

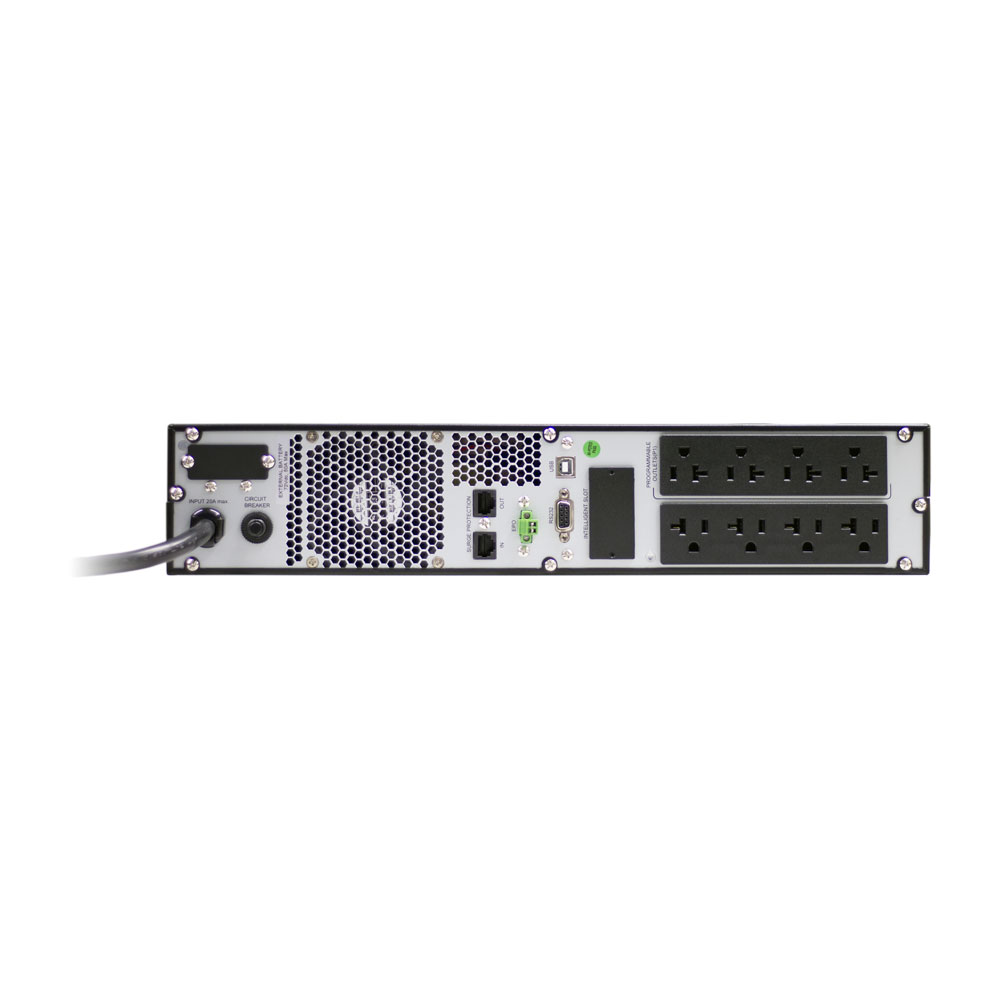

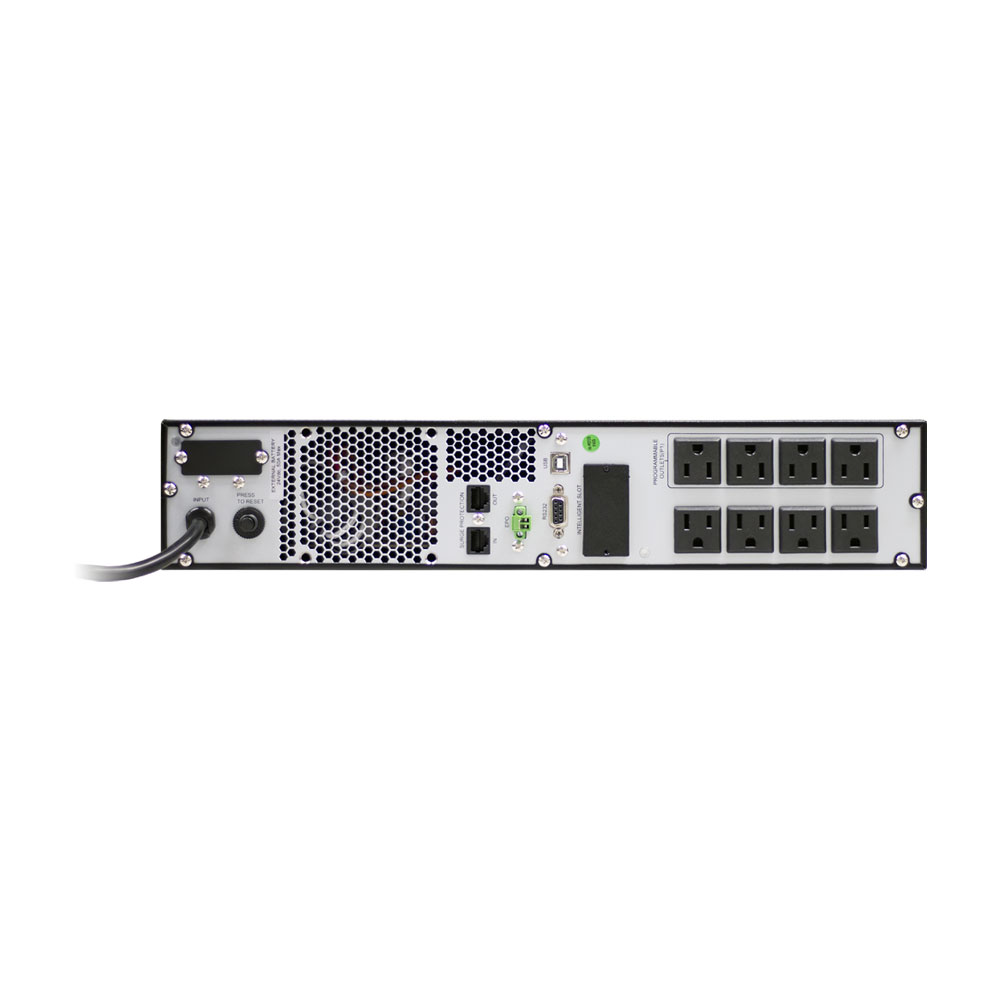

,Receptacles,(8) NEMA 5–15R[attr colspan=”3″],(8) NEMA 5–15/20R[attr colspan=”2″],(8) 5–15/20R or (6) 5-15/20R + (1) L5-30R(V2)[attr colspan=”1″]
OPTIONAL BATTERY PACKS,Model number,N/A[attr colspan=”2″] ,P90-BP48[attr colspan=”2″], P90-BP72[attr colspan=”2″]
,Dimensions (W x D x H),N/A[attr colspan=”2″],17.2 x 18.9 x 3.5 in[attr colspan=”2″],17.2 x 23.6 x 3.5 in[attr colspan=”2″]
,Weight,N/A[attr colspan=”2″],74.6 lbs[attr colspan=”2″] ,104.4 lbs[attr colspan=”2″]
,Battery,N/A[attr colspan=”2″],(8) 12V 9AH / 48V[attr colspan=”2″], (12) 12V 9AH / 72V[attr colspan=”2″]
ENVIRONMENT,Operating temperature,32–104°F (0–40°C) [attr colspan=”6″]
,Audible noise,< 45dBA[attr colspan=”6″]
,Altitude,”11,500 ft above sea level”[attr colspan=”6″]
APPROVALS,,”UL, cUL, RoHS” [attr colspan=”6″]
WARRANTY,,”3 years electronics, 3 years battery warranty (USA and Canada)” [attr colspan=”6″]
COMMUNICATIONS INTERFACE,,”RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)”[attr colspan=”6″]
INCLUDED IN BOX,,”Software CD, horizontal brackets, tower pedestals, user manual”[attr colspan=”6″]
AVAILABLE OPTIONS,,”5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket”[attr colspan=”6″]
[/table]
Rack depth is front bracket to unit panel. Add 1” for depth including front bezel.
-
UPS Battery Packs
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions
,P90-BP48,”48V Battery Pack for P80-1500, 2U”,74.6 lbs,17.2” x 19.9” x 3.5”
,P90-BP72,”72V Battery Pack for P80-2200, P80-3000, 2U”,104.4 lbs,17.2” x 24.6” x 3.5”
[/table] -
Mounting Kits
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions
,P90-RAIL,4-Post Rail Kit,5 lbs,3.8″ x 19.8″ x 2.8″
,XPC-2PRAIL,2-Post Rail Kit; Rated for 125 lbs,5 lbs,4.0” x 20.0” x 3.0”
,XPC-2POSTL,2-Post Shelf Kit; Rated for 150 lbs,9 lbs,21.5″ x 23.3″ x 3.5″

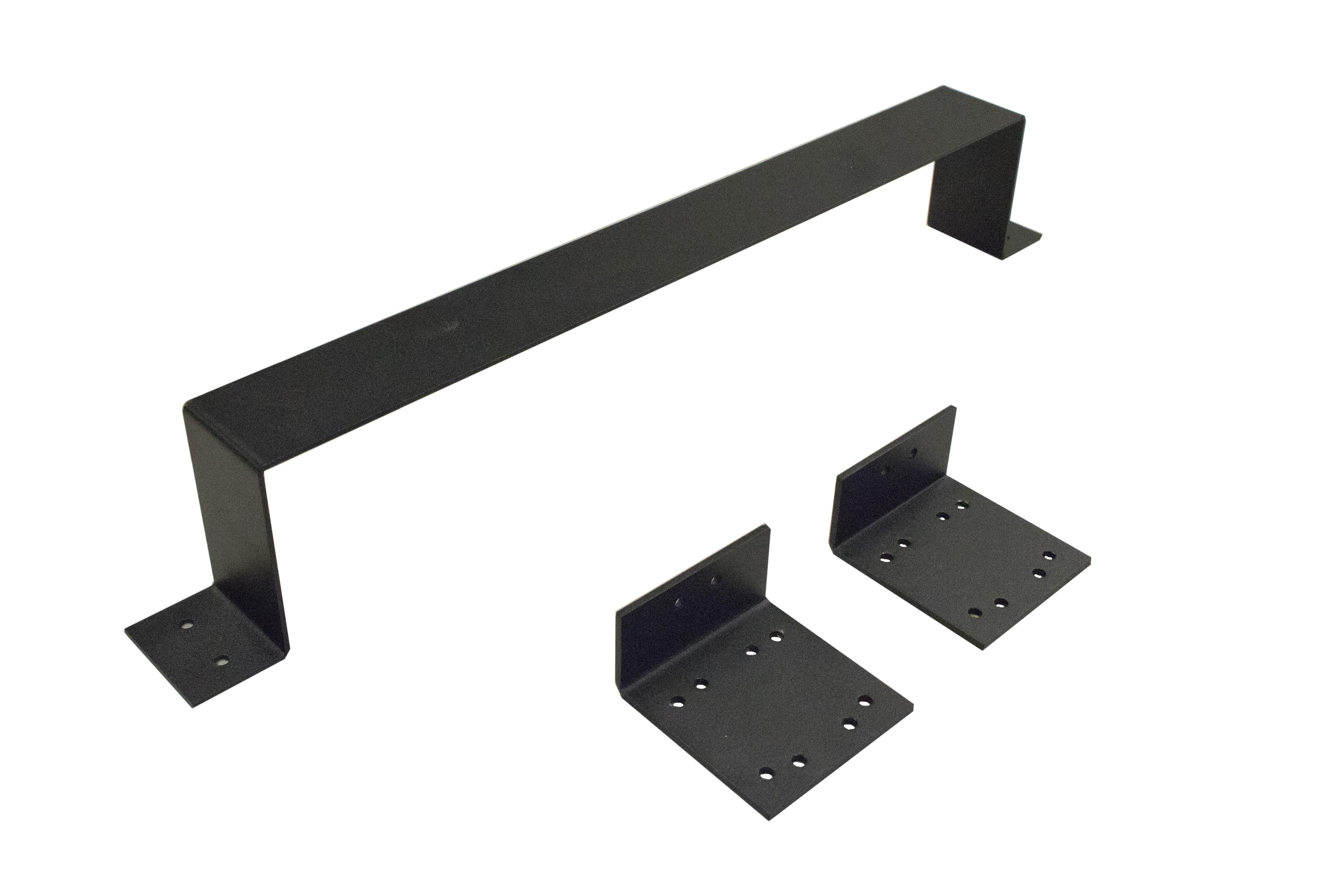

,P90-WMB,Wall Mount Bracket,5 lbs,4.0″ x 24.0″ x 4.0″
,P90-FRMB,”Front Rackmount Bracket for P90-1000, P90-1500, P90-2000″,1 lb,0.9″ x 2.0″ x 3.4″
[/table] -
Connectivity
[table colwidth=”75″]
,Model,Description,Unit Weight, Unit Dimensions
,SNMP-2PMINI,Two Port Internal SNMP Card,1 lb,7.25″ x 6″ x 2.5″

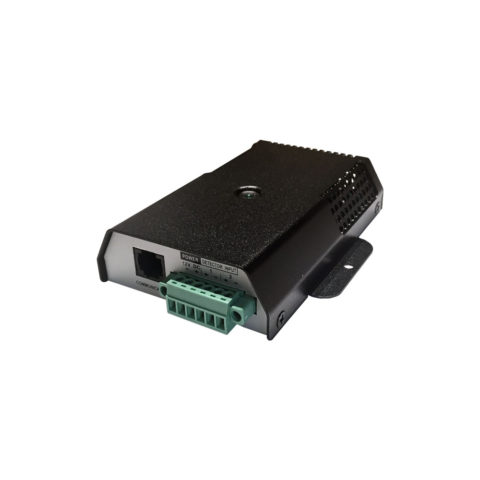

,SNMP-EMD,Environmental Monitoring Device,1 lb,7.25″ x 6″ x 2.5″
,MODBUS-IN,Modbus Card,1 lb,7.25″ x 6″ x 2.5″
,RELAY-MINI,General Relay Contacts with DB9 & Terminal Block Adapter,1 lb,7.25″ x 6″ x 2.5″
[/table] -
Bypass Distribution Modules
[table colwidth=”75″]
,Model,Description,Utility Input, Output Connections, UPS Connections, Unit Weight, Unit Dimensions
,XBDM-1015LV,”Bypass 15A/120VAC for use with P80-800, P80-1100, P80-1500″,”5–15P, 12ft”,”(6) 5–15R front, (4) 5–15R back”,5-15R,3.4 lbs,19” x 3.5” x 1.75”
,XBDM-1020LV,Bypass 20A/120VAC for use with P80-2200,”5–20P, 12ft”,”(6) 5–20R front, (4) 5–20R back”,5-20R,3.4 lbs,19” x 3.5” x 1.75”
[/table] -
Power Distribution Units
[table colwidth=”75″]
,Model,Description,Input Power Cord, Outlets, Unit Weight, Unit Dimensions
,XPD-1415HV,120V Basic Power Distribution Unit,”5–15P, 12ft”,(14) 5–15R,3.5 lbs,19.0″ x 3.5″ x 1.75″
,XPD-1420HV,120V Basic Power Distribution Unit,”L5–20P, 12ft or 5–20P with adapter”,(14) 5–25R,4.8 lbs,19.0″ x 3.5″ x 1.75″
[/table]
