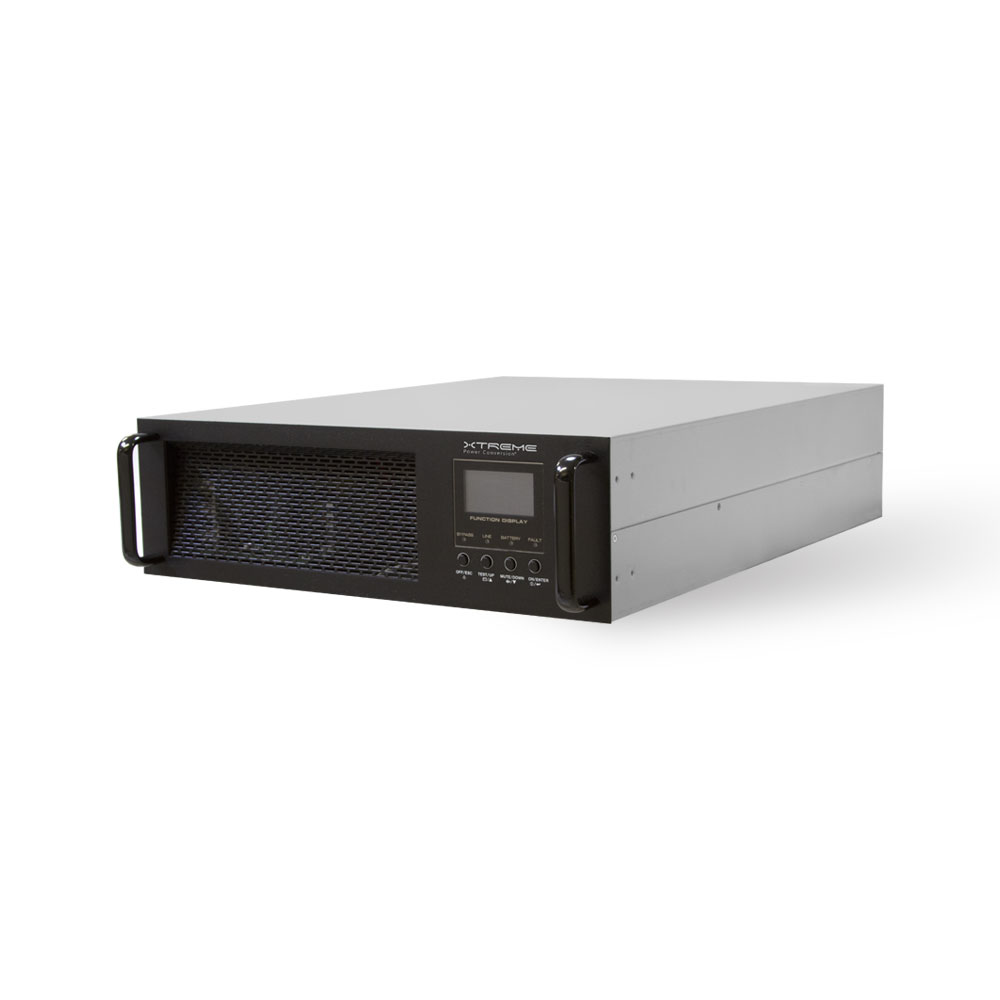

NXRi Online UPS
NXRi models are discontinued. Stock is available, but in limited quantities
6kVA & 10kVA
230VAC
The ideal UPS for critical business rack mount servers, IT equipment, communication systems or network equipment.
The powerful NXRi series provides 6kVA/4.8kW or 10kVA/8kW in just 3U of rack space. It uses online double conversion technology to deliver the highest level of protection from all utility variances for critical loads. Matching battery packs extend runtimes by up to an hour at full load.
Product Snapshot
- Available models: 6kVA, 10kVA
- 98% efficiency in ECO mode saves utility power
- Matching battery cabinets for extended runtimes
- Frequency converter mode: 50/60Hz or 60/50Hz
- CE approved and RoHS compliant
- Redundant and parallel installation for up to three systems
- 2 years electronics, 2 years battery warranty
[table colalign=”left|left|center|center”]
,MODEL NUMBER,NXRi-6KL,NXRi-10KL
INPUT,Capacity,6000VA (4800W),10000VA (8000W)
,Voltage,230VAC[attr colspan=”2″]
,Frequency,50/60Hz ± 3%[attr colspan=”2″]
,Power factor,≥ 0.99[attr colspan=”2″]
,Harmonic distortion,≤ 6% THD non-linear load[attr colspan=”2″]
OUTPUT,Voltage,230VAC (default) configurable to 208/220/240VAC single-phase ± 1%[attr colspan=”2″]
,Frequency,50/60Hz ± 0.1[attr colspan=”2″]
,Power factor,0.8[attr colspan=”2″]
,Overload protection,”98% ECO mode, > 90% online mode”[attr colspan=”2″]
,Efficiency,110% for 10 min; 130% for 1 min; > 130% for 1 sec[attr colspan=”2″]
BATTERY,Battery type (EBP20),(20) 12V 9AH[attr colspan=”2″]
,Charge current,2A[attr colspan=”2″]
PHYSICAL,UPS dimensions (W x D x H),438 x 580 x 133 mm (17.2 x 22.8 x 5.2 in),438 x 668 x 133 mm (17.2 x 26.3 x 5.2 in)
,UPS weight,17 kg (37.5 lbs),20 kg (44.0 lbs)
,EBP20 dimensions (W x D x H),438 x 580 x 133 mm (17.2 x 22.8 x 5.2 in) [attr colspan=”2″]
,EBP20 weight,63 kg (138.9 lbs) [attr colspan=”2″]
,Input/output,Hardwired terminal[attr colspan=”2″]
ENVIRONMENT,Temperature,0–40°C (32–104°F) [attr colspan=”2″]
,Humidity,0–95% non-condensing [attr colspan=”2″]
,Audible noise,< 50dBA[attr colspan=”2″]
,Altitude,”3,500 m (11,500 ft) above sea level”[attr colspan=”2″]
APPROVALS,,”CE, EN/IEC 62040-2, EN/IEC 62040-1, RoHS compliant”[attr colspan=”2″]
WARRANTY,,”2 years electronics, 2 years battery”[attr colspan=”2″]
COMMUNICATIONS INTERFACE,,”USB/RS232, EPO, SNMP (optional), and Modbus cards”[attr colspan=”2″]
INCLUDED IN BOX,,”User manual, monitoring software, CD, USB cable”[attr colspan=”2″]
AVAILABLE OPTIONS,,”SNMP card, AS400 card, EBP20, rail kit”[attr colspan=”2″]
[/table]
*Unit derates at 90% capacity when configured for 208VAC output
