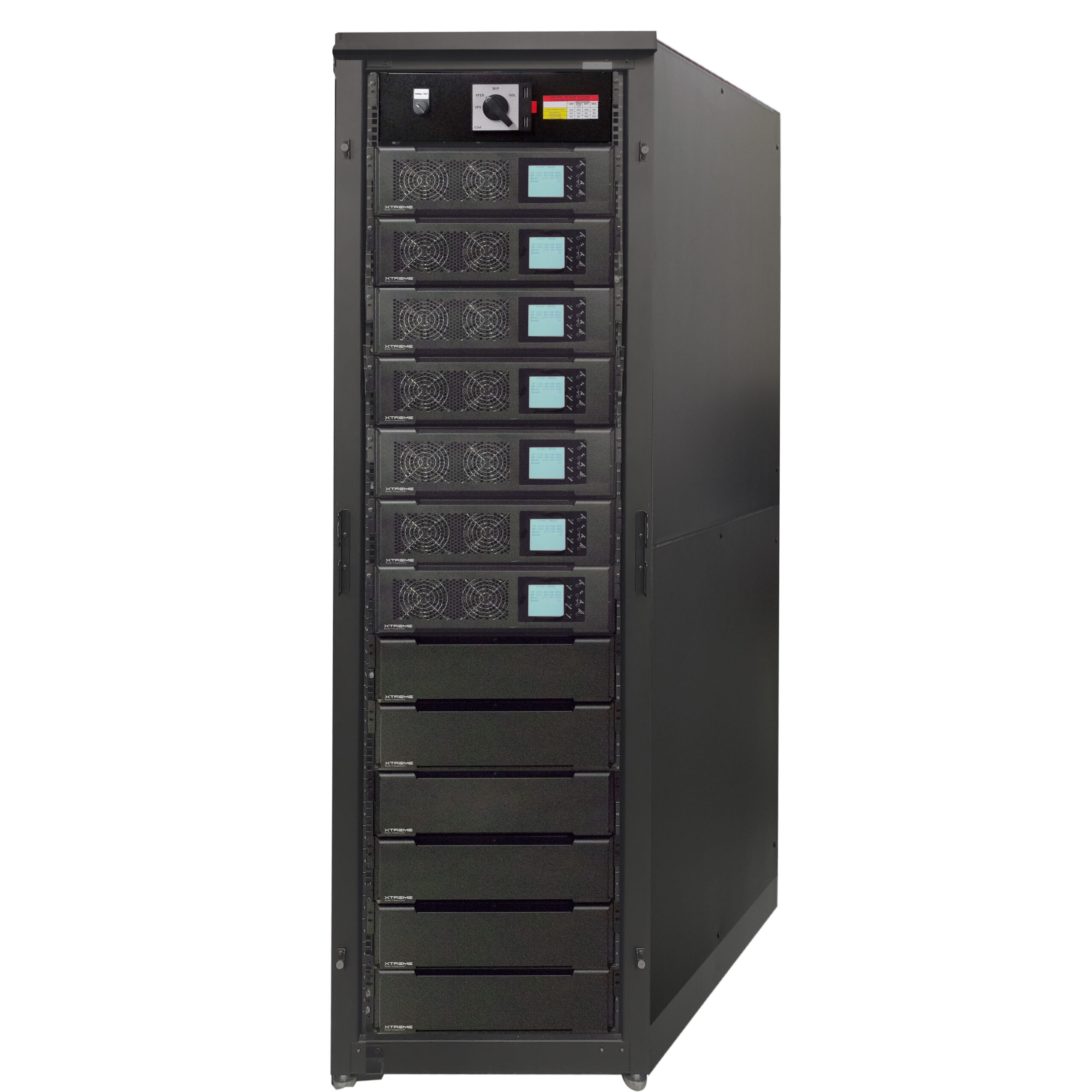

M90S Custom

24kVA, 30kVA, 36kVA, 42kVA, 48kVA, 54kVA, 60kVA

208/120VAC Single-Phase Online UPS

Modular, Flexible UPS for Continuous Power Availability.

Category:

Xtreme Power M90S Custom UPS is a scalable, modular, customizable solution that combines continuous power availability and the highest efficiency for mission critical applications.

M90S Custom provides reliable 240/120V or 208/120V (2Ph+N+G) split phase power up to 60kW. Applications include Containerized Data Centers, Edge Computing and Cell Tower applications which do not have access to three phase utility or generator power.

Capacity, redundancy and battery runtime can all be customized to meet your specific needs. Hot swappable power and battery modules provide rapid maintenance and repair.



Product Snapshot

  • Capacities: 24kVA, 30kVA, 36kVA, 42kVA, 48kVA, 54kVA, 60kVA
  • Modular for capacity or redundancy
  • Unity output power factor (kVA =kW)
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 93% online efficiency
  • 3 years electronics, 3 years battery warranty (USA and Canada)

M90S has many advantages over competitive units: Eaton 9170, 9170 Plus, 9170+, APC Symmetra LX, Eaton 9XPM, Powerware ASY-0673, Powerware ASY-0529, Liebert APS. See below links for comparisons

Xtreme M90S – Vertiv APS Comparison
Xtreme M90S – Eaton 9PXM Comparison
Xtreme M90S – APC Symmetra LX Comparison

Six advantages of modular uninterruptible power supply (UPS) over conventional UPS systems

[table colalign=”left|left|center|center|center|center|center|center|center”]

,MODEL NUMBER, M90S-30K, M90S-36K, M90S-42K, M90S-48K, M90S-54K, M90S-60K [attr colspan=”7″]

CAPACITY, Power Rating, 30kVA/30kW, 36kVA/36kW, 42kVA/42kW, 48kVA/48kW, 54kVA/54kW, 60kVA/60kW [attr colspan=”7″]

INPUT,”Voltage/frequency nominal”, 120/208V or 120/240V & 50/60Hz auto-sensing (2PH+N+G)[attr colspan=”7″]

,”Voltage/frequency range”, 152-269VAC (L-L) / 40–70Hz [attr colspan=”7″]

OUTPUT,”Voltage/Frequency”, “120/208V or 120/240V & 50/60Hz ± 0.1Hz; (2PH+N)” [attr colspan=”7″]

,Efficiency/THD (full load), “Up to 98% ECO mode, 93% online mode” [attr colspan=”7″]

,Overload capacity, “100% – 110% for 30 min; 110% – 130% for 5min; 130% – 150% for 10s; > 150% for 200ms” [attr colspan=”7″]

BATTERY SYSTEM,Nominal voltage, “+/-96V” [attr colspan=”7″]

,Max charging (adjustable), 16A, 20A, 24A, 28A, 32A, 36A, 40A

DIMENSION & WEIGHT, Power Module, 16.3”W x 24”D x 5.2”H / 38 lbs [attr colspan=”7″]

,Battery module, 16.3”W x 24”D x 5.2”H / 107 lbs [attr colspan=”7″]

,Maintenance Bypass, 17”W x 24”D x 5.25”H (3U) / 50 lbs [attr colspan=”7″]

,Control Module, 11.2”W x 17.1”D x 1.7”H (1U) / 9 lbs [attr colspan=”7″]

SYSTEM DIMENSIONS, UPS , 12U, 15U, 18U, 21U, 24U, 27U, 30U [attr colspan=”7″]

Battery, 12U [attr colspan=”7″]

ENVIRONMENT,Temperature,0–40°C (32–104°F)** [attr colspan=”7″]

,Altitude, “5,200 ft above sea level**” [attr colspan=”7″]

,Audible noise, < 58dBA at 1m [attr colspan=”7″]

APPROVALS,,”UL-1778 (TUV), cUL, FCC A, RoHS”[attr colspan=”7″]

WARRANTY,,”3 year electronics, 3 year battery (USA and Canada)”[attr colspan=”7″]

COMMUNICATIONS INTERFACE,,”RS-232, USB, Dry Contacts, EPO, (2) intelligent slot for optional cards (Web/SNMP, Relay, Modbus)” [attr colspan=”7″]

INCLUDED IN BOX,,”User manual, USB cable, RS-232 cable, ViewPower Software, anchor brackets”[attr colspan=”7″]

AVAILABLE OPTIONS,,”Maintenance Bypass, Custom Output Distribution, Start-up, and Extended warranty”[attr colspan=”7″]

[/table]
