15kVA-140kVA
208/120VAC Three Phase

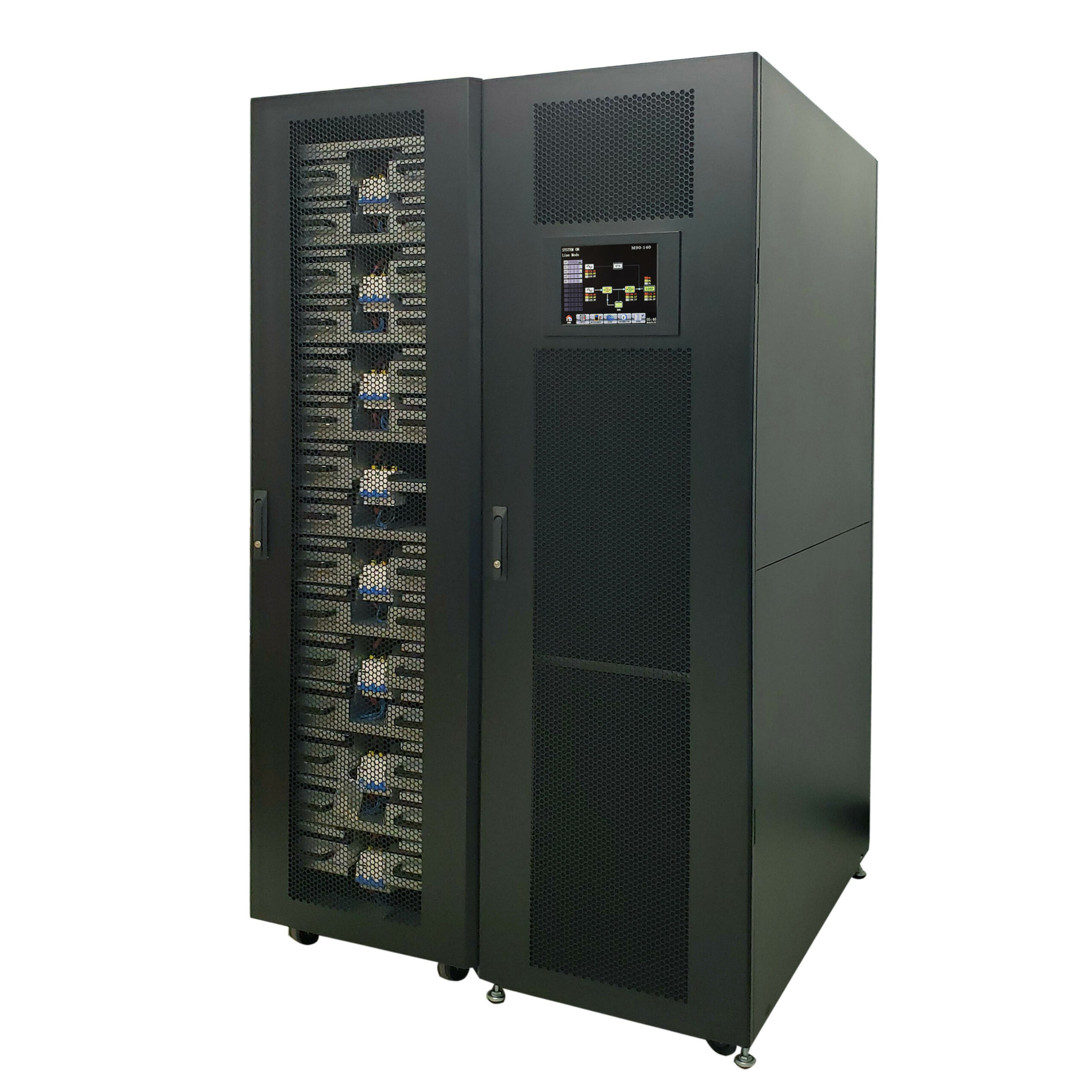

Mission critical availability with scalable, modular, high density M90-140 for 15kVA to 140kVA application
The M90-140 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and
reliable network grade power.
M90-140 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. Because the modules are independent, they can be hot swapped without risk to the critical load.
Product Snapshot
- Capacities: 15kVA, 20kVA, 30kVA, 40kVA, 45kVA 60kVA, 75kVA, 80kVA, 90kVA 100kVA, 105kVA, 120kVA, 140kVA
- Modular for capacity or redundancy
- Hot swappable power and battery modules
- Up to 98% ECO mode or 94% online efficiency
- UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
- 2 year electronics, 2 year battery warranty (USA and Canada)
[table colalign=”left|left|center|center|center|center|center|center|center”]
,MODEL NUMBER, M90140-20, M90140-40, M90140-60, M90140-80, M90140-100, M90140-120, M90140-140
INPUT,Capacity, 20kVA (18kW), 40kVA (36kW), 60kVA (54kW), 80kVA (72kW), 100kVA (90kW), 120kVA (108kW), 140kVA (126kW)
,Nominal, “208/120V, 50/60Hz auto-sensing” [attr colspan=”7″]
,Range, “121–253VAC* (L-L)” [attr colspan=”7″]
OUTPUT,Voltage,208/120VAC [attr colspan=”7″]
,Frequency, 50/60Hz ± 0.5Hz [attr colspan=”7″]
,THD (full load),< 2% [attr colspan=”7″]
,Efficiency,”98% ECO mode, ≥ 94% online mode”[attr colspan=”7″]
,Overload capacity,105%-110% for 60 min;110%-125% for 10min; 126%-150% for 1min; <150% for 200ms [attr colspan=”7″]
UPS PHYSICAL,Dimensions & weight, 23.6″W x 43.3″D x 79.1″H / 657 lbs + 74 lbs per module [attr colspan=”7″]
BATTERY PHYSICAL,Charge current (max), 8A, 16A, 24A, 32A, 40A, 48A, 56A
,Dimensions & weight, 23.6”W x 43.3”D x 79.1”H / 735 lbs + 85 lbs per module [attr colspan=”7″]
ENVIRONMENT,Temperature,0–40°C (32–104°F) [attr colspan=”7″]
,Altitude,”5,200 ft above sea level”[attr colspan=”7″]
,Audible noise, < 69dBA at 1m [attr colspan=”7″]
APPROVALS,,”UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA”[attr colspan=”7″]
WARRANTY,,”2 years (USA and Canada)”[attr colspan=”7″]
COMMUNICATIONS INTERFACE,,”RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)” [attr colspan=”7″]
INCLUDED IN BOX,,”User manual, RS-232 cable, unloading ramp, ViewPower Software” [attr colspan=”7″]
AVAILABLE OPTIONS,,”External maintenance bypass, 480V input transformer”[attr colspan=”7″]
[/table]
