Isolation Transformer PDUs
1.5 kW–10 kW | Clean, Isolated Power Distribution
Galvanically isolated rack, wall, and floor-mount PDUs supporting 120V, 208V, and 240V input and output for mixed-voltage and noise-sensitive environments.
1.5 kW to 10 kW · 120V / 208V / 240V · Galvanically Isolated Power Distribution
Isolation transformer PDUs
The Xtreme Power Isolation Transformer PDU family delivers galvanically isolated power distribution for environments where power quality, grounding integrity, and equipment protection are critical. A heavy-duty isolation transformer electrically separates sensitive loads from the utility or upstream UPS – reducing common-mode noise, eliminating ground loops, and suppressing the interference that causes instability or premature equipment failure across IT, AV, retail, industrial, laboratory, and edge deployments.
Clean, isolated power for mission-critical equipment
Engineered for demanding electrical conditions, Isolation Transformer PDUs deliver clean, stable power to critical loads while meeting mixed-voltage requirements. The integrated galvanic isolation transformer reduces common-mode noise and electrical interference found in IT, retail, industrial, and laboratory environments, and supports multiple output voltages and receptacle configurations for mixed-load racks. When combined with an Xtreme Power UPS, these PDUs form one of the cleanest and most robust power architectures available for noise-sensitive applications.
What is an isolation transformer PDU?
An isolation transformer PDU integrates a galvanically isolated transformer directly into a power distribution unit. By electrically separating connected equipment from the upstream source, it reduces common-mode noise and ground loops, improves power quality for IT, AV, industrial, and laboratory loads, and enables safe voltage conversion in mixed-voltage environments. It is commonly used where standard UPS output alone is not sufficient to meet power-quality or voltage requirements.
What the Isolation PDU delivers
Models span small IT racks through high-power industrial and laboratory applications.
NEMA plugs, IEC inlets, or terminal-block connections, in hardwired or plug-and-receptacle configurations by model.
120V and/or 240V outputs, including step-down isolation for mixed-voltage environments.
A heavy-duty isolation transformer reduces common-mode noise and minimizes ground-related interference.
Available in 2U-3U rack-mount, wall-mount, or floor-mount configurations.
All-metal enclosures and oversized transformers engineered for long service life.
Six models by voltage, capacity, and form factor
| Model | Input connection | Output receptacles | Voltage (in → out) | Capacity | Dimensions (W×D×H) | Weight |
|---|---|---|---|---|---|---|
| XPD-IT15LV | 5-15P → C13 (3-ft detachable) | (16) 5-15R | 120V → 120V | 1.5 kW | 17.3 × 16.1 × 3.5 in (2U) | 44 lb |

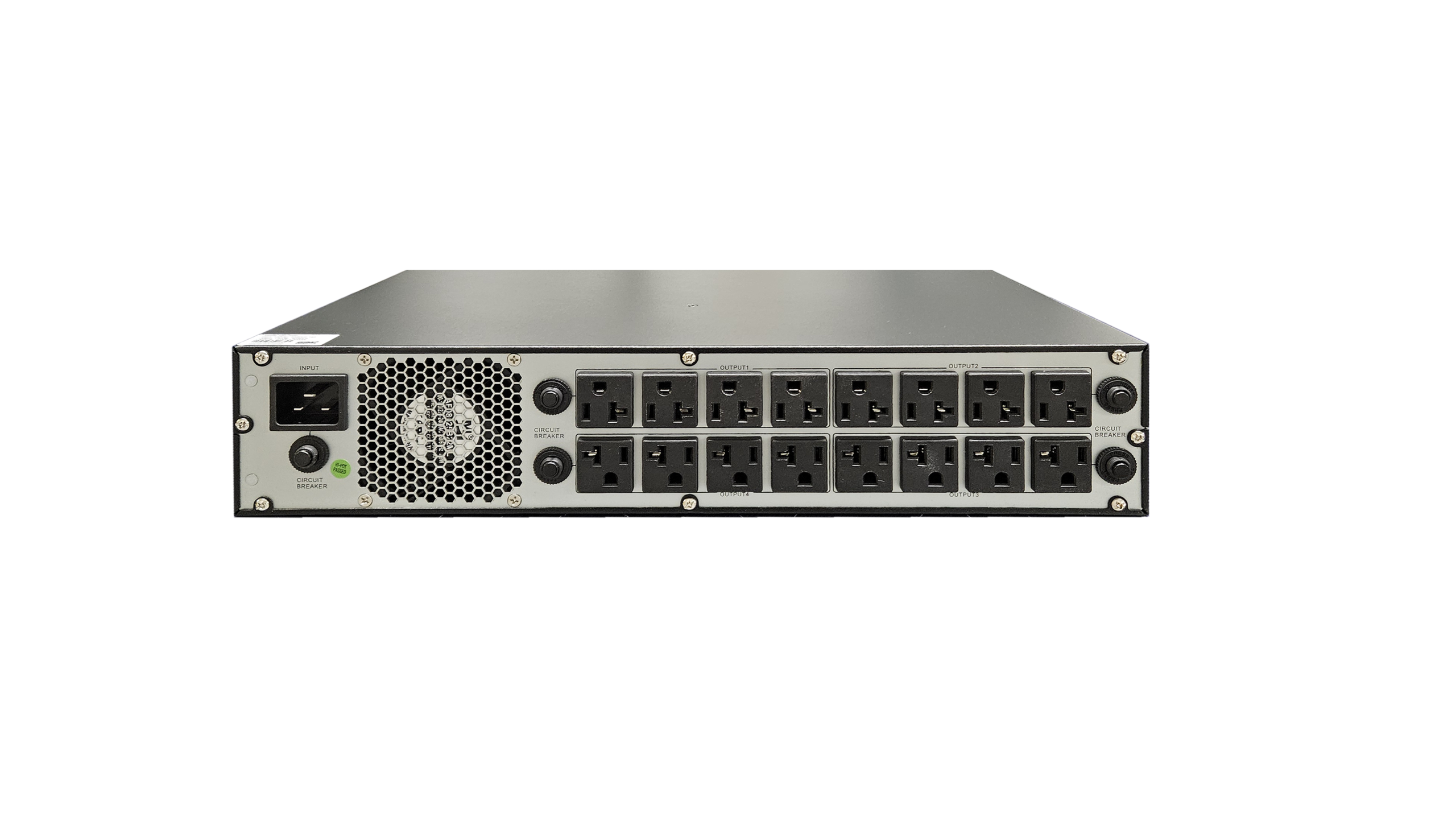

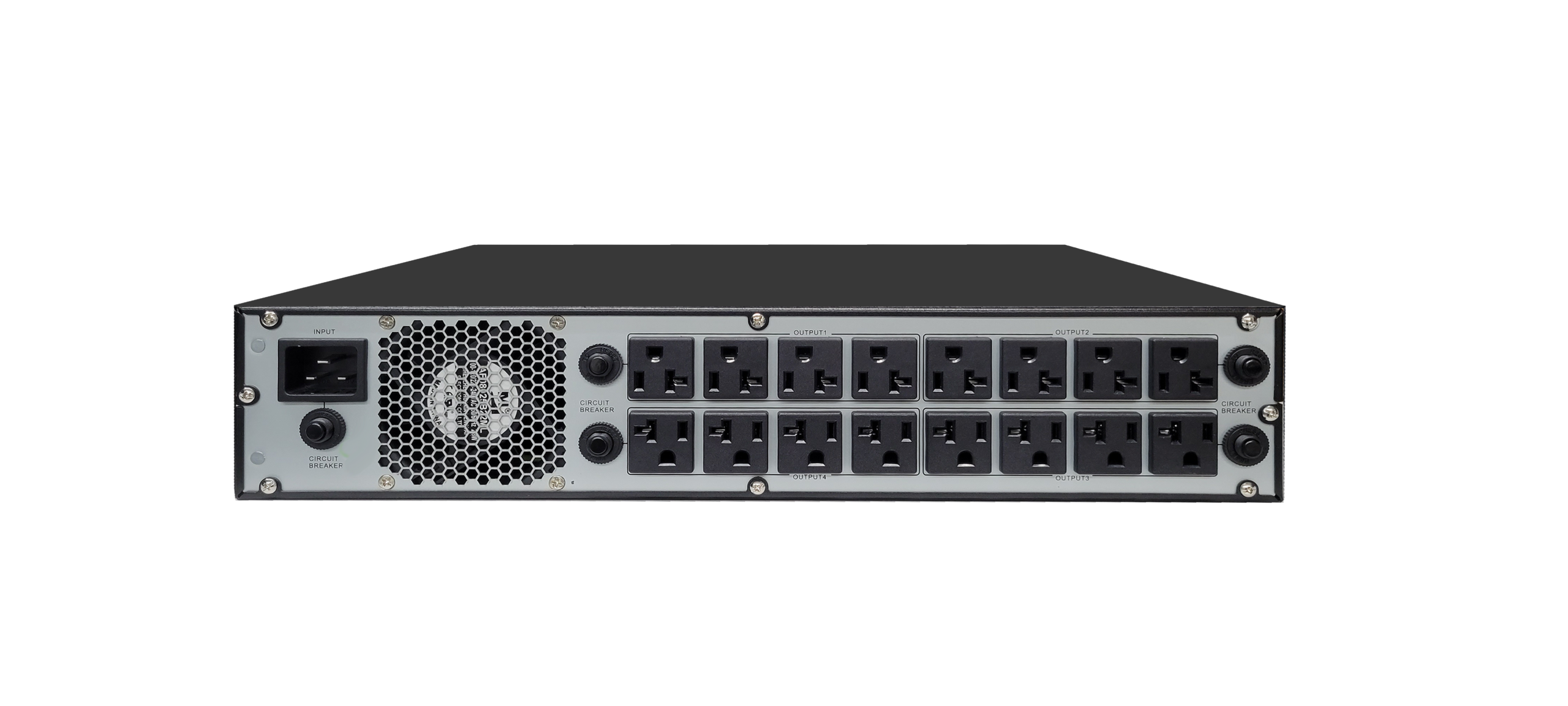

| XPD-IT20LV | 5-20P → C19 (3-ft detachable) | (16) 5-15/20R | 120V → 120V | 2.0 kW | 17.3 × 20.1 × 3.5 in (2U) | 50 lb |

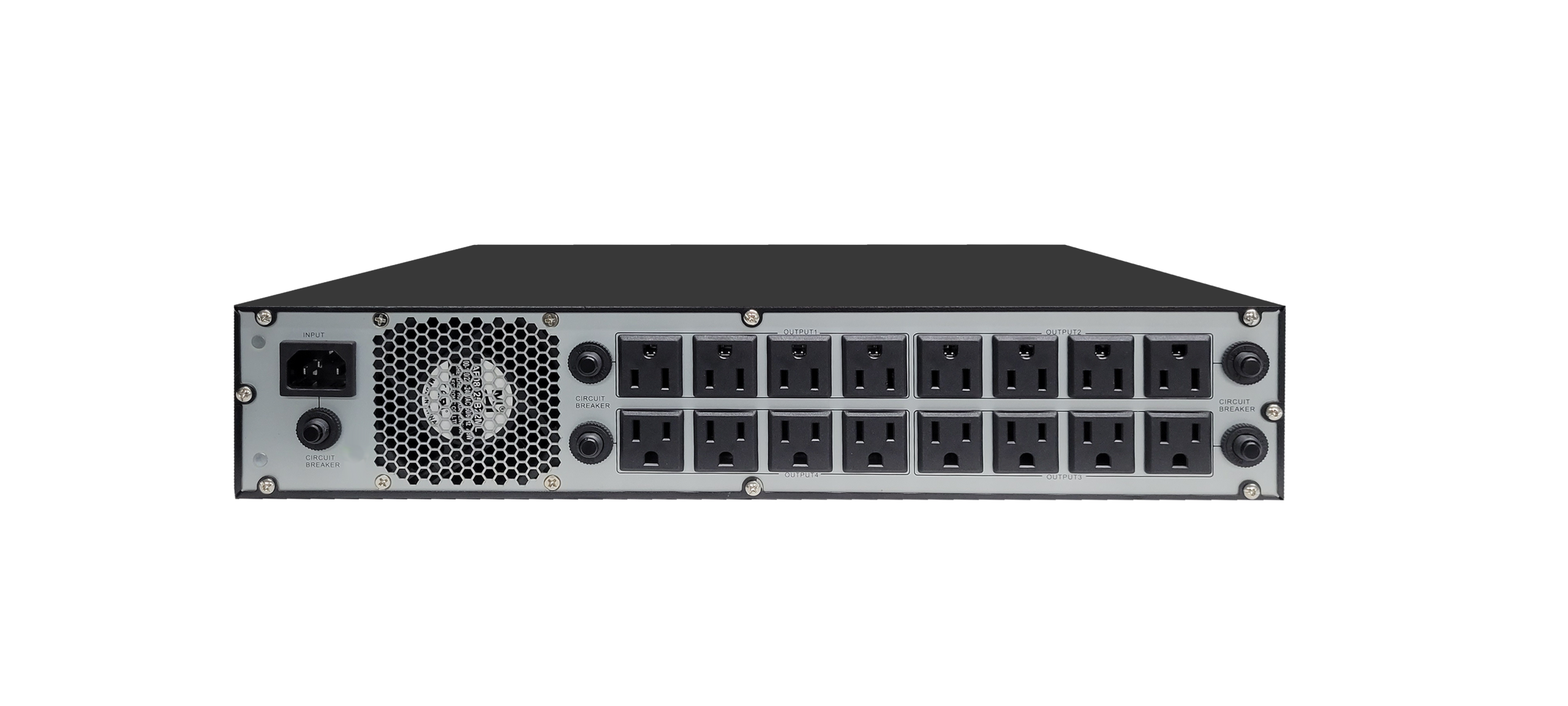

| XPD-IT15A | C14 → C13 (3-ft detachable) | (16) 5-15R | 208V → 120V | 1.5 kW | 17.3 × 10.5 × 3.5 in (2U) | 43 lb |
| XPD-IT60A | L6-30P (plug-in) | (12) 5-15/20R + (1) L6-30R | 208/240V → 240/120V | 6.0 kW | 17.3 × 18.0 × 3.5 in (2U) | 137 lb |
| XPD-IT6kW | Terminal block (in / out) | (2) L14-30R + (8) 5-15/20R | 208/240V → 240/120V | 6.0 kW | 17.3 × 32.8 × 4.7 in (3U) | 199 lb |
| XPD-IT10kW | Terminal block (in / out) | (2) L14-30R + (8) 5-15/20R | 208/240V → 240/120V | 10.0 kW | 17.3 × 32.8 × 4.7 in (3U) | 209 lb |
Specifications from the Isolation PDU datasheet (Rev 3/19/20). All models are single-phase, 50/60 Hz, with a galvanic isolation transformer. LV models step 120V to isolated 120V; 208/240V models step down to 240/120V. Capacity is shown per the model selection guide; the XPD-IT60A is also marketed as a 6 kVA unit.

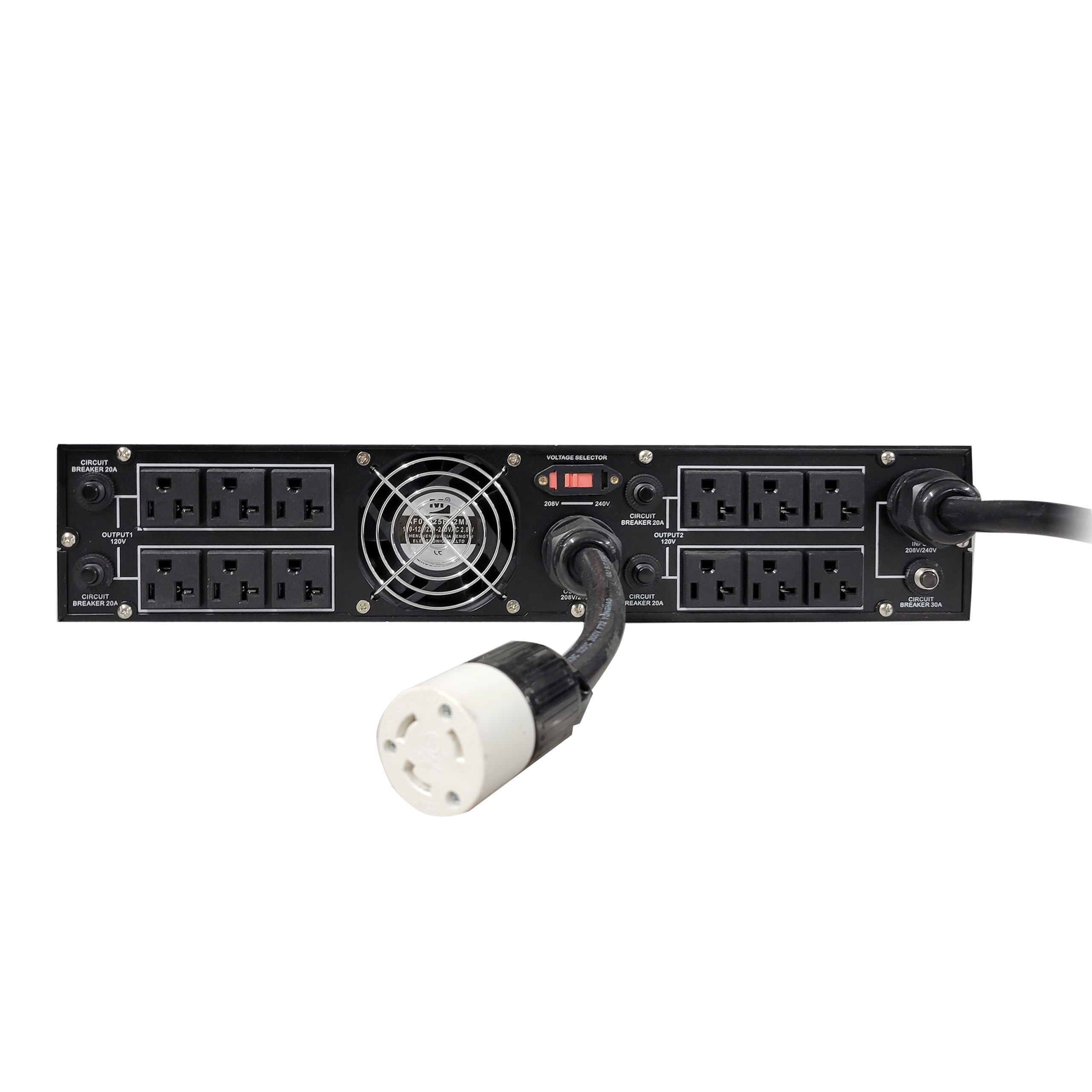

XPD-IT60A — 6 kVA flagship
The XPD-IT60A is the flagship rack-mount isolation transformer PDU in the Xtreme Power lineup, purpose-built for 208V or 240V UPS-backed racks that must safely support 120V equipment. It converts 208V or 240V input to clean, isolated 240/120V output through a plug-in NEMA L6-30P inlet – no hardwiring – and delivers high-density distribution from (12) NEMA 5-15/20R outlets plus an L6-30R in a compact 2U form factor. It is ideal for IDF closets, edge racks, broadcast systems, and mixed-voltage IT deployments.
Inputs, outputs, and mounting
Designed for UPS-backed power architectures

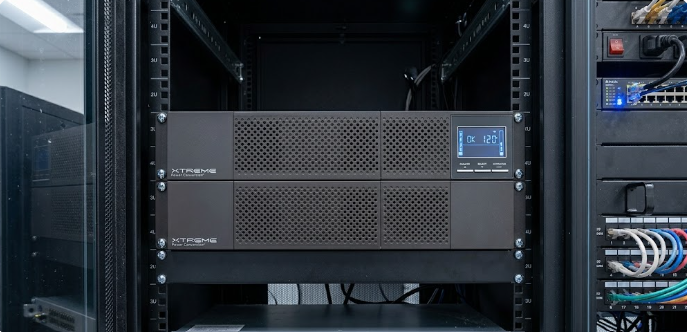

Isolation Transformer PDUs are designed to operate downstream of a UPS – line-interactive or online double-conversion – improving overall power quality while preserving UPS protection and battery backup. Common pairings include the P91 Series online UPS (5-10 kVA) for continuous, conditioned power and the P80g line-interactive UPS (208/230V) for efficient, cost-effective protection. For applications requiring monitoring, metering, or remote power control, an Isolation PDU can feed a downstream SPDU smart PDU – delivering clean, isolated power plus outlet-level visibility and control.
Where Isolation PDUs are deployed
IDF closets and edge racks requiring clean, isolated power for sensitive equipment.
Powering sensitive transaction and control electronics in retail environments.
Reducing electrical noise in manufacturing, automation, and test systems.
Supporting switchers, encoders, monitors, and control gear.
Stable, isolated power for precision laboratory and instrumentation equipment.
Clean, isolated distribution for mixed-voltage edge and distributed sites.
Isolation PDU specifications
| Specification | Detail |
|---|---|
| Type | Galvanic isolation transformer PDU |
| Power rating | 1.5 kW to 10 kW |
| Input voltage | 120V / 208V / 240V |
| Output voltage | 120V / 240V (incl. 240/120V step-down) |
| Frequency | 50 / 60 Hz |
| Phase | Single-phase |
| Transformer | Heavy-duty galvanic isolation |
| Input connections | NEMA plug, IEC inlet, or terminal block (by model) |
| Output receptacles | NEMA 5-15R / 5-15/20R / L14-30R / L6-30R (by model) |
| Mounting | Rack (2U-3U), wall, or floor |
| Construction | All-metal enclosure, oversized transformer |
| Warranty | 3 years, full (USA & Canada) |
Documents and related products
Need help selecting the right model?
Xtreme Power Isolation Transformer PDUs improve power quality, reduce electrical noise, and support mixed-voltage environments. Our team can help you select the right model and capacity, confirm UPS compatibility, and design a clean, isolated power architecture.
[table colalign=”left|center|center|center|center|center|center “]
MODEL NUMBER,Input Power Connection,Outlets,Voltage,Capacity,Dimensions (W x D x H),Weight
Transformer PDU [attr colspan=”7″]
XPD-IT15A,”Detachable 3 ft, C14 to C13 Cord”, (16) 5-15R, 208V in to 120V,1.5kW, 17.3 x 10.5 x 3.5 in (2U), 43 lbs
XPD-IT60A,”3 ft, L6–30P”,(1) L6–30R* and (12) 5–15/20R,”208V to 208/120V or 240V to 240/120V”, 6kW ,17.3 x 18.0 x 3.5 in (2U),137 lbs
XPD-IT6kW,”Input terminal bock”,Output terminal block + (2) L14-30R +(8) 5–15/20R, 6kW, “208V to 240/120V or 240V to 240/120V”,17.3” x 32.8” x 4.7 (3U) ,199 lbs
XPD-IT10kW,”Input terminal bock”,Output terminal block + (2) L14-30R +(8) 5–15/20R, 10kW, “208V to 240/120V or 240V to 240/120V”,17.3” x 32.8” x 4.7 (3U) ,209 lbs
[/table]
