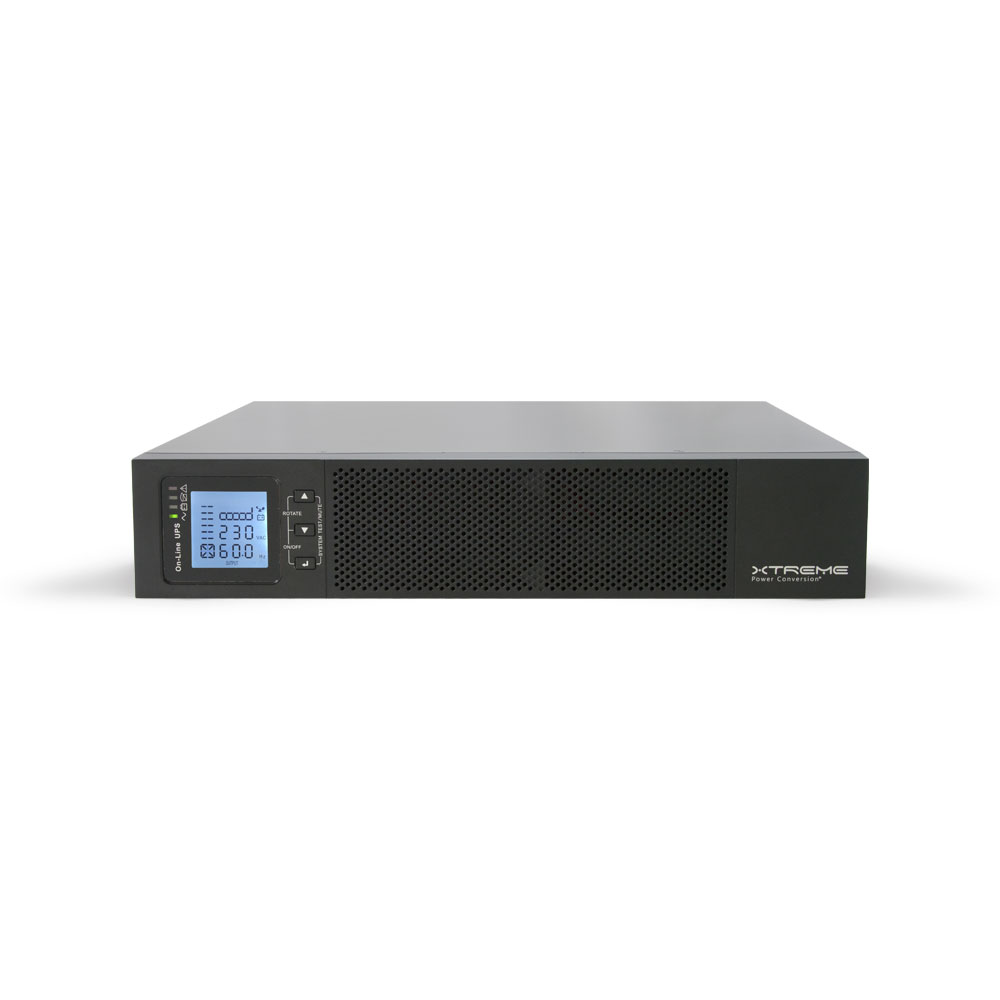

G90 Online UPS
1000VA-3000VA
208/230VAC
Deliver clean and continuous power to IT equipment during power disturbances.
The G90 revolutionizes power protection by delivering unprecedented operating efficiency, wattage density, and lower energy usage. Built with online double conversion technology, the G90 offers 0.9 output power factor and 98% efficiency in ECO mode which means you achieve the highest Power Usage Effectiveness (PUE) with the lowest utility power consumption.
Product Snapshot
- Available models: 1000VA, 2000VA, 3000VA
- Rack, tower, or wall mount
- Online double conversion, 98% efficiency in ECO mode
- 0.9 output power factor
- Extended battery runtimes with optional matching battery modules
- Compact 2U rack space
- CE, FCC A, EN 61000, IEC/EN 62040 listings
- 2 years electronics, 2 years battery warranty
[table colalign=”left|left|center|center|center”]
,MODEL NUMBER,G90-1000,G90-2000,G90-3000
INPUT,Capacity,1000VA (900W),2000VA (1800W),3000VA (2700W)
,Voltage,160–290VAC[attr colspan=”3″]
,Frequency,50/60Hz auto sensing[attr colspan=”3″]
,Detachable AC power cord,”6 ft, IEC C14 to IEC C13″,”6 ft, IEC C20 to IEC C19″[attr colspan=”2″]
OUTPUT,Voltage,200/208/220/230/240VAC[attr colspan=”3″]
,Waveform,Pure sine wave[attr colspan=”3″]
,Frequency,50/60Hz auto sensing (line mode); 50/60 ± 0.02Hz (battery mode) [attr colspan=”3″]
,Power factor,0.9[attr colspan=”3″]
,Voltage regulation,± 2%[attr colspan=”3″]
,Crest factor,3:1[attr colspan=”3″]

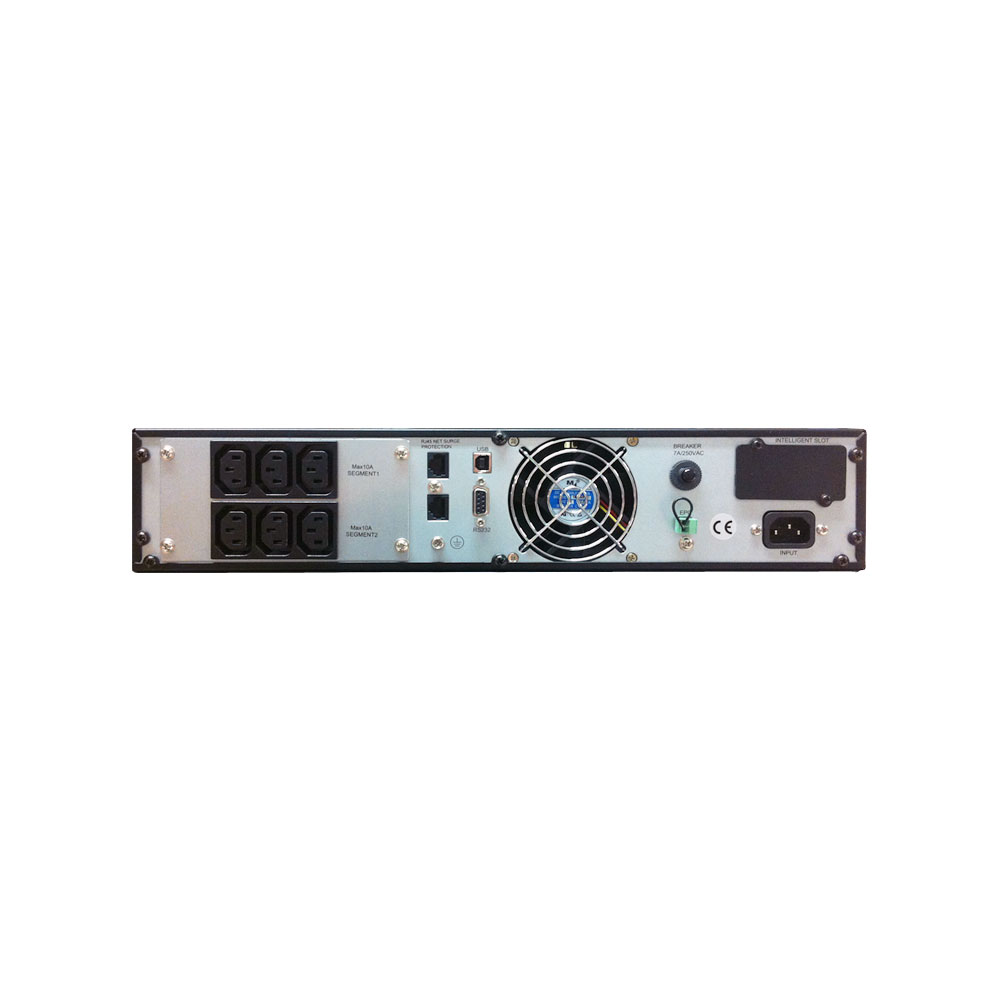

,Outlets,(6) IEC C13,(8) IEC C13,(1) IEC C19 + (8) IEC C13
,Overload protection,150% for 30 sec; > 150% for 300 ms[attr colspan=”3″]
,Efficiency,”98% ECO mode, ≥ 92% online mode”[attr colspan=”3″]
BATTERY,UPS battery quantity and size,(3) 12V 9AH/36VDC,(6) 12V 9AH/72VDC[attr colspan=”2″]
,UPS/EBP charge current,1A (3 stage charger) [attr colspan=”3″]
,EBP battery quantity and size,(6) 12V 9AH/36VDC,(12) 12V 9AH/72VDC[attr colspan=”2″]
PHYSICAL,UPS dimensions (W x D x H),440 x 430 x 86.5 mm (17.3 x 16.9 x 3.4 in),440 x 690 x 86.5 mm (17.3 x 27.2 x 3.4 in) [attr colspan=”2″]
,UPS weight,16.2 kg (35.7 lbs),28.1 kg (61.9 lbs),29.2 kg (64.4 lbs)

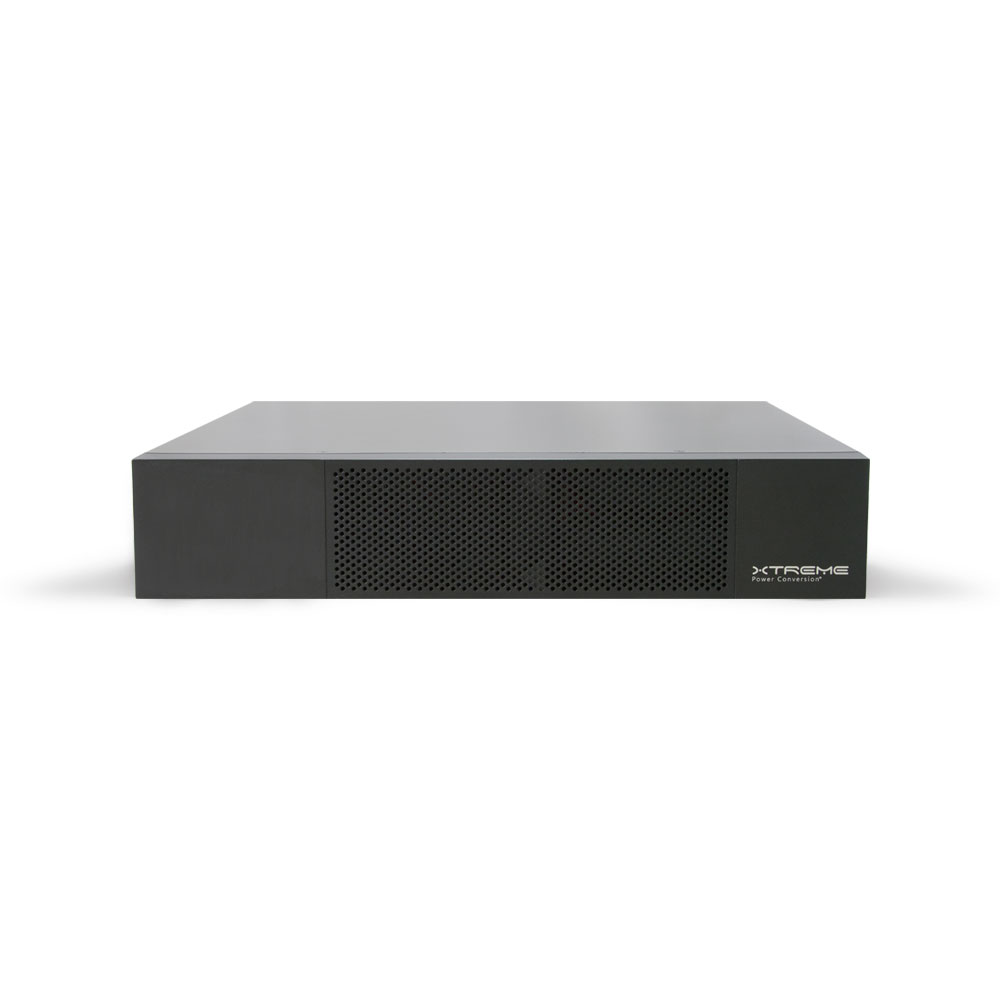

,EBP dimensions (W x D x H),440 x 430 x 86.5 mm (17.3 x 16.9 x 3.4 in) ,440 x 690 x 86.5 mm (17.3 x 27.2 x 3.4 in) [attr colspan=”2″]
,EBP weight,24.0 kg (52.9 lbs),46.0 kg (101.4 lbs) [attr colspan=”2″]
ENVIRONMENT,Temperature,0–40°C (32–104°F) [attr colspan=”3″]
,Humidity,0–95% non-condensing [attr colspan=”3″]
,Altitude,”3500 m (11,500 ft) above sea level”[attr colspan=”3″]
APPROVALS,,”CE, EN 61000, IEC/EN 62040″[attr colspan=”3″]
WARRANTY,,”2 years electronics, 2 years battery”[attr colspan=”3″]
COMMUNICATIONS INTERFACE,,”RS-232, USB, Web/SNMP (optional)” [attr colspan=”3″]
INCLUDED IN BOX,,”User manual, rack mount brackets, tower pedestals, power cord, software CD, USB & SNMP cables”[attr colspan=”3″]
AVAILABLE OPTIONS,,”Bypass distribution module (XBDM), power distribution module (XPDU), rail kit”[attr colspan=”3″]
[/table]
