The Xtreme Power M90, M90L, M90-80 and M90 140 offer compact all-in-one three-phase UPS solutions with maximum efficiency, small footprint and modular scalability.  M90 UPS power modules are available in 15kVA and 20kVA capacities, and can be used with any M90 family product.  As your power requirements grow, the M90 makes it easy increase capacity and redundancy (up to 140kVA N+1). Hot swappable power modules can be easily removed and replaced without risk to the critical load.

The fully integrated M90-80 UPS includes internal modular batteries, modular static switch and maintenance bypass in a compact 24” cabinet.  The M90-140 UPS includes modular static switch and maintenance bypass in a compact 24” cabinet plus 24” M90- BC modular battery cabinet.

Need more runtime? M90’s modular battery design makes it easy to add additional runtime for any of the M90 product family models.  For extended runtimes, the M90-80 and M90-140 can be connected to M90-BC battery cabinets.  Each M90-BC cabinet holds up to 8 battery strings, each protected with 125A breaker for service isolation.

Xtreme Power’s three-phase products push the standard for quality and innovation with complete protection for your mission critical applications. No matter what your critical power application’s requirements, Xtreme has a solution:

M90 & M90L

Modular Online UPS // 208/120VAC Three-Phase

  • Six capacities: 15kVA, 20kVA, 30kVA, 40kVA, 45kVA, 60kVA
  • Modular for capacity or redundancy
  • Hot swappable power modules
  • Certified 94.1% online mode, or 98% ECO mode
  • UL-1778 (TUV), cUL, FCC A, RoHS
  • 2 year electronics, 2 year battery warranty (USA and Canada)

The M90 is a scalable modular online three phase UPS that protects critical data and equipment from power problems, while supplying clean and reliable network grade power.



M90 Product Page
M90L Product Page

M90 Product Flyer
M90L Product Flyer

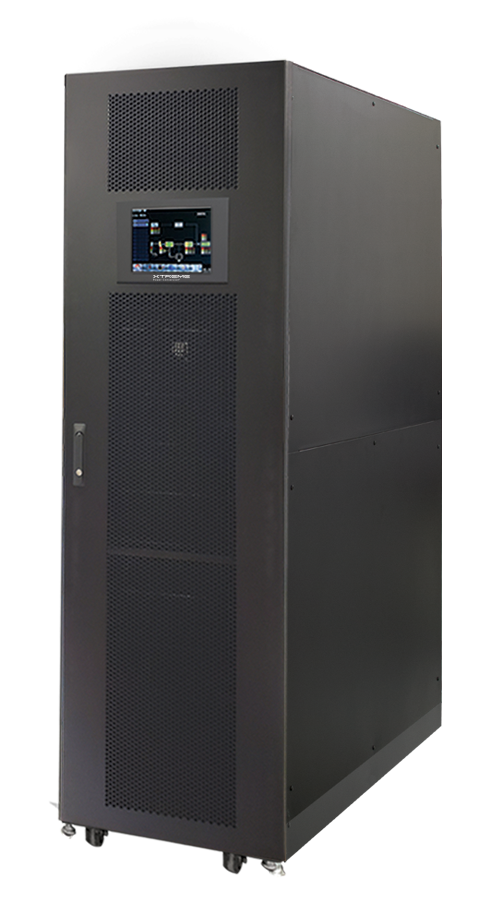

M90-80 & M90-140



  • Capacities: 15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 45kVA/40.5kW, 60kVA/54kW, 80kVA/72kW
  • Modular for capacity or redundancy
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 94% online efficiency
  • UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
  • 2 year electronics, 2 year battery warranty (USA and Canada)







The M90-80 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

Product Page
M90-80 Flyer





  • Capacities: 15kVA, 20kVA, 30kVA, 40kVA, 45kVA 60kVA, 75kVA, 80kVA, 90kVA 100kVA, 105kVA, 120kVA, 140kVA
  • Modular for capacity or redundancy
  • Hot swappable power and battery modules
  • Up to 98% ECO mode or 94% online efficiency
  • UL-1778 (TUV), cUL (TUV), FCC A, RoHS, TAA
  • 2 year electronics, 2 year battery warranty (USA and Canada)

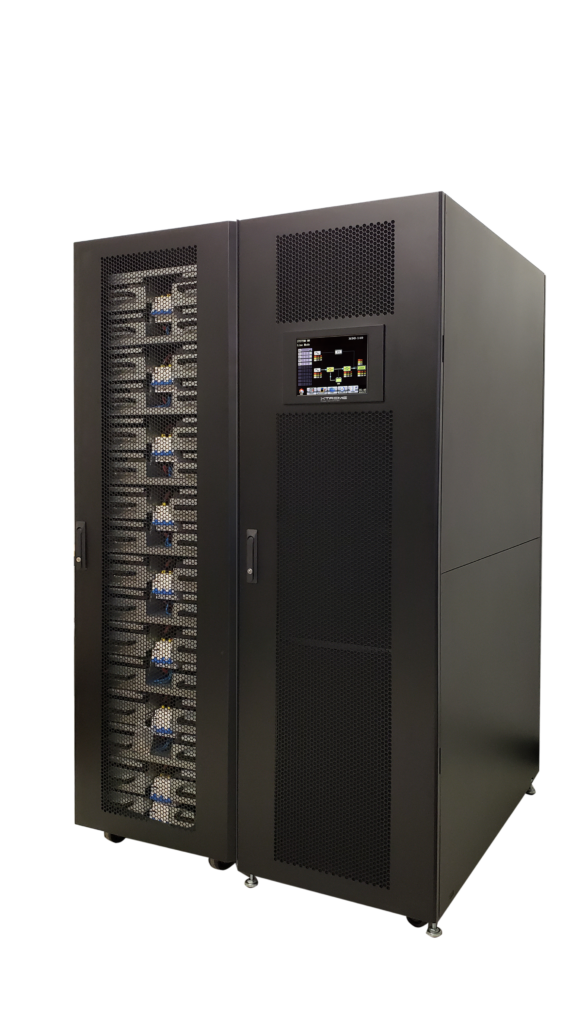

The M90-140 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and
reliable network grade power.

Product Page
M90-140 Flyer
