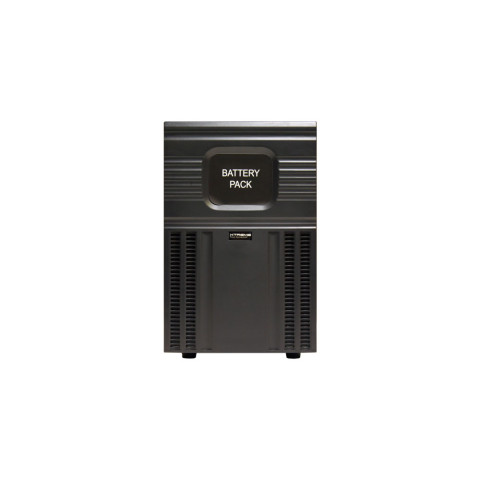

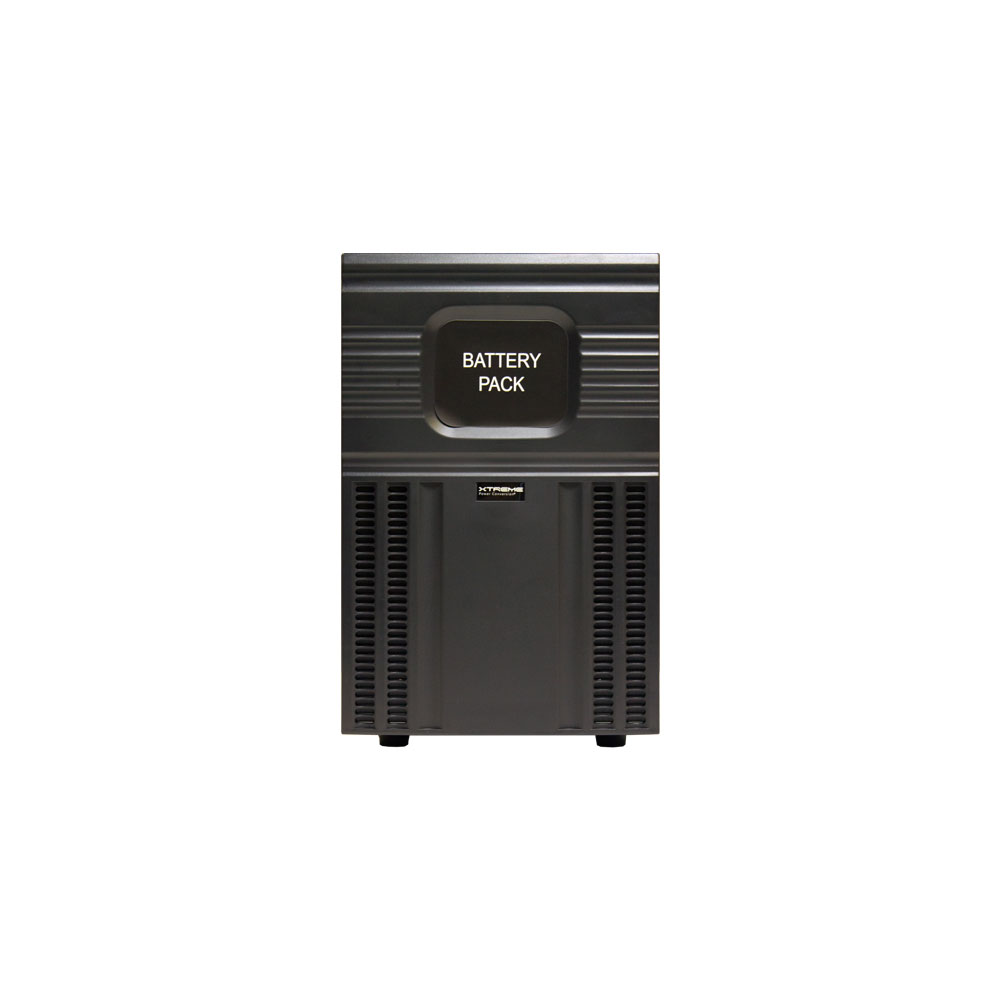

  • T90-BP, T90-BP1, T90-BP2 front view

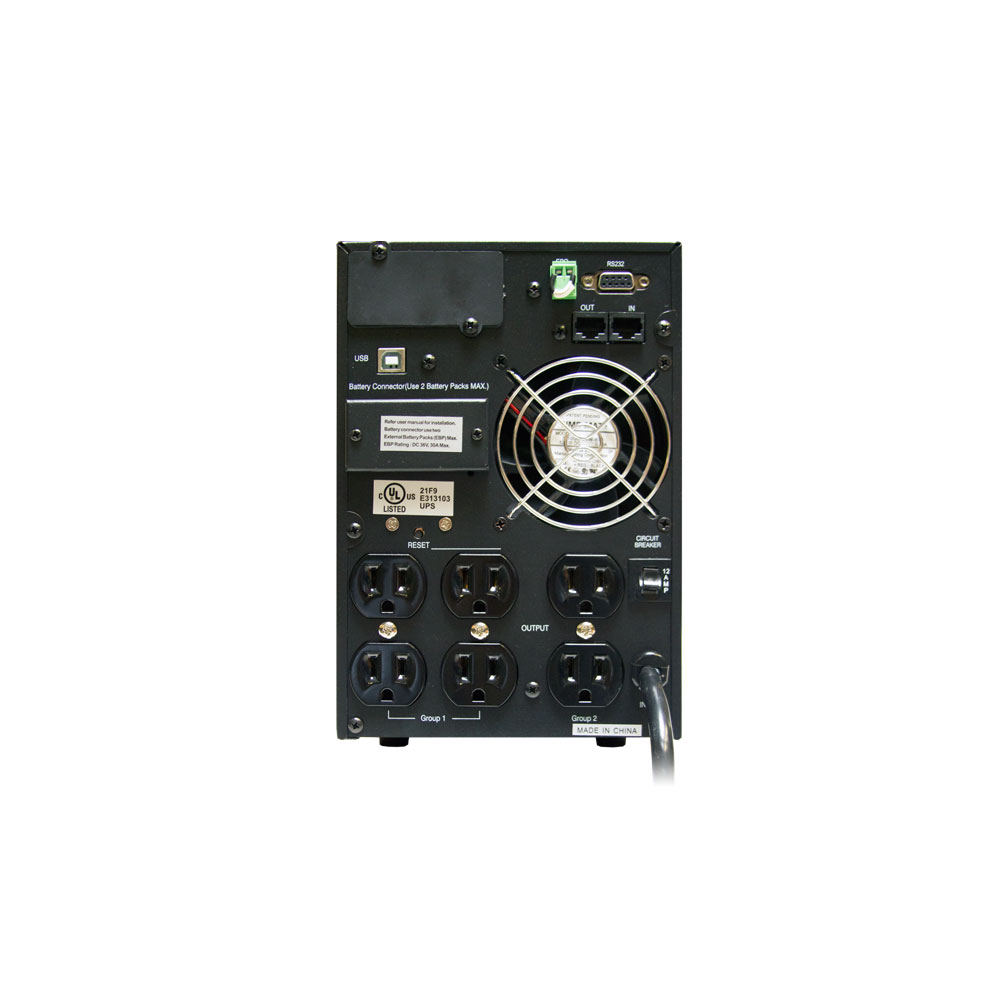

  • T90-700, T90-1000, T90-1500 rear view

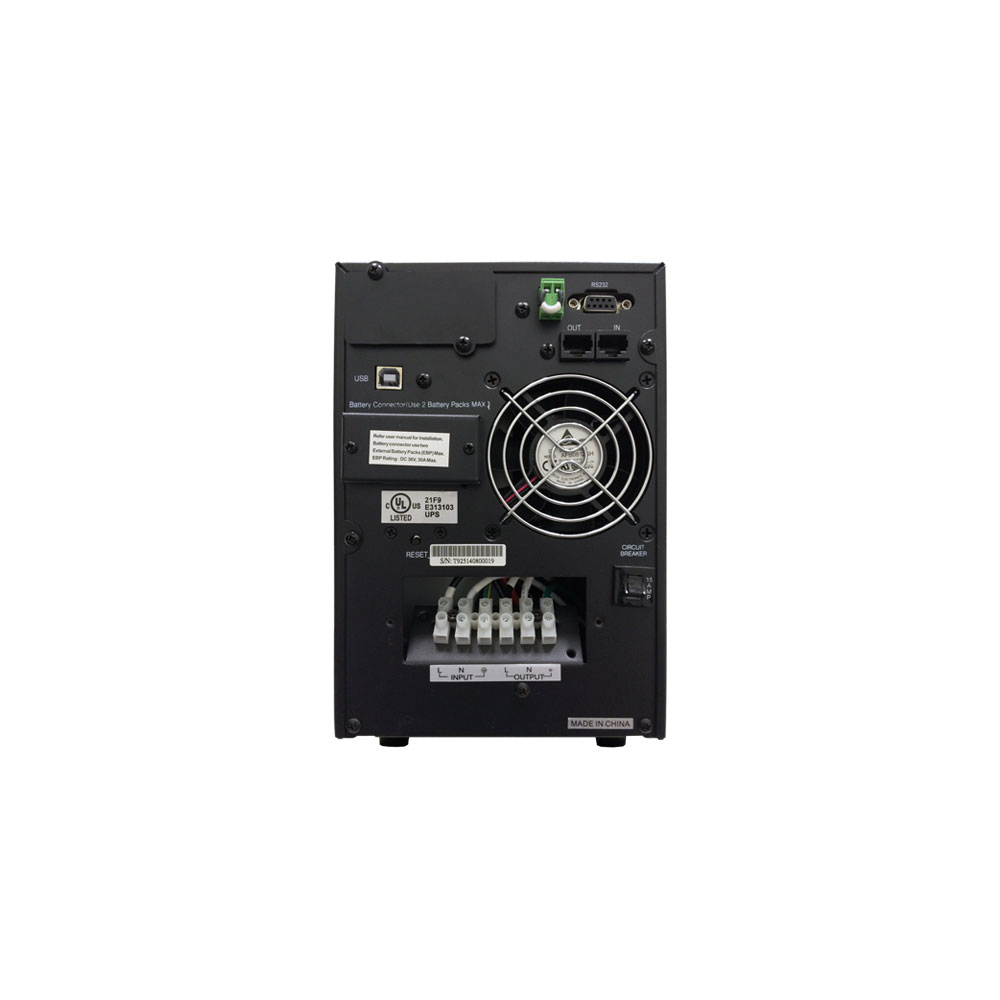

  • T90-15HW rear view

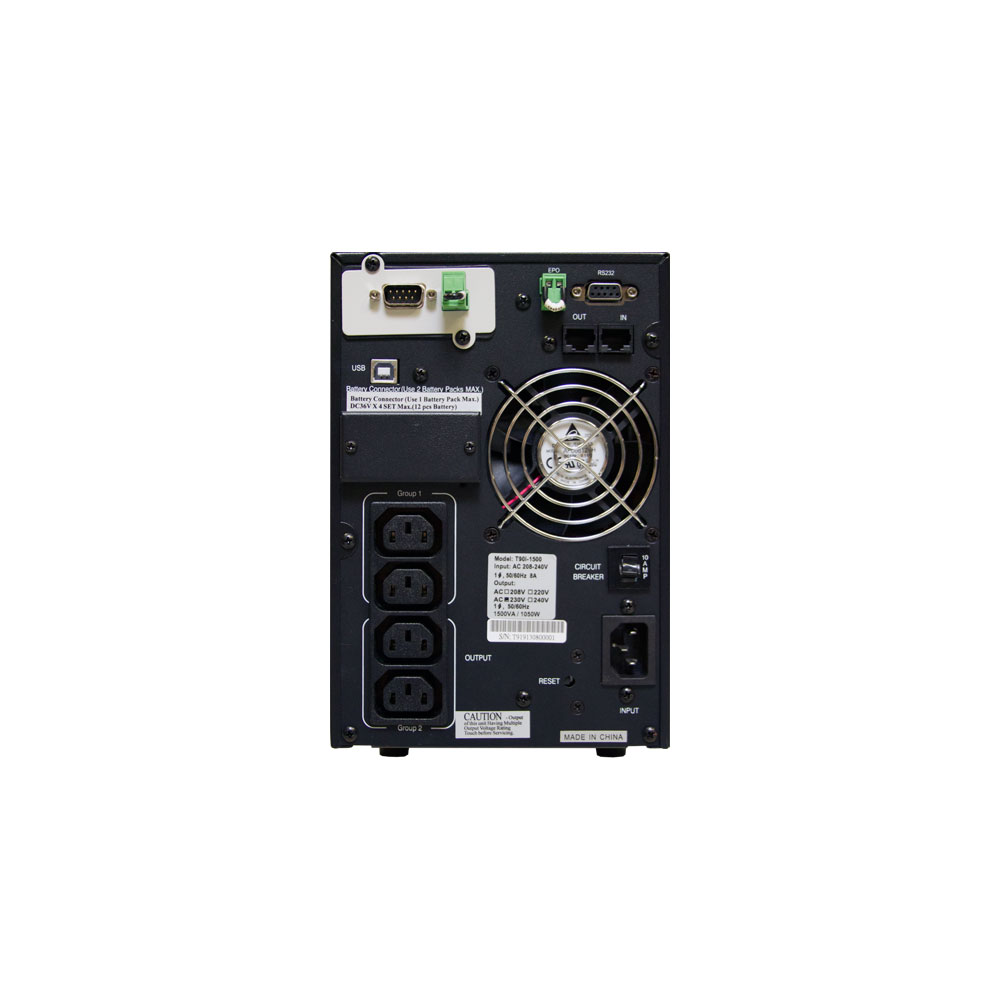

  • T90i-1500 rear view

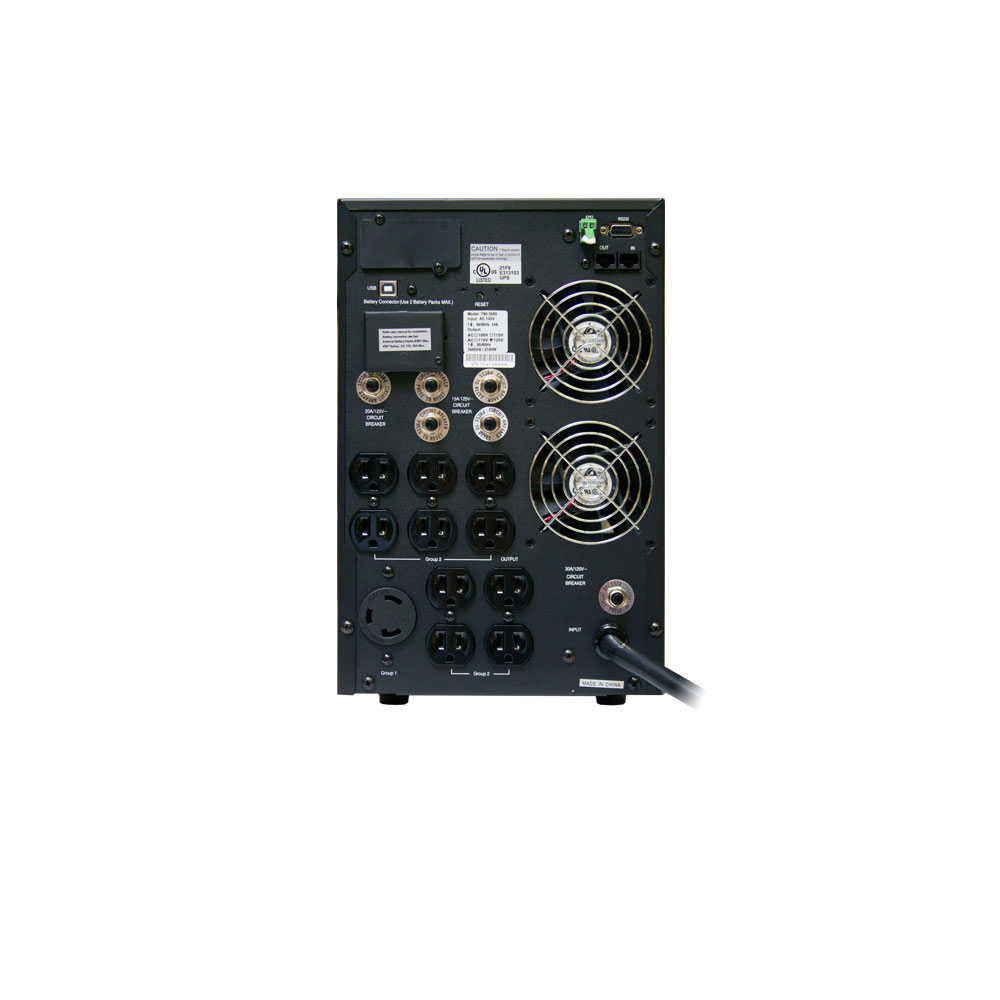

  • T90-3000 rear view

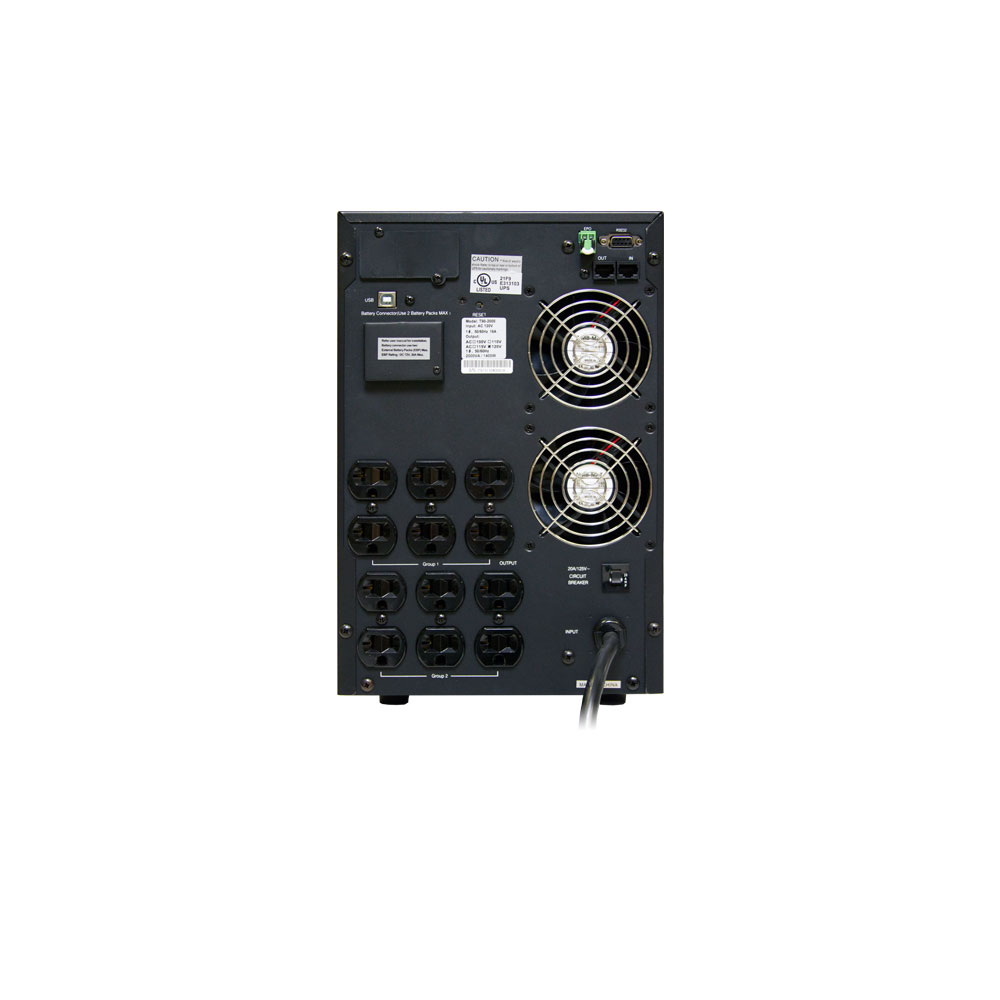

  • T90-2000 rear view

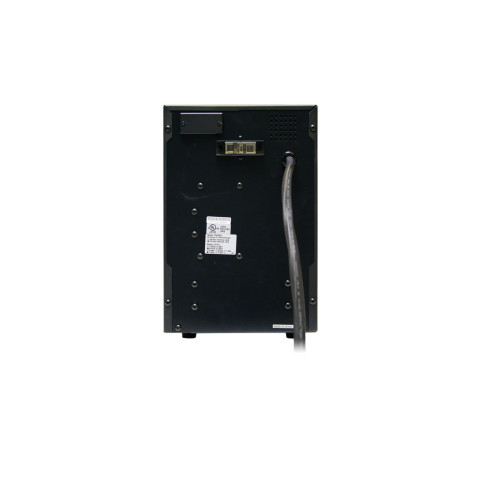

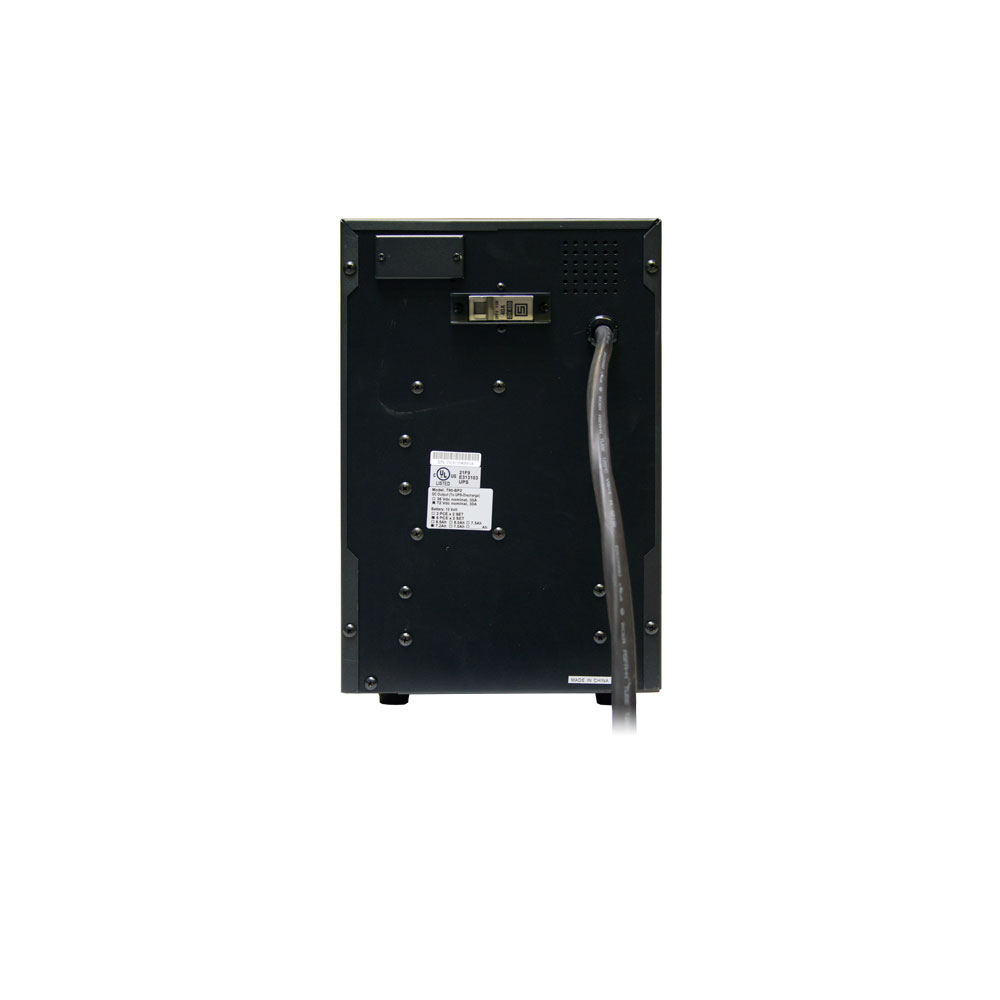

  • T90-BP, T90-BP1, T90-BP2 rear view
  • T90-WMB Wall Mount Bracket
  • SNMP-1PIN Internal SNMP Card

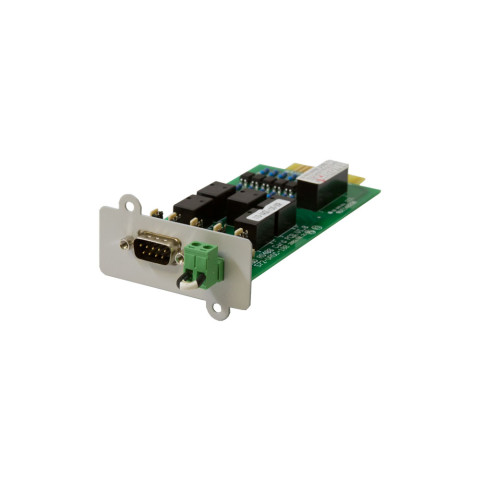

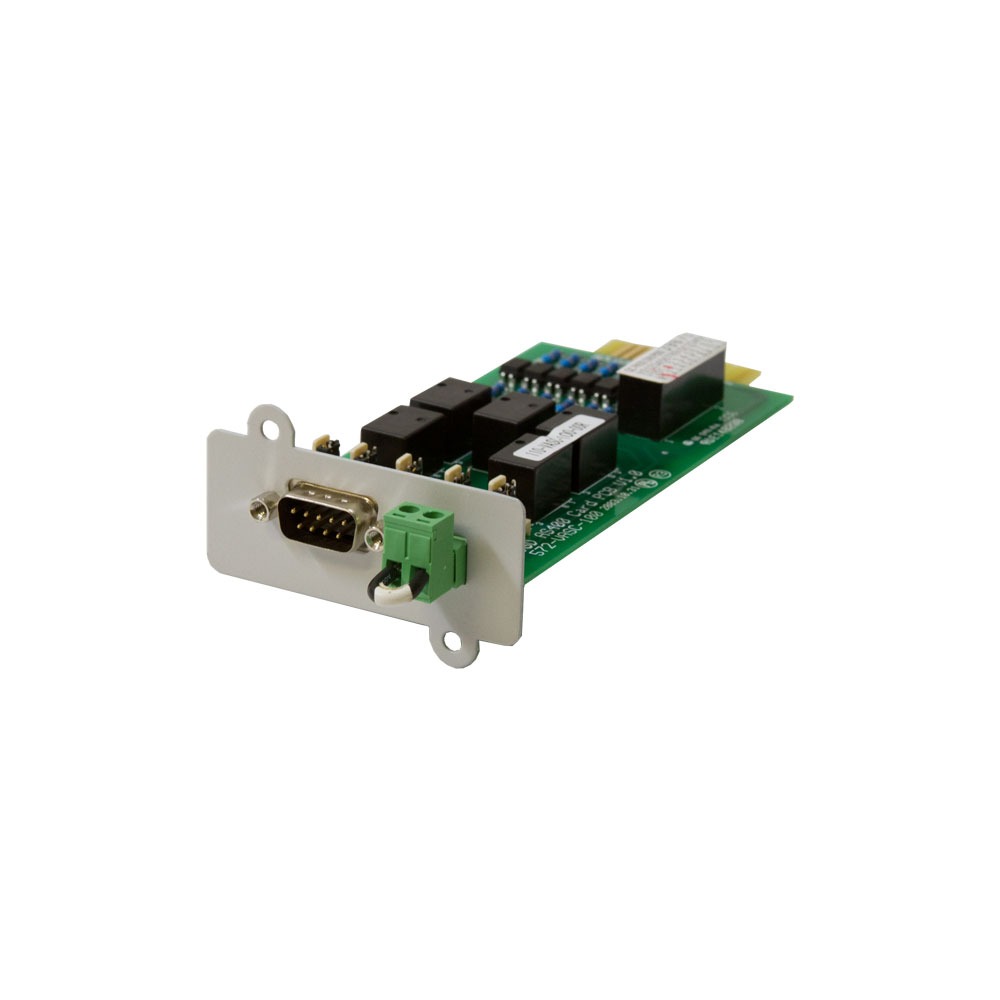

  • XPRT-RELAY Internal Relay Card
  • XBDM-1020HV Bypass Distribution Module
  • XPDU-IEC Power Distribution Unit
  • XPD-AT15A 1500W Transformer Power Distribution Unit
  • XAT-400 Step Down Transformer

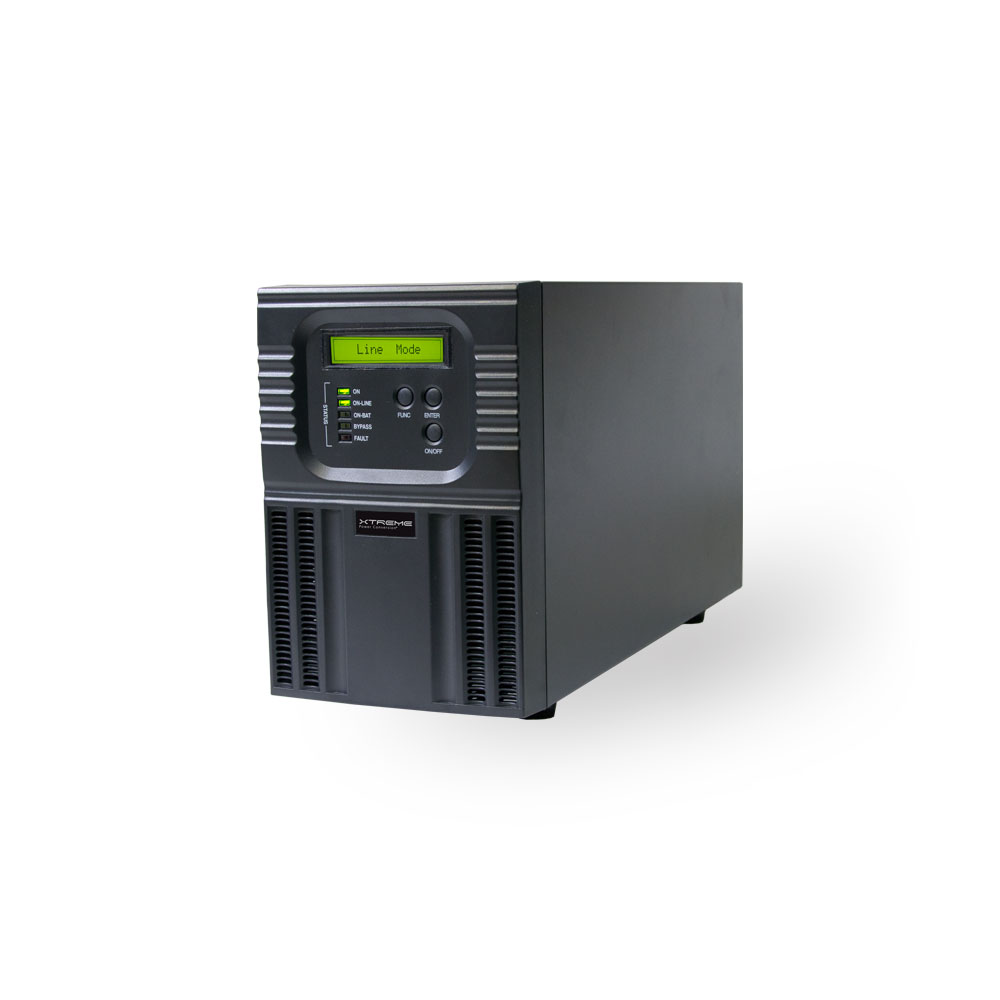

T90 Online UPS

700VA-3000VA

120VAC or 208/230VAC

An online tower UPS that provides protection against outages and downtime for critical electronic equipment.

The T90 provides clean reliable power with load segment control capabilities. The T90 is the perfect choice for critical business PCs, workstations, servers, IT equipment, communications systems, or networking equipment.

Product Snapshot

  • Available 120V models: 700VA, 1000VA, 1500VA, 2000VA, 3000VA
  • Available 208/230V model: 1500VA
  • Available hardwire 120V model: 1500VA
  • Extended battery packs available
  • Controlled load segments
  • UL, cUL, FCC, CE
  • 3 years electronics, 3 years battery warranty (USA and Canada)
MODEL NUMBER T90-700 T90-1000 T90-1500 T90-15HW T90-2000 T90-3000 T90i-1500
INPUT Capacity 700VA (490W) 1000VA (700W) 1500VA (1050W) 1500VA (1050W) 2000VA (1400W) 3000VA (2100W) 1500VA (1050W)
Voltage range 60–144VAC** 120–276VAC**
Frequency 50/60Hz auto sensing
OUTPUT Voltage 120VAC nominal (100/110/115/127VAC selectable)*** 208/220/230/240VAC
Waveform Sine wave, zero transfer time
Frequency 50/60Hz auto sensing ≤ 1%
Load segments Two controlled via software
Load power factor 0.7
Efficiency High efficiency > 95%, normal mode > 90%
Overload capacity 125% for 1 min, 150% for 10 sec
BATTERY Battery type (2) 12V7.2AH (3) 12V7.2AH (3) 12V9AH (6) 12V7.2AH (6) 12V9AH (3) 12V9AH
Recharge 4 hours to 90% capacity
PHYSICAL UPS dimensions (W x D x H) 6.0 x 16.5 x 9.5 in 8.9 x 16.5 x 14.2 in 6.0 x 16.5 x 9.5 in
UPS weight 31 lbs 38 lbs 39 lbs 73 lbs 78 lbs 39 lbs
Line cord 5-15P* Terminal block 5-20P* L5-30P IEC C14 inlet
Receptacles (6) NEMA 5–15R* Terminal block (12) NEMA 5–15/20R* (10) NEMA 5–15R + (1) L5–30R (4) IEC C13
LCD display Input/output voltage, input/output frequency, online mode, backup mode, battery capacity, load level
OPTIONAL BATTERY PACKS Model number N/A T90-BP/T90-BP1 T90-BP2 T90-BP/T90-BP1
BP dimensions (W x D x H) N/A BP – 6.0 x 16.5 x 9.5 in; BP1/BP2 – 8.9 x 16.7 x 14.2 in
BP weight N/A BP = 46 lbs; BP1/BP2 = 88 lbs
Battery type N/A BP – 2 x (3) 12V7.2AH; BP1 – 4 x (3) 12V7.2AH; BP2 – 2 x (6) 12V7.2AH
ENVIRONMENT Temperature 32–104°F (0–40°C)
Audible noise < 40 dBA
Altitude 11,500 ft above sea level
APPROVALS UL, cUL, FCC, CE
WARRANTY 3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact)
INCLUDED IN BOX User manual, monitoring software, CD, USB cable
AVAILABLE OPTIONS Extended warranty, bypass distribution (XBDM), power distribution (XPDU)

*T90-2000 is also available with an L5–20P input and (1) L5–20R + (10) 5–15R output. **Depending on load level. ***T90 capacity derates 10% at 110VAC and 20% at 100VAC output voltage.

  1. UPS Battery Packs
    Model Description Unit Weight Unit Dimensions
    T90-BP Extended Battery Pack for T90-1000, T90-1500, T90i-1500 (2 strings) 46 lbs 6.0″ x 16.5″ x 9.5″
    T90-BP1 Extended Battery Pack for T90-1000, T90-1500, T90i-1500 (4 strings) 92.4 lbs 8.9″ x 16.7″ x 14.2″
    T90-BP2 Extended Battery Pack for T90-2000, T90-3000 (2 strings) 92.4 lbs 8.9″ x 16.7″ x 14.2″
  2. Mounting Kits
    Model Description Unit Weight Unit Dimensions

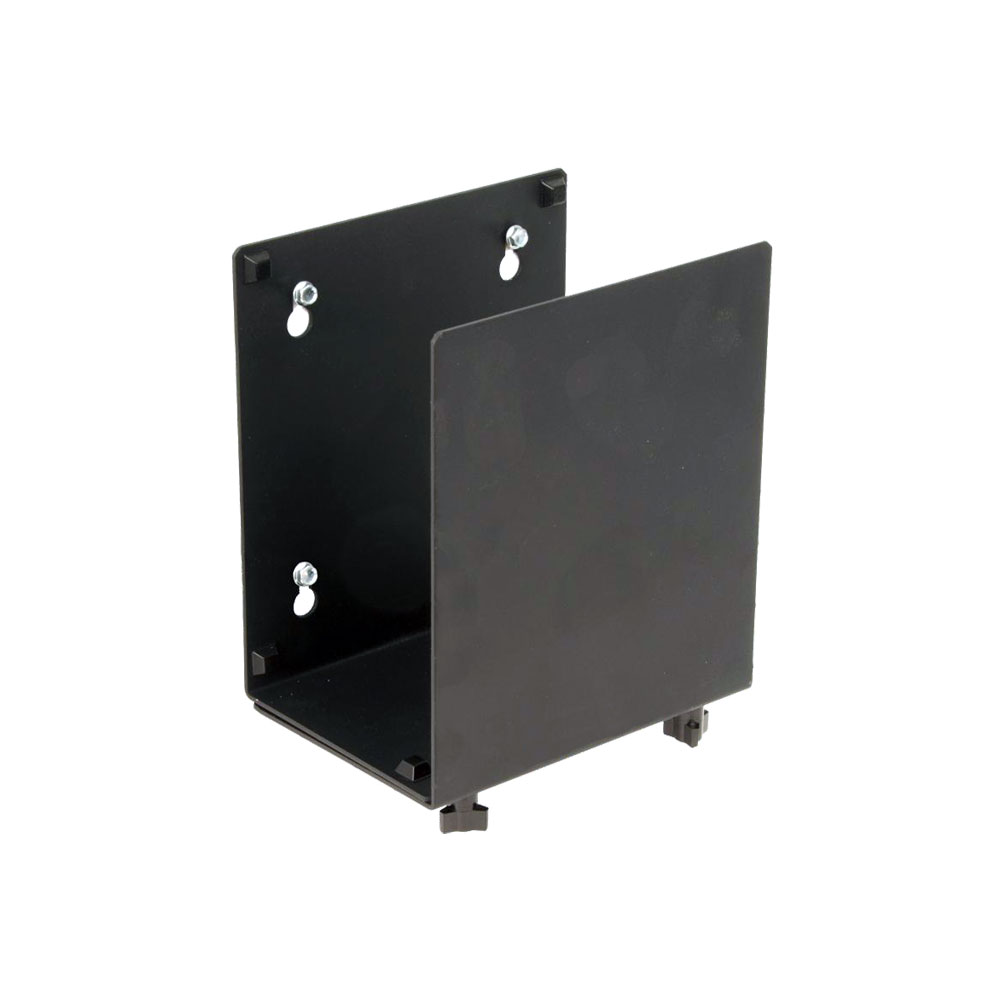

    T90-WMB Wall Mount Bracket for use with T90-700, T90-1000, T90-1500, T90-15HW, T90i-1500; Rated for 40 lbs 5 lbs 4.0”-8.0” x 7.0” x 8.0”
  3. Connectivity
    Model Description Unit Weight Unit Dimensions
    SNMP-1PIN Internal Web/SNMP Card 1 lb 7.25″ x 6″ x 2.5″
    XPRT-RELAY AS400 Dry Contact Interface Card 1 lb 7.25″ x 6″ x 2.5″
  4. Bypass Distribution Modules
    Model Description Utility Input Output Connections UPS Connections Unit Weight Unit Dimensions
    XBDM1020HV1 Bypass 16A capacity for use with T90i-1500 (includes IEC C20 C19 cord kit) IEC C20 inlet (2) IEC C19 + (4) IEC C13 front, (4) IEC C13 back IEC C20 3.5 lbs 19.3″ x 3.5″ x 1.75″
  5. Power Distribution Units & Transformers
    Model Description Input Power Cord Outlets Unit Weight Unit Dimensions
    XPDU-IEC 230V Basic Power Distribution Unit for use with T90i-1500 IEC C20 inlet (10) IEC C13 + (2) IEC C19 2.6 lbs 19.0″ x 3.5″ x 1.75″
    XPD-AT15A 1500W Transformer PDU with Meter 208V to 120V for use with T90i-1500 Detachable IEC C14, 3ft (16) 5–15R 19.7 lbs 19.0” x 10.5” x 3.5”
    XAT-400 400VA Step Down Transformer 208V to 120V for use with T90i-1500 208V IEC C14, 2ft 120V 5–15R, 2ft 8.0 lbs 7.0” x 6.8” x 5.9”
