SPD Switched PDU

120VAC

Switchable rack power distribution solutions designed to meet the needs of any data center or wiring closet

Improve data center power distribution with the SPD family, a series of switchable power distribution units (Switched PDU)  that combine the key features needed to manage high density equipment racks or wiring closets.

SPDs deliver reliable power distribution to multiple units of connected equipment by adding up to 16 switched receptacles to your rack space. These PDUs compliment your current power source and are compatible with any manufacturer’s UPS.

Product Snapshot

  • Local and remote current checking and display
  • Event timers / clock for each power outlet
  • RS232, IE, telnet, SNMP access for users to easily view or change settings
  • DHCP or static IP configure
  • Current alarm by locale, email, trap methods
  • Integrated SNMP agent/Trap notification message capability

To read more about switched PDU’s

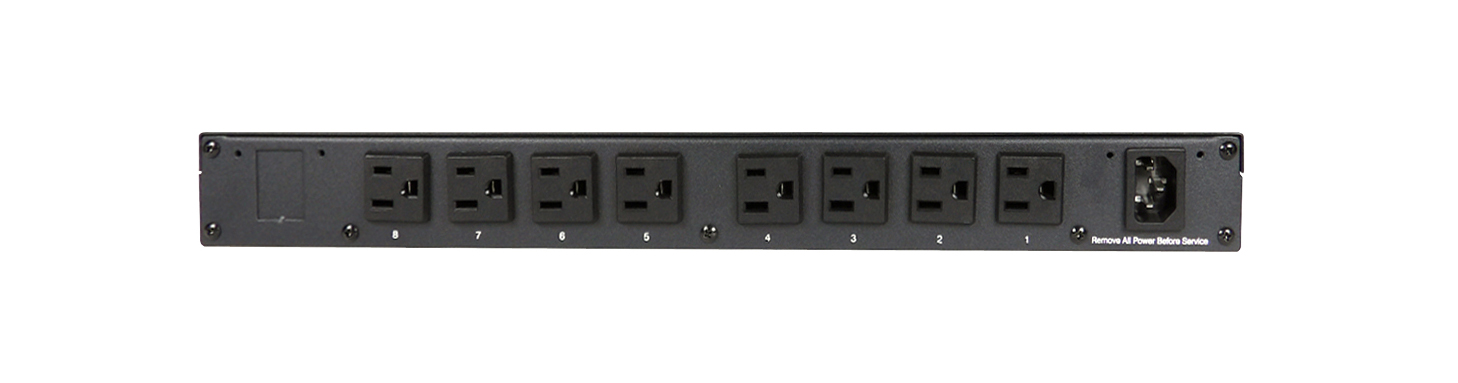

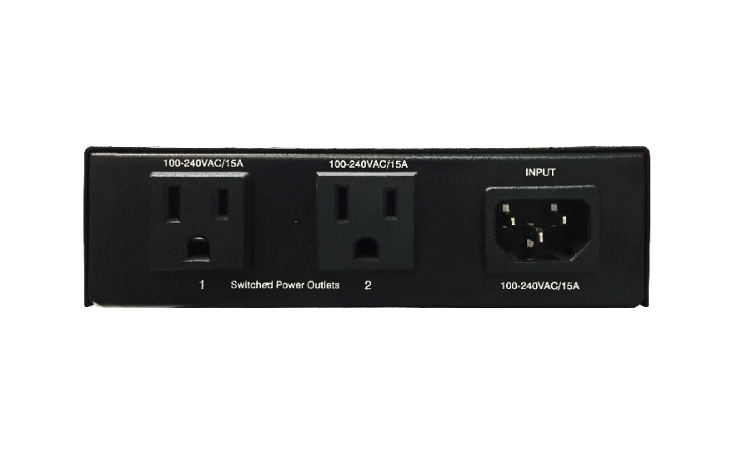

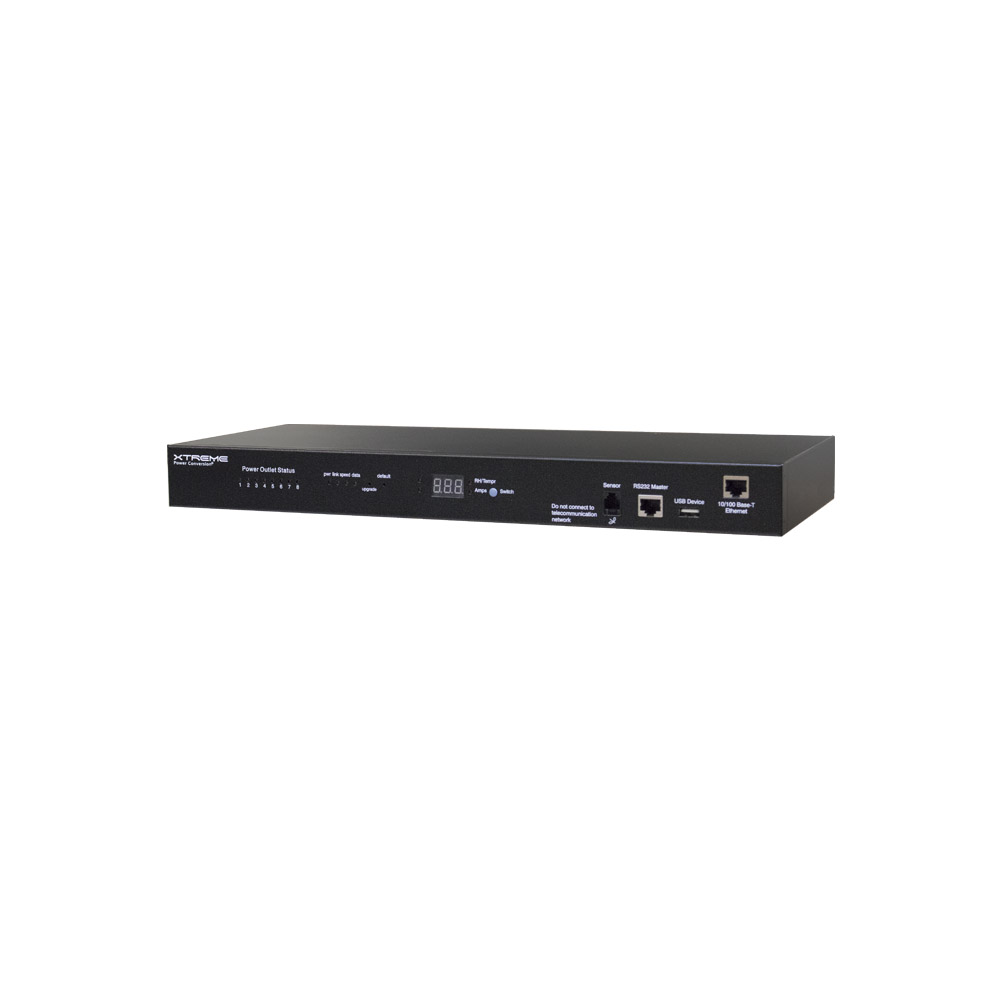

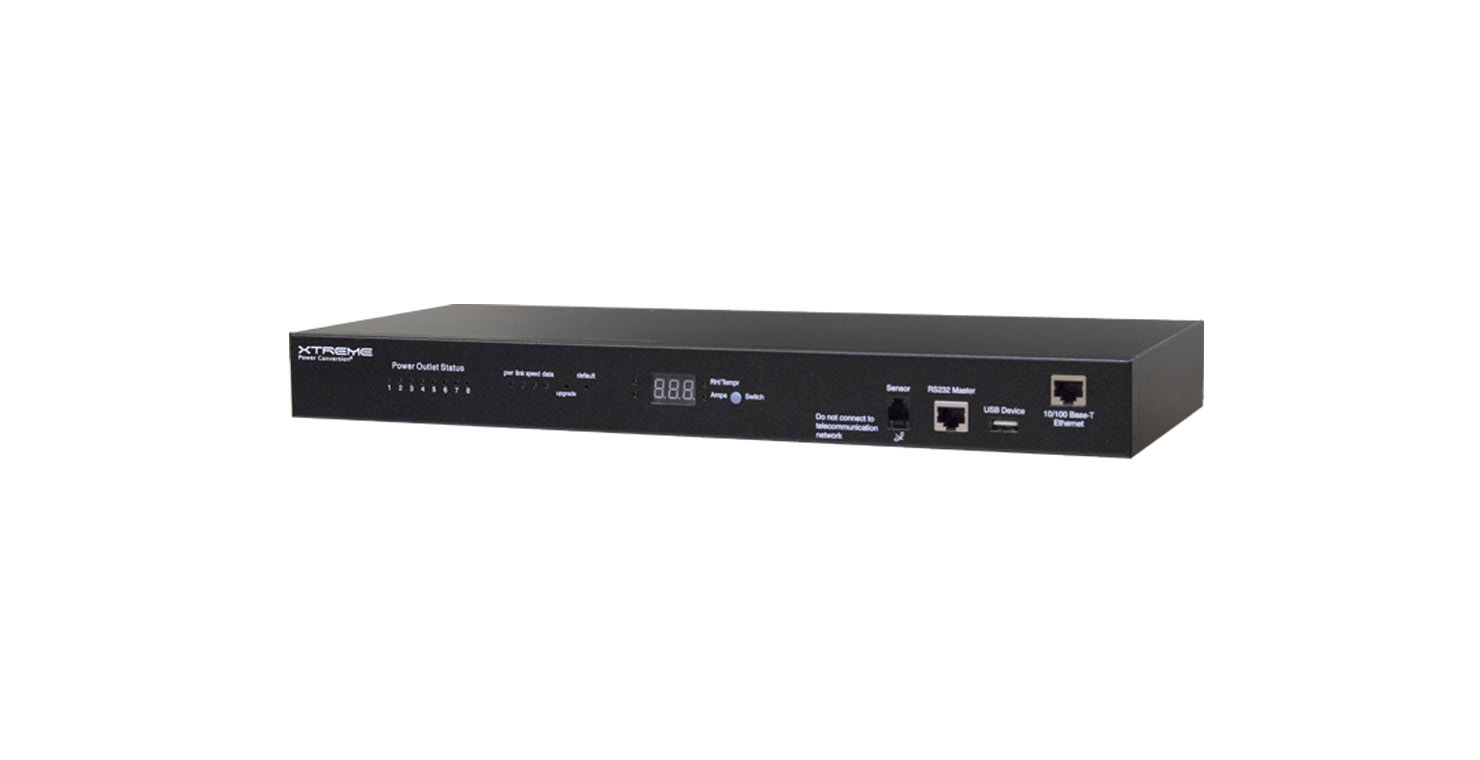

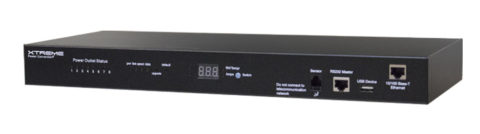

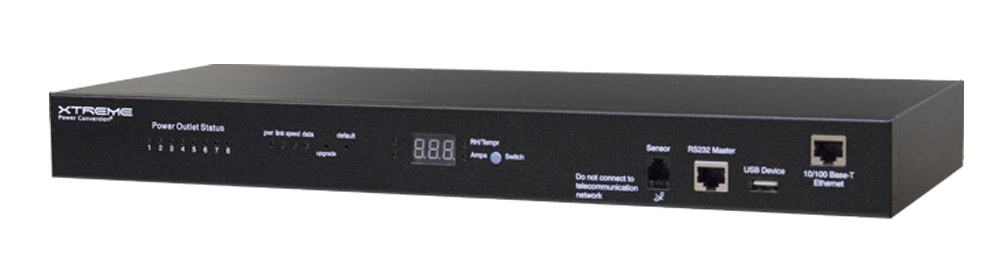

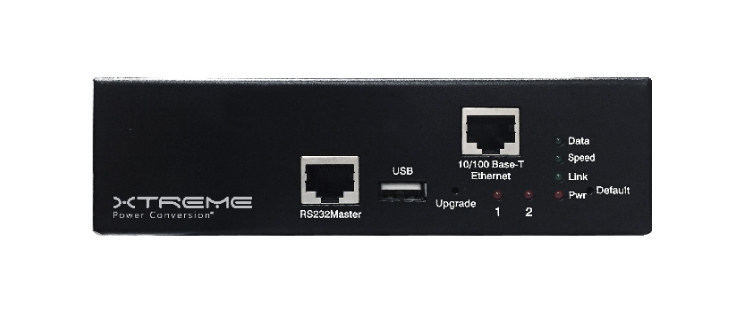

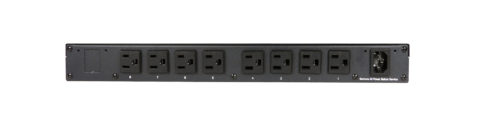

MODEL NUMBER SPD-0215 SPD-0815 SPD-1615
INPUT Power input 6ft, C13 to 5-15P
Input current 15A 15-30A 15-30A
Input voltage 100–240VAC
Outlet type (2) NEMA 5–15R  (8) NEMA 5–15R  (16) NEMA 5–15R
PHYSICAL Dimensions (W x D x H) 5.4 x 6.0 x 2.5 in 19.0 x 7.0 x 1.75 in 19.0 x 7.0 x 3.5 in
Display (6) LEDs (16) LEDs (24) LEDs
COMMUNICATION INTERFACE Console port Baud rate: 115200; 8 data bits; no parity; 1 stop bit; no hardware handshaking
Ethernet 10/100 Base-T
Network protocall  ICMP, IP, TCP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, HTTP, and BootP
ENVIRONMENT Operating temperature 32°F–122°F (0°C–50°C)
Storage Temperature -20°F–140°F (-29°C–60°C)
Humidity  10–90%
WARRANTY 2 years (USA and Canada)
INCLUDED IN BOX User manual, mounting brackets, RJ-45 to RS232 cable
