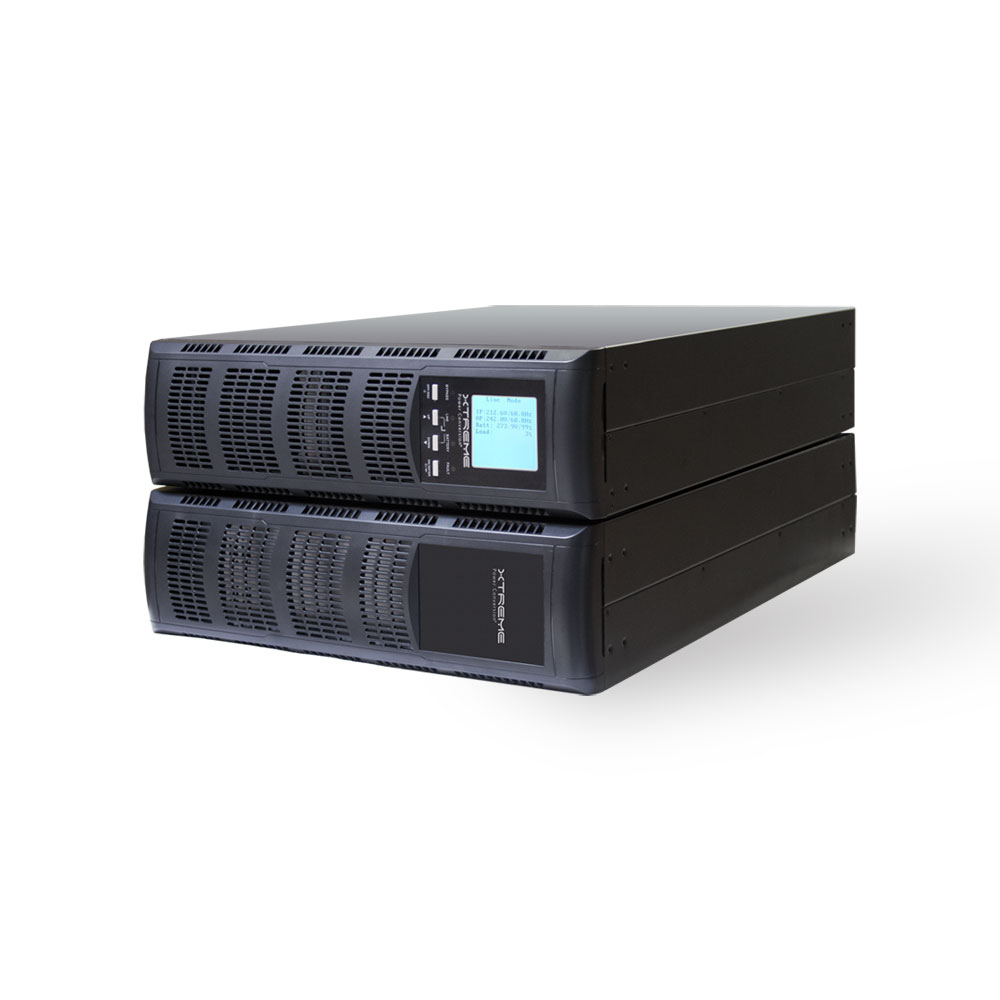

• P90L 6kVA & 10kVA Online UPS

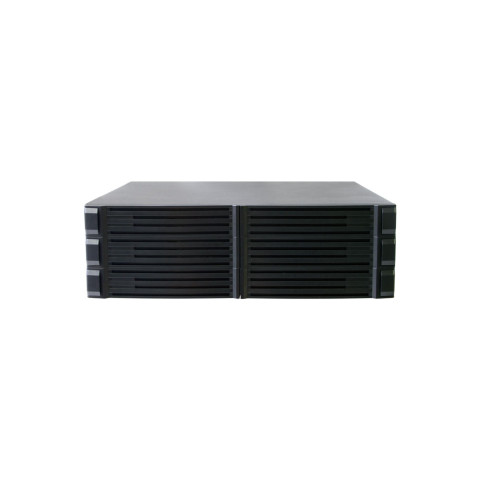

  • P90L-BP240 Battery Pack front view

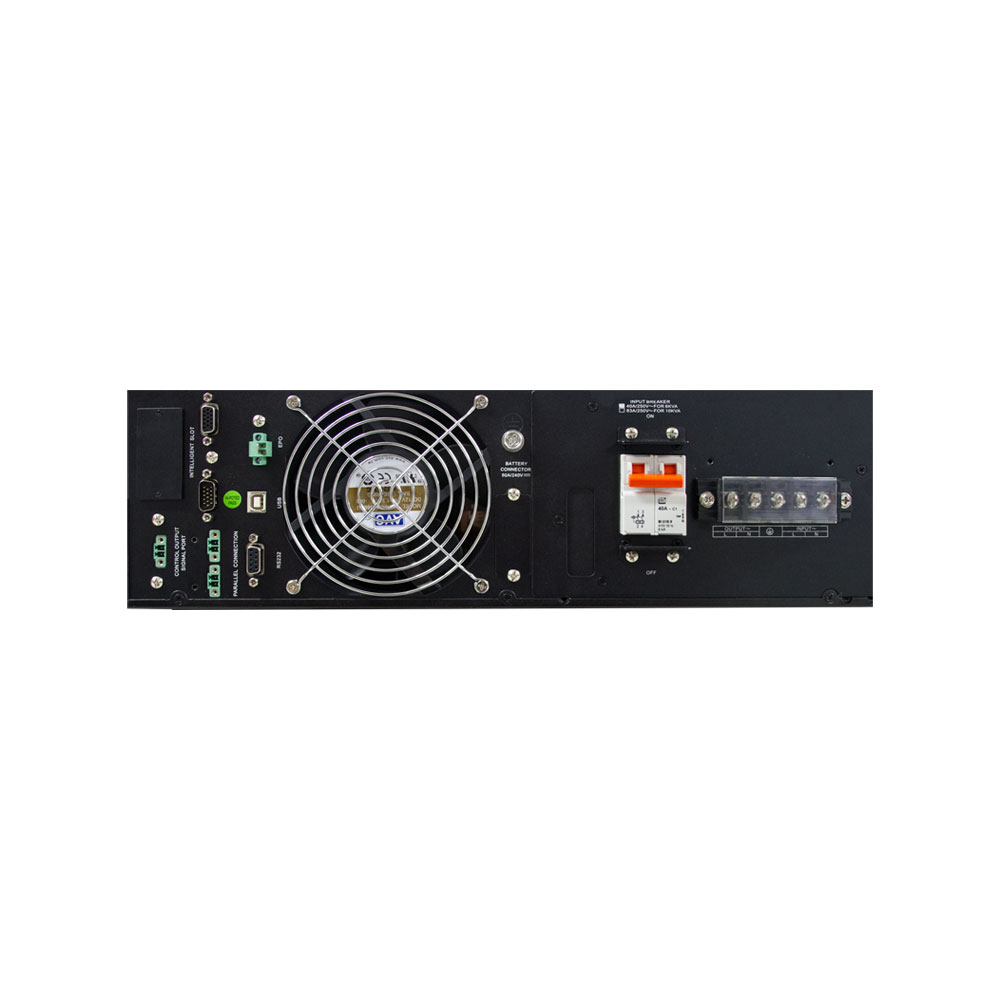

  • P90L 6kVA & 10kVA rear view

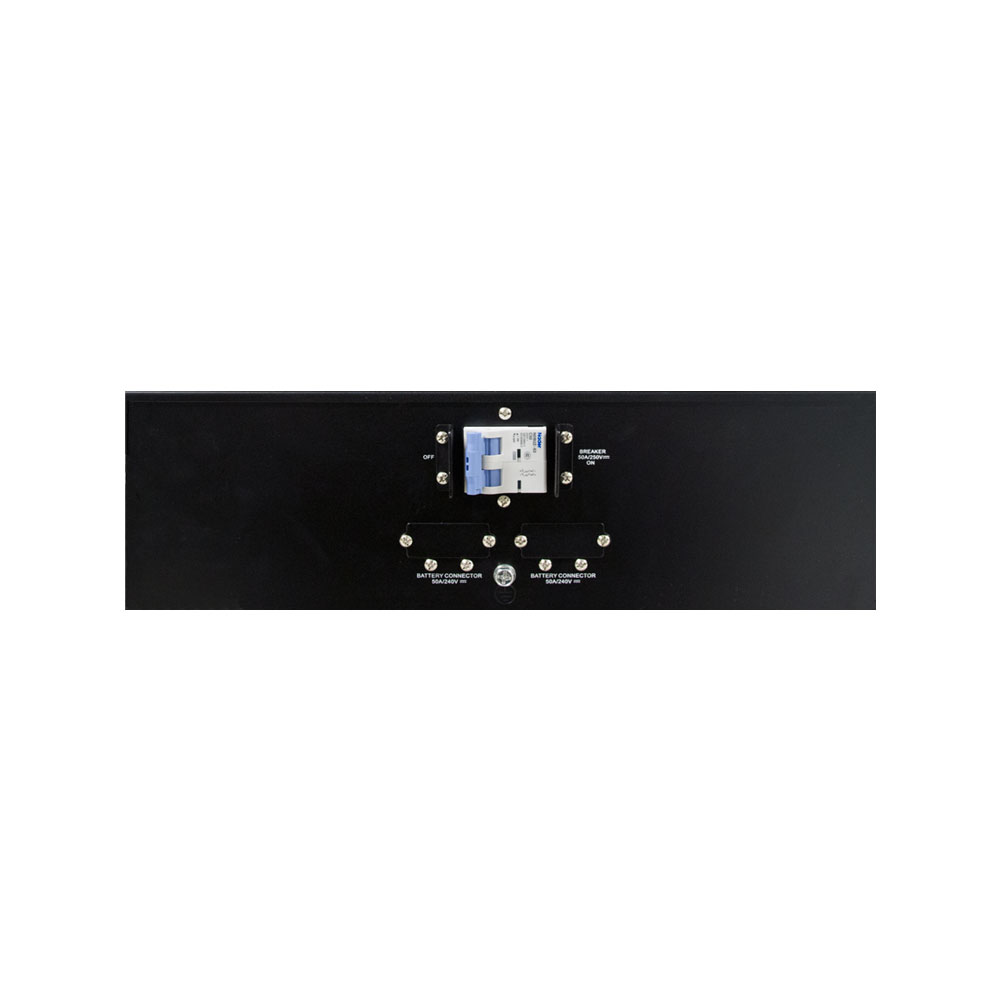

  • P90L-BP240 rear view
  • P90L-ISO6MB Isolation Transformer front view

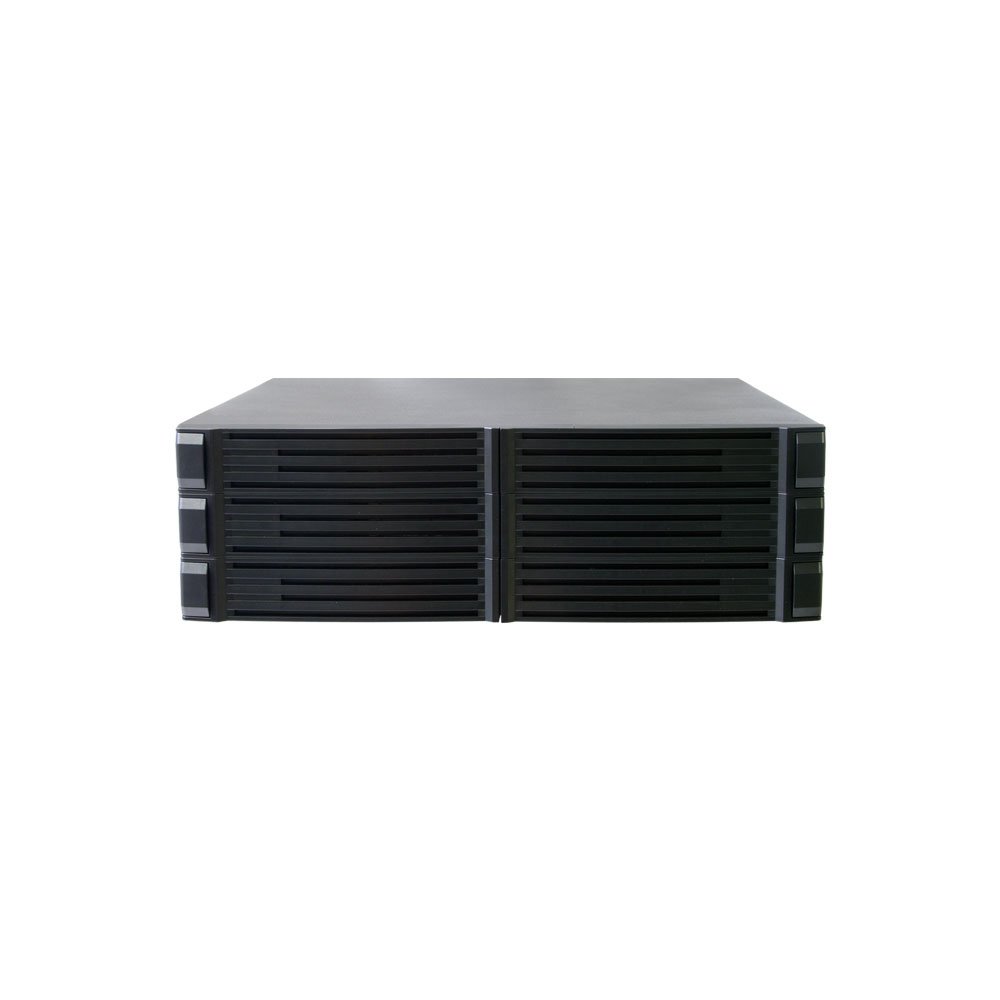

  • P90L-ISO10MB Isolation Transformer

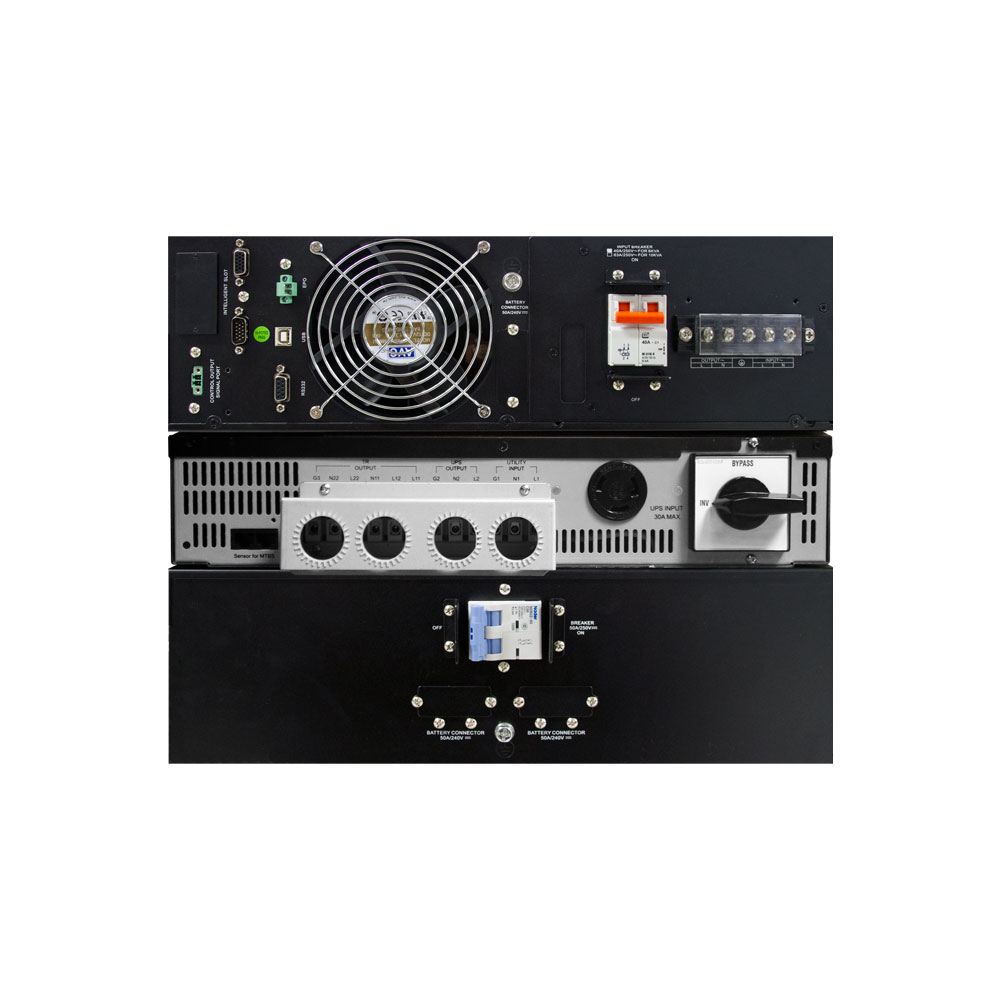

  • P90L-6K, P90L-ISO6MB, P90L-BP240 rear view

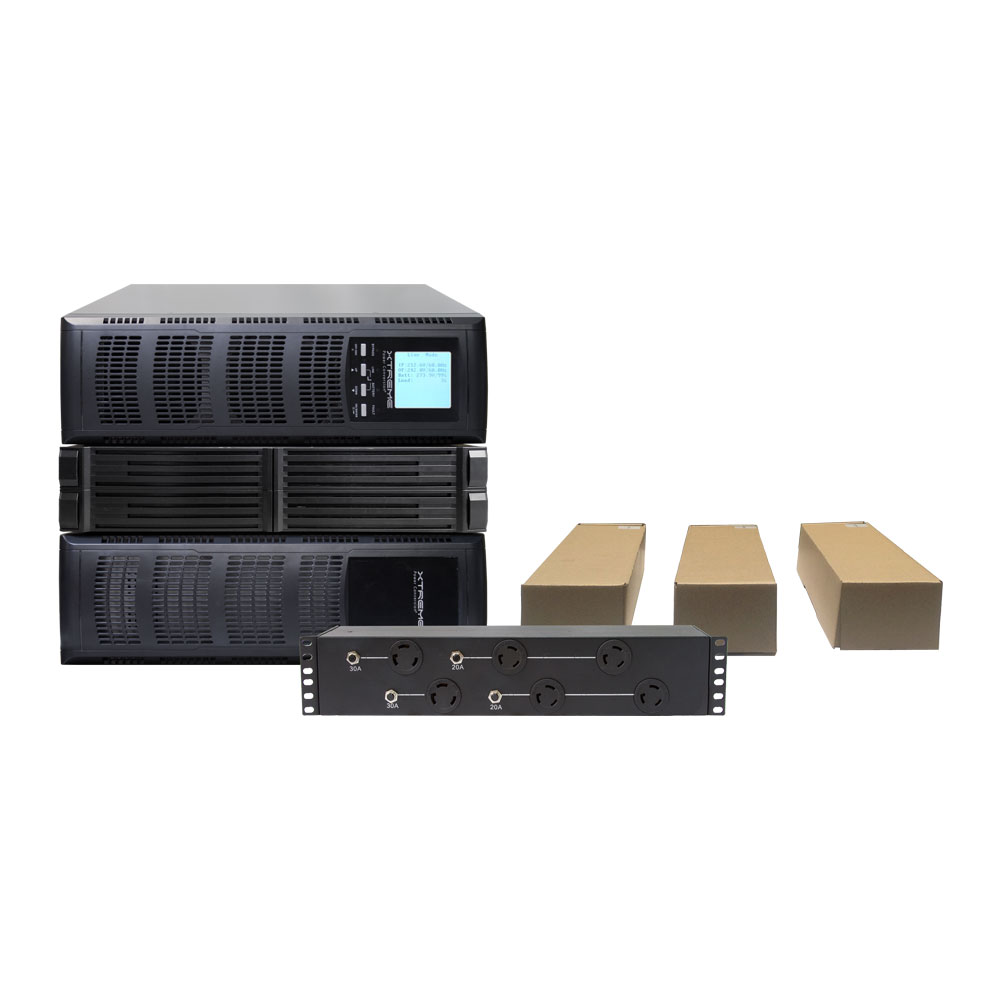

  • P90L Bundle: UPS, Isolation Transformer, Battery Module, Power Distribution Unit, (3) Rail Kits
  • XPC-2POSTL Shelf Kit
  • XPC-2POST Shelf Kit

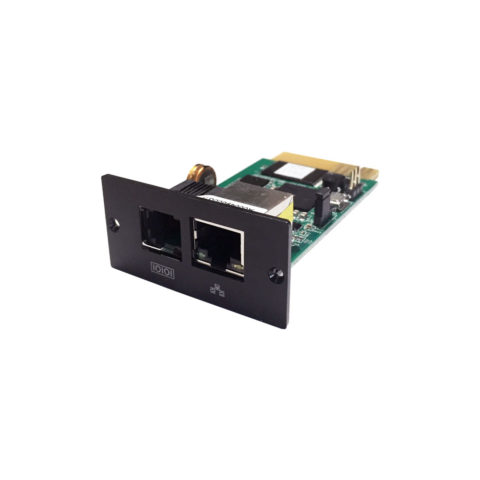

  • SNMP-2PMINI Two Port SNMP Card
  • MODBUS-IN Modbus Card
  • RELAY-MINI Relay Card

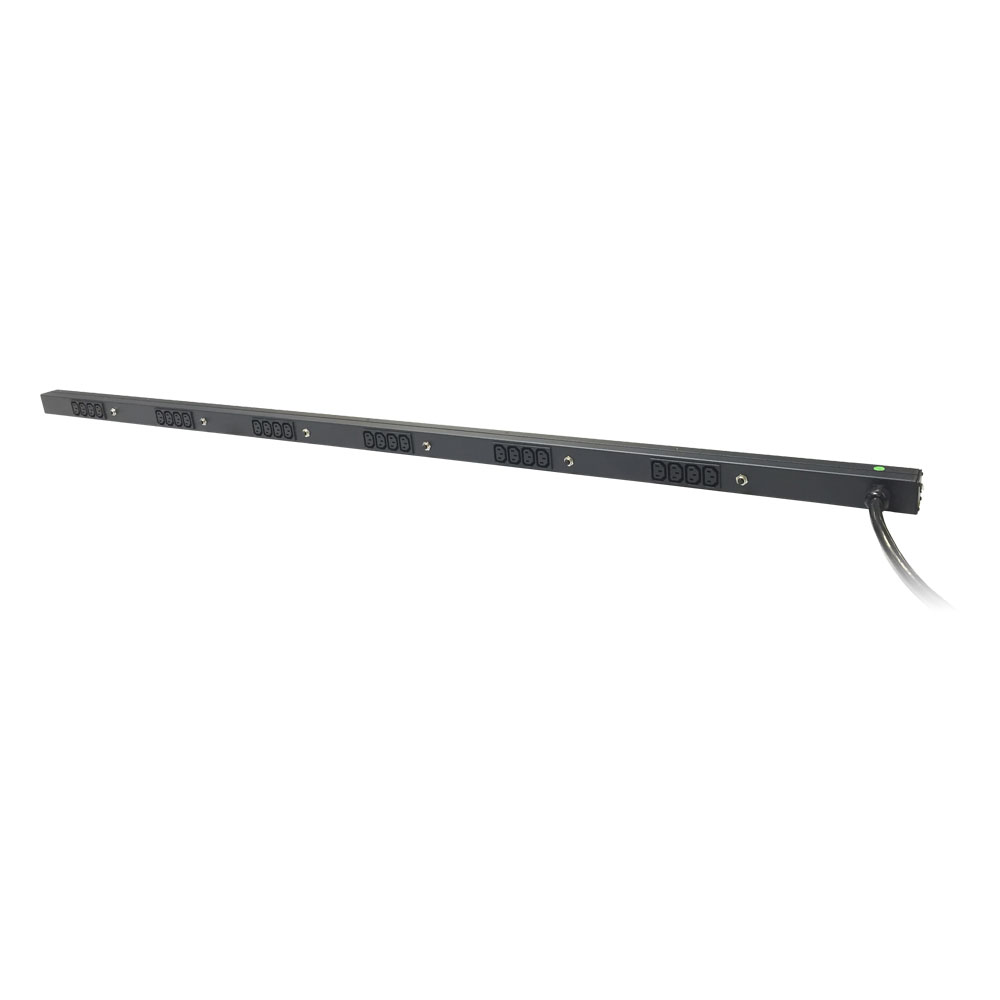

  • XPD24C13V Power Distribution Unit

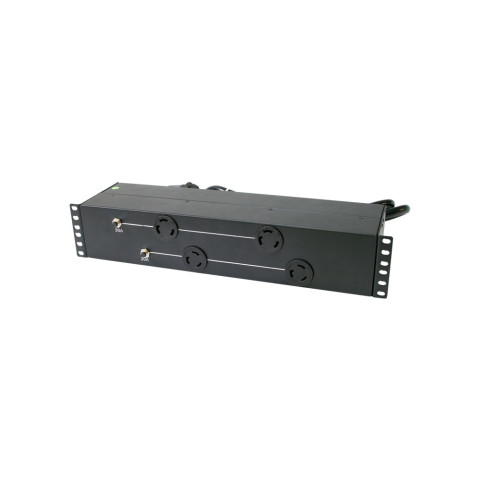

  • XPD31 Power Distribution Unit

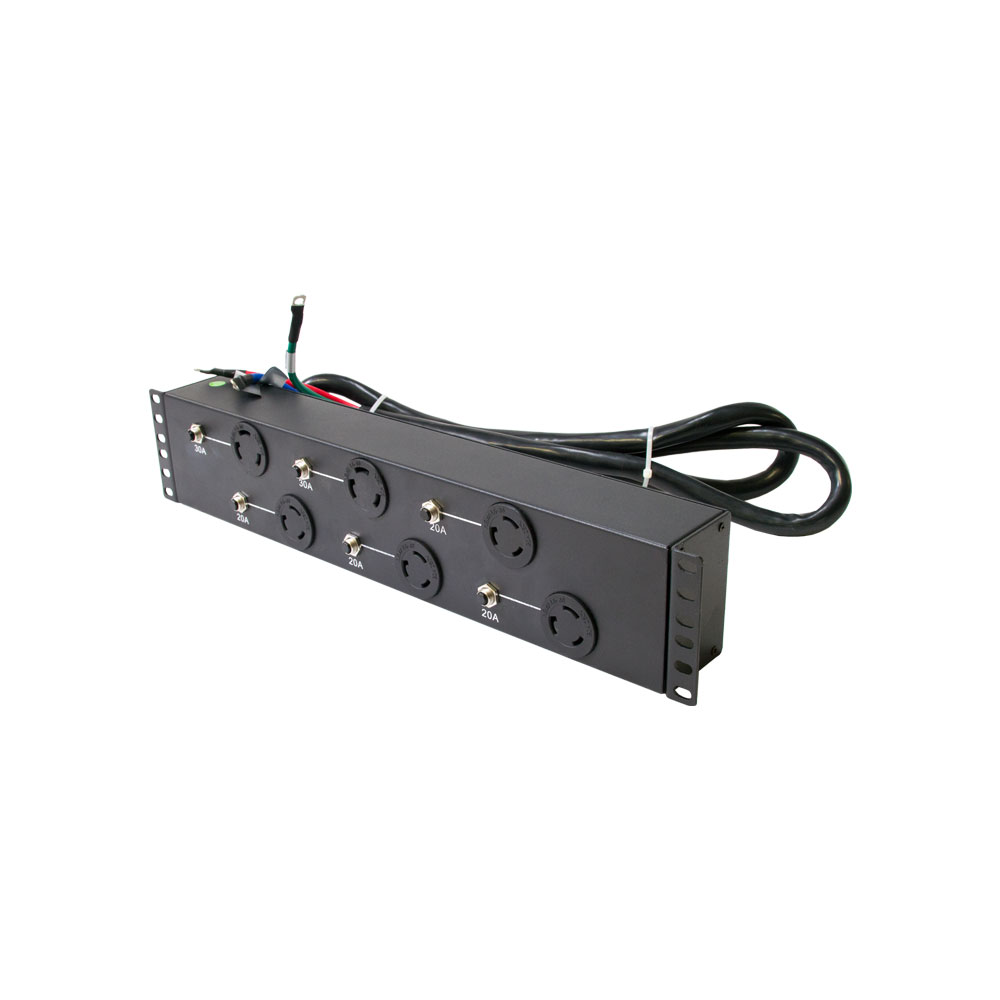

  • XPD35 Power Distribution Unit

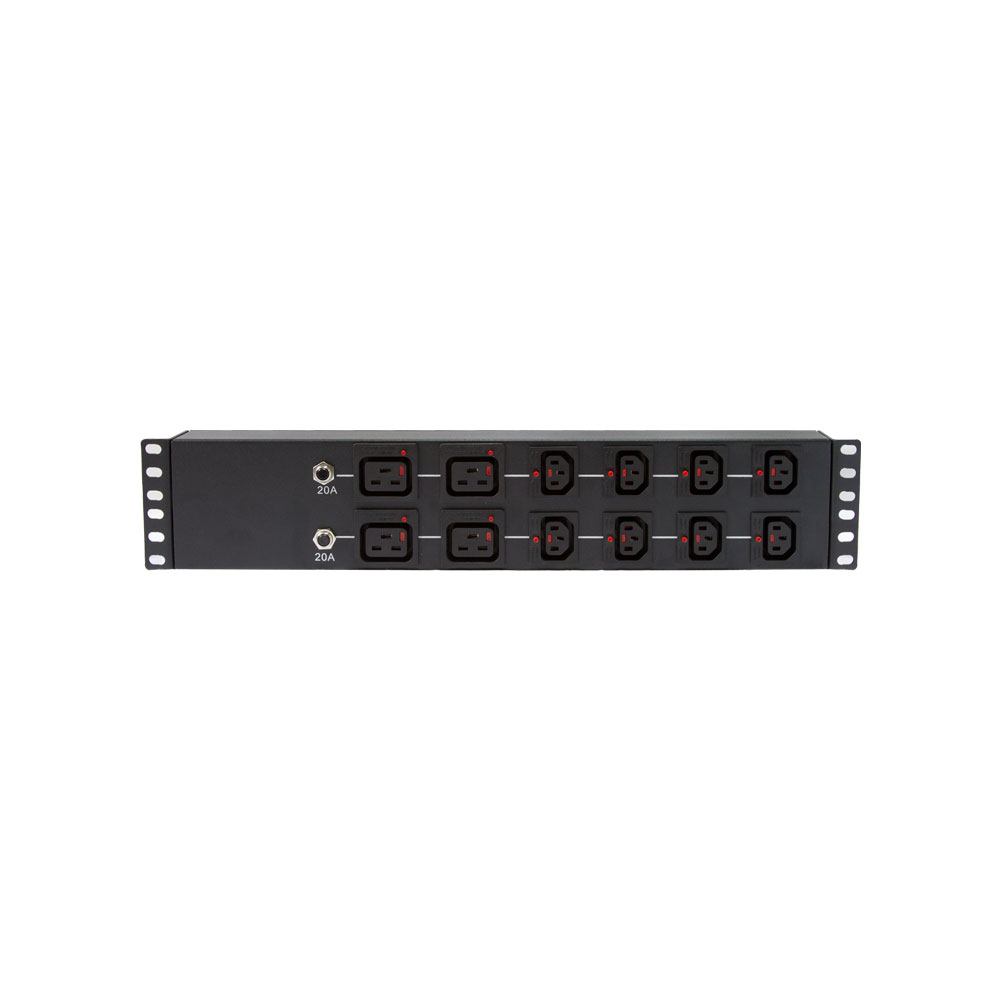

  • XPD33 Power Distribution Unit
  • XPD34 Power Distribution Unit
  • XPD32 Power Distribution Unit

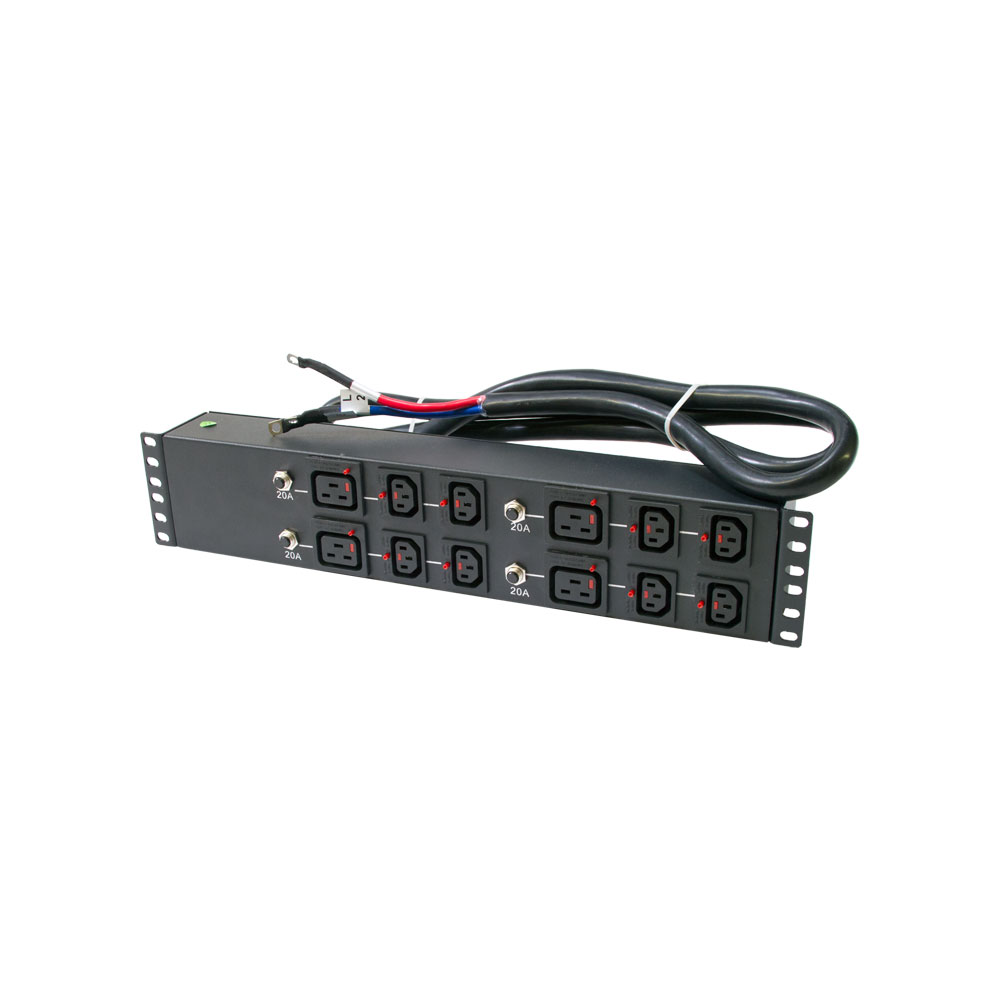

  • XPD36 Power Distribution Unit
  • XPD37 Power Distribution Unit

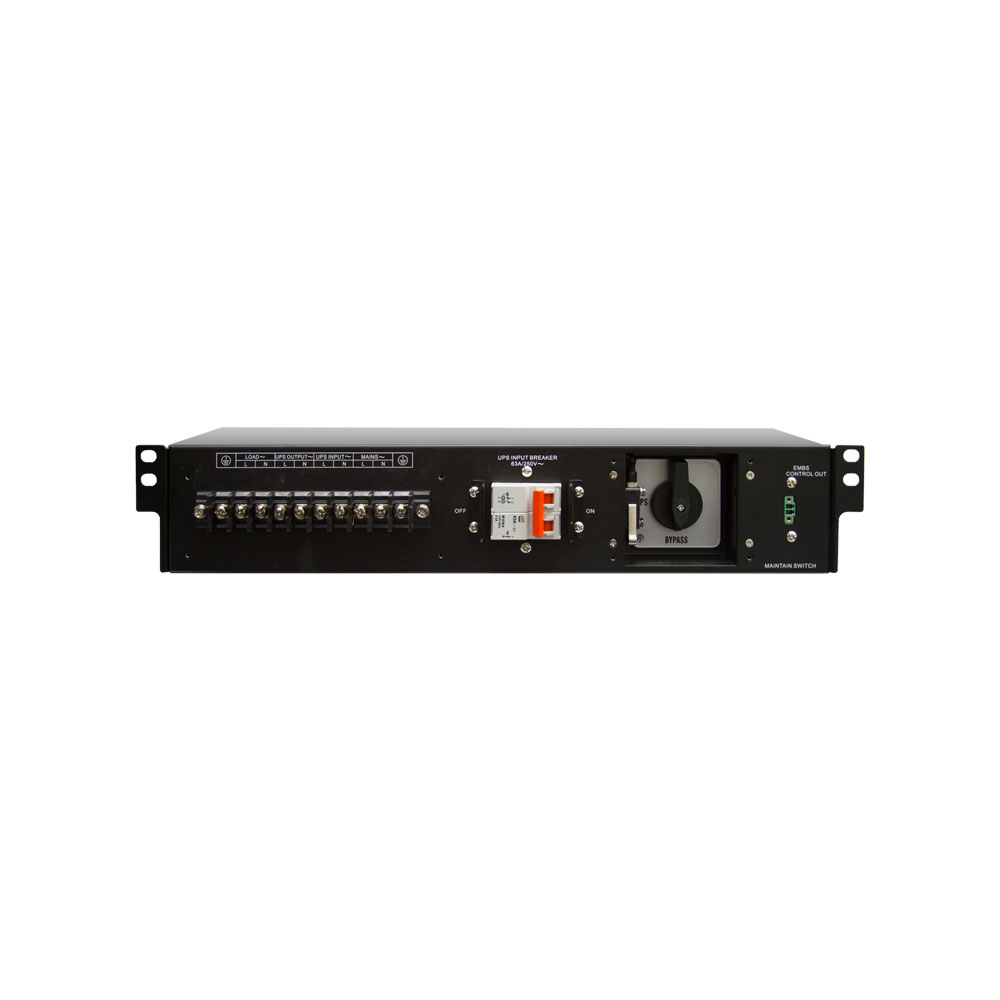

  • XBDM-HW63 Hardwire Bypass Distribution Module

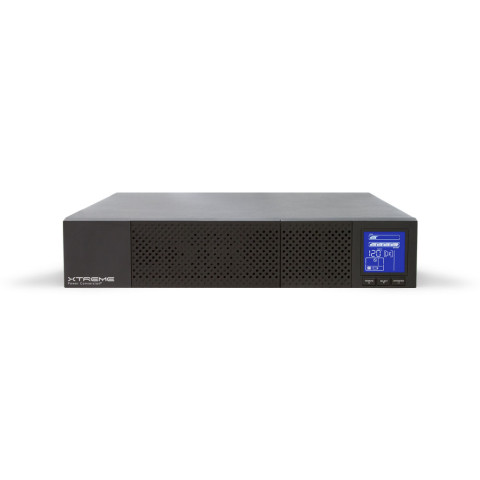

P90L 6kVA & 10kVA Online UPS

6kVA & 10kVA

208/230VAC or 208: 240/120VAC

Reduce power consumption and increase end to end efficiency with this powerful single-phase UPS.

Designed for high density critical loads, the P90L delivers industry leading reliability, efficiency and flexibility. P90L can be configured for online or ECO mode operation for efficiency of up to 98%. Output voltage and frequency are programmable to meet a wide range of USA and international requirements. P90L has a high capacity internal charger for connection to matching extended battery packs or large external battery systems.

Product Snapshot

  • Available models: 6kVA/5.4kW, 10kVA/9kW
  • 2A and 4A charger models available
  • Tower, 2-post, and 4-post rack mounting configurations available
  • Extended battery runtimes with optional matching battery modules
  • UL, cUL, CE, RoHS certifications
  • 3 years electronics, 3 years battery warranty (USA and Canada)
MODEL NUMBER P90L-6K P90L-10K
CAPACITY AC output 6kVA (5.4kW) 10kVA (9kW)
INPUT Voltage 110–300VAC*
Frequency 50/60Hz
OUTPUT Voltage 200/208/220/230/240VAC**; 240/120VAC with optional isolation transformer with maintenance bypass
Frequency 50/60Hz ± 4Hz
THD (full load) < 2% Overload capacity 110% 10 min; 130% 1 min; > 130% 1 sec
Crest factor 3:1
Efficiency Up to 98% ECO mode and 92% online mode
BATTERY CHARGER Charger amps 2A (K model); 4A (KW model)
Nominal/float voltage 240/270VDC
PHYSICAL Dimensions (W x D x H) 17.2 x 26.3 x 5.3 in 17.2 x 29.5 x 5.3 in
Weight 55 lbs 60 lbs
Input connection Terminal block with 6 ft, L6–30P Terminal block
Output connection Terminal block with 3 ft, L6–30R Terminal block
ENVIRONMENT Operating temperature 32–104°F (0–40°C)
Audible noise < 58dBA < 60dBA
Altitude 11,500 ft above sea level
OPTIONAL BATTERY PACKS Model number P90L-BP240
Dimensions (W x D x H) 17.3 x 25.1 x 5.3 in
Weight 165 lbs
Battery quantity/type (20) 12V9AH/240V
OPTIONAL TRANSFORMER Dimensions (W x D x H) 17.3 x 28.7 x 3.5 in 17.3 x 31.8 x 5.2
Weight 99 lbs 122 lbs
APPROVALS UL, cUL, CE, RoHS
WARRANTY 3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus)
INCLUDED IN BOX Software CD, horizontal brackets, tower pedestals
AVAILABLE OPTIONS 5 year extended warranty, power distribution (XPDU), 4-post rail kit, 2-post shelf kit, isolation transformer with maintenance bypass

*Depending on load level; **P90L capacity derates 10% at 200VAC output voltage

  1. UPS Battery Packs
    Model Description Unit Weight Unit Dimensions
    P90L-BP240 240V Battery Pack for P90L-6K, P90L-10K, 3U 165 lbs 17.3″ x 25.1″ x 5.3″
  2. Isolation Transformers
    Model Description Unit Weight Unit Dimensions
    P90L-ISO6MB Isolation Transformer with Maintenance Bypass for use with P90L-6K for 240/120V Output with 1ft L6–30P 99 lbs 17.3” x 28.7” x 3.5”
    P90L-ISO6P Isolation Transformer with Maintenance Bypass for use with P90L-6K for 240/120V Output. Includes L14–30R and 1ft Output Cord 101 lbs 17.3” x 28.7” x 3.5”
    P90L-ISO10MB Isolation Transformer with Maintenance Bypass for use with P90L-10K for 240/120V Output 122 lbs 17.3” x 31.8” x 5.2”
  3. Mounting Kits
    Model Description Unit Weight Unit Dimensions

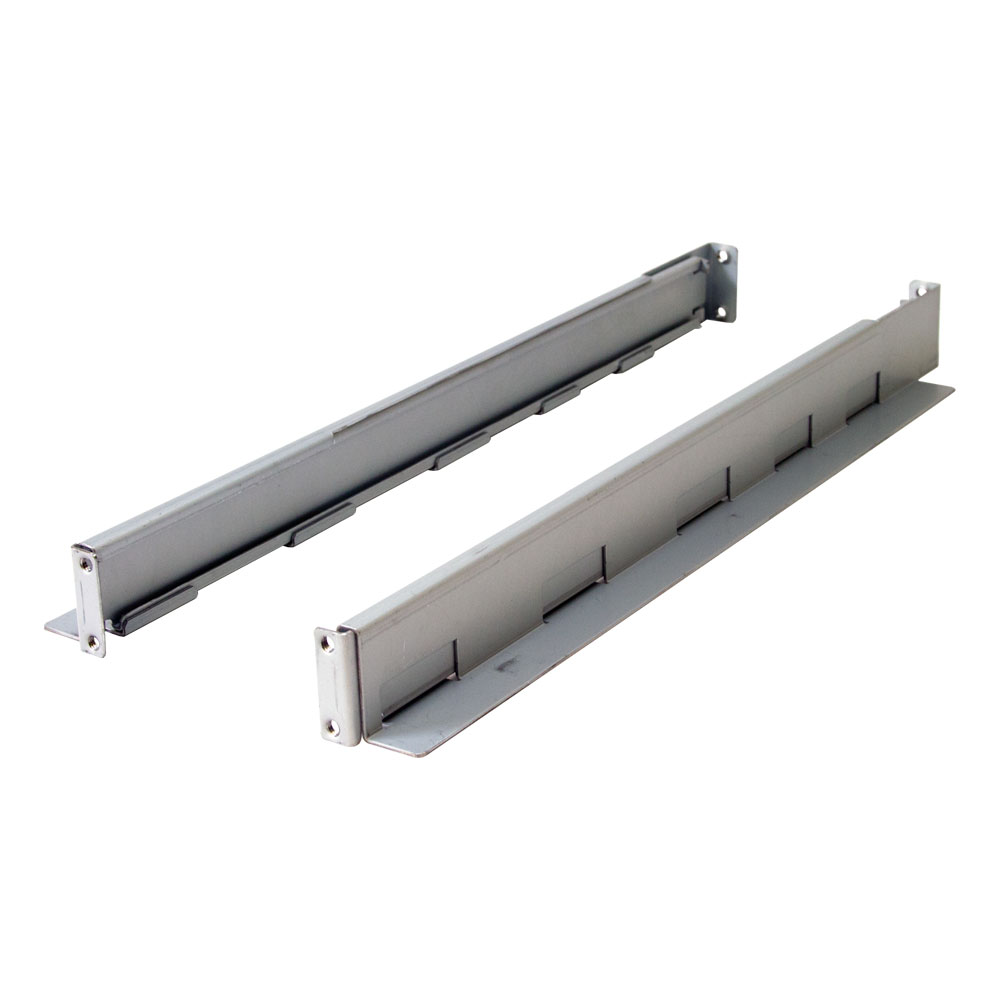

    P90L-RAIL 4-Post Rail Kit 5 lbs 3.8″ x 19.8″ x 2.8″

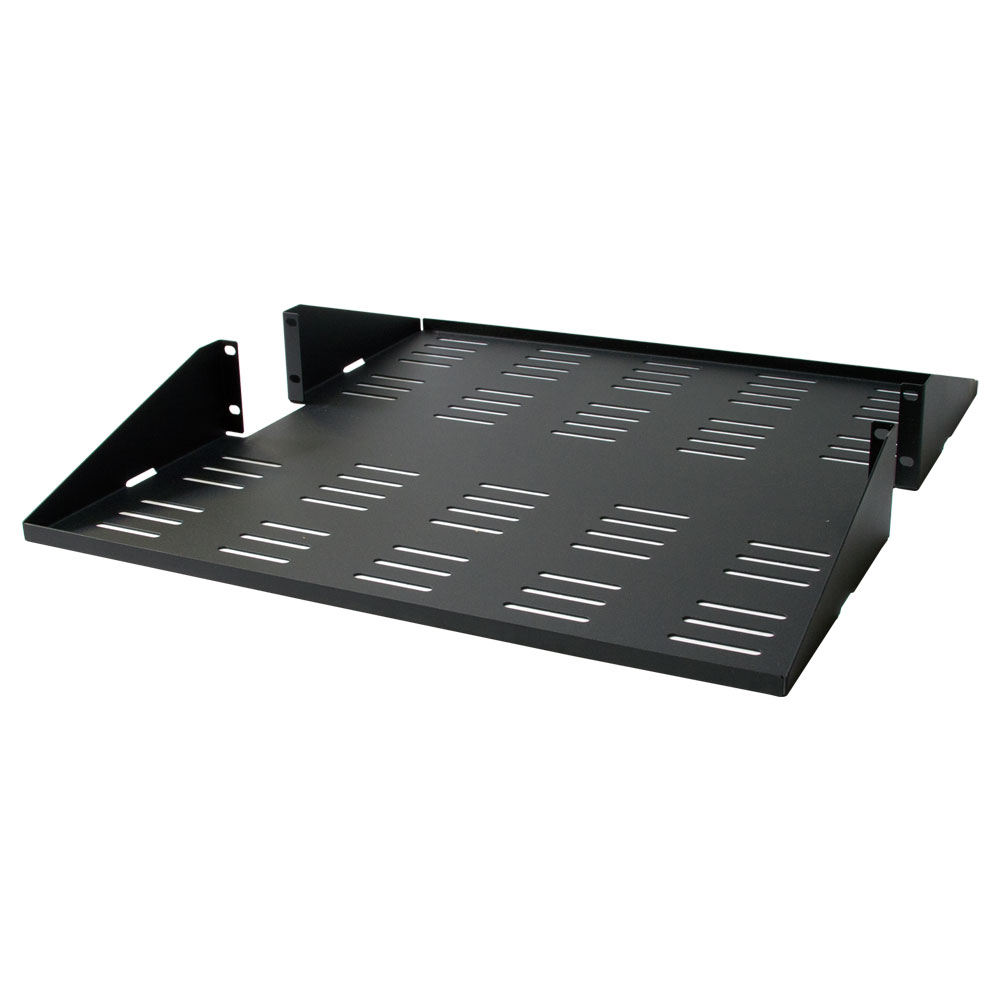

    XPC-2POSTL 2-Post Shelf Kit; Rated for 150 lbs 9 lbs 21.5″ x 23.3″ x 3.5″

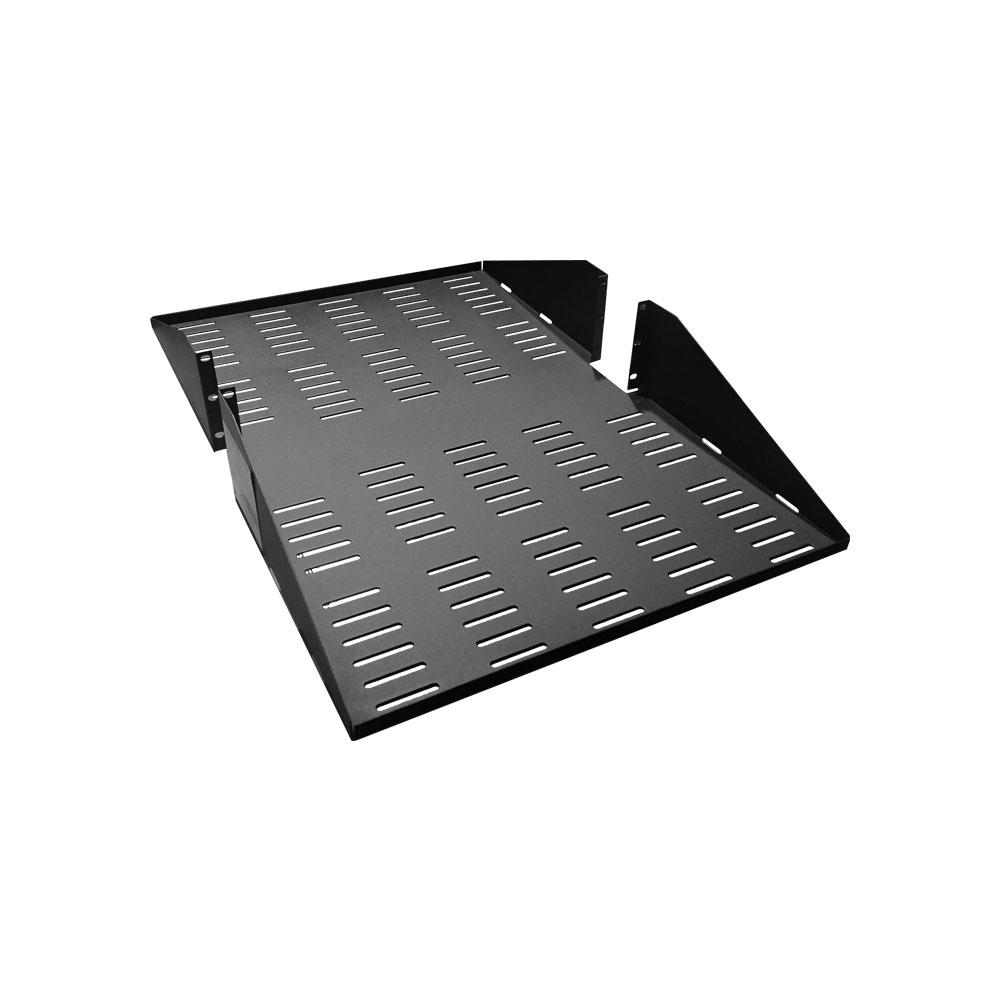

    XPC-2POST Heavy Duty 2-Post Shelf Kit; Rated for 300 lbs 14 lbs 19.0″ x 29.0″ x 5.2″
  4. Connectivity
    Model Description Unit Weight Unit Dimensions

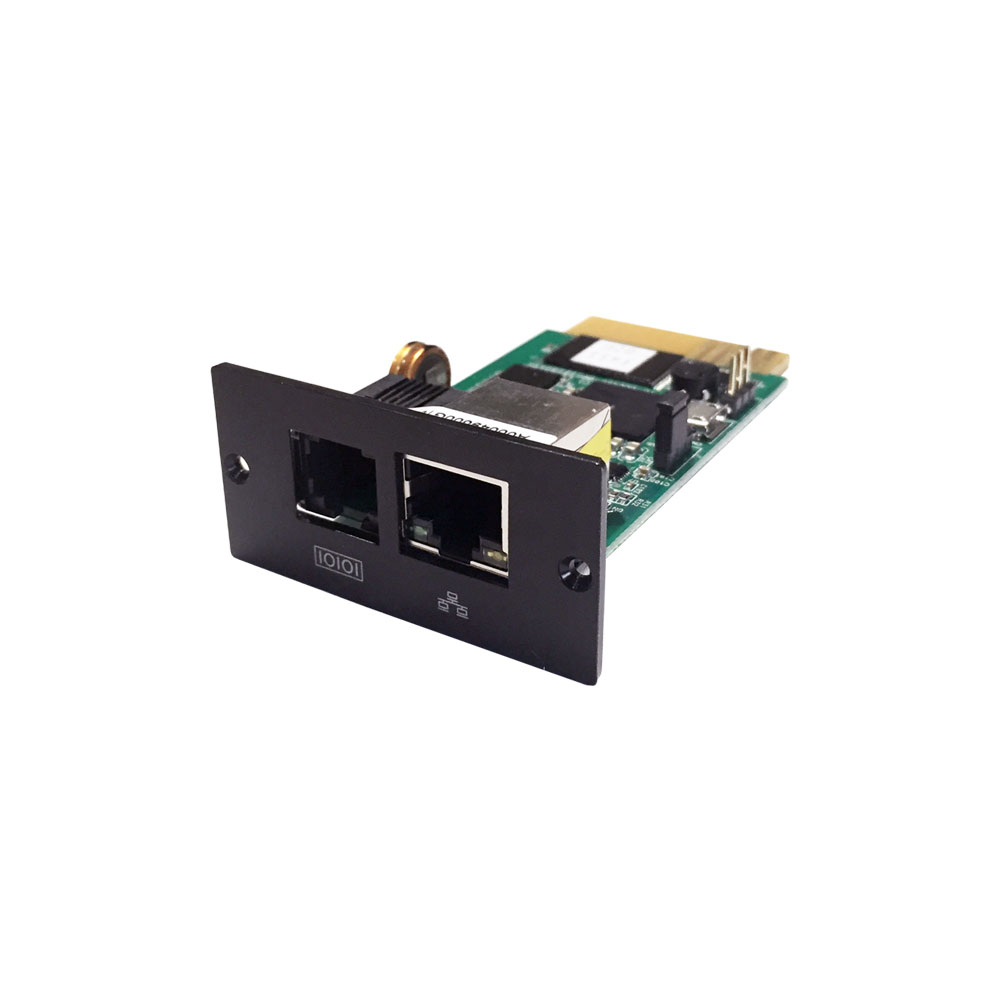

    SNMP-2PMINI Two Port Internal SNMP Card 1 lb 7.25″ x 6″ x 2.5″

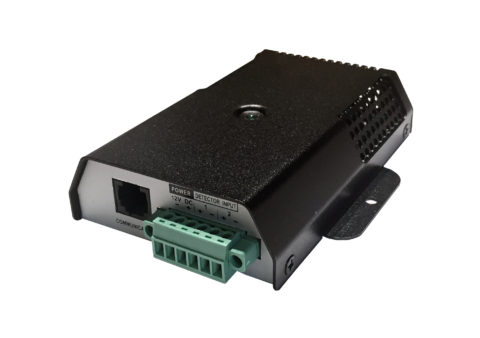

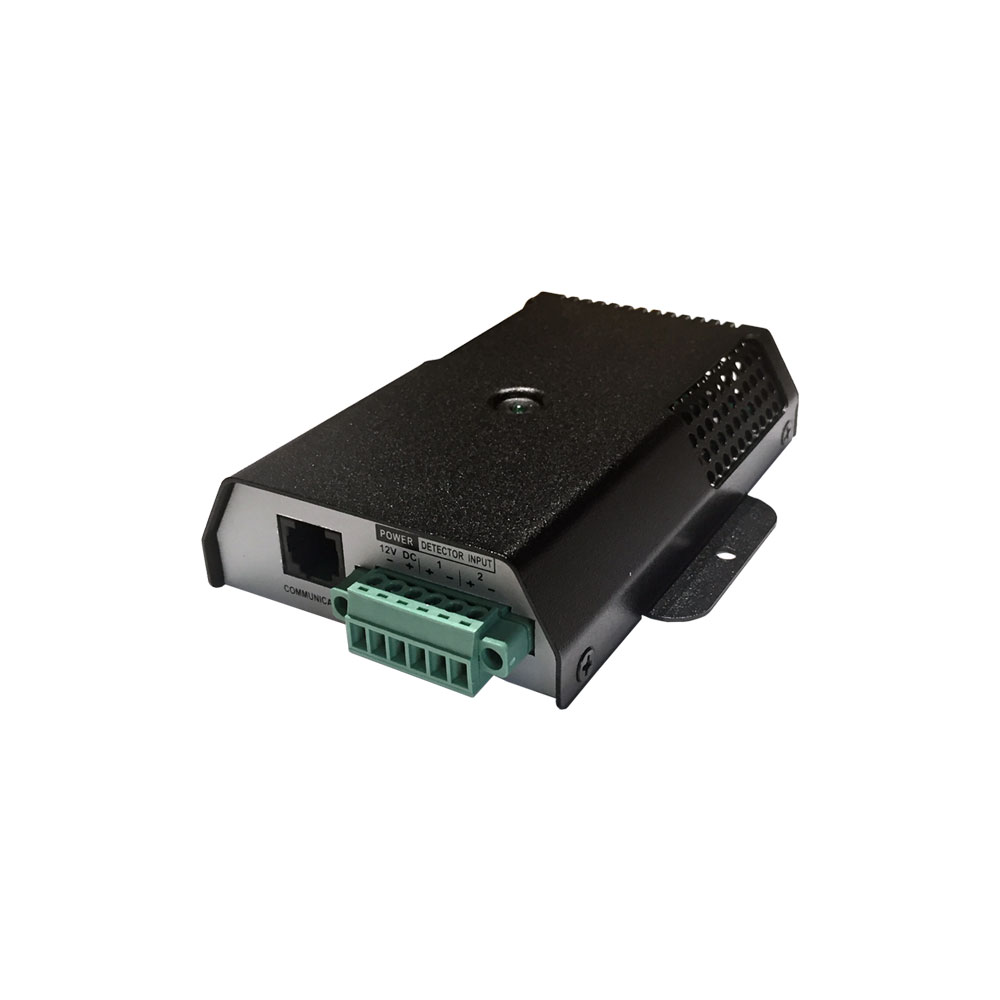

    SNMP-EMD Environmental Monitoring Device 1 lb 7.25″ x 6″ x 2.5″

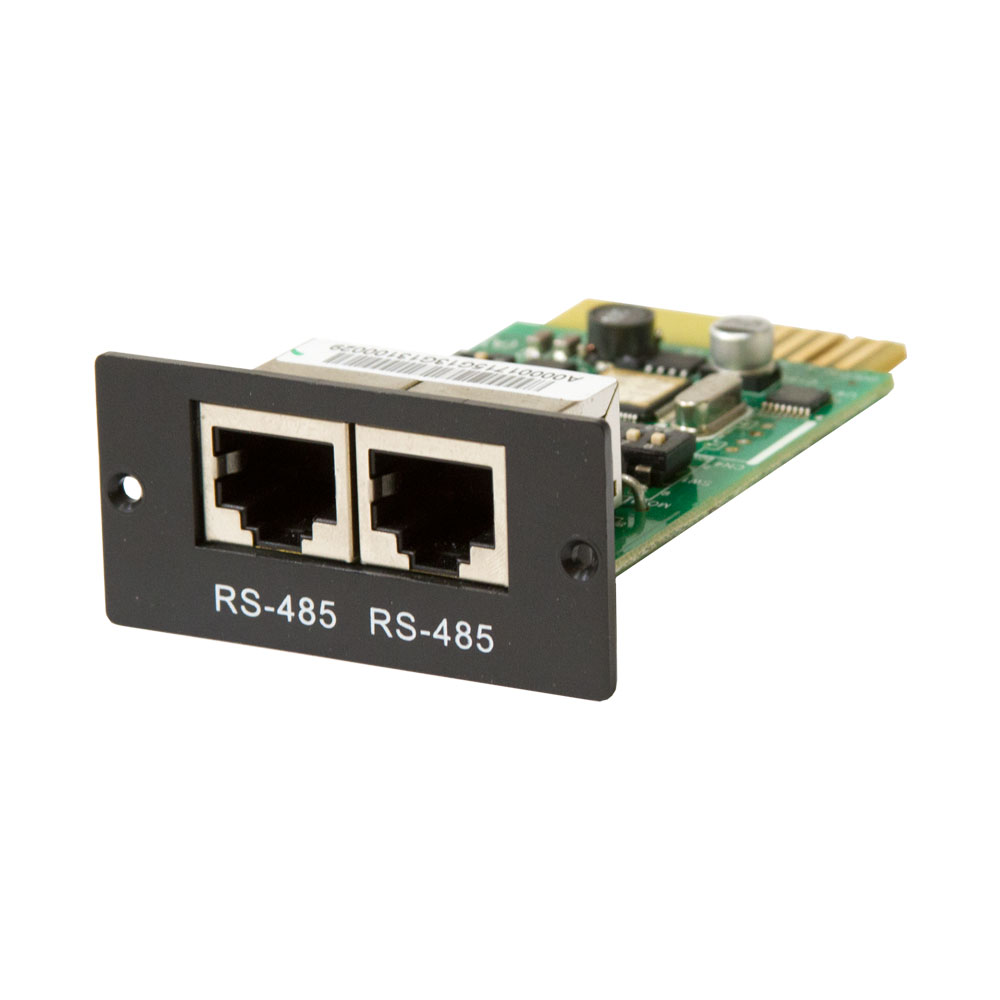

    MODBUS-IN Modbus Card 1 lb 7.25″ x 6″ x 2.5″

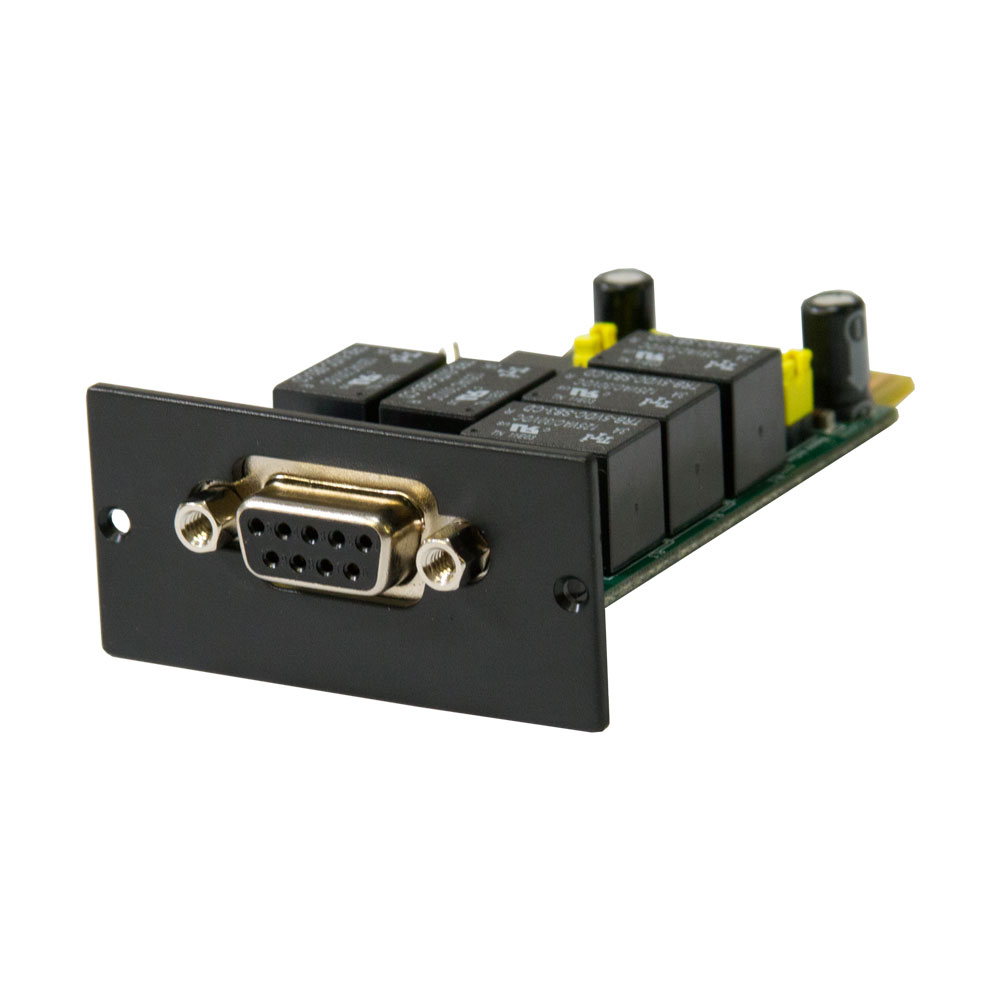

    RELAY-MINI General Relay Contacts with DB9 & Terminal Block Adapter 1 lb 7.25″ x 6″ x 2.5″
  5. Bypass Distribution Modules
    Model Description Utility Input Output Connections UPS Connections Unit Weight Unit Dimensions
    XBDM-HW63 63A/230VAC Bypass Distribution Module Hardwire or optional cable kit Hardwire terminal block Hardwire or optional cable kit 7.1 lbs 17.25″ x 5.25″ x 3.5″
  6. Power Distribution Units
    Model Description Input Power Cord Outlets Unit Weight Unit Dimensions
    XPD24C13V 30A 208V Basic Power Distribution Unit L6–30P, 6ft (24) C13 12.0 lbs 66.0” x 1.75” x 1.75”

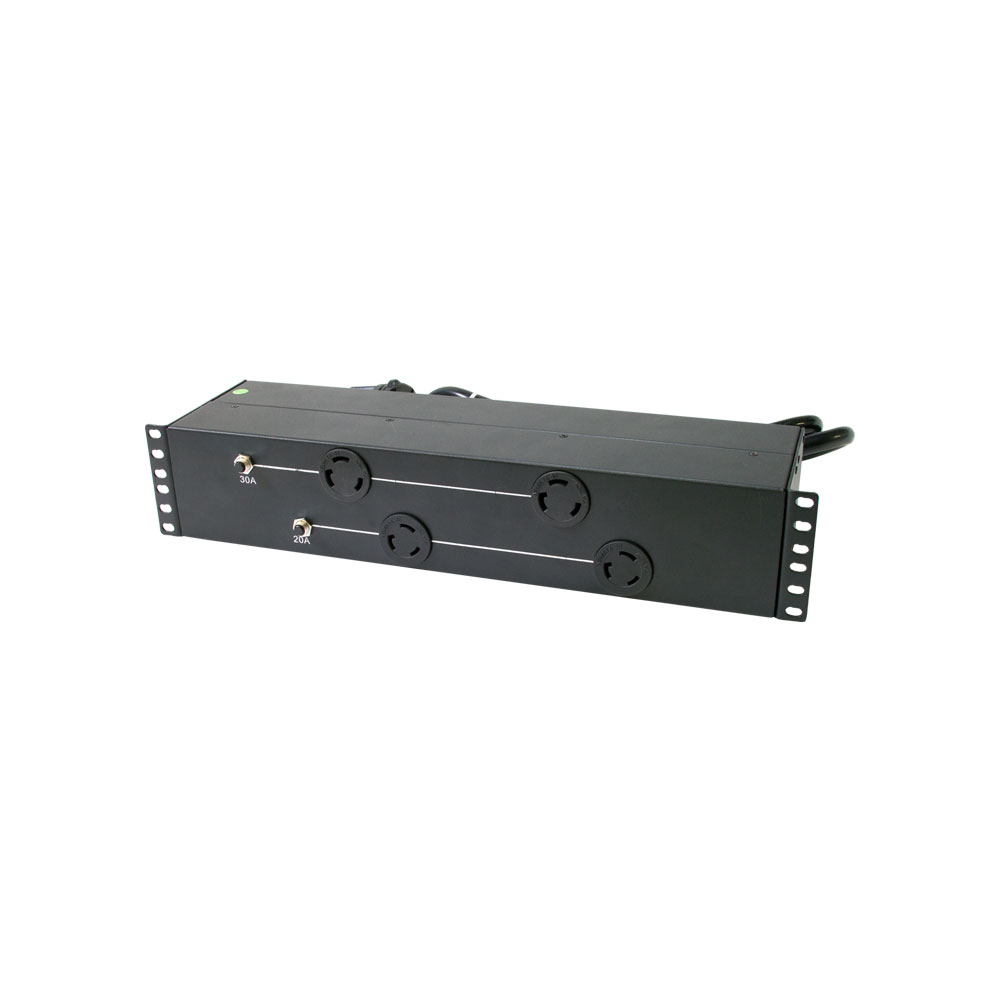

    XPD31 30A 240V 2U 19” Basic Power Distribution Unit L6–30P, 6ft (2) L6–30R + (2) L6–20R + (4) 6–15/20R 9.0 lbs 19.0” x 4.7” x 3.5”

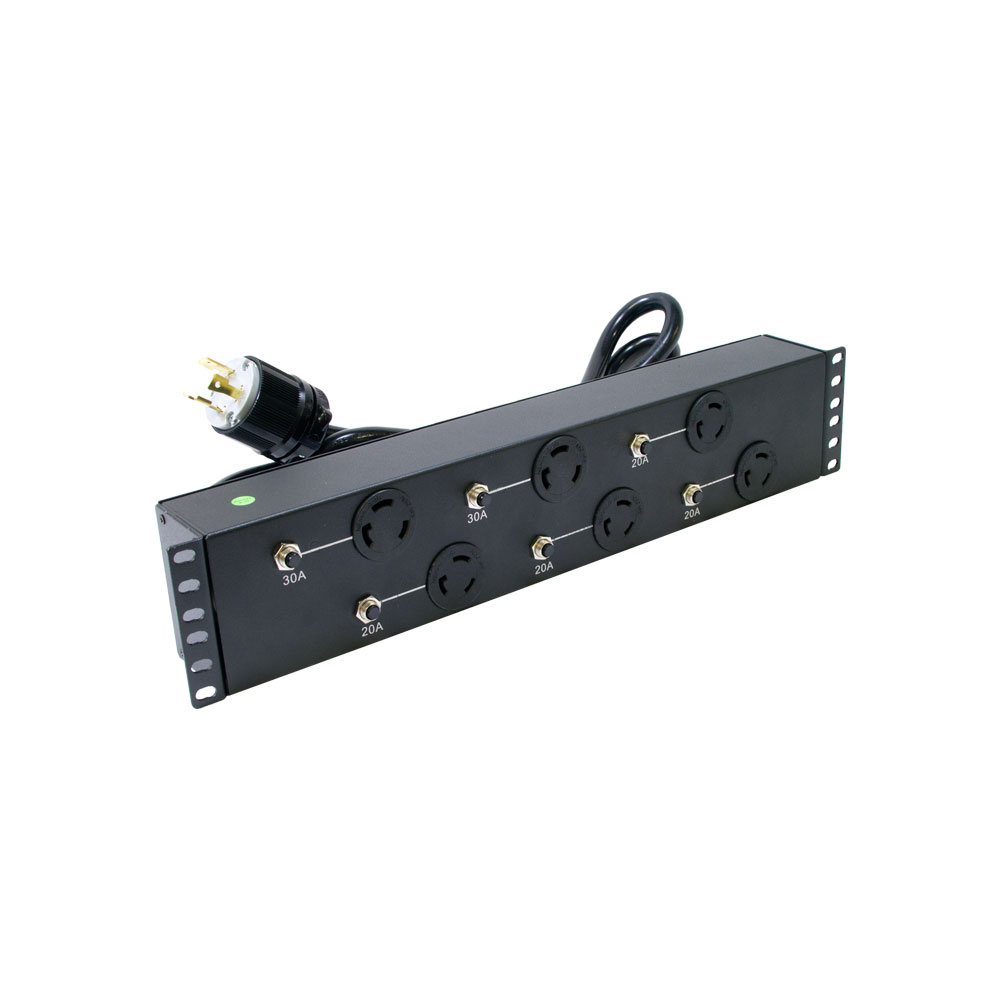

    XPD32 30A 240V 2U 19” Basic Power Distribution Unit L6–30P, 6ft (2) L6–30R + (4) L6–20R 7.5 lbs 19.0” x 2.4” x 3.5”
    XPD33 30A 240V 2U 19” Basic Power Distribution Unit L6–30P, 6ft (4) IEC C19 + (8) IEC C13 6.0 lbs 19.0” x 2.4” x 3.5”

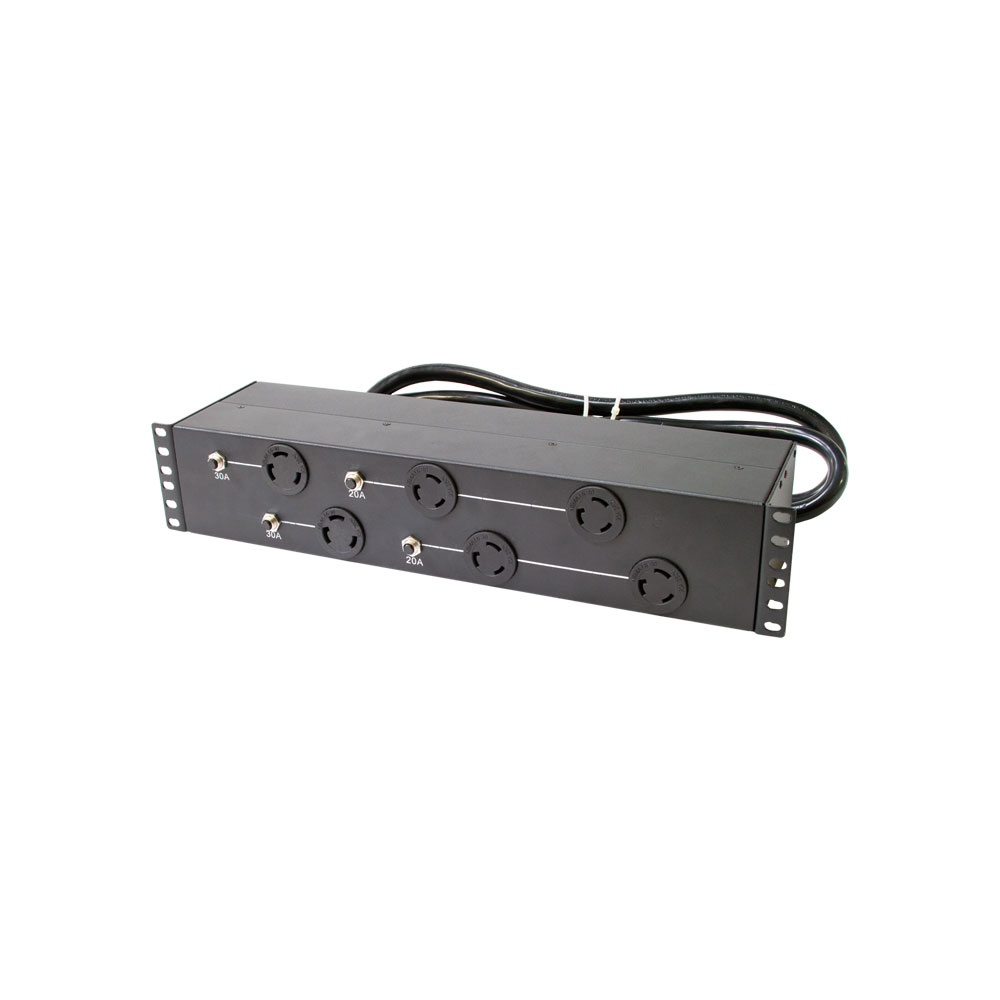

    XPD34 30A 240/120V 2U 19” Basic Rack PDU L14–30P, 6ft (2) L6–30R + (4) L6–20R + (12) 5–20R 9.5 lbs 19.0” x 4.7” x 3.5”
    XPD35 50A 240V 2U 19” Basic Rack PDU Pigtail 2W+G (2) L6–30R + (4) L6–20R 7.0 lbs 19.0” x 2.4” x 3.5”
    XPD36 50A 240V 2U 19” Basic Rack PDU Pigtail 2W+G (4) IEC C19 + (8) IEC C13 6.8 lbs 19.0” x 2.4” x 3.5”

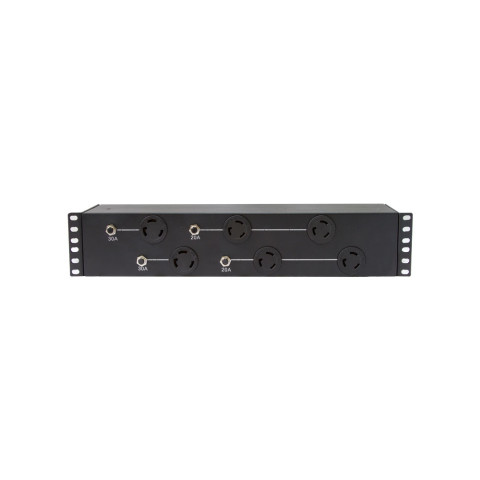

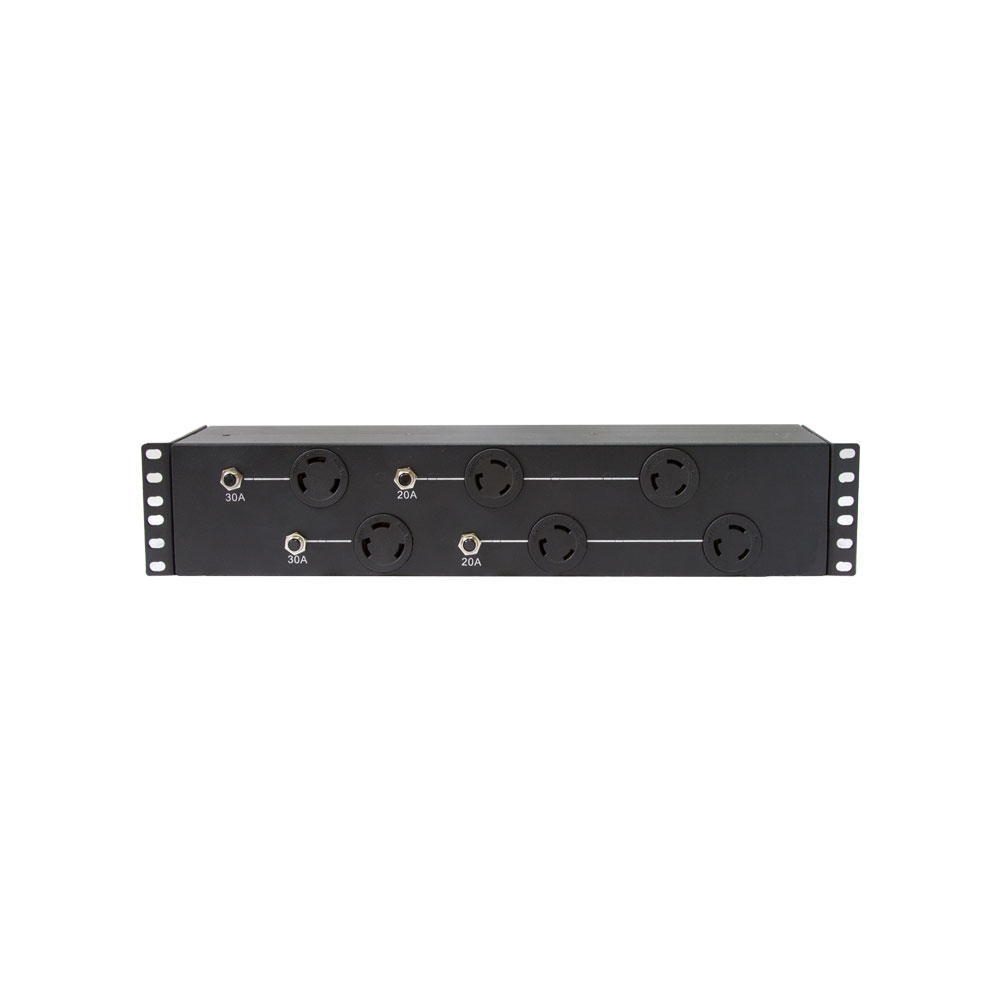

    XPD37 50A 240/120V 2U 19” Basic Rack PDU Pigtail 3W+G (2) L6–30R + (4) L6–20R + (12) 5–20R 10.0 lbs 19.0” x 4.7” x 3.5”
