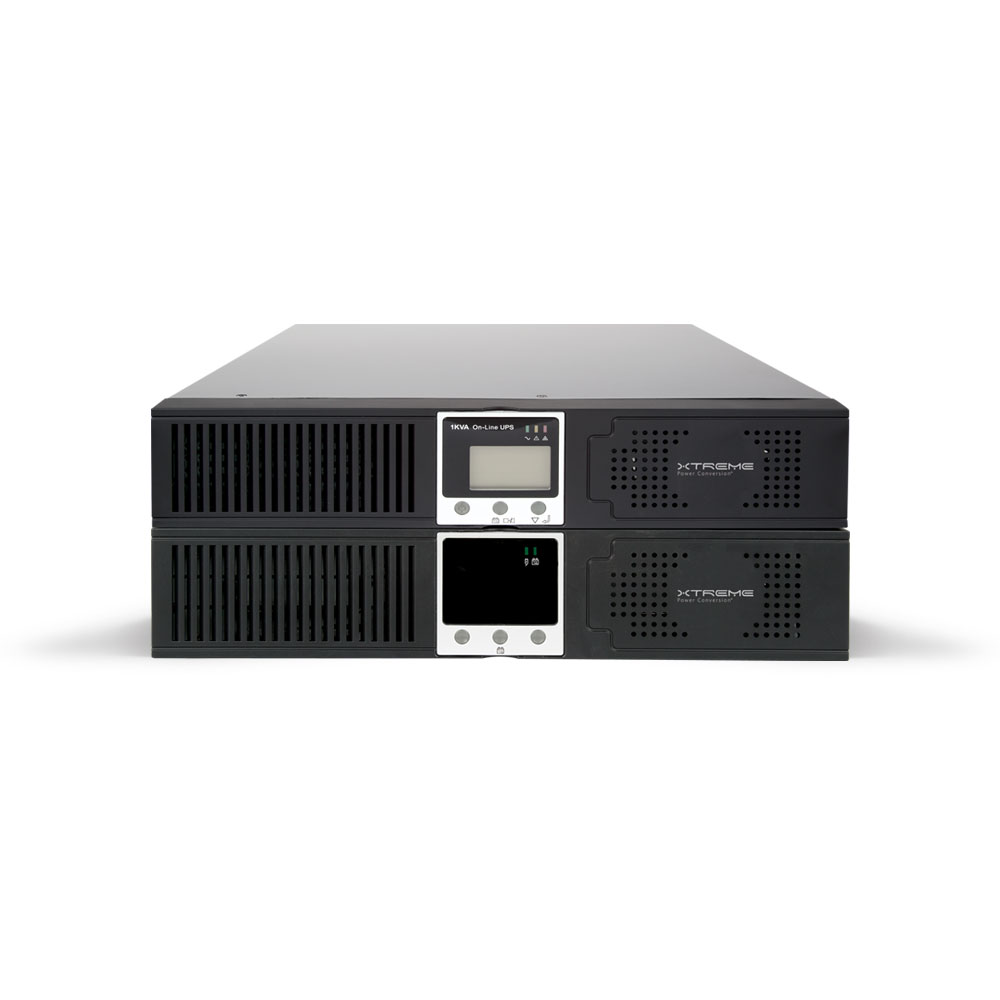

• NXRT 1000VA-3000VA Online UPS

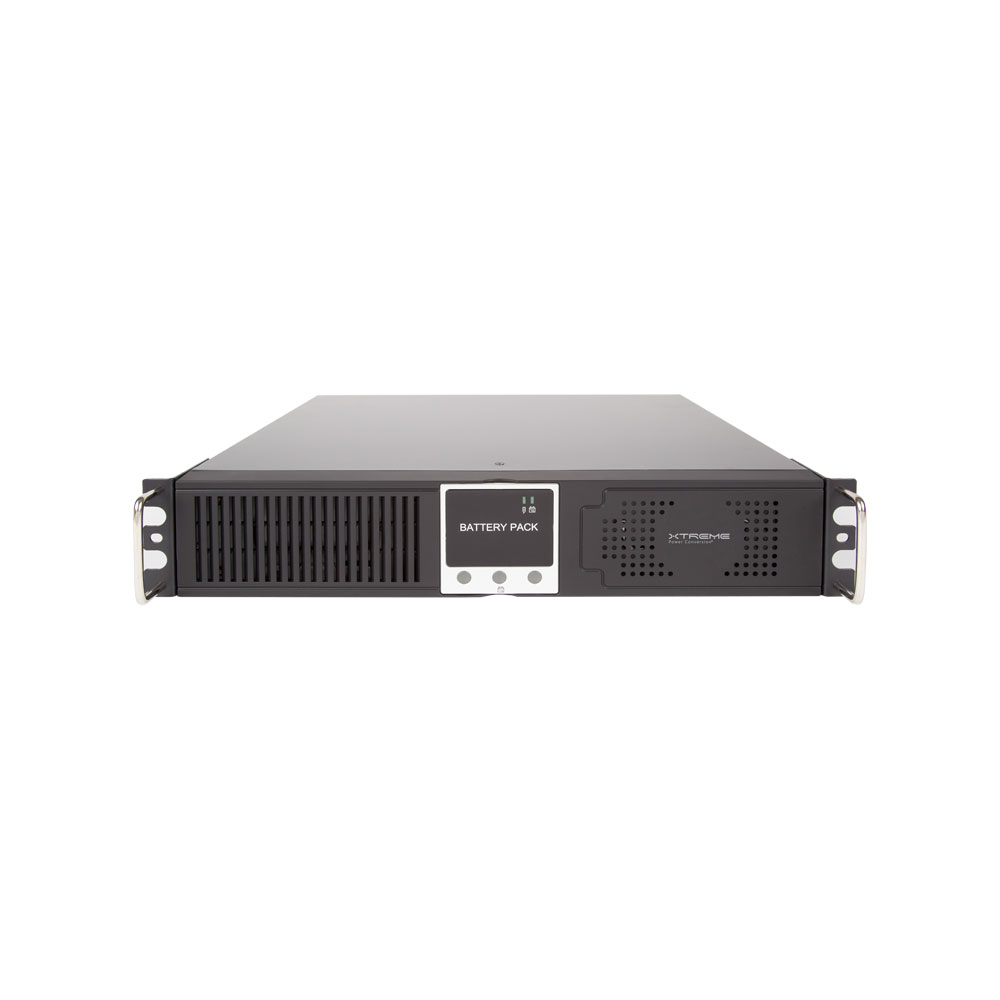

  • NXRT-CBP1, NXRT-CBP2, NXRT-EBP1, NXRT-EBP2 front view

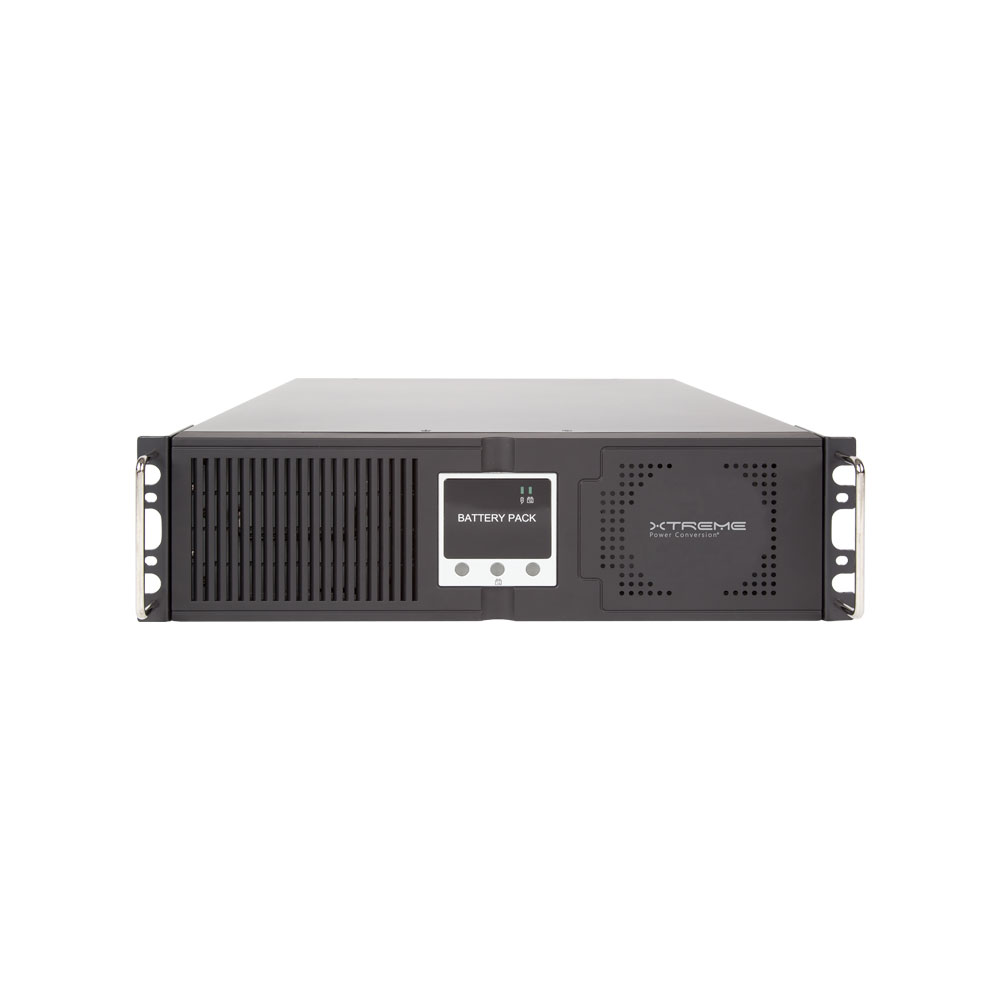

  • NXRT-CBP3, NXRT-EBP3 front view

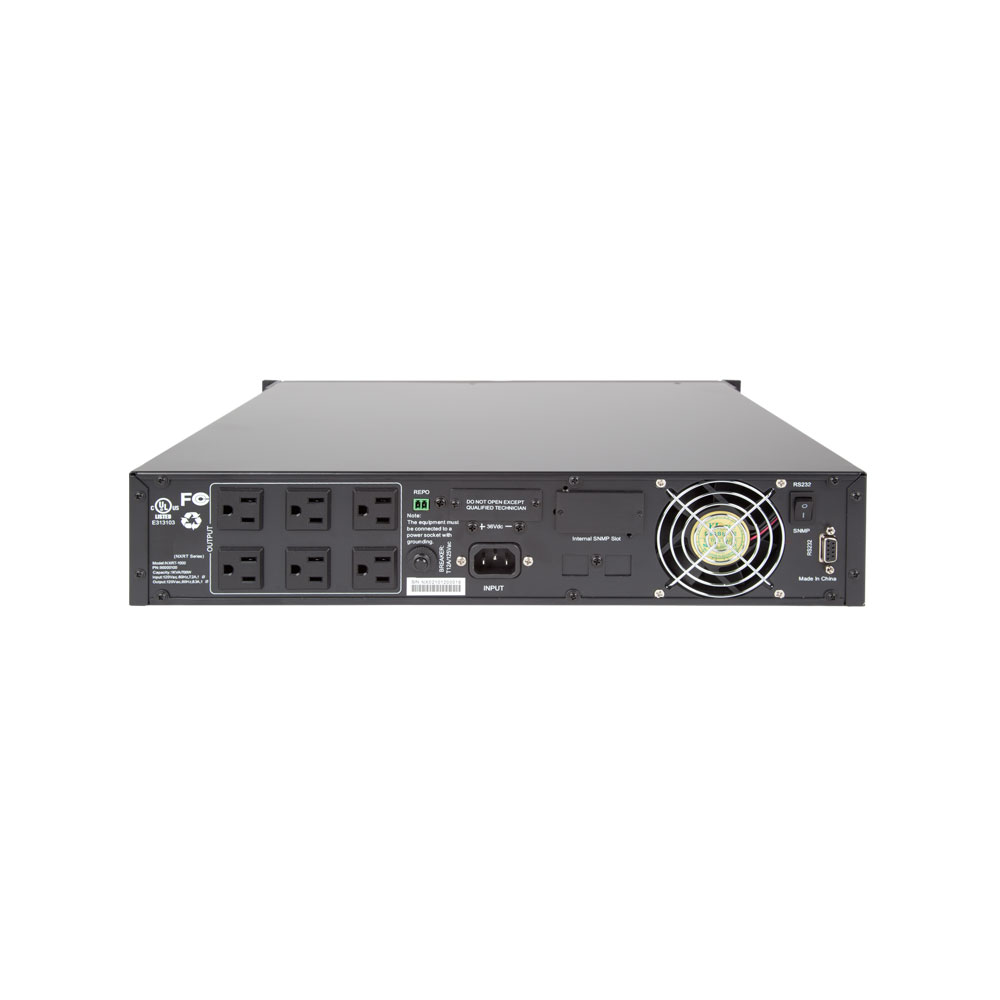

  • NXRT-1000 rear view

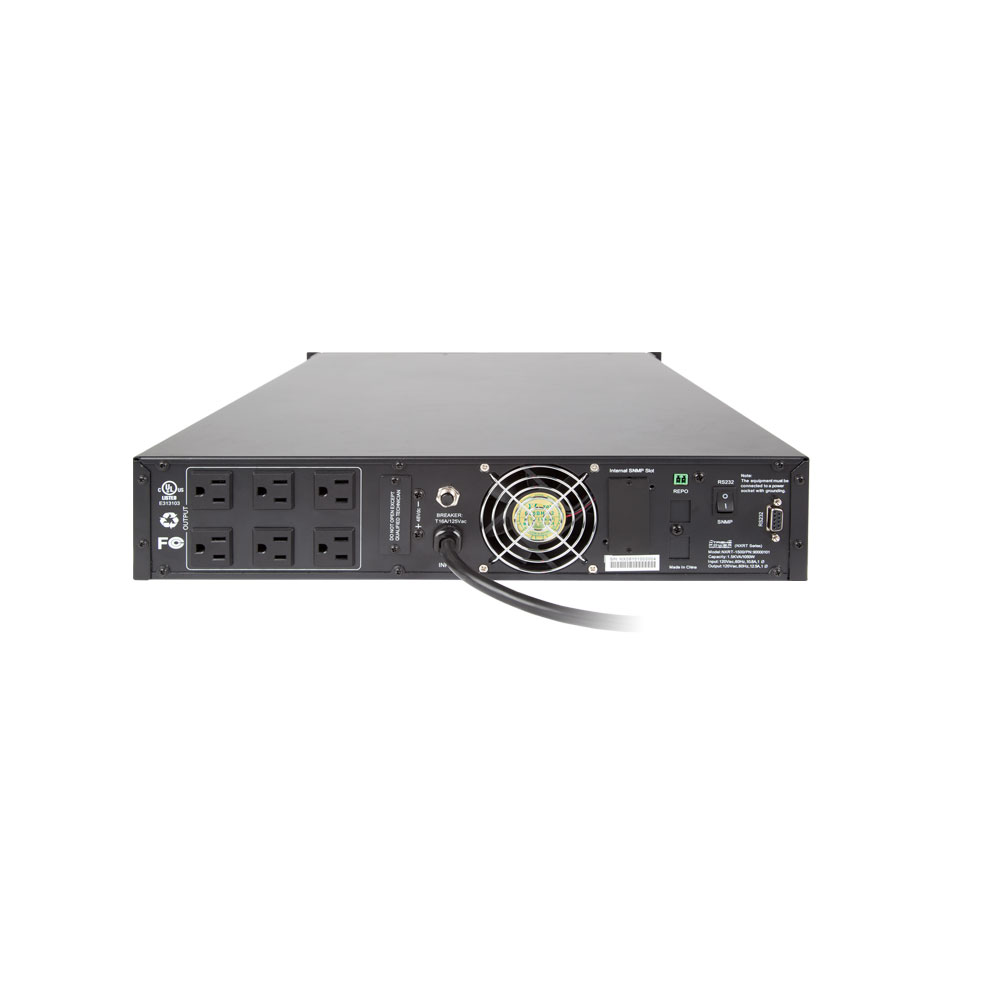

  • NXRT-1500 rear view
  • NXRT-2000 rear view

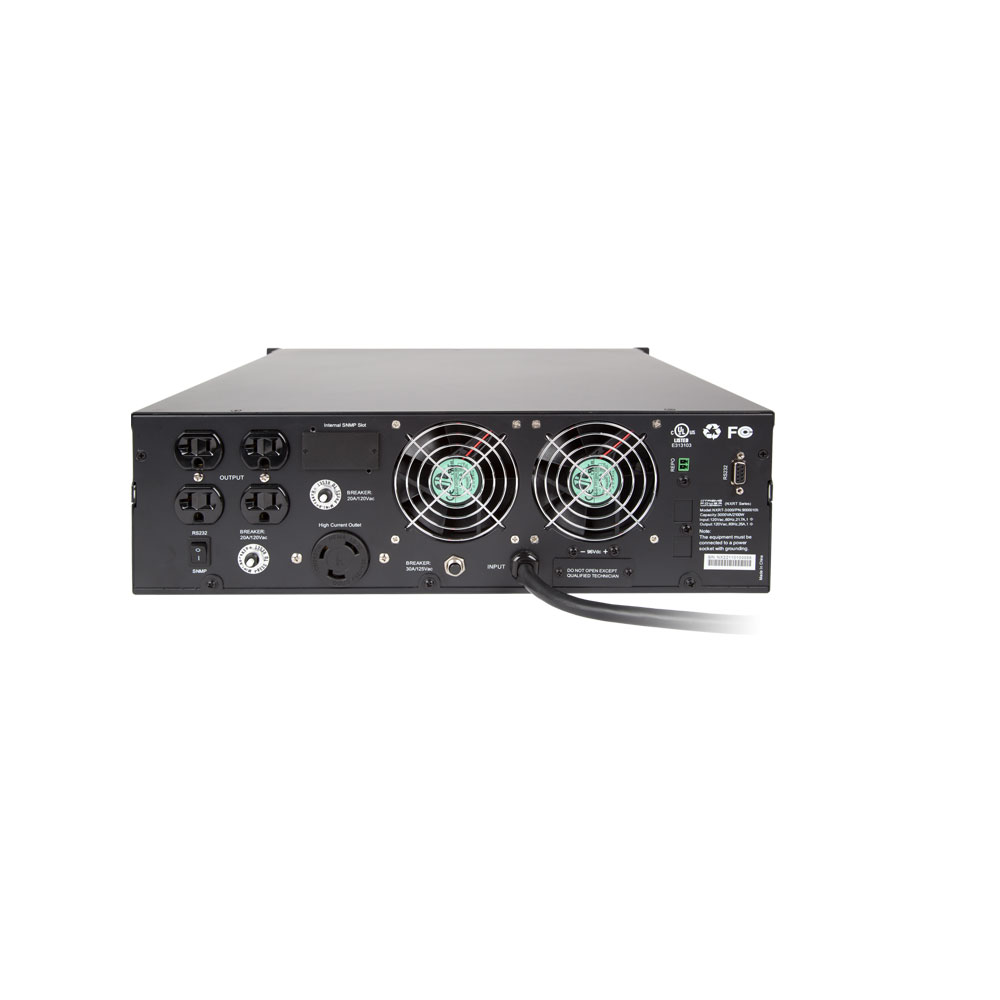

  • NXRT-3000 rear view

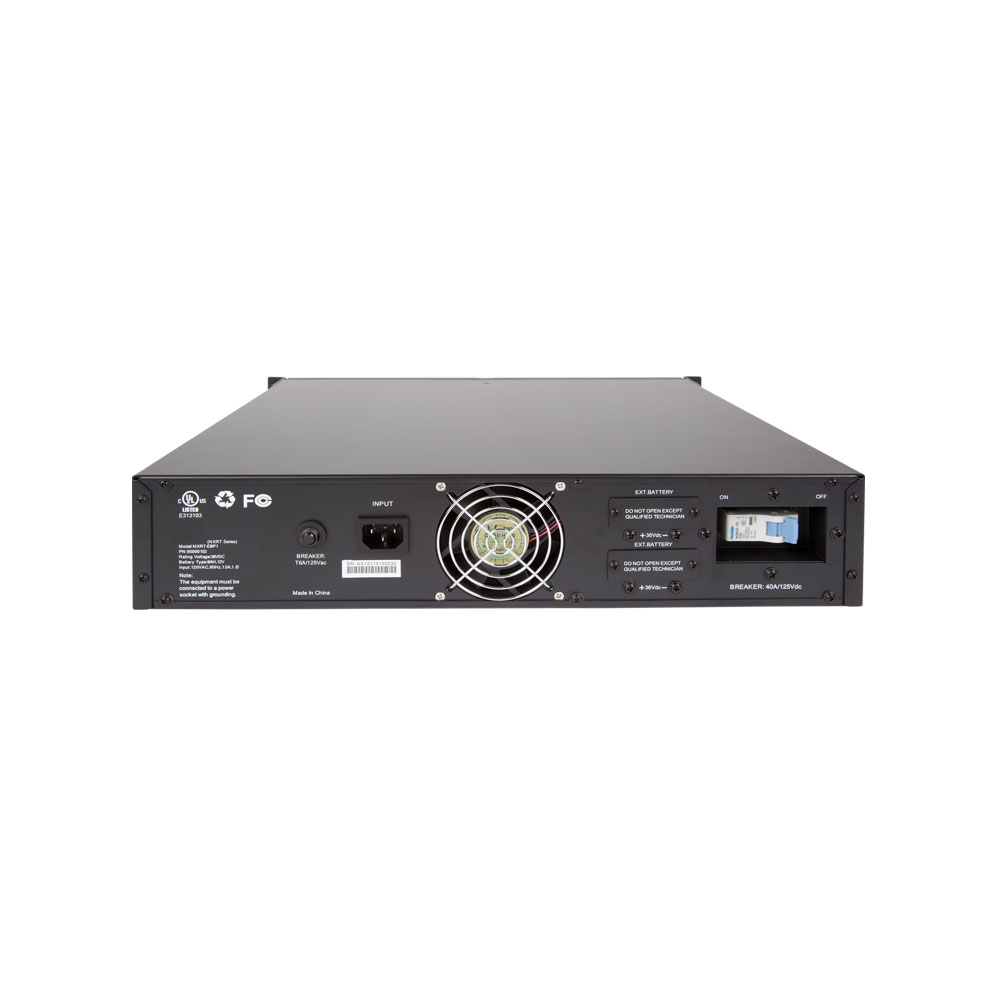

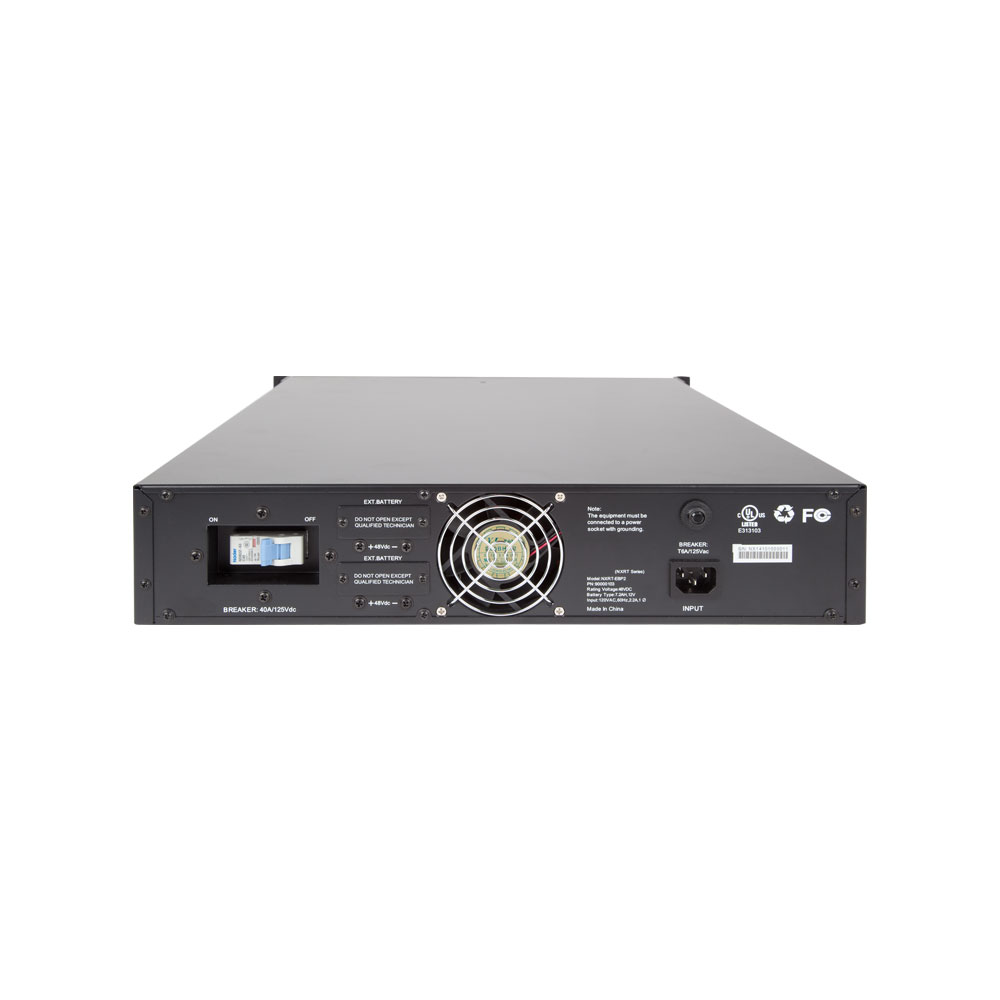

  • NXRT-CBP1, NXRT-CBP2, NXRT-EBP1, NXRT-EBP2 rear view

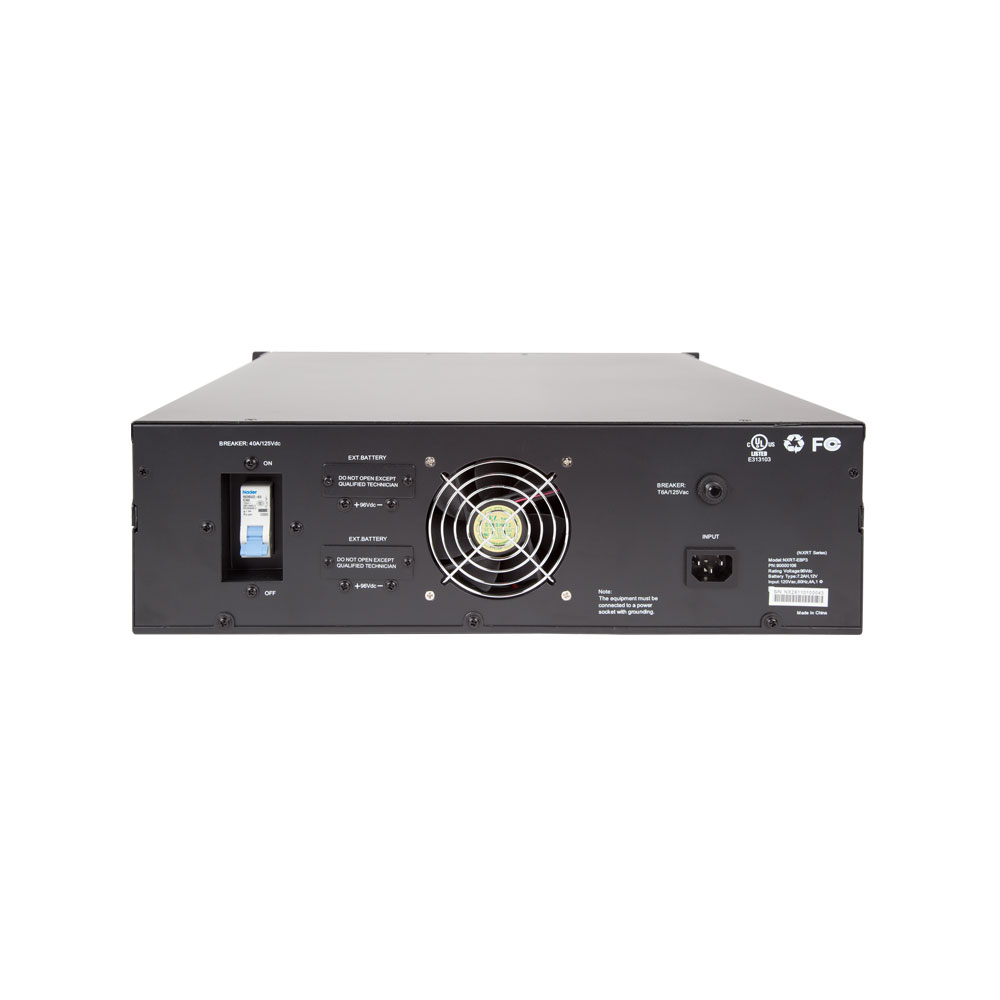

  • NXRT-CBP3, NXRT-EBP3 rear view
  • NXRT-RR4 Rail Kit
  • XPC-2POSTL Shelf Kit
  • XPC-2POST Shelf Kit
  • SNMP-1PMINI Single Port SNMP Card
  • SNMP-3PEX Three Port External SNMP Card
  • SNMP-EMP Environmental Monitoring Sensor
  • RELAY-MINI Relay Card

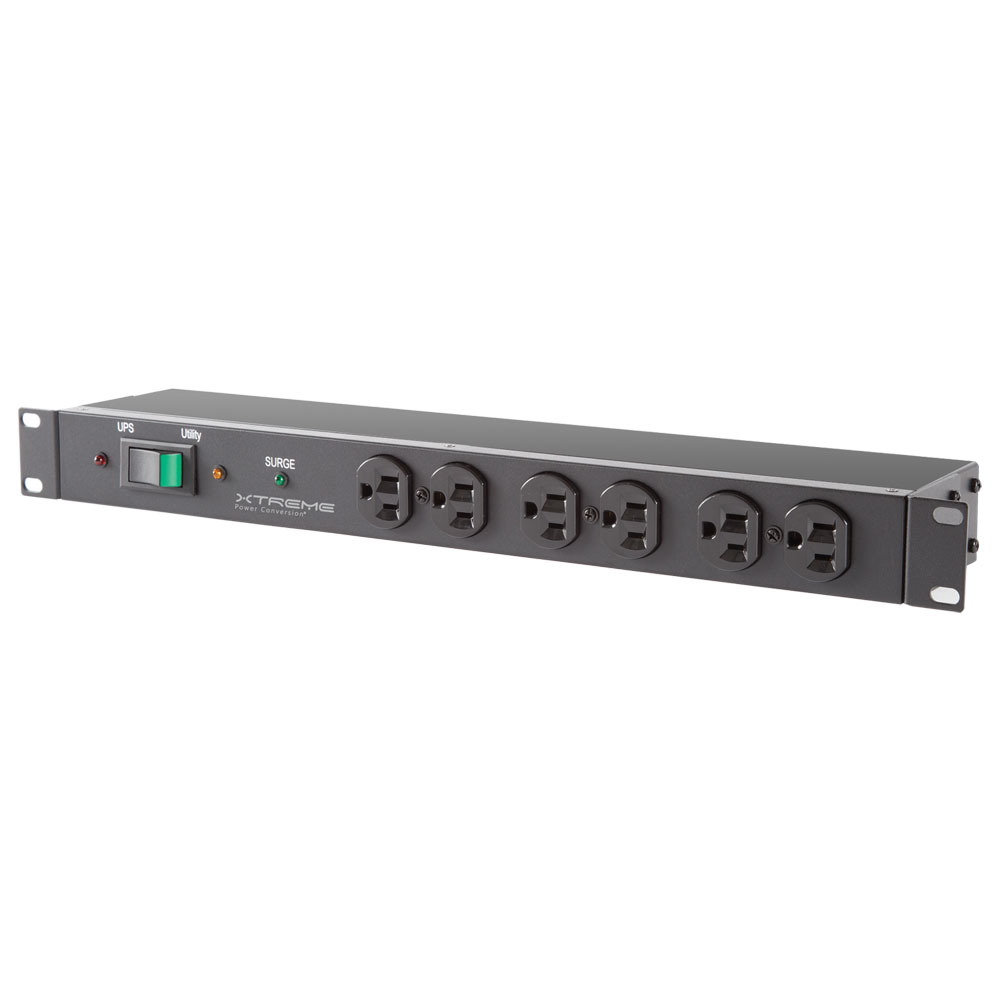

  • XBDM-1015LV Bypass Distribution Module

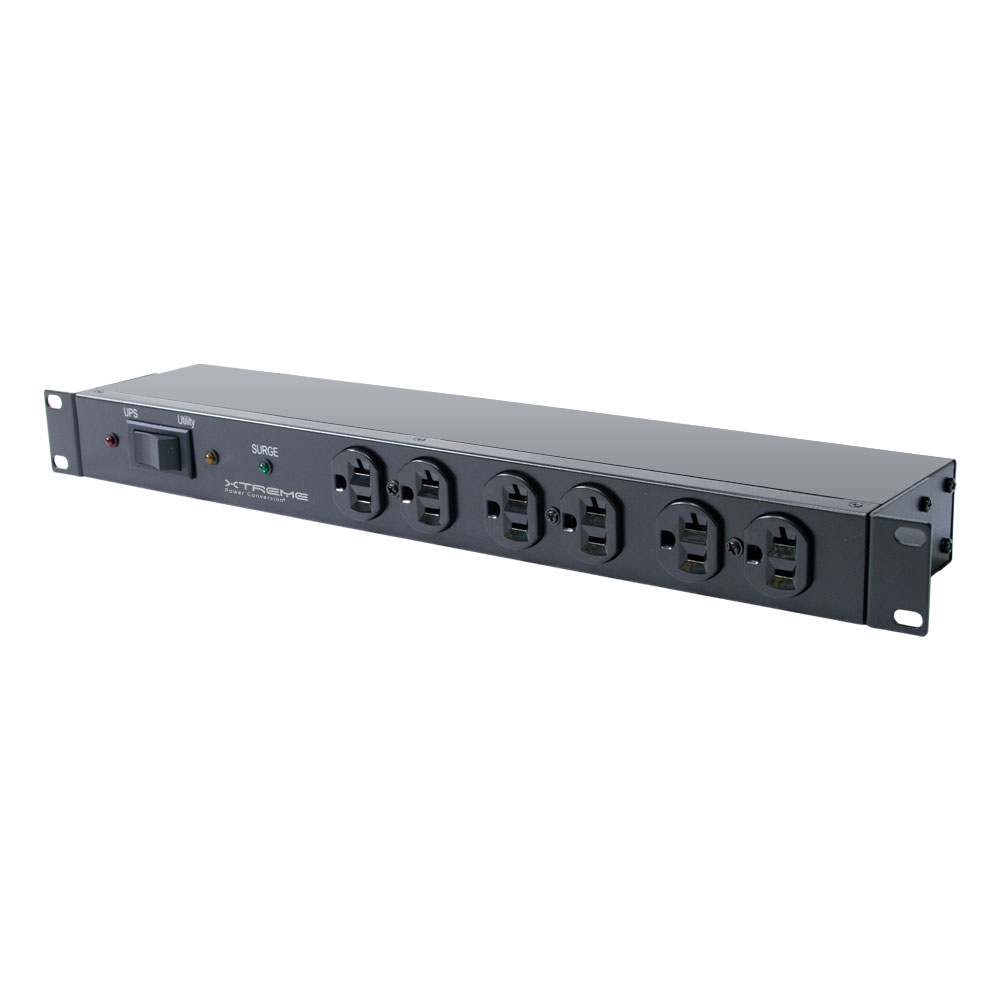

  • XBDM-1020LV Bypass Distribution Module

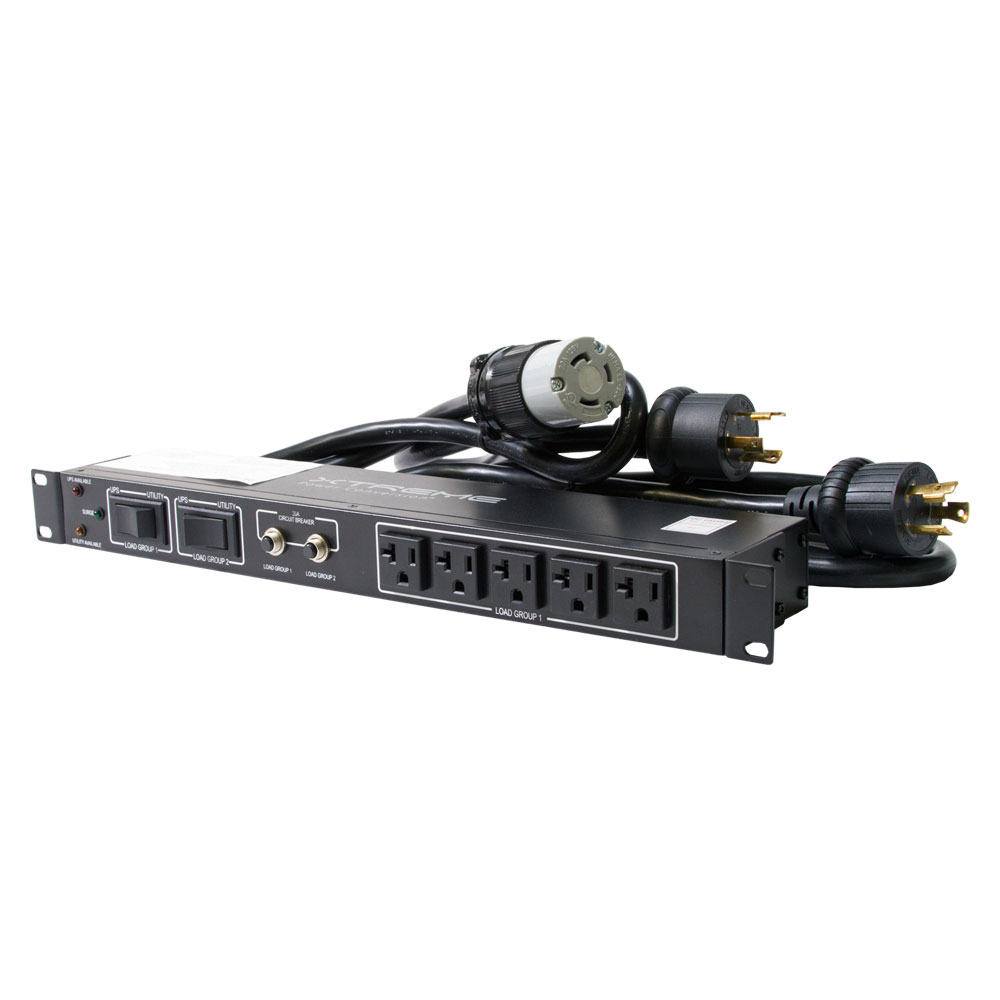

  • XBDM-1030LV Bypass Distribution Module

NXRT Online UPS

NXRT models are discontinued. Stock is available, but in limited quantities

1000VA-3000VA

120VAC

Online UPS protection for critical business servers, telephony, and applications requiring long battery runtimes.

The NXRT delivers online, double conversion technology in a multi form factor which allows the UPS to fit into any network application.

Extended runtimes of up to 18 hours using Extended Battery Packs (EBP) and Charger Battery Packs (CBP) with additional battery recharge capability. This UPS is the perfect choice for critical business servers, point of sale equipment, telephony, and data networks.

Product Snapshot

  • Available models: 1000VA, 1500VA, 2000VA, 3000VA
  • Virtually infinite scalable runtime
  • Rack, tower, or wall mount
  • Extended battery runtimes with optional matching battery modules
  • UL, cUL, FCC
  • 3 years electronics, 3 years battery warranty (USA and Canada)
MODEL NUMBER NXRT-1000 NXRT-1500 NXRT-2000 NXRT-3000
INPUT Capacity 1000VA (700W) 1500VA (1050W) 2000VA (1400W) 3000VA (2100W)
Voltage range 55–138VAC*
Frequency 50/60Hz auto-sensing
OUTPUT Voltage 120VAC
Waveform Pure sine wave, zero transfer time
Frequency 50/60Hz auto-sensing
Efficiency ≥ 90%
Auto restart/start on battery Yes
Overload capacity 110–150% for 30 sec; ≥ 150% for 200 ms
Crest factor 3:1
BATTERY Battery quantity/type (3) 12V 9AH/36V (4) 12V 7.2AH/48V (8) 12V 7.2AH/96V
Recharge Typically < 4 hours to 90% capacity
PHYSICAL Dimensions (W x D x H) 17.3 x 17.7 x 3.4 in 17.3 x 25.6 x 3.4 in 17.3 x 21.7 x 5.2 in
Weight 39.7 lbs 57.3 lbs 79.4 lbs 81.6 lbs
Line cord 6 ft, C13 to 5–15P 6 ft, 5–15P 6 ft, 5–20P 6 ft, L5–30P
Receptacles (6) NEMA 5–15R (1) NEMA L5–20R + (4) NEMA 5–15/20R (1) NEMA L5–30R + (4) NEMA 5–15/20R
OPTIONAL BATTERY PACKS Model number EBP1 / CBP1 EBP2 / CBP2 EBP3 / CBP3
Battery quantity/type 2 x (3) 12V 9AH/36V 2 x (4) 12V 7.2AH/48V 2 x (8) 12V 7.2AH/96V
Dimensions (W x D x H) 17.3 x 17.7 x 3.4 in 17.3 x 25.6 x 3.4 in 17.3 x 21.7 x 5.2 in
Weight 58.4 lbs 75.0 lbs 113.6 lbs
Charger CBP models contain a 2A DC charger and include a 5-15P input cord
ENVIRONMENT Operating temperature 32–104°F (0–40°C)
Audible noise < 40dBA
Altitude 11,500 ft above sea level
INDICATORS & ALARMS LCD display Input/output voltage & frequency, online mode, backup mode, battery capacity, load level
Audible alarm Beep every 4 sec (on battery)
UPS fault Continuous beeping sound and LCD display
APPROVALS UL, cUL, FCC
WARRANTY 3 years electronics, 3 years battery warranty (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact)
INCLUDED IN BOX UPSILON CD, horizontal brackets, 5:1 brackets, user manual, 6ft DB9 cable
AVAILABLE OPTIONS 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU)

*Depending on load level

  1. UPS Battery Packs
    Model Description Input Power Cord Unit Weight Unit Dimensions
    NXRT-EBP1 Extended Battery Pack for NXRT-1000 Including Two Hot Swappable Battery Trays N/A 58.4 lbs 17.3″ x 17.7″ x 3.4″
    NXRT-EBP2 Extended Battery Pack for NXRT-1500 Including Two Hot Swappable Battery Trays N/A 75.0 lbs 17.3″ x 25.6″ x 3.4″
    NXRT-EBP3 Extended Battery Pack for NXRT-2000, NXRT-3000 Including Two Hot Swappable Battery Trays N/A 113.6 lbs 17.3″ x 21.7″ x 5.2″
    NXRT-CBP1 Charger Battery Pack for NXRT-1000 Including Two Hot Swappable Battery Trays and 2A Charger 5–15P, 6ft 58.4 lbs 17.3″ x 17.7″ x 3.4″
    NXRT-CBP2 Charger Battery Pack for NXRT-1500 Including Two Hot Swappable Battery Trays and 2A Charger 5–15P, 6ft 75.0 lbs 17.3″ x 25.6″ x 3.4″
    NXRT-CBP3 Charger Battery Pack for NXRT-2000, NXRT-3000 Including Two Hot Swappable Battery Trays and 2A Charger 5–15P, 6ft 113.6 lbs 17.3″ x 21.7″ x 5.2″
  2. Mounting Kits
    Model Description Unit Weight Unit Dimensions
    NXRT-RR4 Adjustable 4-Post Rail Kit 7.7 lbs 8.6″ x 25.0″ x 4.1″
    XPC-2PRAIL 2-Post Rail Kit; Rated for 125 lbs 5 lbs 4.0” x 20.0” x 3.0”
    XPC-2POSTL 2-Post Shelf Kit; Rated for 150 lbs 9 lbs 21.5″ x 23.3″ x 3.5″
    XPC-2POST Heavy Duty 2-Post Shelf Kit; Rated for 300 lbs 14 lbs 19.0″ x 29.0″ x 5.2″
  3. Connectivity
    Model Description Unit Weight Unit Dimensions
    SNMP-1PMINI Single Port SNMP 1 lb 7.25″ x 6″ x 2.5″
    SNMP-3PEX Three Port External SNMP 1 lb 7.25″ x 6″ x 2.5″
    SNMP-EMP Environmental Monitoring Sensor 1 lb 7.25″ x 6″ x 2.5″
    MODBUS-IN Modbus Card 1 lb 7.25″ x 6″ x 2.5″
    RELAY-MINI General Relay Contacts with DB9 & Terminal Block Adapter 1 lb 7.25″ x 6″ x 2.5″
  4. Bypass Distribution Modules
    Model Description Utility Input Output Connections UPS Connections Unit Weight Unit Dimensions
    XBDM-1015LV Bypass 15A/120VAC for use with NXRT-1000, NXRT-1500 5–15P, 12ft (6) 5–15R front, (4) 5–15R back 5-15R 3.4 lbs 19” x 3.5” x 1.75”
    XBDM-1020LV Bypass 20A/120VAC for use with NXRT-2000 5–20P, 12ft (6) 5–20R front, (4) 5–20R back 5-20R 3.4 lbs 19” x 3.5” x 1.75”
    XBDM-1030LV Bypass 30A/120VAC for use with NXRT-3000 L5–30P, 6ft (6) 5–20R front, (4) 5–20R back L5-30R 3.4 lbs 19” x 3.5” x 1.75”
