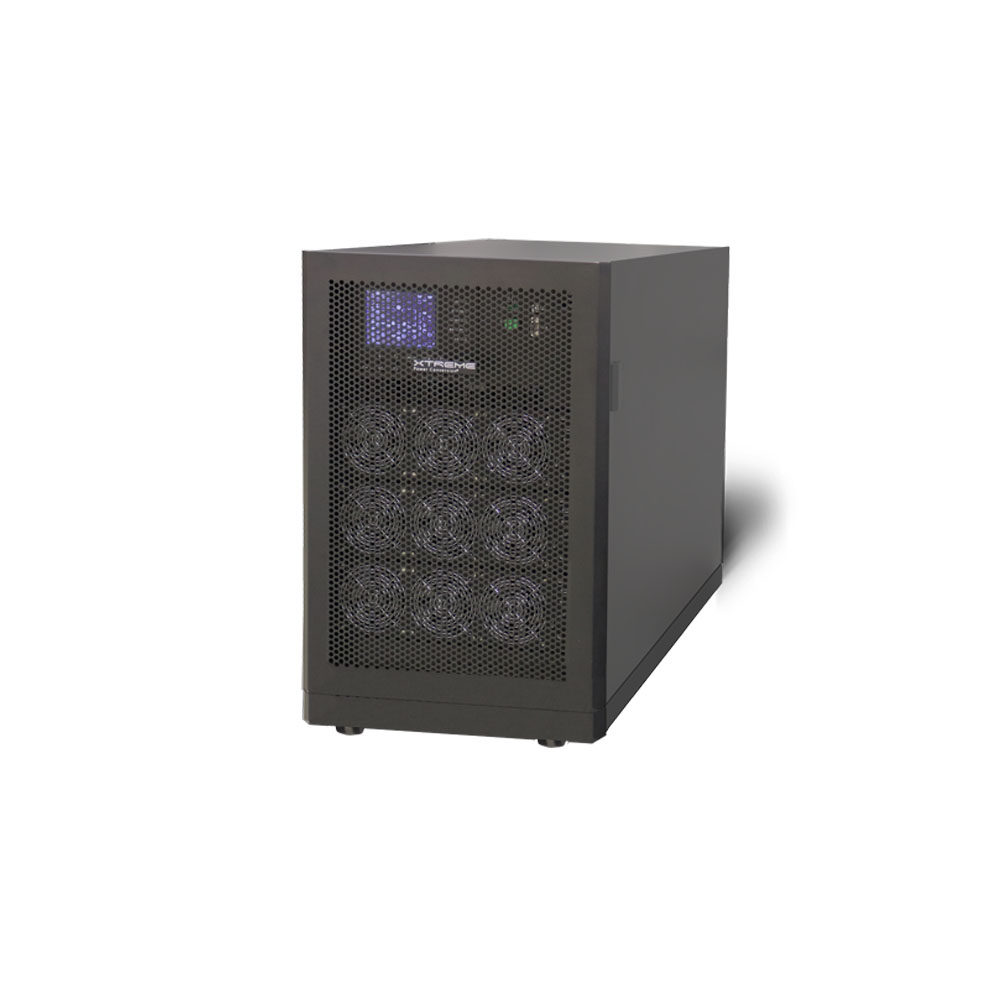

M90L Modular Online UPS

15kVA-60kVA

208/120VAC Three-Phase

Mission Critical Availability while reducing costs with Scalable, Modular M90L for 15kVA, 20kVA, 30kVA, 40kVA, 45kVA, 60kVA applications.

Category:

The M90L is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90L can be configured with a fully redundant power module and long runtime external batteries. Should one module fail, the remaining modules smoothly take over the load. Because the power modules are independent, they can be hot swapped without risk to the critical load.
As power requirements change, M90L modularity makes it easy to add modules and increase capacity.

Product Snapshot

  • Six capacities: 15kVA/13.5kW, 20kVA/18kW, 30kVA/27kW, 40kVA/36kW, 45kVA/40.5kW, 60kVA/54kW
  • Modular for capacity or redundancy
  • Hot swappable power modules
  • Up to 98% ECO mode or 94% online efficiency
  • Remote control and monitoring options
  • 2 year electronics, 2 year battery warranty (USA and Canada)

The M90L is ENERGY STAR certified.

Energy Star Certified M90 can be a vital piece of equipment if the end user is pursuing Leadership in Energy and Environmental Design (LEED), Green Globes, or the U.S. Guiding Principles for High Performance and Sustainable Buildings, ENERGY STAR certification will ensure your building uses less energy and leaves a smaller carbon footprint M90 & M90L provide best-in-class energy efficiency, lowest energy consumption and heat output. ENERGY STAR is a U.S. Environmental Protection Agency (EPA) voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency. More than a mark of energy efficiency.

You can view the M90L in ENERGY STAR’s listing here

MODEL NUMBER M90L-15 M90L-20 M90L-30 M90L-40 M90L-45 M90L-60
INPUT Capacity 15kVA (13.5kW) 20kVA (18kW) 30kVA (27kW) 40kVA (36kW) 45kVA (40.5kW) 60kVA (54kW)
Nominal 208/120V 50/60Hz auto sensing
Range 121-253VAC*(L-L) 40-70Hz
OUTPUT Voltage 208/120VAC
Frequency 50/60 ± 0.05Hz
THD (full load) 0.9
Voltage regulation <2%
Efficiency 98% ECO mode, ≥ 92% online mode
Overload capacity 105%-110% for 60 min;110%-125% for 10min; 126%-150% for 1min; <150% for 200ms
PHYSICAL Enclosure 20.3"W x 39.4"D x 30"H / 227 lbs

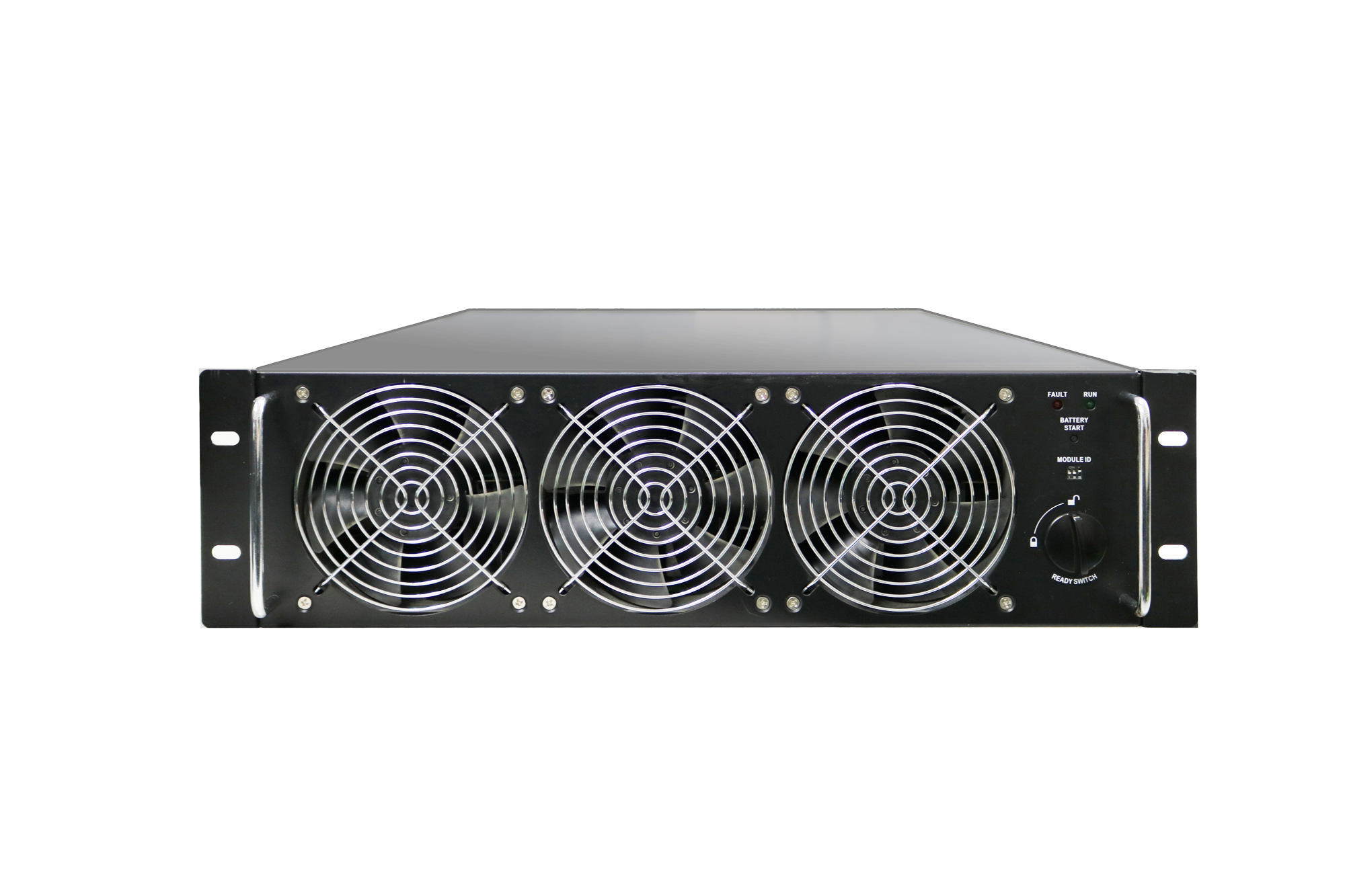

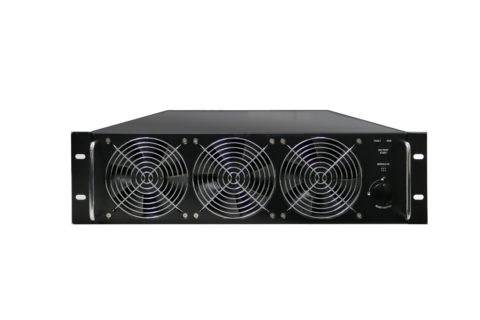

Power module 19.0”W x 28.0”D x 5.1”H / 74 lbs
ENVIRONMENT Temperature 0–40°C (32–104°F)
Altitude 5,200 ft above sea level
Audible noise < 65dBA at 1m
APPROVALS UL-1778 (TUV), cUL, FCC A, RoHS
WARRANTY 2 years (USA and Canada)
COMMUNICATIONS INTERFACE RS-232, EPO, intelligent slot for optional cards (Web/SNMP, Relay, Modbus)
INCLUDED IN BOX User Manual, RS-232 cable, Ramp for unloading UPS enclosure
AVAILABLE OPTIONS External maintenance bypass, 480V input transformer, output distribution, external battery pack battery, battery temperature sensor
  1. Connectivity
    Model Description Unit Weight Unit Dimensions
    SNMP-2P3 Internal Web/SNMP Card 1 lb 7.25″ x 6″ x 2.5
    SNMP-EMD Internal Web/SNMP Card 1 lb 7.25″ x 6″ x 2.5
  2. Skirt Kit
    Model Description Unit Weight Unit Dimensions
    T90-WMB Skirt Kit for M90 frame 5 lbs 4.0”-8.0” x 7.0” x 8.0″
